DTC P0CED
DTC P0CED: PCU Electric Coolant Pump Enable Circuit
General Description

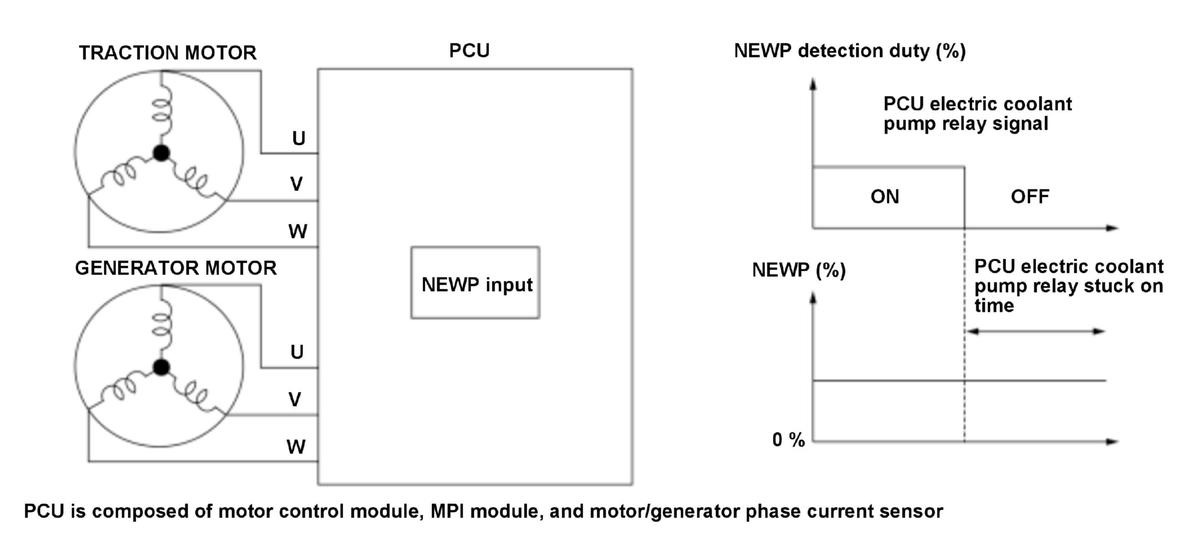

The power control unit (PCU) controls the PCU electric coolant pump according to the rotational speed of the PCU electric coolant pump calculated from the frequency (duty fixed to 50 %) detected from the NEWP terminal. If, an OFF signal is output from the PCU electric coolant pump relay, a frequency (duty) is detected from the NEWP terminal for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | PCU electric coolant pump relay is OFF condition |
| Sequence | None |
| Duration | 1.6 seconds or more |
| DTC Type | Two drive cycles, MIL off, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Elapsed time after the PCU electric coolant pump relay OFF commanded | 2 seconds | - |
| 12 volt battery voltage | 10 V | - |
Malfunction Threshold
If the NEWP frequency is more than 2.5 Hz for at least 1.6 seconds when the PCU electric coolant pump relay is turned off.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCU electric coolant pump relay failure
- PCU electric coolant pump failure
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the motor control module memory. If the malfunction returns in the next (second) drive cycle, the POWER SYSTEM indicator comes on and a Confirmed DTC and the freeze data are stored. The MIL does not come on.
Conditions for clearing the DTC
The POWER SYSTEM indicator is cleared if the malfunction does not return in the next trip in which the diagnostic runs. The POWER SYSTEM indicator, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
