DTC P0A73
DTC P0A73: Generator Motor Phase V Current Low
General Description

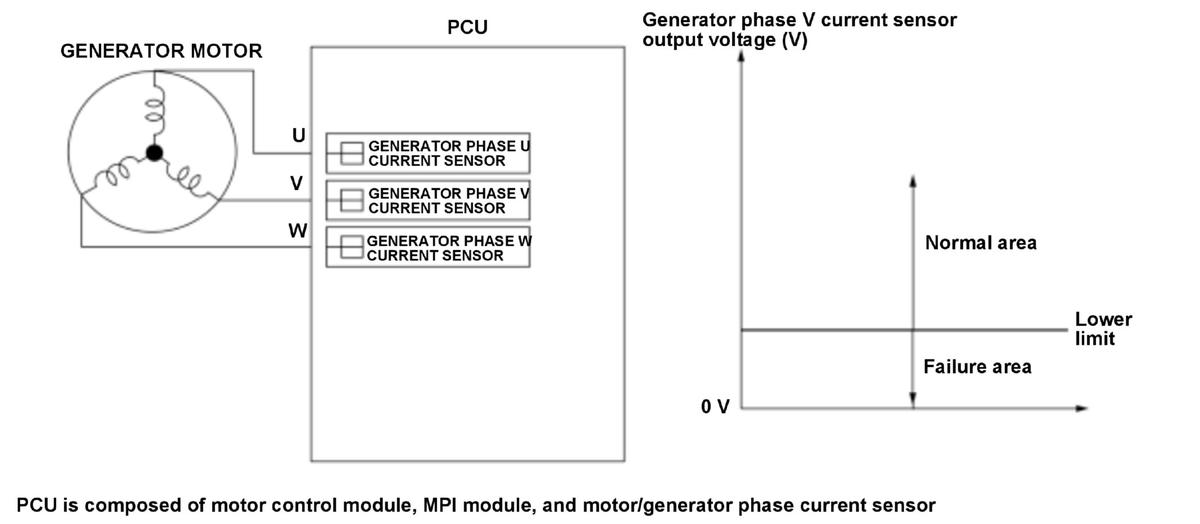

The power control unit (PCU) controls the generator motor output based on the generator phase current sensor signals. When the generator phase V current sensor output voltage is a specified voltage for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 290 milliseconds or more |
| DTC Type | Two drive cycles, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage | 8 V | - |
Malfunction Threshold
The generator phase V current sensor output voltage is less than 0.14 V for at least 290 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the motor control module memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
