DTC P062F (Generator Motor Control Module)
DTC P062F: Generator Motor Control Module EEPROM Error
General Description

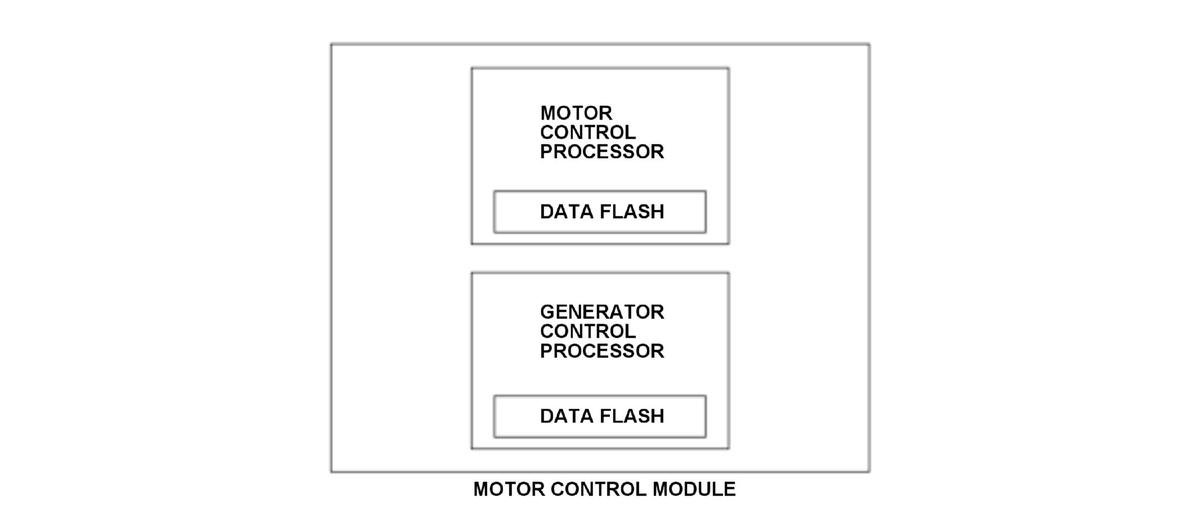

The generator control processor in the motor control module store control data to the data flash in the generator control processor. The generator control processor compares the input data and read data of the data flash. When the data does not match, a malfunction is detected and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | - |
| DTC Type | One drive cycle, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
Malfunction Threshold
The motor control module fails to input to or read out from the data flash 3 times or more.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Motor control module internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
