DTC P0562 (Motor Control Module)
DTC P0562: Traction Motor Control Module System Voltage Low
General Description

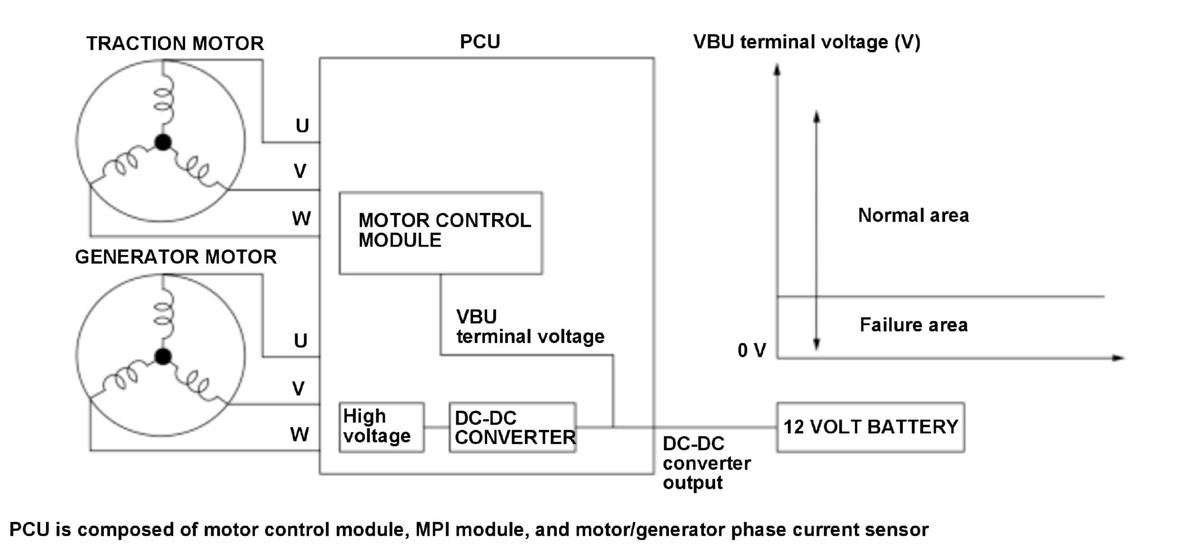

The power control unit (PCU) controls the voltage at which to charge a 12 volt battery according to the input from the VBU terminal voltage. If the VBU terminal voltage is out of a specified value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 5.5 seconds or more |
| DTC Type | One drive cycle, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| IGA voltage | 10 V | - |
| Vehicle | ON mode | |
Malfunction Threshold
The VBU terminal voltage of the motor control module is less than 3.0 V for at least 5.5 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- This DTC is stored at the same time when DTC P0AE1, P0DA8 or P1D65 is detected.
- DC-DC converter internal circuit failure
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
