DTC P0710 (327)

DTC P0710  : Transmission Fluid Temperature Sensor Circuit Range/Performance

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (Electric Powertrain)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode, and wait for about 6 hours.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0710 Transmission Fluid Temperature Sensor Circuit Range/Performance

   Is DTC P0710 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure. The system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Transmission fluid temperature sensor check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the transmission fluid temperature sensor , but leave it connected.

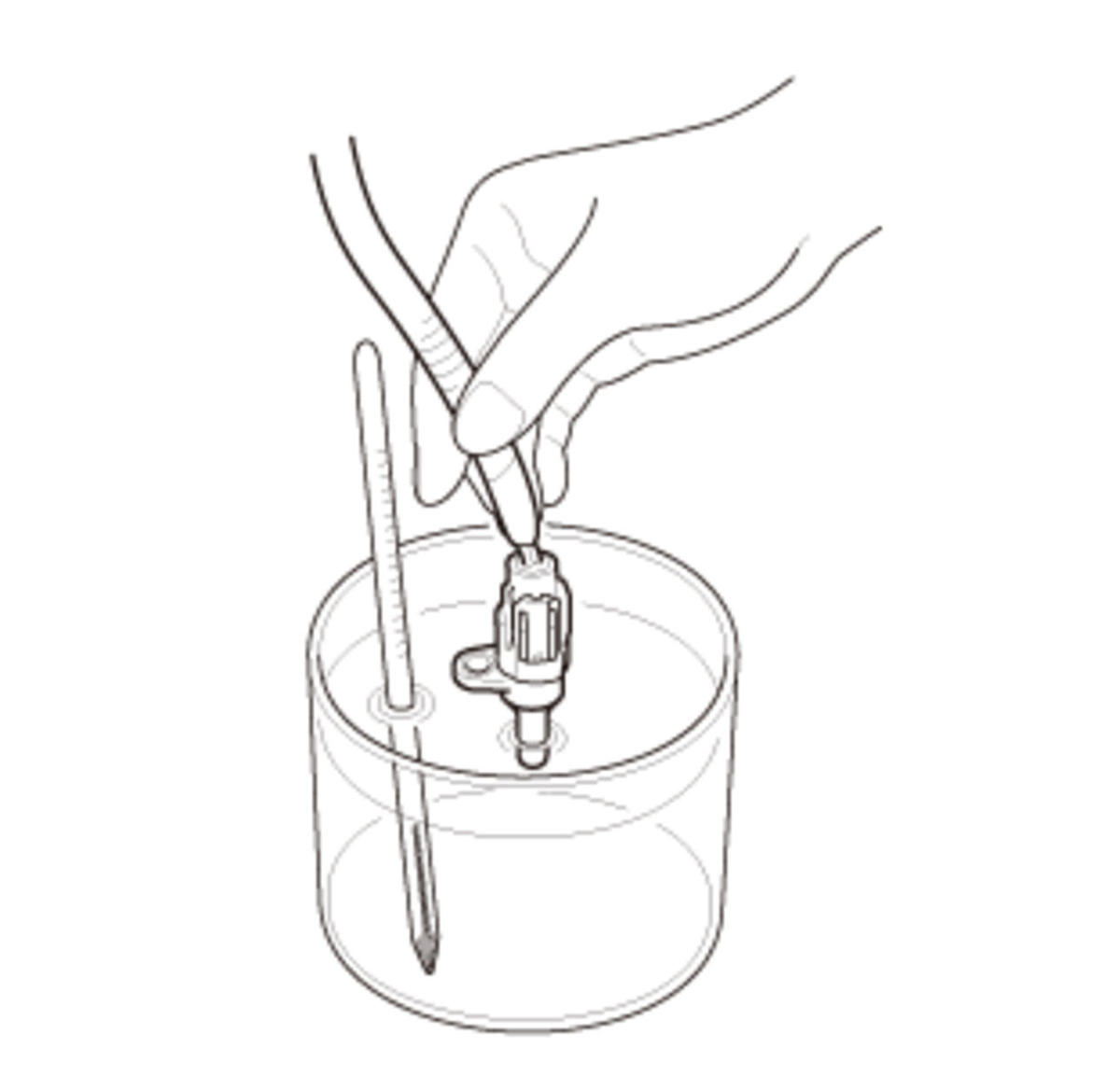

   -3. Submerge the sensor and a thermometer in a container of water.

   Courtesy of HONDA, U.S.A., INC.

   -4. Turn the vehicle to the ON mode.

   -5. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   ATF Temperature (TRC)

   Does the live data for the transmission fluid temperature sensor match the temperature reading from the thermometer?

   YES

   Replace the transmission (e-CVT) assembly .

   NO

   Replace the transmission fluid temperature sensor .
