DTC P0562 (94) (Traction Motor Control Module)

DTC P0562  : Traction Motor Control Module System Voltage Low

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• If any of the DTCs listed below are indicated at the same time as DTC P0562 troubleshoot those DTCs first, then recheck for P0562
• • P0AE1, P0DA8, P1D65

DTC (Electric Powertrain)

1. Battery power cable check

   -1. Turn the vehicle to the OFF (LOCK) mode.

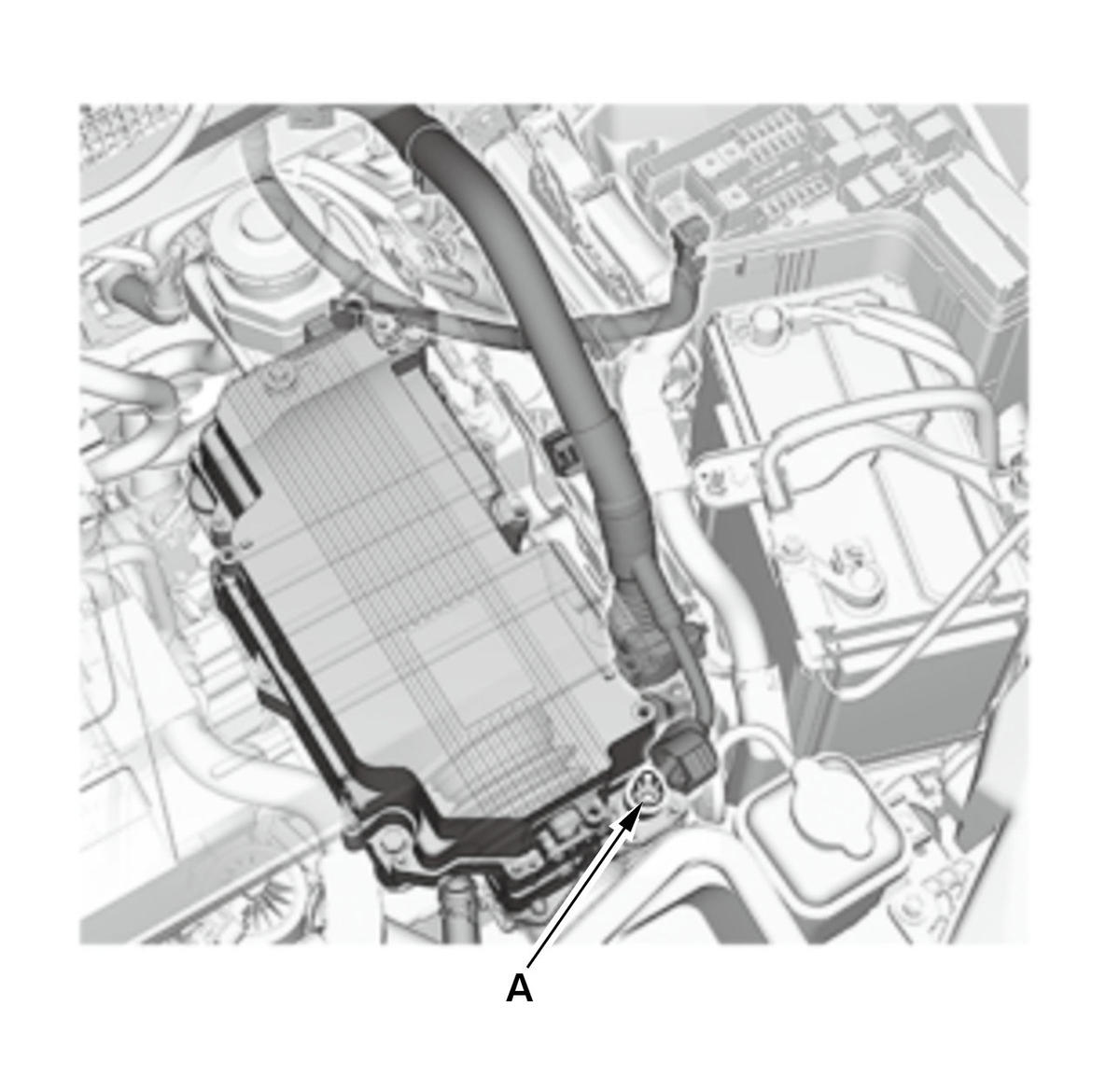

   -2. Check the +B terminal (A) at the PCU.

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 2.

   NO

   Replace the battery power cable .

2. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0562 Traction Motor Control Module System Voltage Low

   Is DTC P0562 indicated?

   YES

   Replace the PCU .

   NO

   Intermittent failure. The system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
