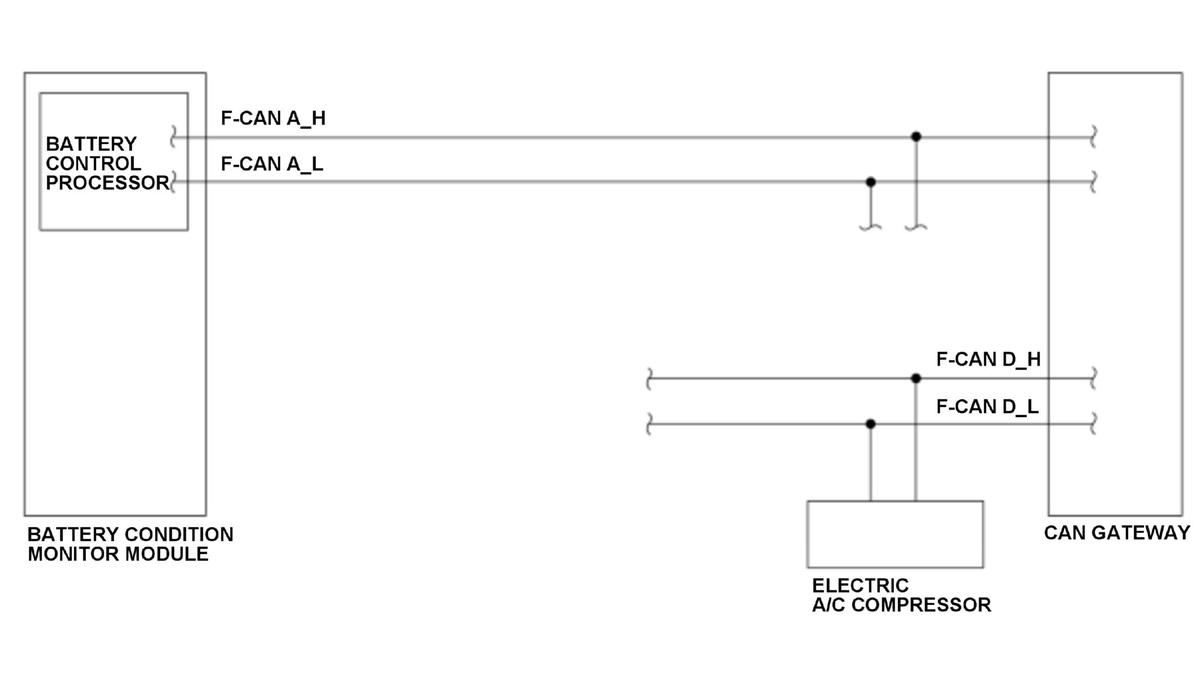

DTC U1207: F-CAN Malfunction (Battery Condition Monitor Module - Electric A/C Compressor)

General Description

Courtesy of HONDA, U.S.A., INC.

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (H line and L line). When the battery condition monitor module cannot receive the signals from the electric A/C compressor via the F-CAN lines or the received data is abnormal for a specified time, a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	10 seconds or more
DTC Type	One drive cycle, MIL off, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator off

Enable Conditions

Condition	Minimum	Maximum
Elapsed time since the 12 volt battery voltage reaches to a specified value after the vehicle condition is turned to the ON mode	3 seconds	-
12 volt battery voltage	10.2 V	-

Malfunction Threshold

One of these conditions is met:

The battery condition monitor module cannot receive any signals from the electric A/C compressor via the F-CAN lines for at least 2.0 seconds.
The information sent from the electric A/C compressor is abnormal for at least 10 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

F-CAN circuit F-CAN A_H line open
F-CAN circuit F-CAN A_L line open
F-CAN circuit F-CAN A_H line short
F-CAN circuit F-CAN A_L line short
F-CAN circuit F-CAN D_H line open
F-CAN circuit F-CAN D_L line open
F-CAN circuit F-CAN D_H line short
F-CAN circuit F-CAN D_L line short
Electric A/C compressor failure
Battery condition monitor module failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the POWER SYSTEM indicator comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the battery condition monitor module memory. The MIL does not come on.

Conditions for clearing the DTC

The POWER SYSTEM indicator is cleared if the malfunction does not return in the next trip in which the diagnostic runs. The POWER SYSTEM indicator, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
