DTC P1DFF
DTC P1DFF: IGHLDB Relay Circuit
General Description

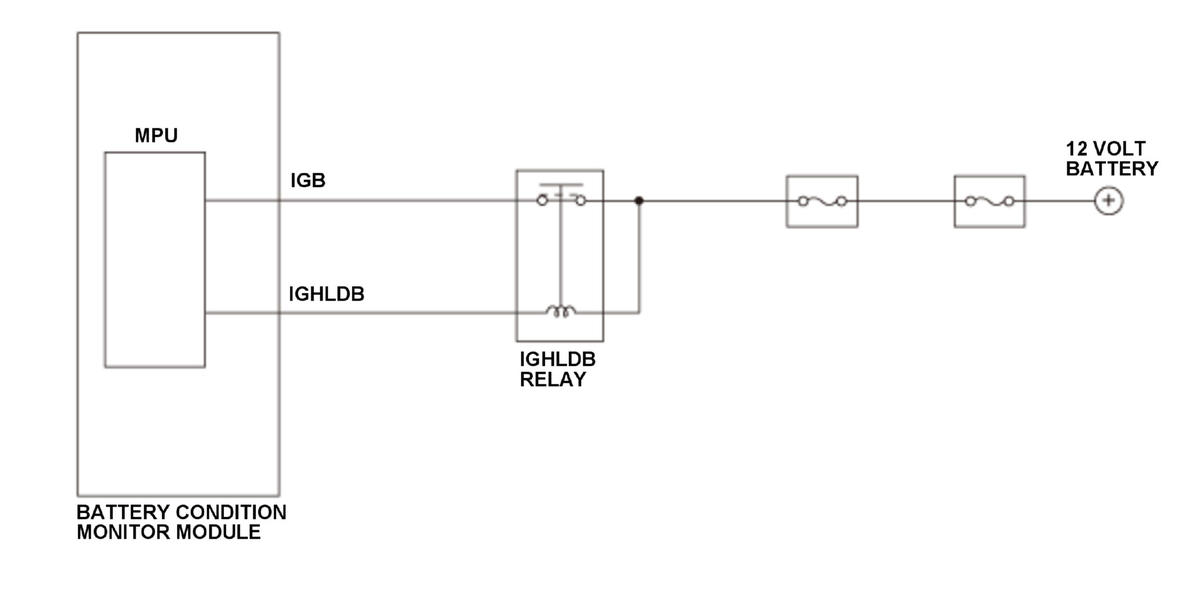

The battery condition monitor module commands IGHLDB relay to turn ON or permit it to turn OFF. Normally, when the IGHLDB relay is OFF, the MPU in the battery condition monitor module is in sleep mode. The MPU counts elapsed time since the battery condition monitor module commanded IGHLDB relay to turn OFF. When the MPU remain powered even when the battery condition monitor module commands IGHLDB relay to turn OFF for a specified duration, a malfunction is detected and a DTC is stored.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | After the vehicle is turned to the OFF (LOCK) mode for at least 150 seconds |
| Sequence | None |
| Duration | 5.0 seconds or more |
| DTC Type | One drive cycle, MIL off, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator off |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | OFF (LOCK) mode | |
Malfunction Threshold
The battery condition monitor module is not in sleep mode for at least 5.0 seconds after the battery condition monitor module sent the IGHLDB relay off signal for at least 135 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- IGHLDB relay IGHLDB line short to ground
- IGHLDB relay failure
- Battery condition monitor module internal circuit failure
Confirmation Procedure
Operating Condition
- Turn the vehicle to the ON mode.
- Turn the vehicle to the OFF (LOCK) mode, and leave the vehicle for at least 150 seconds.
- Turn the vehicle to the ON mode.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the POWER SYSTEM indicator comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the battery condition monitor module memory. The MIL does not come on.
Conditions for clearing the DTC
The POWER SYSTEM indicator is cleared if the malfunction does not return in the next trip in which the diagnostic runs. The POWER SYSTEM indicator, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
