DTC P1DFD
DTC P1DFD: Power System Indicator Lighting Request From PCM
General Description

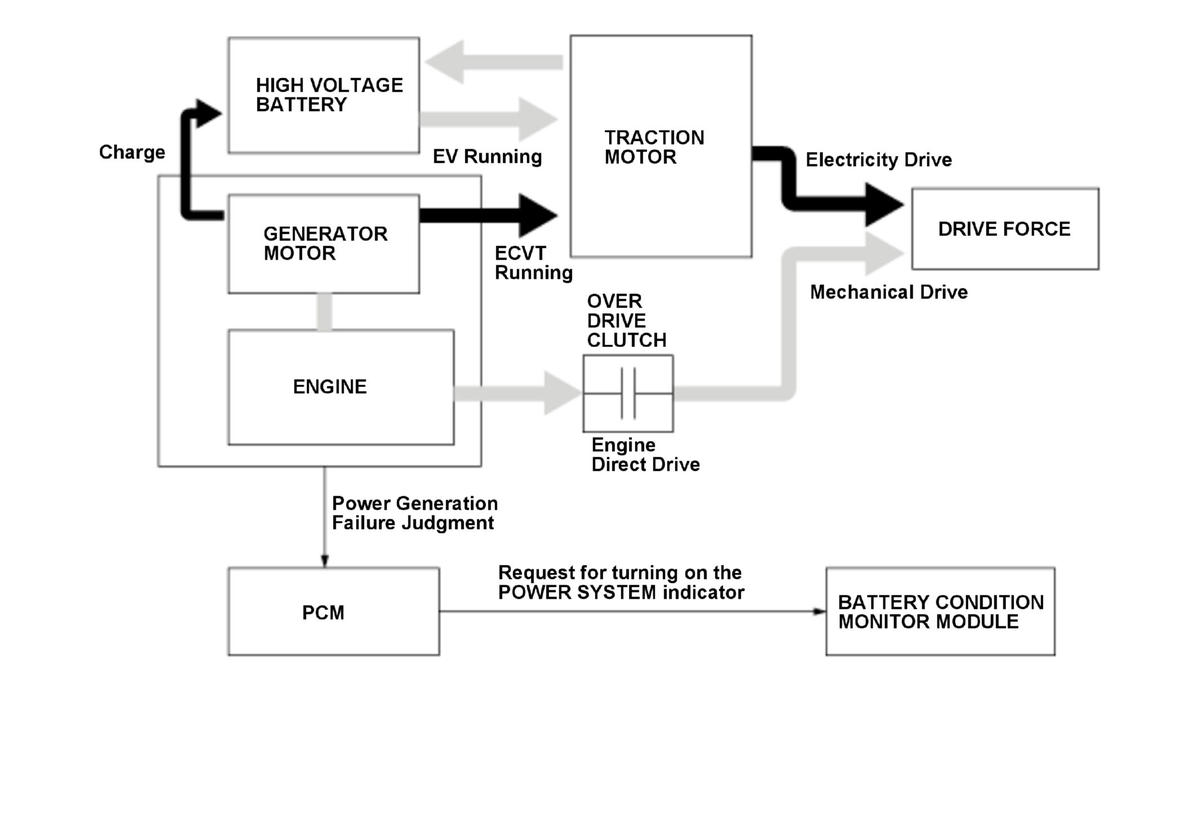

The powertrain control module (PCM) monitors the power generation state of the generator motor and requests the battery condition monitor module to illuminate the POWER SYSTEM indicator when there is an abnormality.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 3 seconds or more |
| DTC Type | One drive cycle, MIL off, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator off |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Motor control module power-supply voltage | 10.2 V | - |
| Vehicle | ON mode | |
Malfunction Threshold
When abnormality information is received from the generator motor for 3 seconds or more.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Out of fuel
- Poor fuel
- Misfire
Confirmation Procedure
Operating Condition
Enter the maintenance mode and wait for 3 seconds.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the battery condition monitor module memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or the battery condition monitor module reset.
