DTC P1D65
DTC P1D65: HV System Shutdown (Collision Detection Signal Detected)
General Description

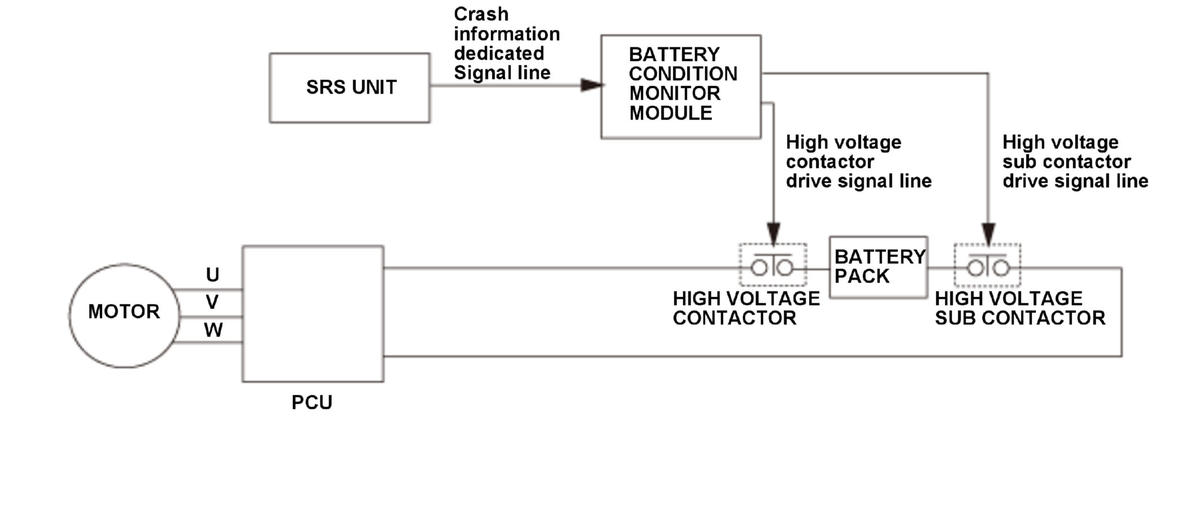

The electric powertrain system contains a system that shuts down the high voltage line when the vehicle crashes. The SRS unit sends vehicle crash information to the battery condition monitor module via a dedicated signal line when the SRS unit detects that the vehicle has crashed. When the battery condition monitor module keeps receiving vehicle crash information from the SRS unit for a set time, the battery condition monitor module judges that the crash shut down condition has been met, and shuts down the high voltage contactor and the high voltage sub contactor.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 240 milliseconds or more |
| DTC Type | One drive cycle, MIL off, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery condition monitor module power-supply voltage | 10.2 V | - |
| Vehicle | ON mode | |
Malfunction Threshold
The battery condition monitor module receives the vehicle crash information for at least 240 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Failure of the vehicle by the collision
- SRS unit internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the battery condition monitor module memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or the battery condition monitor module reset.
