DTC P16C3
DTC P16C3: DC-DC Converter Temperature Sensor Circuit
General Description

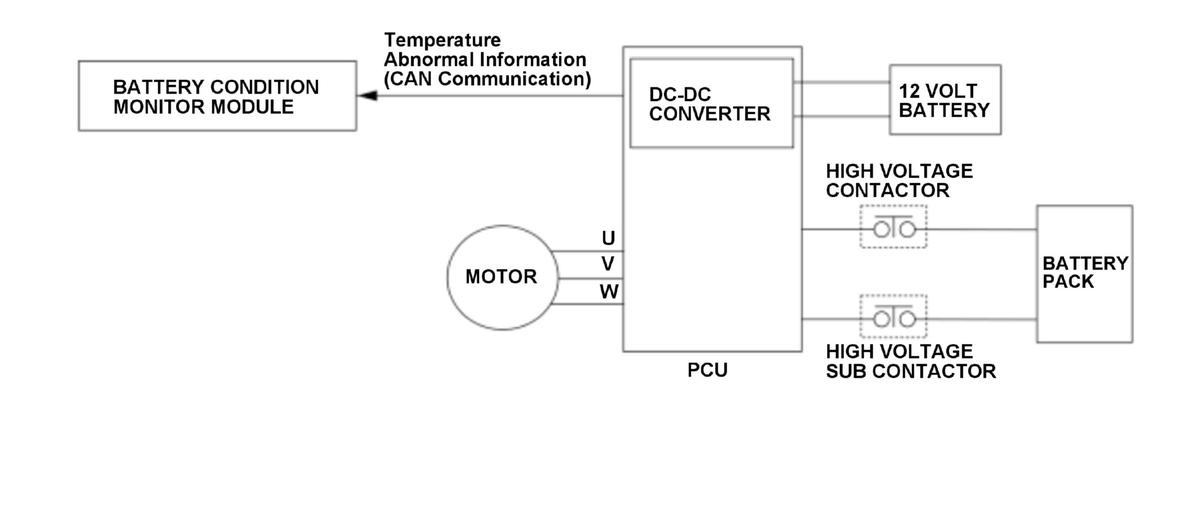

Temperature abnormalities are detected by the CPU in the DC-DC converter, and this information is sent to the battery condition monitor module via CAN communication. When the DC-DC converter temperature sensor abnormal information continues for a set time, the battery condition monitor module detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2 seconds or more |
| DTC Type | Two drive cycles, MIL off, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator off |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery condition monitor module power-supply voltage | 10.2 V | - |
| Vehicle | ON mode | |
Malfunction Threshold
The DC-DC converter temperature sensor abnormal information continues for at least 2 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Power control unit (PCU) internal circuit failure
Confirmation Procedure
Operating Condition
Turn the vehicle to the ON mode, and wait for at least 10 seconds.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the battery condition monitor module memory. If the malfunction returns in the next (second) drive cycle, a Confirmed DTC and the freeze data are stored. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or the battery condition monitor module reset.
