DTC P0DE6
DTC P0DE6: HV Battery Pack Voltage Low
General Description
If one of the following conditions occurs, the battery condition monitor module detects a malfunction and stores a DTC:
- Malfunction judgment 1
The voltage difference between the maximum cell voltage and the minimum cell voltage exceeds a specified voltage immediately after the vehicle condition is turned to the ON mode.
- Malfunction judgment 2
The voltage difference between the maximum cell voltage and the minimum cell voltage exceeds a specified voltage for a specified duration.
- Malfunction judgment 3
The individual cell voltage falls below a minimum voltage for a set duration.
- Malfunction judgment 4
The SOC variability occurs between the battery modules of the battery pack for a specified duration.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | -* 5 seconds or more**, **** 10 seconds or more*** |
| DTC Type | Two drive cycles, MIL on, POWER SYSTEM indicator on, 12 VOLT CHARGING SYSTEM indicator off |
*: Malfunction judgment 1
**: Malfunction judgment 2
***: Malfunction judgment 3
****: Malfunction judgment 4
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery pack temperature | 50 deg.F (10 deg.C) | - |
| Battery pack current | -3 A | 3 A |
| Vehicle | ON mode | |
Malfunction Threshold
One of the conditions is met:

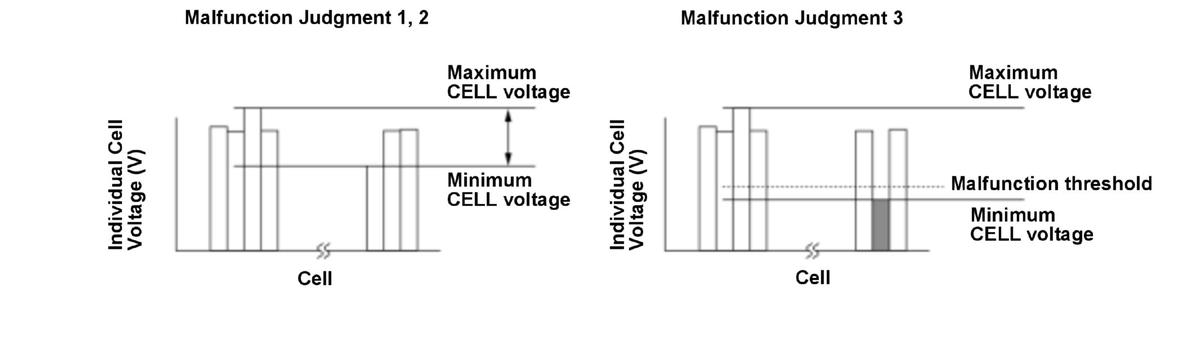

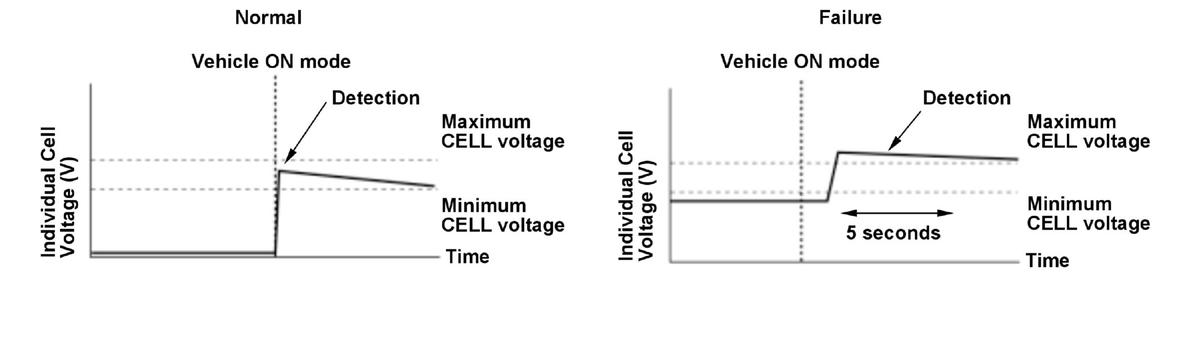

- Malfunction judgment 1
The voltage difference between the maximum cell voltage and the minimum cell voltage is more than 0.45 V immediately after the vehicle condition is turned to the ON mode.
- Malfunction judgment 2
The voltage difference between the maximum cell voltage and the minimum cell voltage is more than 0.75 V for at least 5 seconds.
- Malfunction judgment 3
The individual cell voltage is 1.5 V or less for at least 10 seconds.

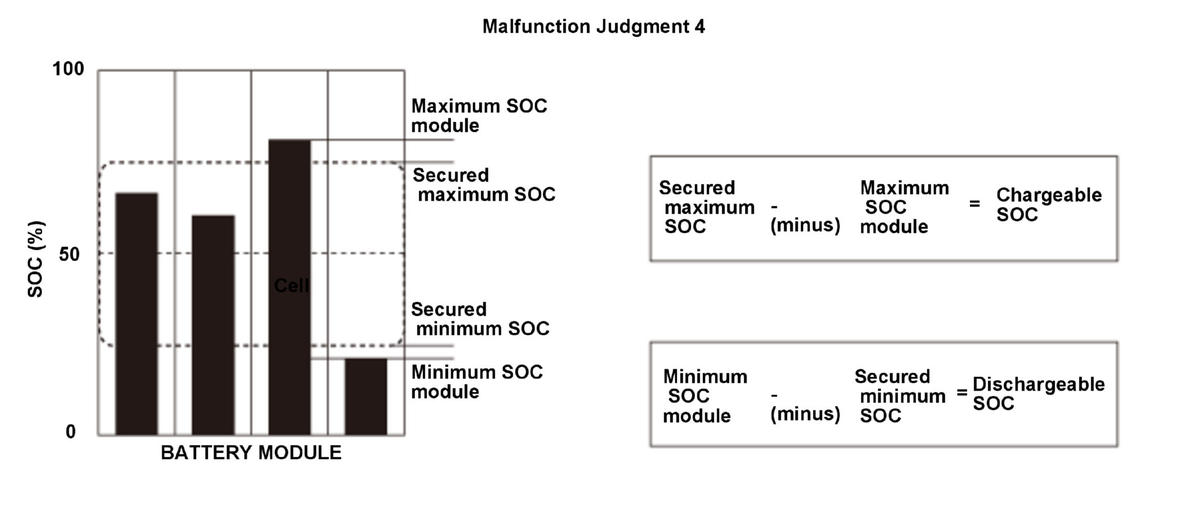

- Malfunction judgment 4
There is a battery module that the chargeable SOC is less than 0 %, and a battery module that the dischargeable SOC is less than 0 %. These conditions continue for at least 5 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

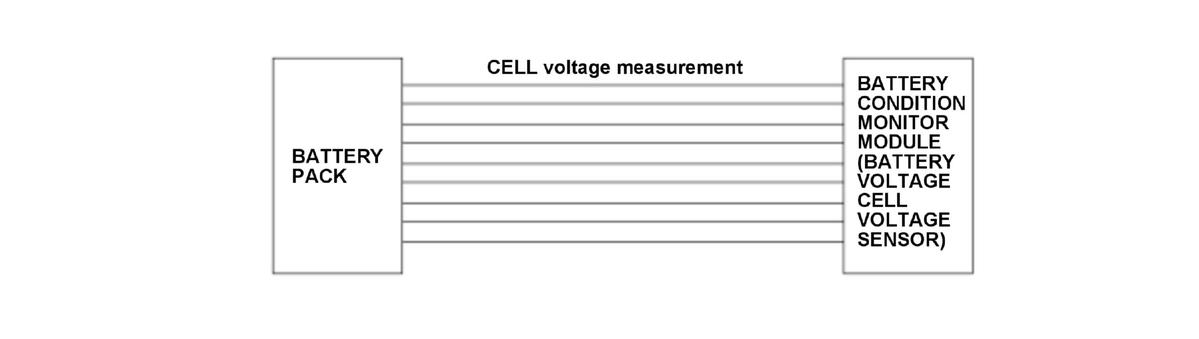

- Battery pack internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the battery condition monitor module memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or the battery condition monitor module reset.
