DTC P0D32 (Battery Condition Monitor Module)
DTC P0D32: DC-DC Converter Over Temperature (Battery Condition Monitor Module Detected)
General Description

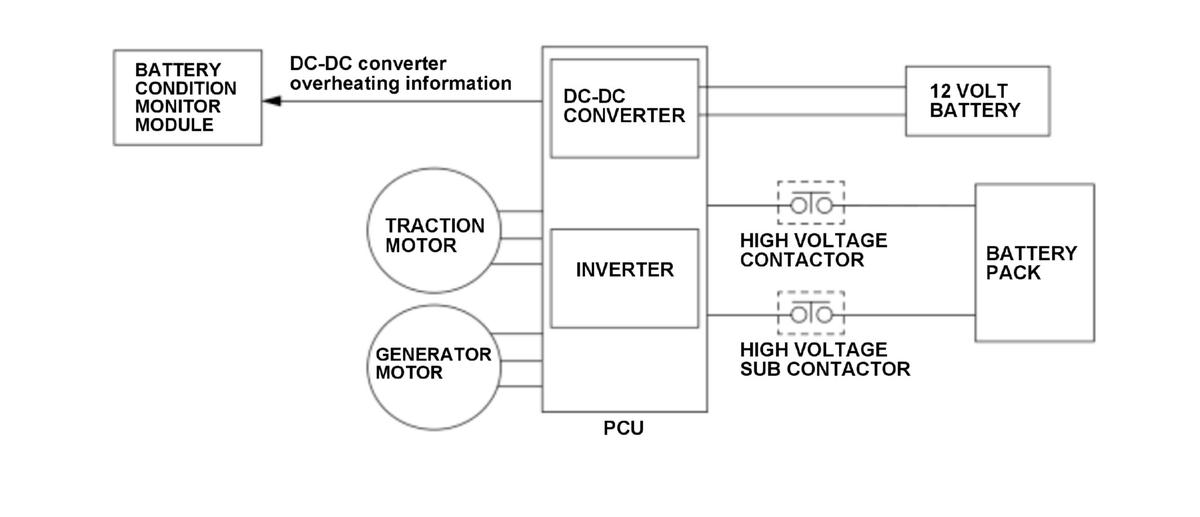

The DC-DC converter stops output if the DC-DC converter temperature exceeds a specified temperature for overheat protection. When the battery condition monitor module receives information of DC-DC converter stop due to overheat from the DC-DC converter for a specified duration, the battery condition monitor module detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2 seconds or more |
| DTC Type | One drive cycle, MIL off, POWER SYSTEM indicator off, 12 VOLT CHARGING SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery condition monitor module power-supply voltage | 10.2 V | - |
| Vehicle | ON mode | |
Malfunction Threshold
The battery condition monitor module receives information of DC-DC converter stop due to overheat from the DC-DC converter for at least 2 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Electric motor control module coolant pump line open
- Radiator fan control (RFC) unit line open
- Water pipe leak
- Water pipe clogged
- Electric motor control module coolant pump failure
- Power control unit (PCU) internal circuit failure
- RFC unit failure
- Battery condition monitor module internal circuit failure
Confirmation Procedure
Operating condition
Turn the vehicle to READY TO DRIVE mode, and wait 750 seconds under these conditions.
- Headlights on high beam
- Hazard warning lights on
- Blower fan at maximum speed
- Rear window defogger on
- Seat heater on, max hot
- A/C switch ON, heater on, max hot
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the battery condition monitor module memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or the battery condition monitor module reset.
