Front Damper/Spring Disassembly, Reassembly, and Inspection: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

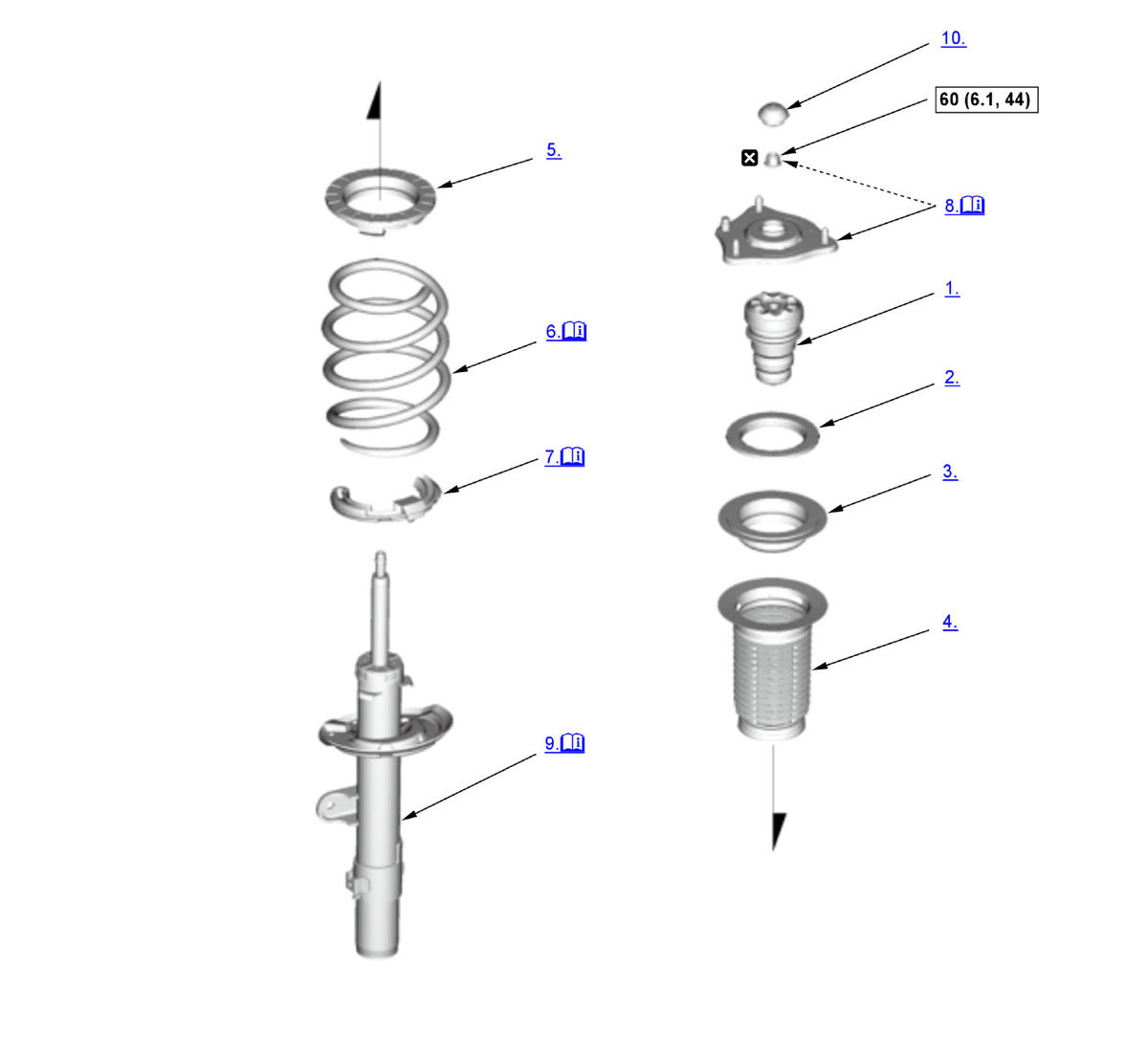

Fig 1: Exploded View Of Front Damper/Spring Reassembly Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Bump Stop - Install
Damper Mounting Bearing - Install
Upper Spring Seat - Install
Dust Cover - Install
Upper Spring Seat Rubber - Install

Damper Spring - Install

Courtesy of HONDA, U.S.A., INC.

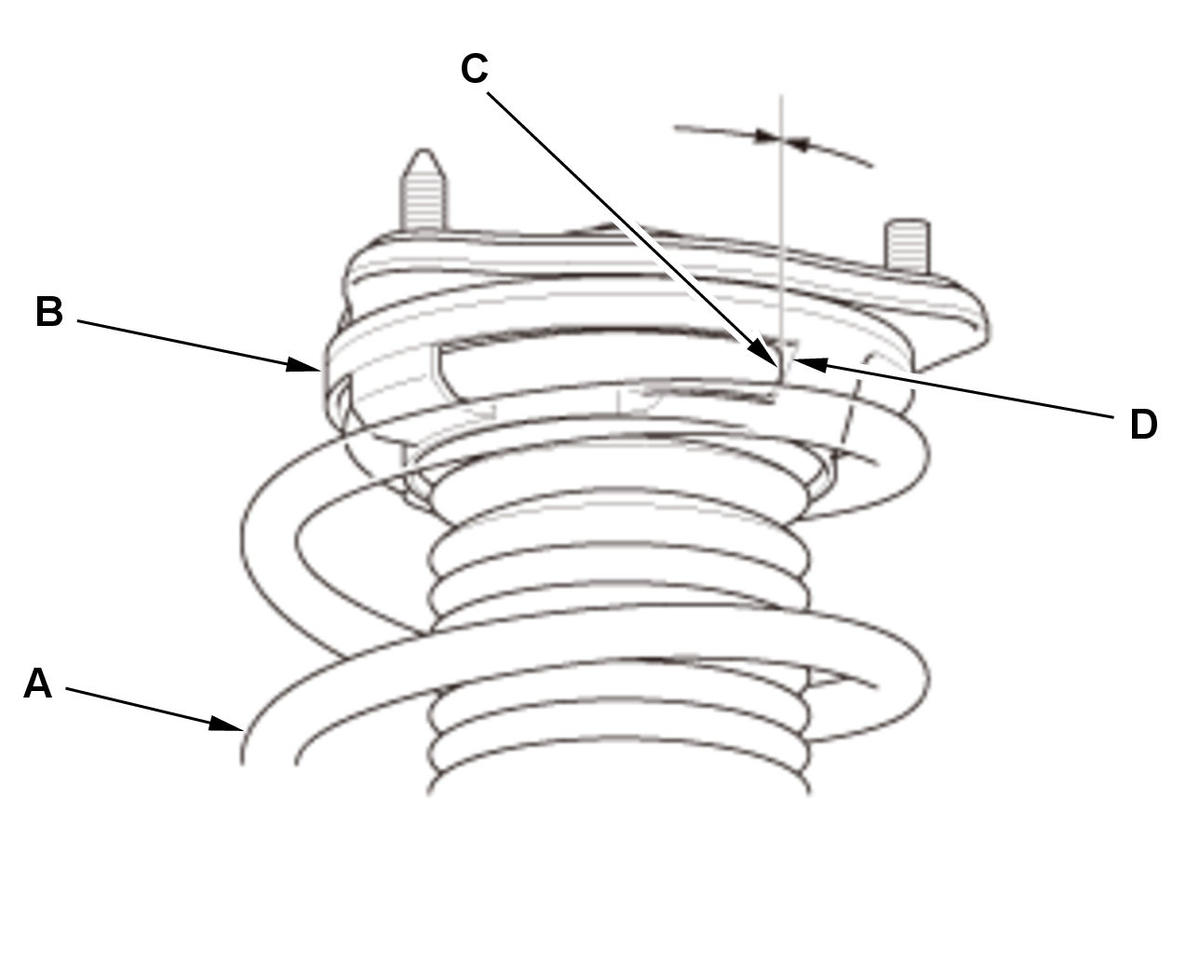

1. Install the damper spring (A) on the upper spring seat rubber (B) by aligning the upper end (C) of the damper spring with the ledge portion (D) of the upper spring seat rubber.

Lower Spring Seat Rubber - Remove

Courtesy of HONDA, U.S.A., INC.

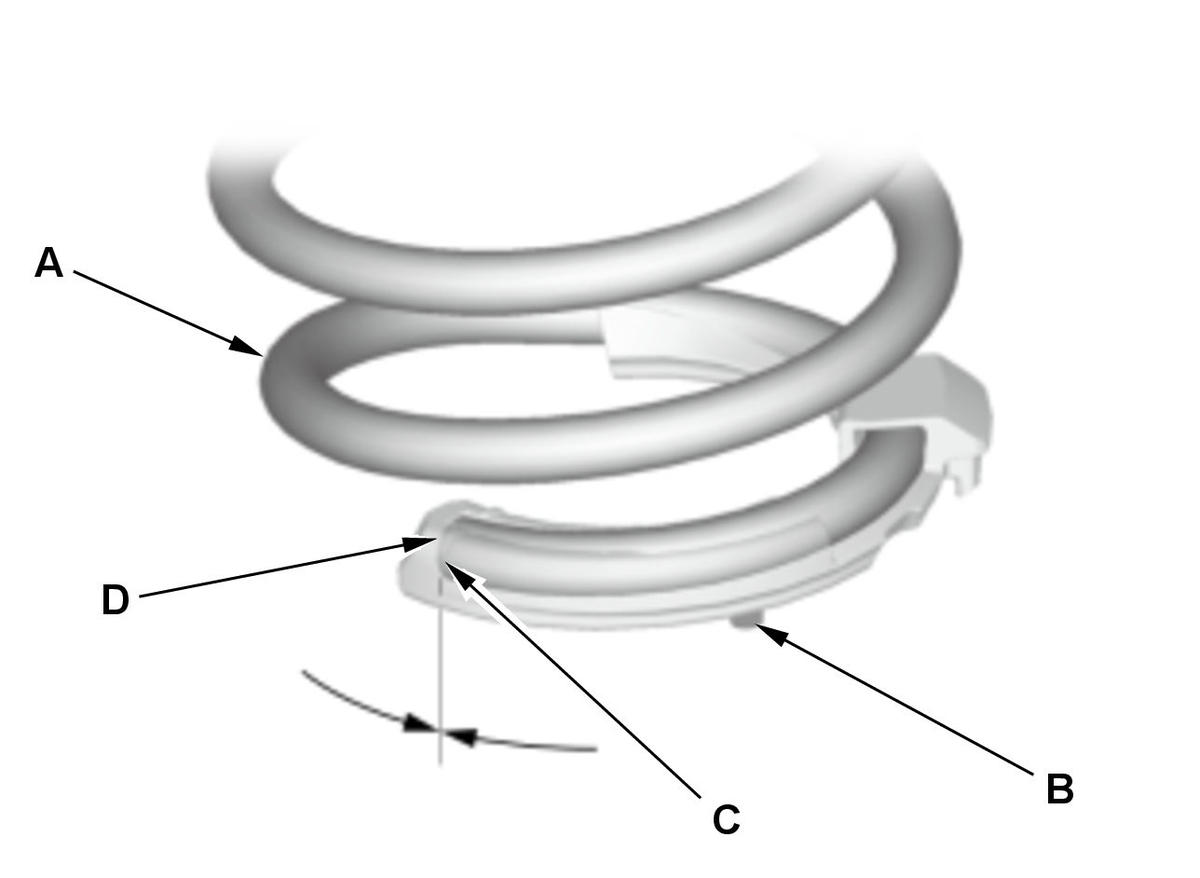

1. Install the damper spring (A) on the lower spring seat rubber (B) by aligning the upper end (C) of the damper spring with the ledge portion (D) of the lower spring seat.

Damper Mounting Base - Set

Courtesy of HONDA, U.S.A., INC.

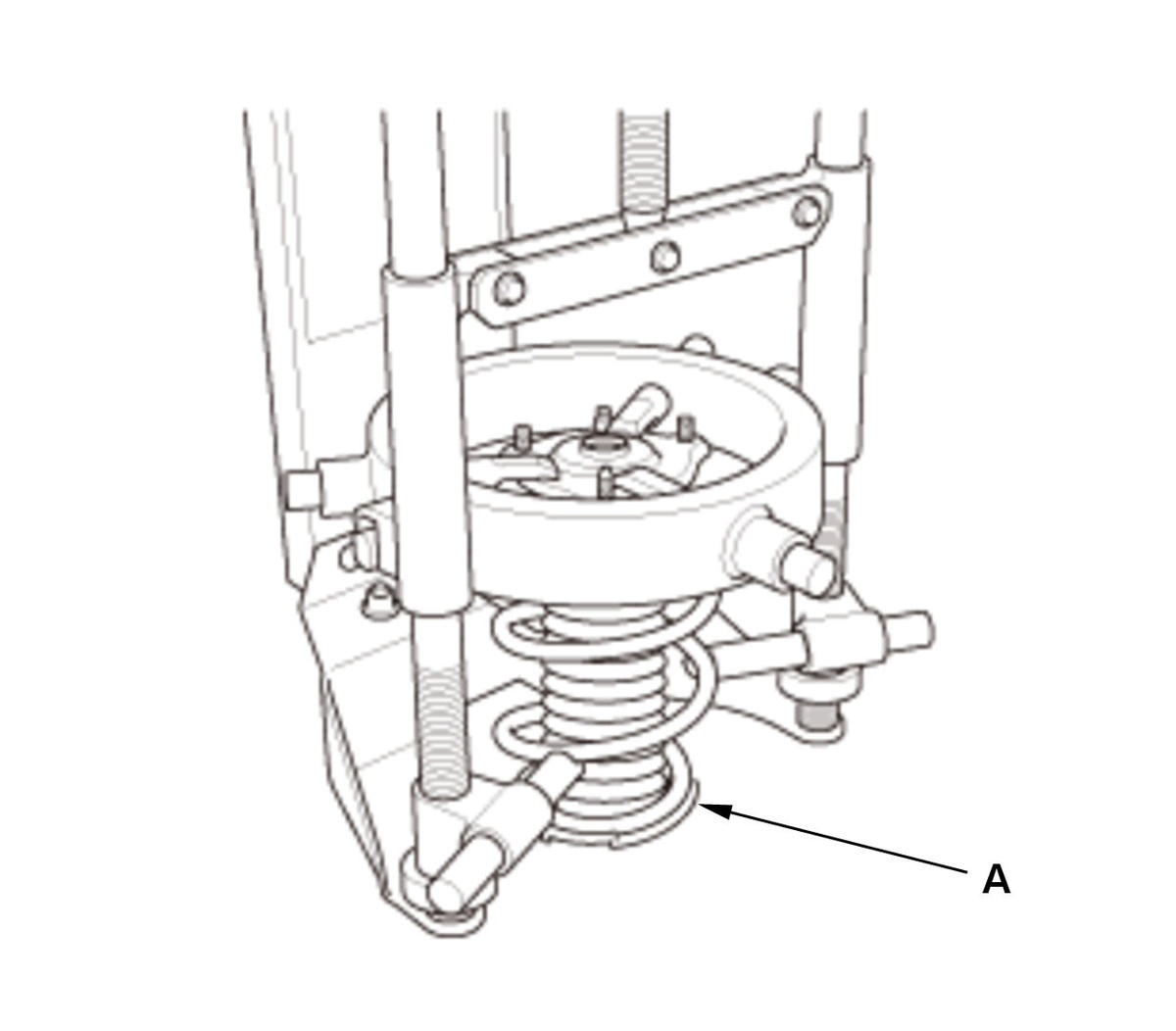

1. Set the damper mounting base/damper spring (A) to the strut spring compressor.

2. Compress the damper spring.

NOTE: Do not compress the spring excessively.

Damper Unit - Install

Courtesy of HONDA, U.S.A., INC.

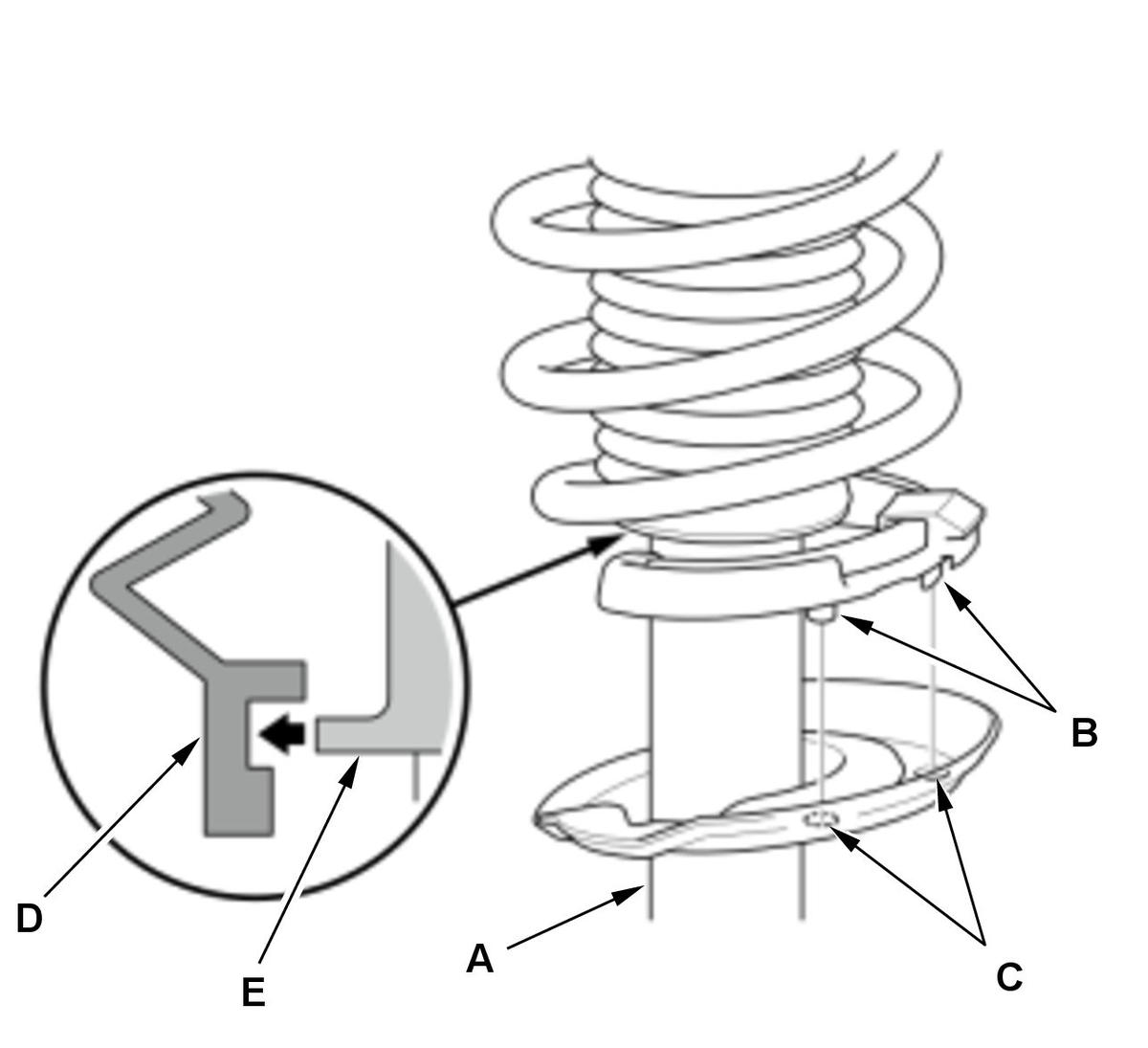

1. Install the damper unit (A) to the damper spring/damper mounting base.

2. Align the raised portions (B) of the lower spring seat rubber and the holes (C) of the lower spring seat on the damper unit.

NOTE: After reassembling the damper/spring, make sure that the dust cover (D) are properly positioned into the raised portion (E) of the damper unit.

Left side

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right side

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

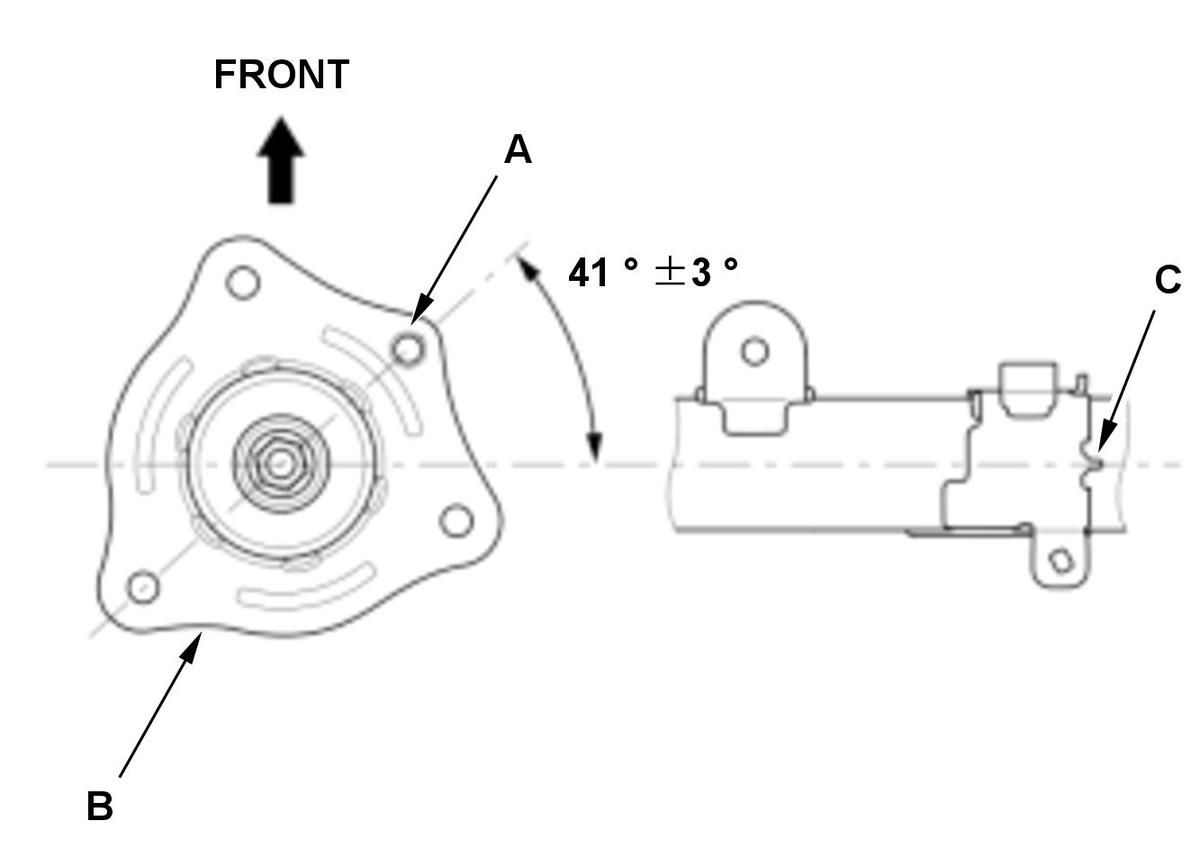

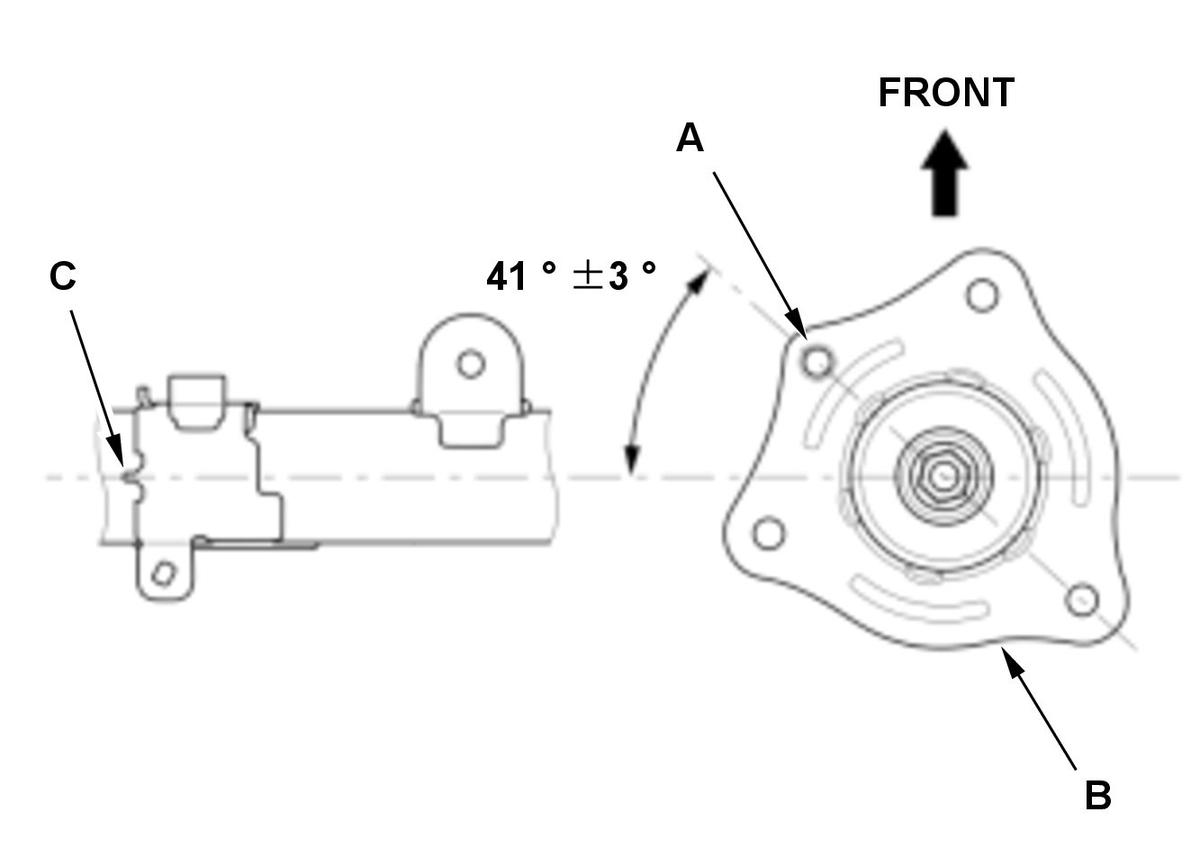

3. Align the angle of the stud (A) on the damper mounting base (B) with the aligning tab (C) on the bottom of the damper unit as shown.

Courtesy of HONDA, U.S.A., INC.

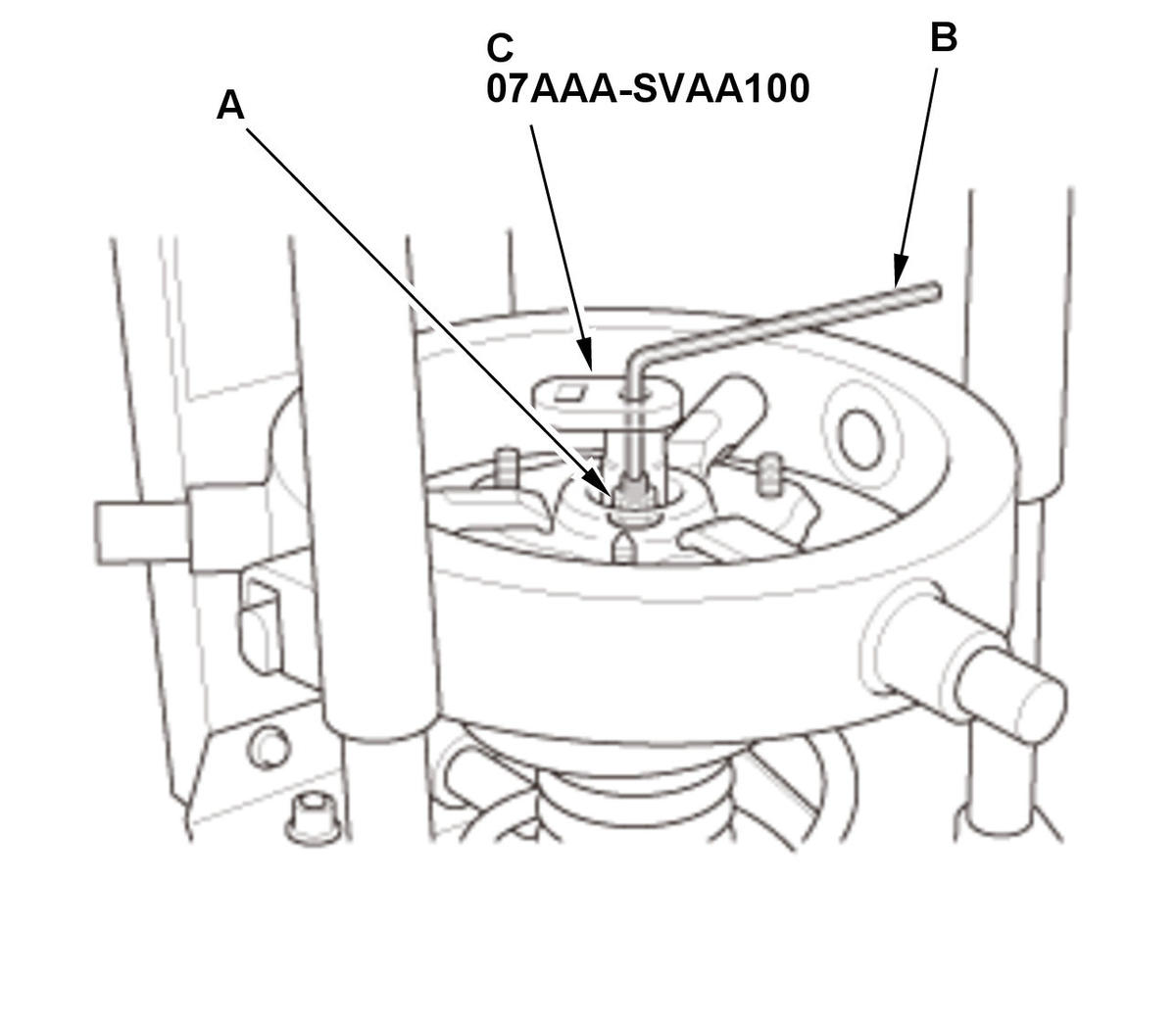

4. Install the self-locking nut (A).

5. Hold the damper shaft using a hex wrench (B), and tighten the self-locking nut using the strut nut adapter (C) to the specified torque.

6. Remove the damper/spring from the strut spring compressor.

Damper Cap - Install
