Front and Rear Suspension Component Location Index

WARNING: This page is about a different variant/trim than selected.

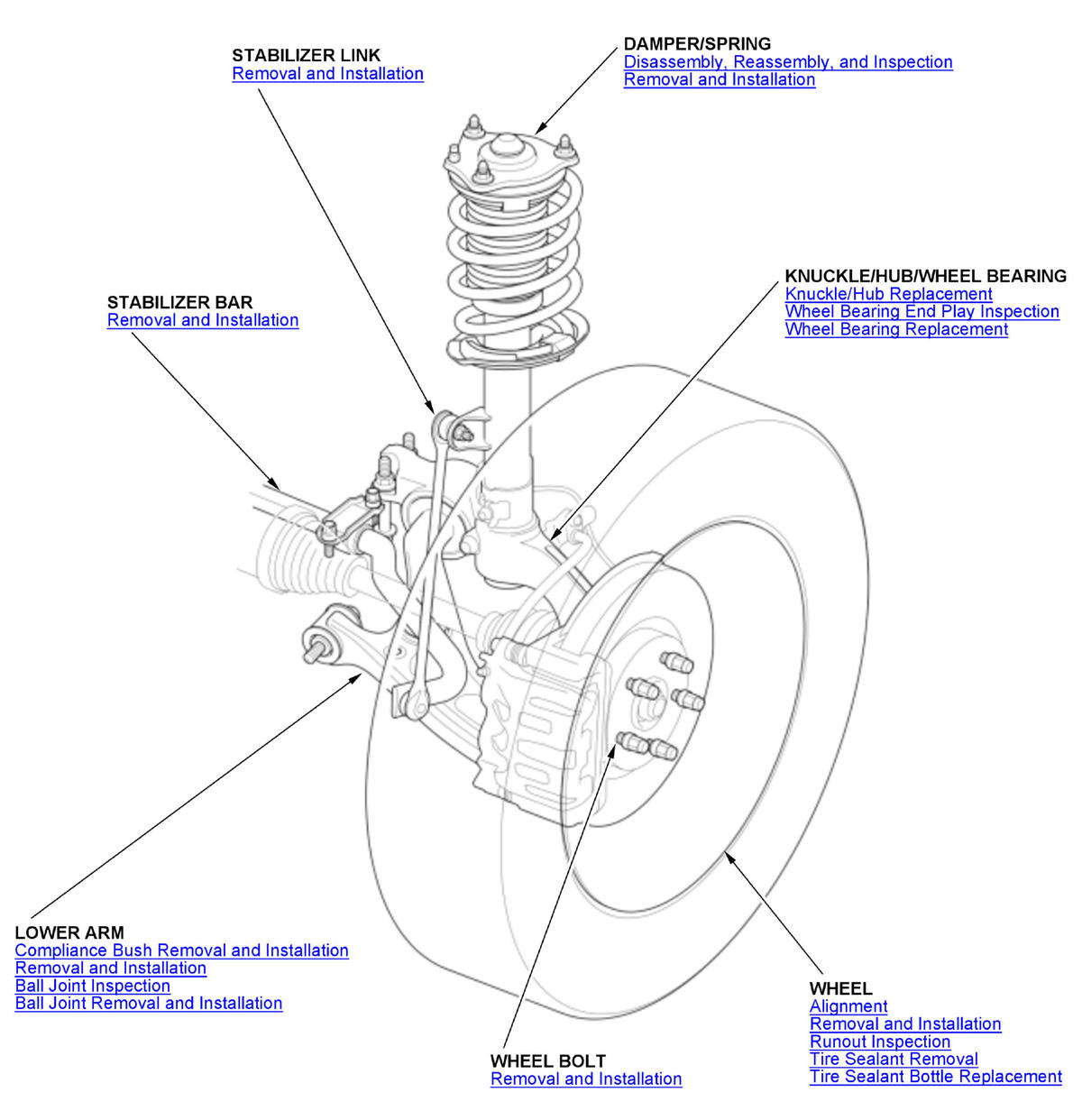

Front Suspension

GHH381587Courtesy of HONDA, U.S.A., INC.

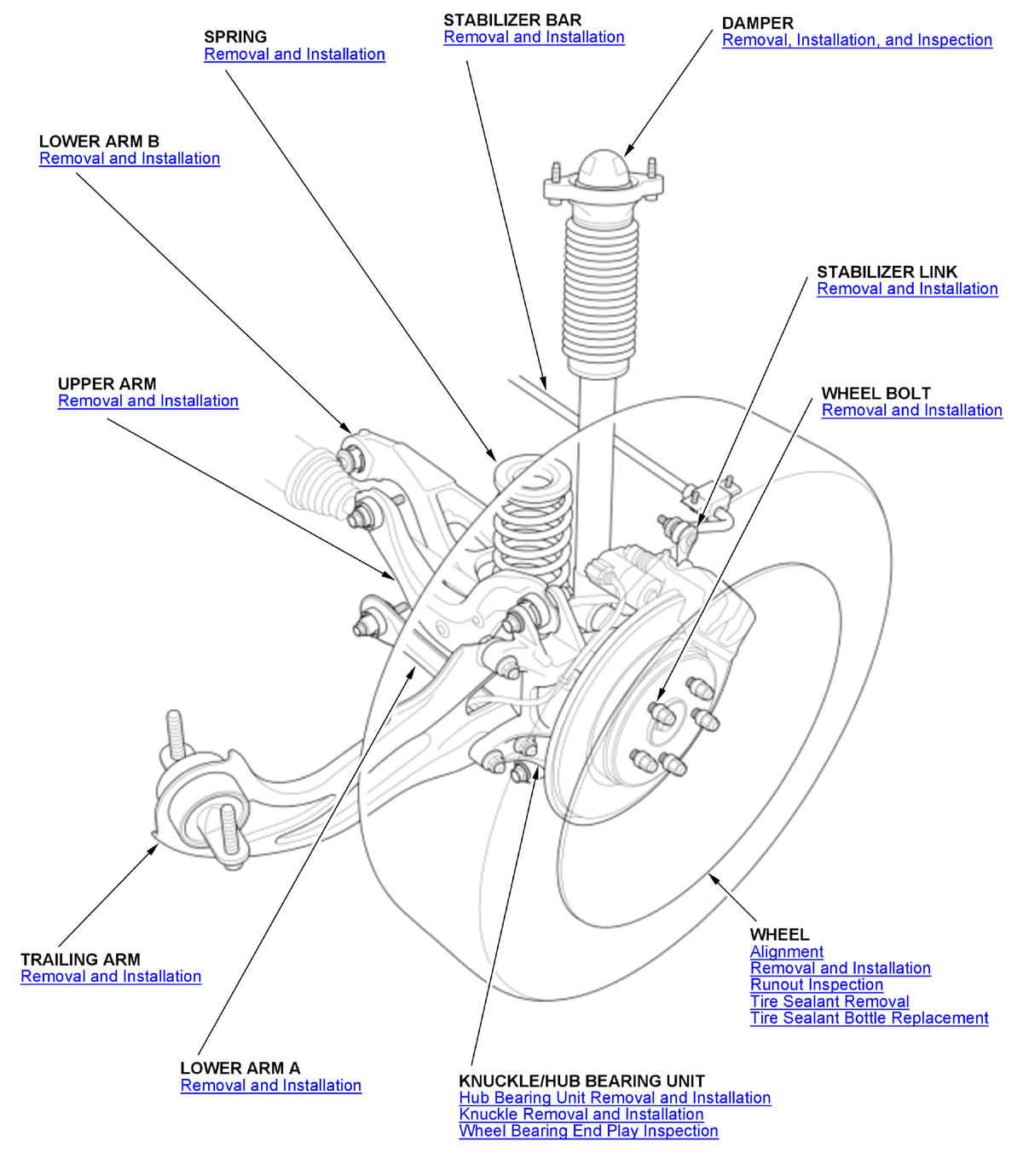

Rear Suspension

GHH381588Courtesy of HONDA, U.S.A., INC.
