Exploded View: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

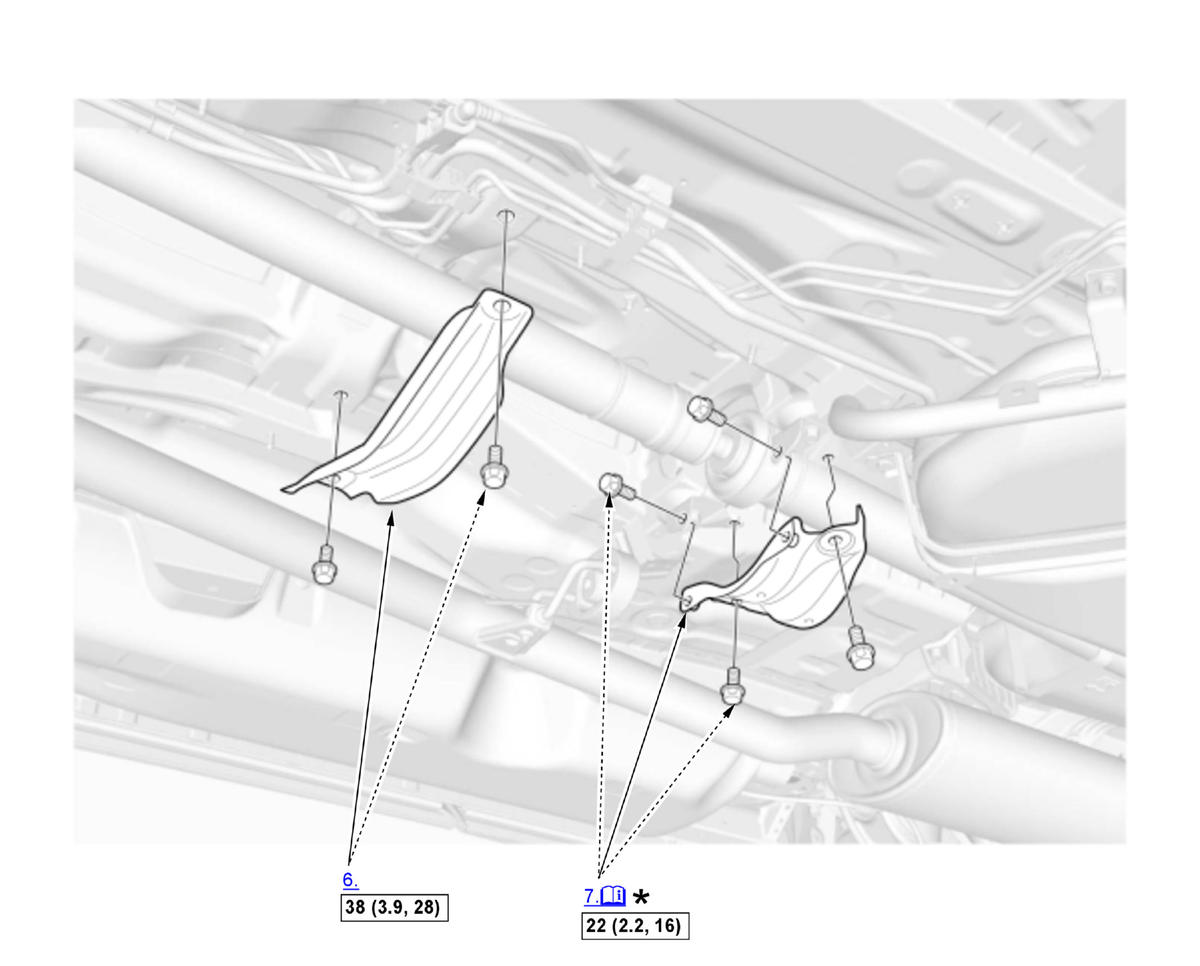

Fig 1: Frame Components With Torque Specifications (1 Of 5)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

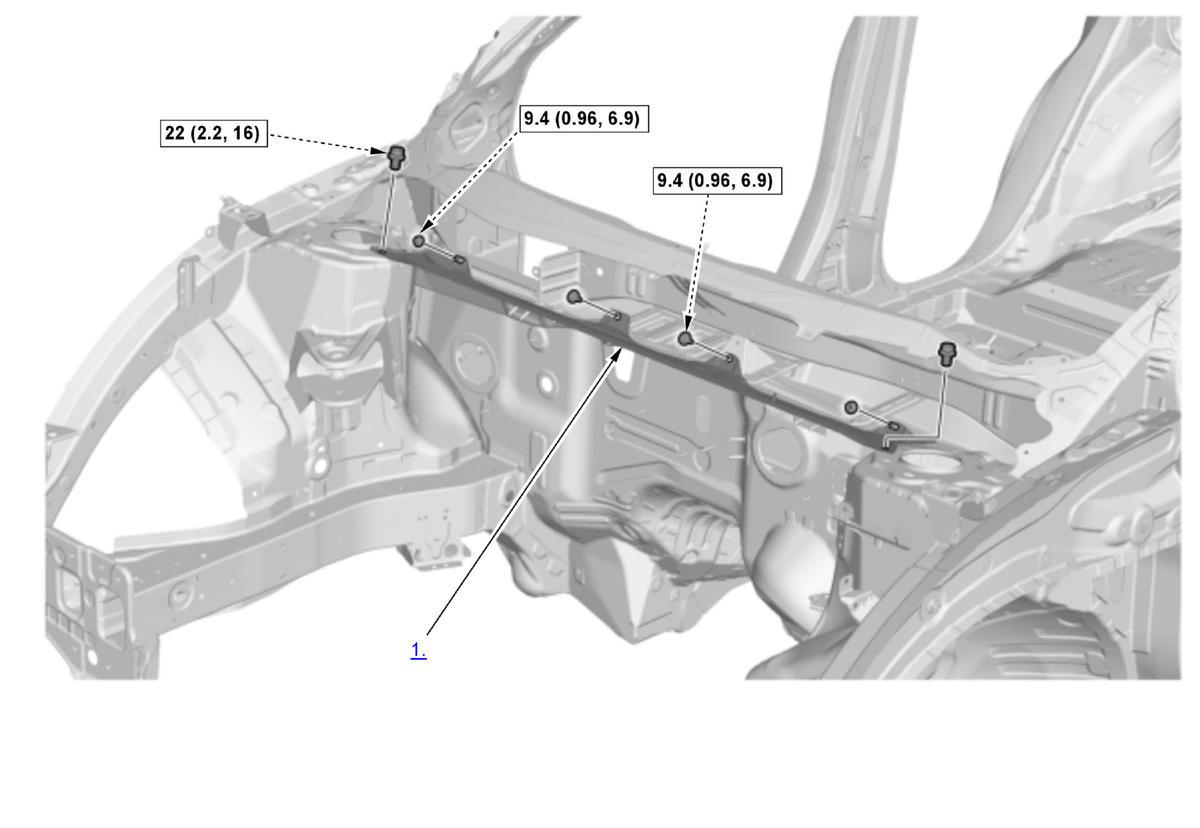

Fig 2: Frame Components With Torque Specifications (2 Of 5)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

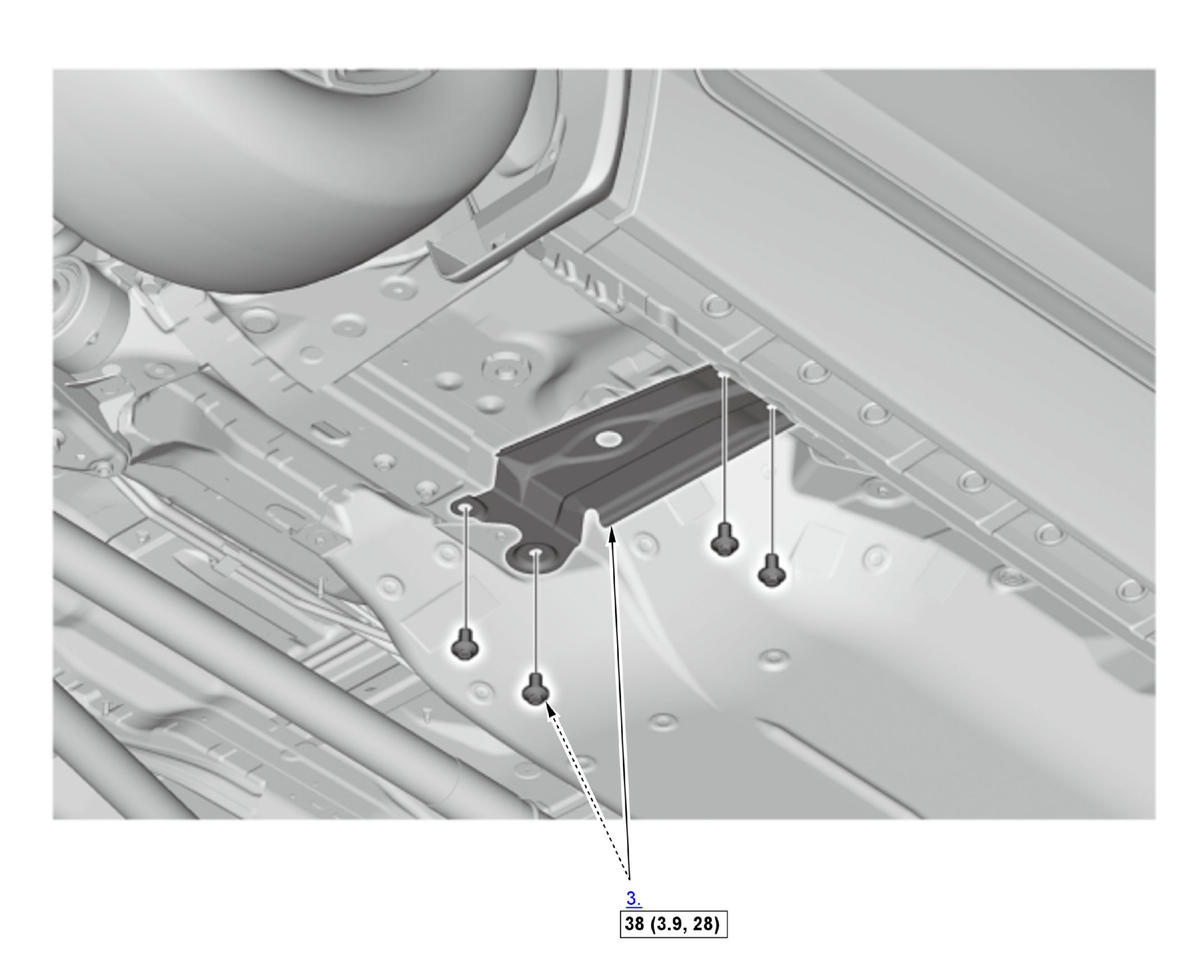

Fig 3: Frame Components With Torque Specifications (3 Of 5)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

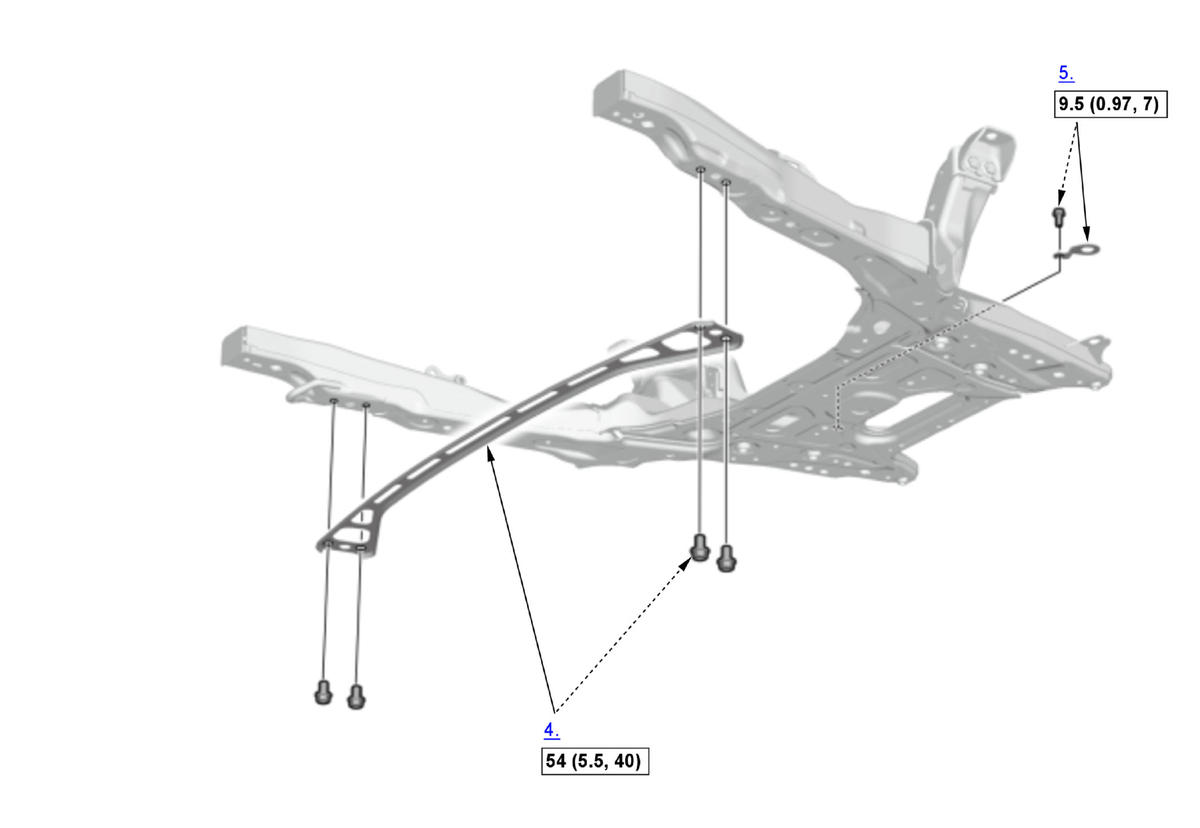

Fig 4: Frame Components With Torque Specifications (4 Of 5)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

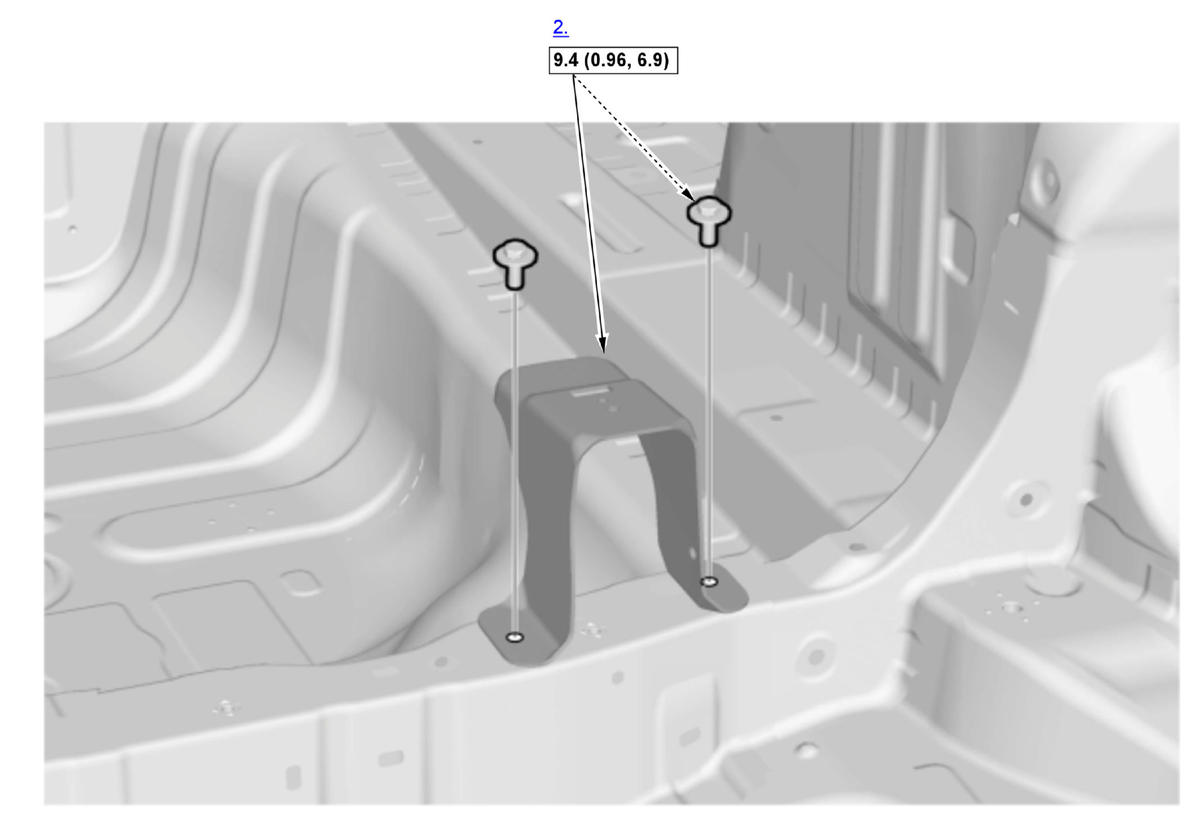

Fig 5: Frame Components With Torque Specifications (5 Of 5)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
*	Do not remove when removing/installing the propeller shaft assy.

Front floor rear brace - Remove

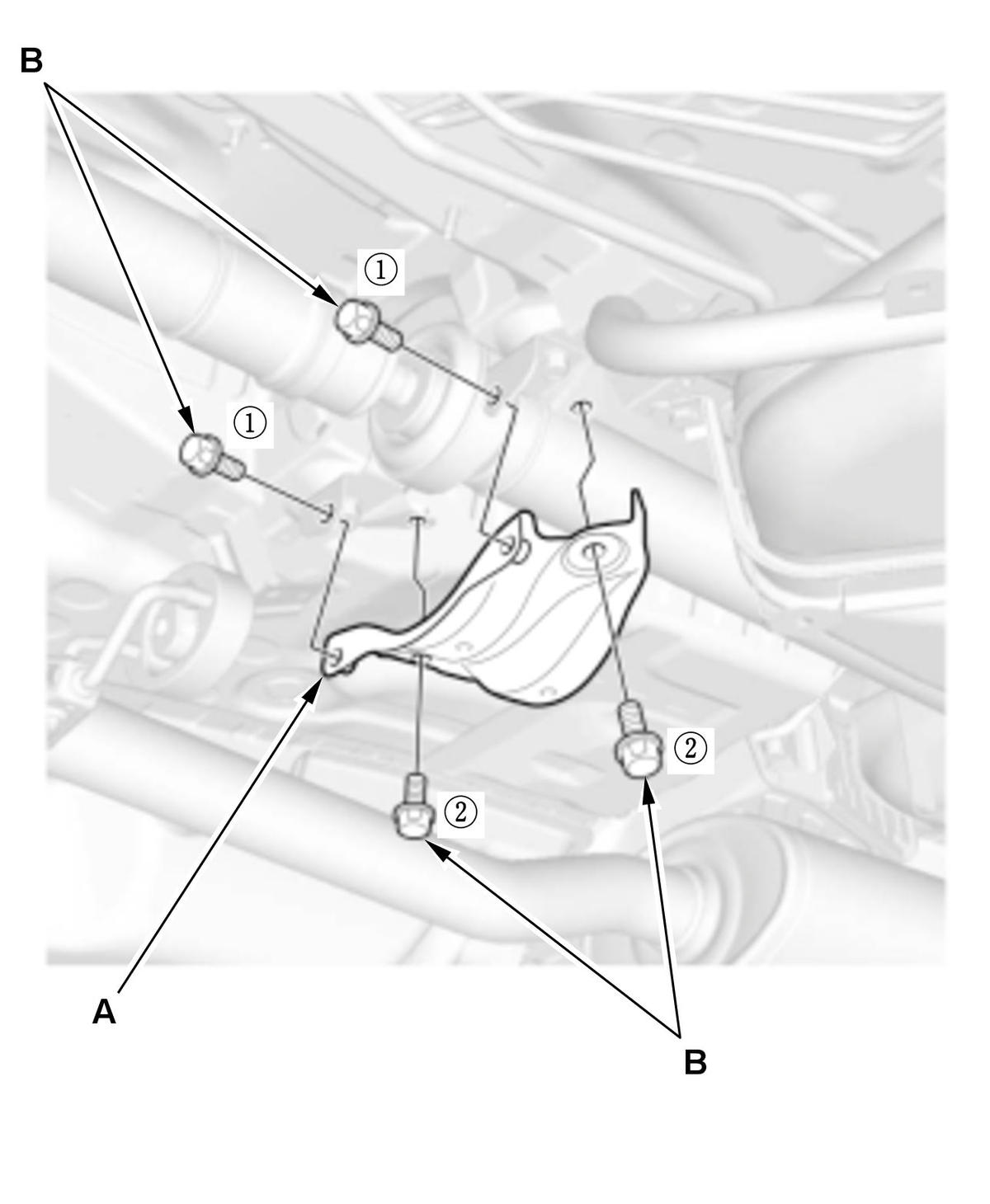

Fig 6: Front Floor Rear Brace And Bolts With Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

1. Install the front floor rear brace (A).

2. Loosely install the attaching bolts (B).

3. Tighten the attaching bolts to the specified torque in the numbered sequence shown.
