Keyless/Power Door Locks/Security System Symptom Troubleshooting - Doors automatically relock 30 seconds after being unlocked with the remote even though a door has been opened

WARNING: This page is about a different variant/trim than selected.

NOTE: Before troubleshooting, check for B-CAN DTCs. If any DTC is indicated, troubleshoot the indicated DTC first.

Determine possible failure area (body control module, others)
-1. With interior light switch: Turn the interior light switch to the DOOR position and ceiling light switch to the MIDDLE position.

-2. Without interior light switch: Turn the ceiling light switch to the MIDDLE position.

-3. Turn the vehicle to the OFF (LOCK) mode.

-4. Watch the individual map lights, the ceiling light, and the door indicators on the gauge control module.

Do the individual map lights and door indicators come on when the door is open, and go off when the door is closed?

YES

Replace the body control module .

NO

Go to step 2.

Open wire check (FL_DOOR_SW, FR_DOOR_SW, RL_DOOR_SW, RR_DOOR_SW, T/G_SW lines)

-1. Disconnect the following connectors.

Body control module connector D (40P)
Each door switch 1P connector
Power tailgate closer unit connector B (6P) (with power tailgate)
Tailgate latch 4P connector (without power tailgate)

-2. Measure the resistance between test points 1 and 2 respectively.

Driver's door switch

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Driver's door switch 1P connector: disconnected
Test point 1	Body control module connector D (40P) No. 22

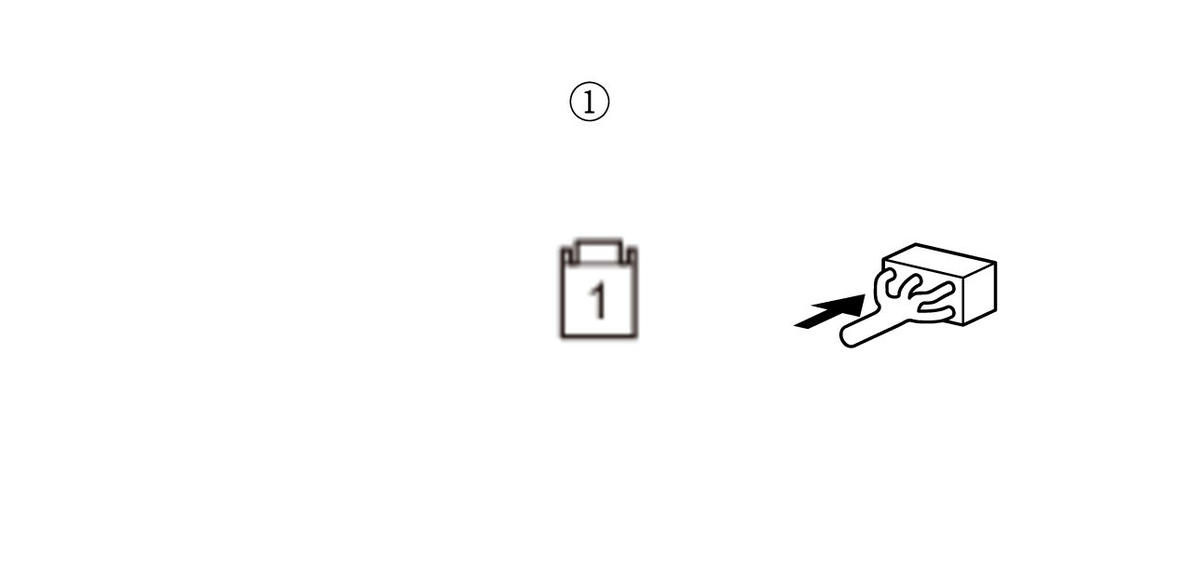

Test point 2	Driver's door switch 1P connector (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Front passenger's door switch

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Front passenger's door switch 1P connector: disconnected
Test point 1	Body control module connector D (40P) No. 23
Test point 2	Front passenger's door switch 1P connector (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Left rear door switch

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Left rear door switch 1P connector: disconnected
Test point 1	Body control module connector D (40P) No. 24
Test point 2	Left rear door switch 1P connector (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Right rear door switch

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Right rear door switch 1P connector: disconnected
Test point 1	Body control module connector D (40P) No. 28
Test point 2	Right rear door switch 1P connector (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Power tailgate closer unit (with power tailgate)

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Power tailgate closer unit connector B (6P): disconnected
Test point 1	Body control module connector D (40P) No. 27

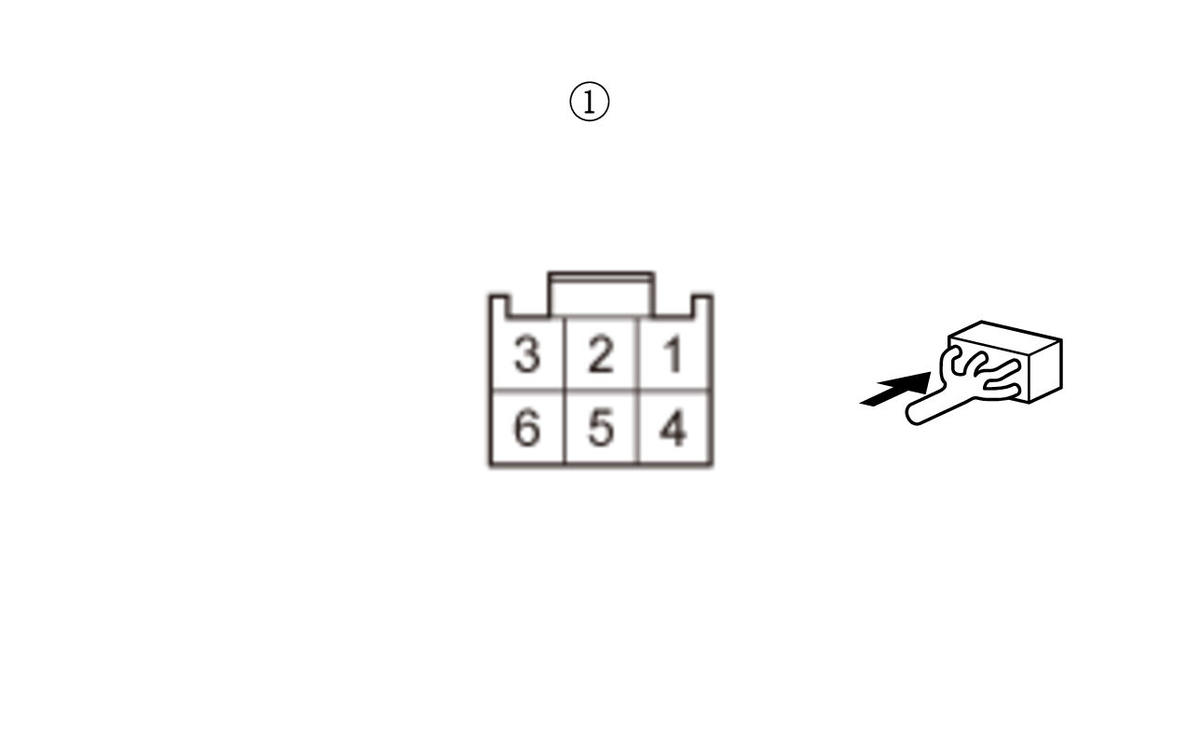

Test point 2	Power tailgate closer unit connector B (6P) (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Tailgate latch switch (without power tailgate)

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Tailgate latch 4P connector: disconnected
Test point 1	Body control module connector D (40P) No. 27

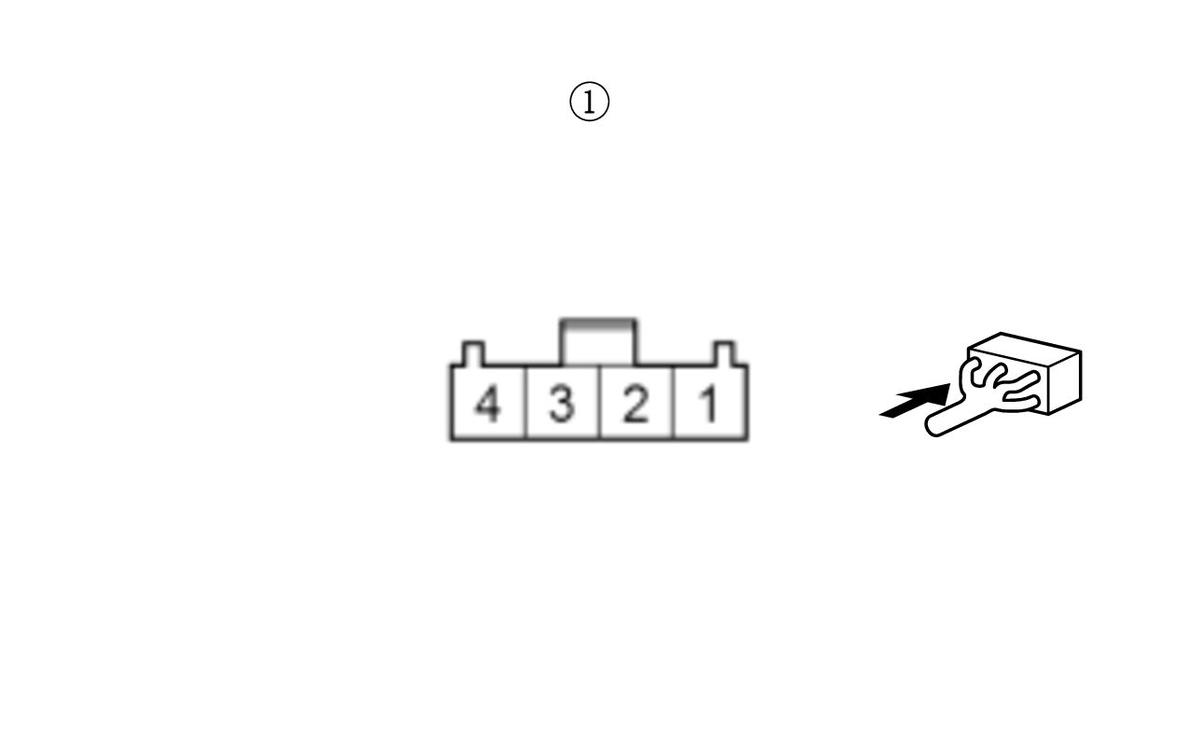

Test point 2	Tailgate latch 4P connector (female terminals) No. 1:

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES: Door switch

The FL_DOOR_SW, FR_DOOR_SW, RL_DOOR_SW, and RR_DOOR_SW wires are OK. Replace the bad door switch.

YES: Power tailgate closer unit (with power tailgate)

The T/G_SW wire is OK. Faulty Power tailgate closer unit circuit. Check for Power tailgate control unit DTCs.

YES: Tailgate latch switch (without power tailgate)

The T/G_SW wire is OK. Faulty tailgate latch switch or GND line, go to step 3.

Repair an open or high resistance in the wire.

Open wire check (GND line)

-1. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Tailgate latch 4P connector: disconnected
Test point 1	Tailgate latch 4P connector (female terminals) No. 2:
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The GND wire is OK. Faulty tailgate latch switch; replace the tailgate latch .

Repair an open or high resistance in the ground wire or poor ground (G505).
