Section 5 (Electrical System - Testing & Troubleshooting (Hybrid))
>>
Relay Box Locations And Control Unit Locations
>>
Relay Locations
>>
Engine Compartment
Engine Compartment
WARNING:
This page is about a different variant/trim than selected.

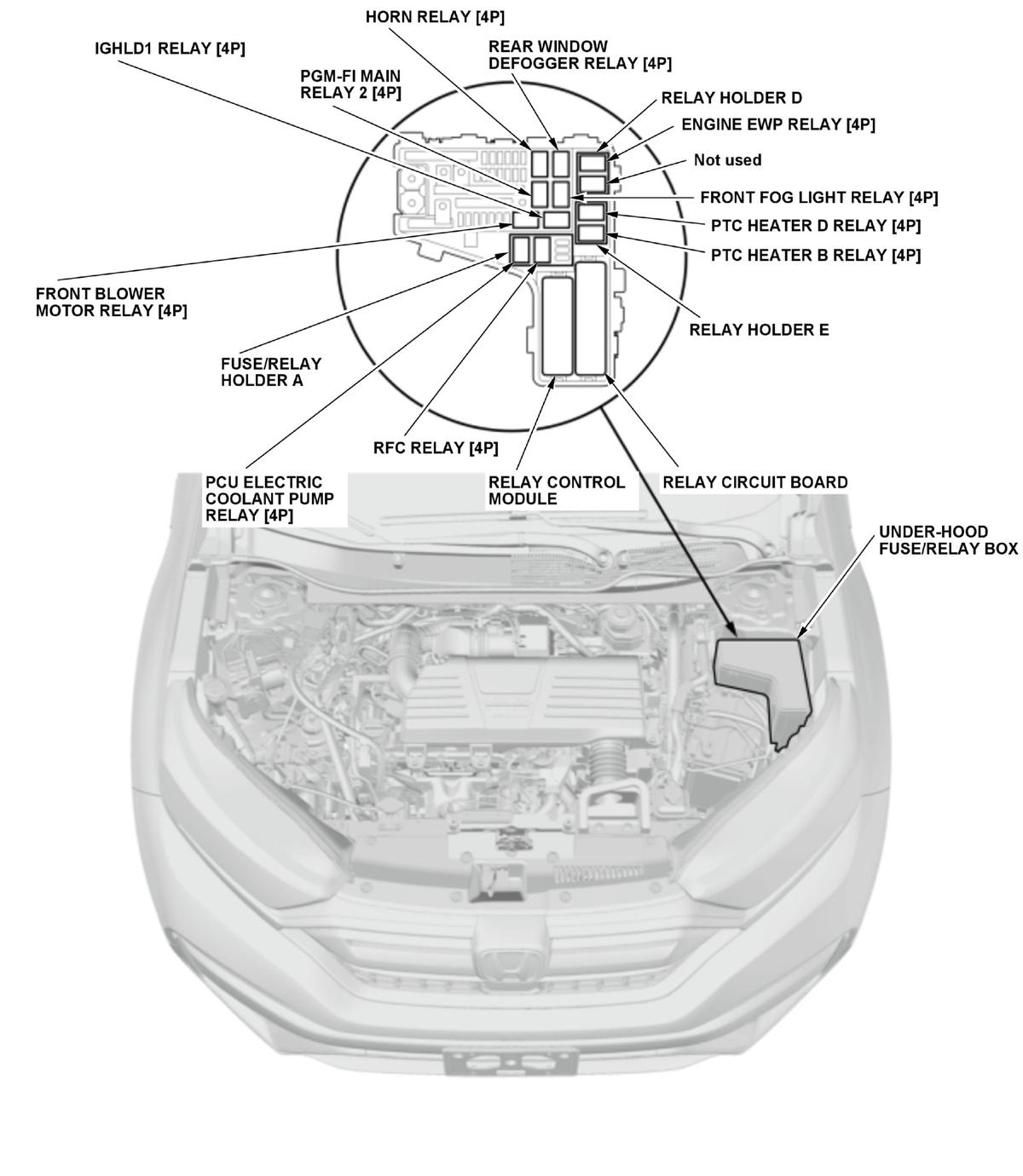

Engine Compartment Locaiton
Courtesy of HONDA, U.S.A., INC.
