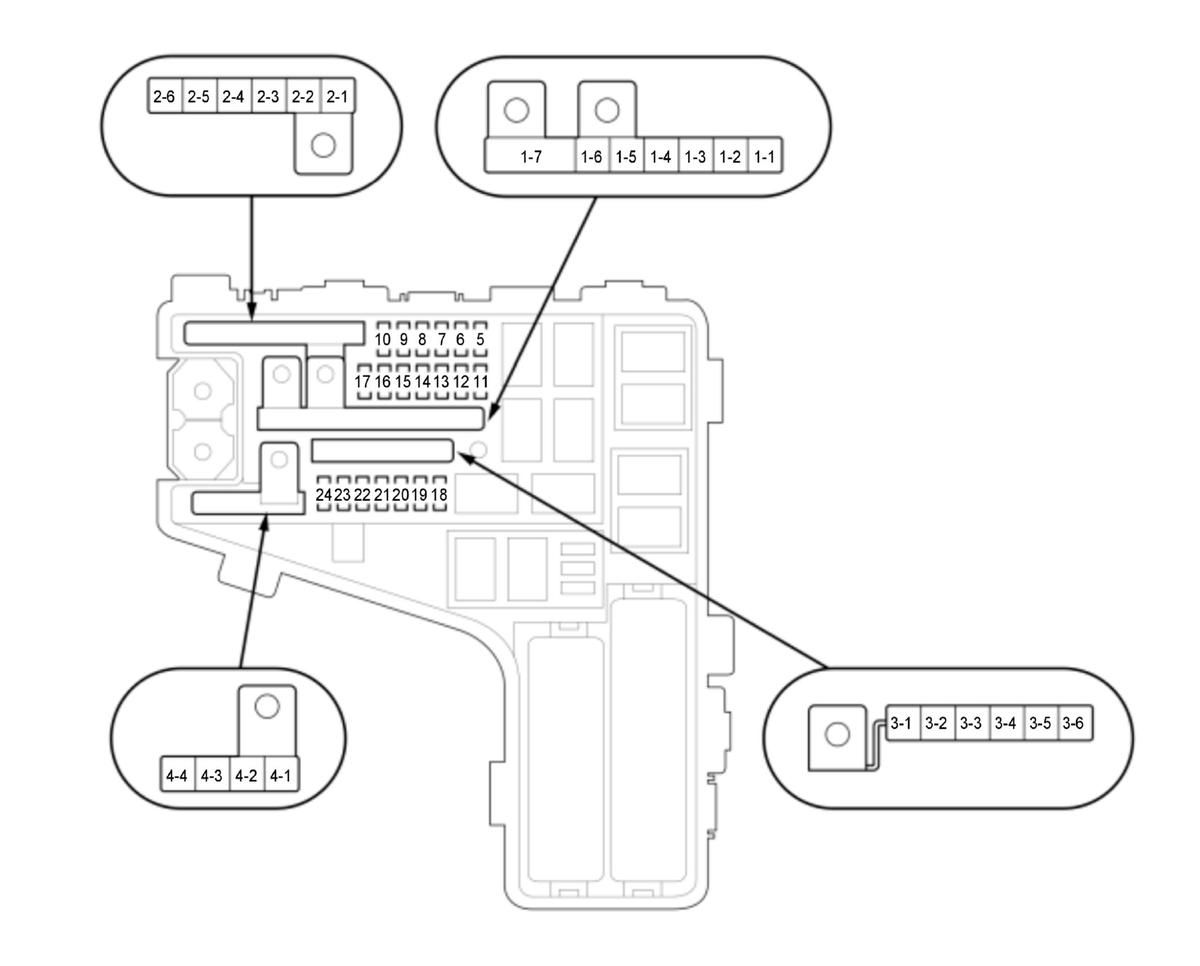

Under-Hood Fuse/Relay Box
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A1-1 | 40 A | No. E5, No. E7, and No. E8 fuses in the auxiliary under-dash fuse box | |
| A1-2 | 40 A | Electric servo brake control unit/pedal feel simulator | |
| A1-3 | 40 A | VSA modulator-control unit | |
| A1-4 | 30 A | Relay control module | |
| A1-5 | 30 A | Via IG1B relay circuit (built into the under-dash fuse/relay box): Body control module, No. D3, No. D4, No. D5, No. D6, No. D7, and No. D17 fuses in the under-dash fuse/relay box Via IG2 relay circuit (built into the under-dash fuse/relay box): Body control module, No. D9 and No. D22 fuses in the under-dash fuse/relay box |
|
| A1-6 | 30 A | Relay control module | |
| A1-7 | 150 A | DC-DC converter (built into the PCU), No. A3-1, No. A3-2, No. A3-3, No. A3-4, No. A3-5, No. A3-6, No. A4-1* 1, No. A4-2, No. A4-3, No. A4-4, No. A18, No. A19, No. A20* 2, No. A22, No. A23, and No. A24 fuses in the under-hood fuse/relay box | *1: With power tailgate *2: With stereo amplifier |
| A2-1 | 70 A | EPS control unit | |
| A2-2 | 30 A | Via IG1A relay circuit (built into the under-dash fuse/relay box): Body control module, No. D8, No. D20, No. D21, No. D34, and No. D35 fuses in the under-dash fuse/relay box Via ACC relay circuit (built into the under-dash fuse/relay box): No. D1 and No. D2 fuses in the under-dash fuse/relay box |
|
| A2-3 | 40 A | No. D18* 1, No. D19* 2, No. D31* 3, No. D32* 4, and No. D33* 3 fuses in the under-dash fuse/relay box | *1: With power lumbar support *2: With moonroof *3: With driver's power seat *4: With front seat heater |
| A2-4 | 60 A | No. D15, No. D16, No. D28, No. D29, and No. D30 fuses in the under-dash fuse/relay box, Power window relay Via power window relay: No. D14 and No. D27 fuses in the under-dash fuse/relay box |
|
| A2-5 | 30 A | Windshield wiper control unit/motor | |
| A2-6 | 30 A | Park pawl actuator relay, Park pawl actuator (via park pawl actuator relay) |
|
| A3-1 | 40 A | Blower motor (via front blower motor relay) | |
| A3-2 | 40 A | Not used | |
| A3-3 | 40 A | VSA modulator-control unit | |
| A3-4 | 40 A | No. D10, No. D23*, No. D24, No. D36, and No. D37 fuses in the under-dash fuse/relay box | *: With wireless charger and USB charger unit |
| A3-5 | 30 A | Not used | |
| A3-6 | 40 A | Rear window defogger (via rear window defogger relay) | |
| A4-1* | 40 A | Power tailgate control unit | *: With power tailgate |
| A4-2 | 40 A | No. E1* 1, No. E2* 2, and No. E3* 2 fuses in the auxiliary under-dash fuse box | *1: With power tailgate *2: With front passenger's power seat |
| A4-3 | 20 A | Real time AWD control unit | |
| A4-4 | 20 A | High voltage battery module fan (via battery fan relay) | |
| A5 | --- | Not used | |
| A6 | 15 A | Relay control module | |
| A7 | 15 A | PGM-FI main relay 1 circuit (built into the relay circuit board) Via PGM-FI main relay 1 circuit (built into the relay circuit board): Injectors, PCM, PGM-FI main relay 2 |
|
| A8 | 15 A | PGM-FI subrelay circuit (built into the relay circuit board) Via PGM-FI subrelay circuit (built into the relay circuit board): No. A11 fuse in the under-hood fuse/relay box, PCM |
|
| A9 | 10 A | Via brake light relay circuit (built into the relay circuit board): Electric servo brake control unit/pedal feel simulator, High mount brake light, Left taillight (left brake light), Right taillight (right brake light) Via brake pedal position switch: Body control module, PCM Via brake pedal position switch and brake light relay circuit (built into the relay circuit board): Electric servo brake control unit/pedal feel simulator, High mount brake light, Left taillight (left brake light), Right taillight (right brake light) |
|
| A10 | 10 A | IGHLD1 relay Via IGHLD1 relay: Battery condition monitor module, PCU electric coolant pump relay, Motor control module (built into the PCU) |
|
| A11 | 7.5 A | A/F sensor (SENSOR 1), Canister charge over valve, EVAP canister purge valve 1, EVAP canister purge valve 2 |
|
| A12 | 10 A | Park pawl actuator driver unit, PCM |
|
| A13 | 10 A | PCU electric coolant pump (via PCU electric coolant pump relay) | |
| A14 | 10 A | Body control module | |
| A15 | 15 A | Ignition coils (via ignition coil relay circuit (built into the relay circuit board)), Ignition coil relay circuit (built into the relay circuit board) |
|
| A16 | 5 A | RFC relay | |
| A17 | --- | Not used | |
| A18 | 10 A | ANC/active sound control unit, Automatic lighting control unit-sensor* 2, Automatic lighting/rain sensor* 1, Body control module, CAN gateway, Data link connector (DLC), Gauge control module, HomeLink ® unit* 3, Power seat control unit* 4, Power tailgate control unit* 5, Power window master switch Relay control module, USB charger unit* 6, Wireless charger* 7 |
*1: With automatic wiper *2: Without automatic wiper *3: With HomeLink ® *4: With DPMS *5: With power tailgate *6: With USB charger and without wireless charger *7: With wireless charger |
| A19 | 15 A | Audio-navigation unit* 1, Audio unit* 2, Center display unit* 3 |
*1: With navigation *2: Without navigation *3: Display audio type |
| A20* | 20 A | Stereo amplifier | *: With stereo amplifier |
| A21 | --- | Not used | |
| A22 | 10 A | Front fog light relay*, Shutter grille Via front fog light relay*: Left front fog light, Right front fog light |
*: With front fog light |
| A23 | 10 A | Electric heater coolant pump (via electric heater coolant pump relay circuit (built into the relay circuit board)) | |
| A24 | 10 A | 12 volt battery sensor, Horn relay Via horn relay: Horn (HIGH), Horn (LOW) |
