Relay Circuit Board
WARNING: This page is about a different variant/trim than selected.

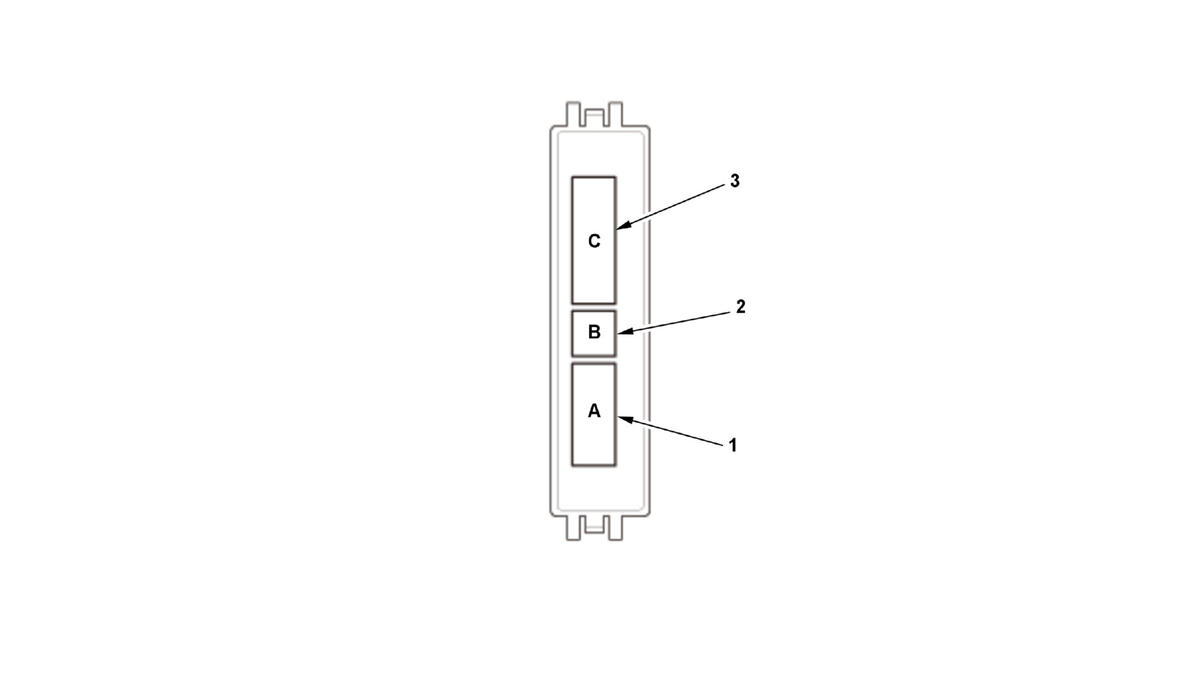

Courtesy of HONDA, U.S.A., INC. Relay Circuit Board Legend
| Socket |
Ref |
Terminal |
Connects to |
Notes |
| Relay circuit board connector A |
1 |
8 |
Engine compartment wire harness |
|
| Relay circuit board connector B |
2 |
6 |
Engine compartment wire harness |
|
| Relay circuit board connector C |
3 |
18 |
Engine compartment wire harness |
|
