Section 5 (Electrical System - Testing & Troubleshooting (Hybrid))
>>
Fuse Relay Box Connector Locations
>>
Fuse/Relay Box Connector Locations
>>
Fuse Holder A
Fuse Holder A
WARNING:
This page is about a different variant/trim than selected.

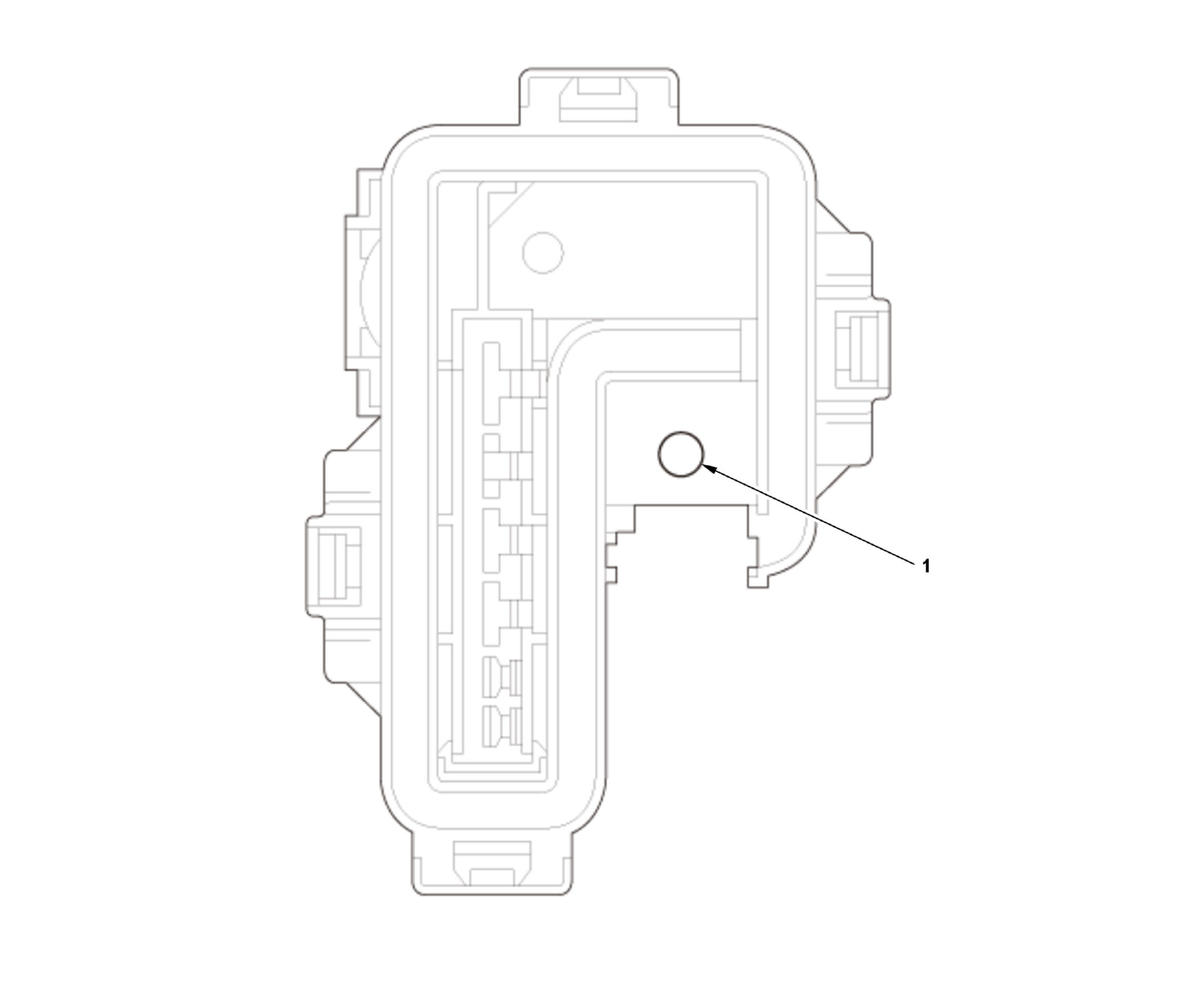

Fig 1: Fuse Holder A Component Locations
Courtesy of HONDA, U.S.A., INC.
Fuse Holder A Legend
Socket
Ref
Terminal
Connects to
Notes
T2
1
---
12 volt battery cable
Courtesy of HONDA, U.S.A., INC.
