Wire Harness and Ground Locations
WARNING: This page is about a different variant/trim than selected.

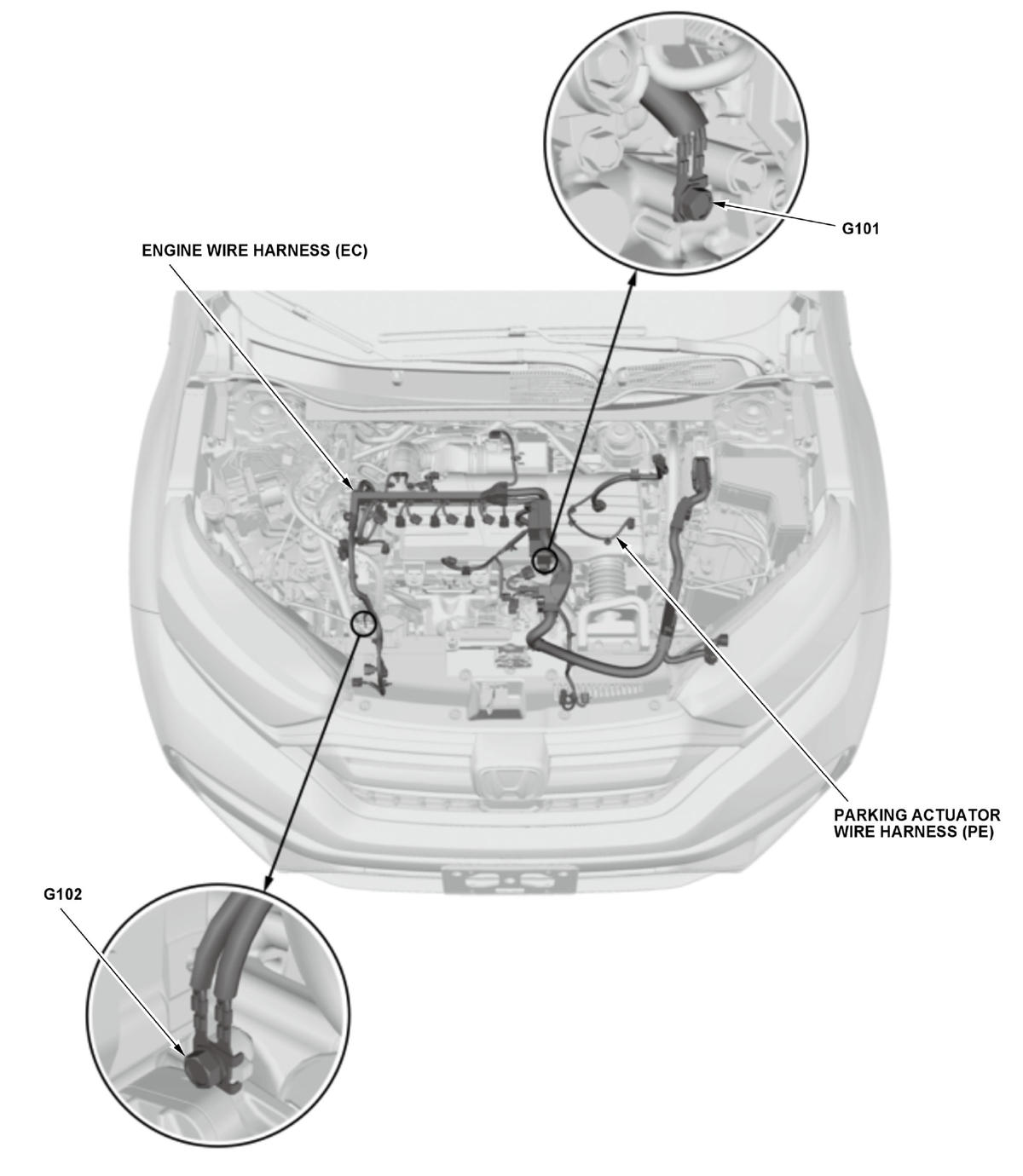

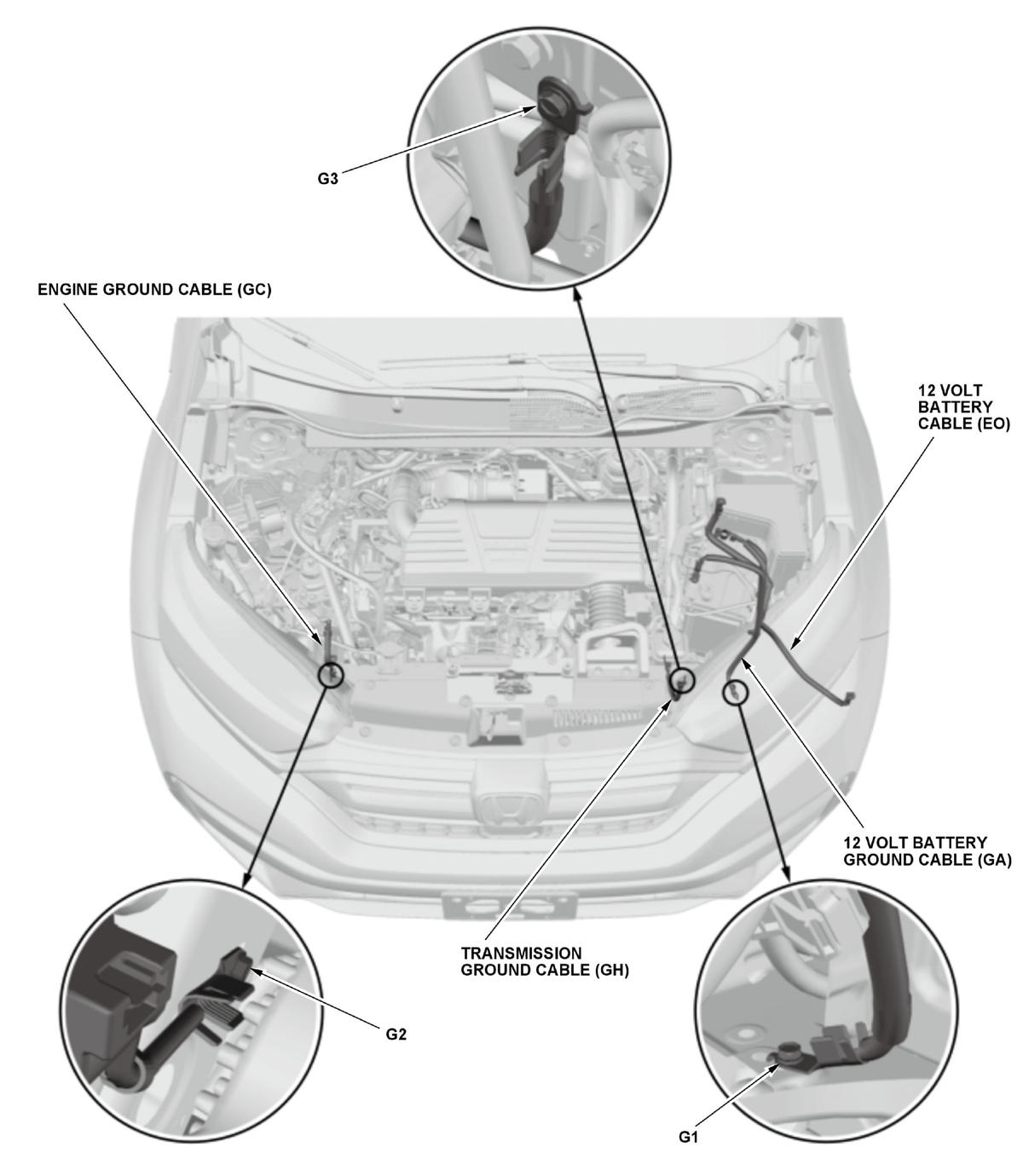

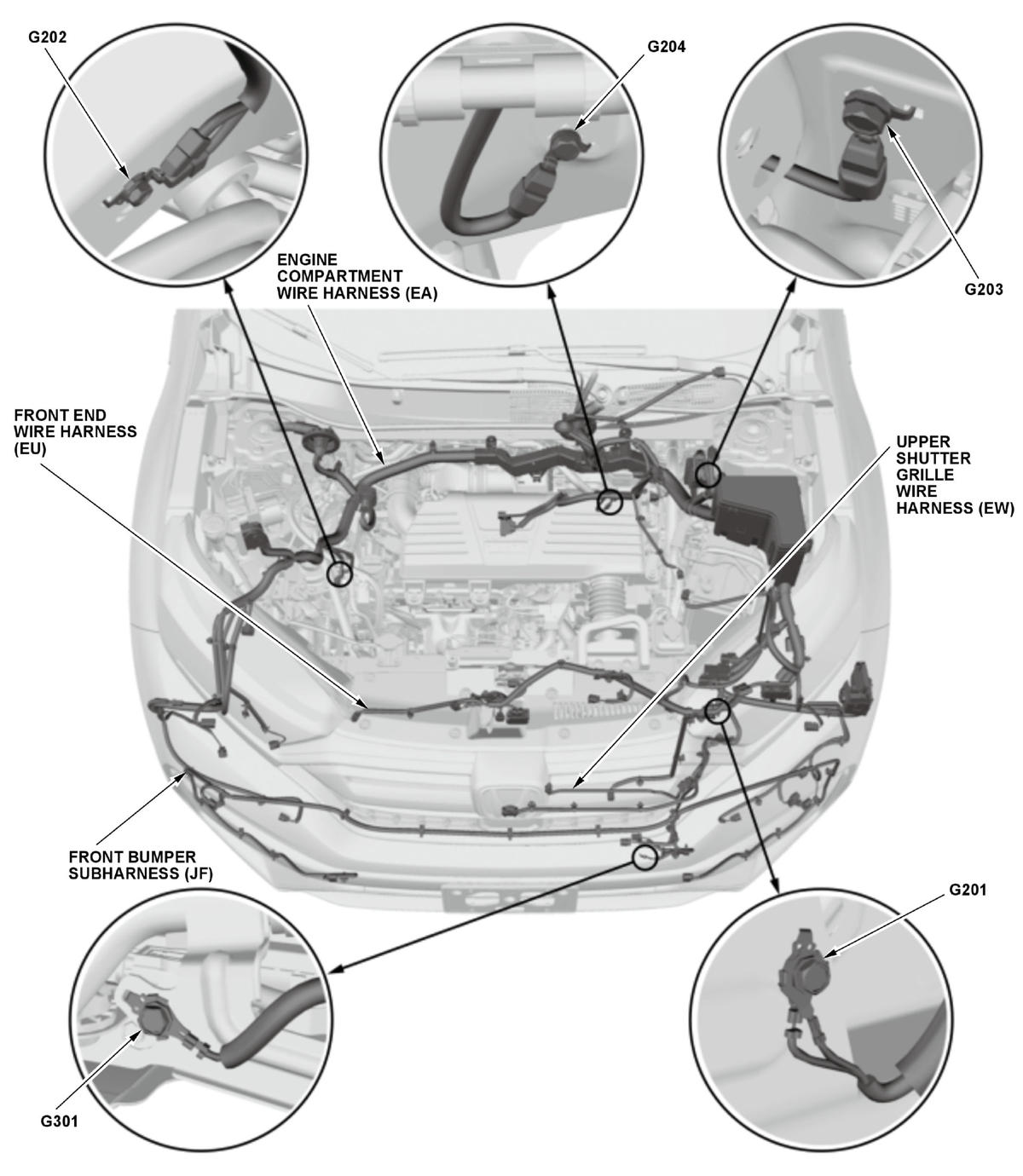

Engine Compartment - 1/4
 Courtesy of HONDA, U.S.A., INC.
|
Engine Compartment - 2/4
 Courtesy of HONDA, U.S.A., INC.
|
Engine Compartment - 3/4
 Courtesy of HONDA, U.S.A., INC.
|
Engine Compartment - 4/4
 Courtesy of HONDA, U.S.A., INC.
|

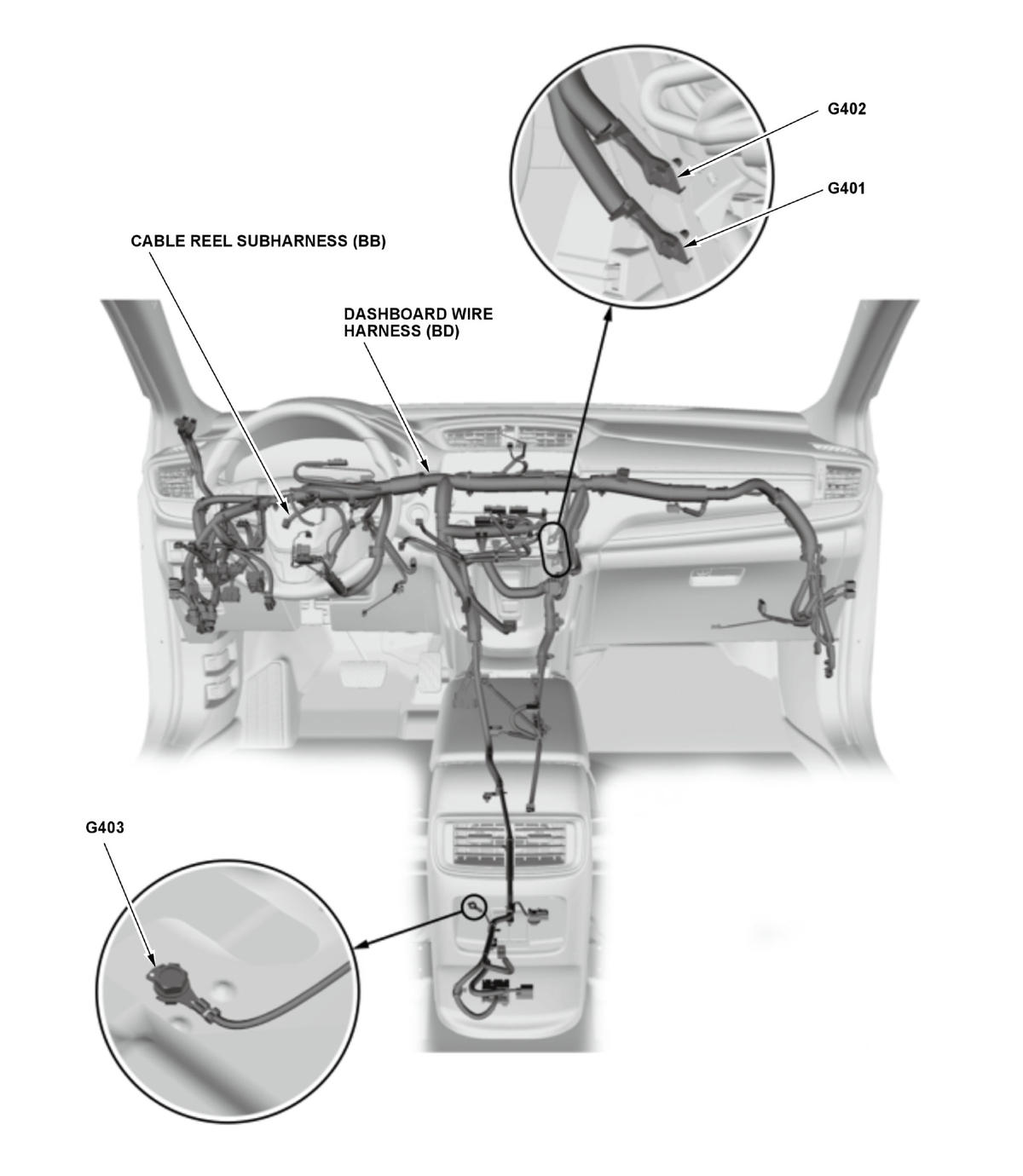

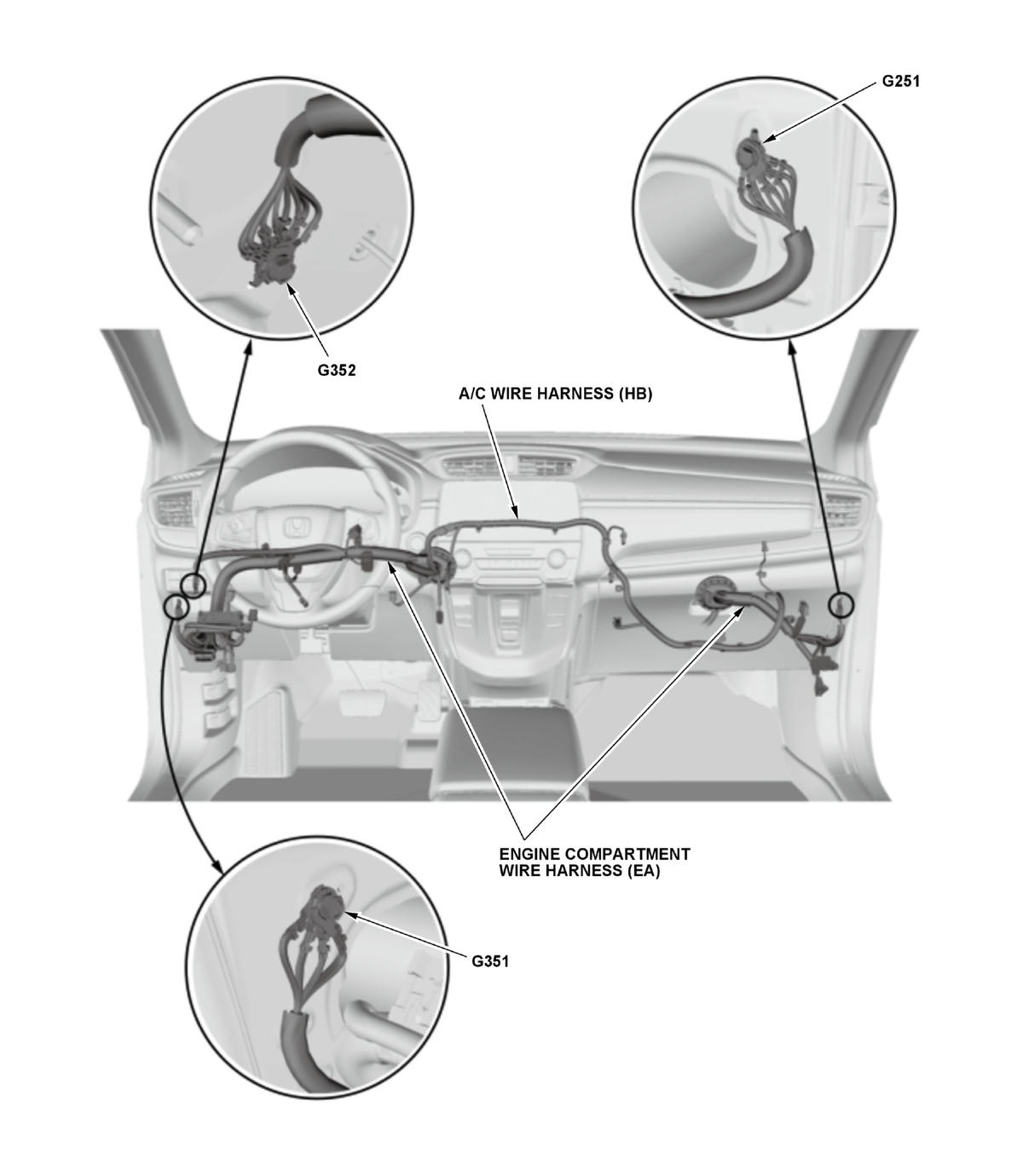

Dashboard
 Courtesy of HONDA, U.S.A., INC.
|

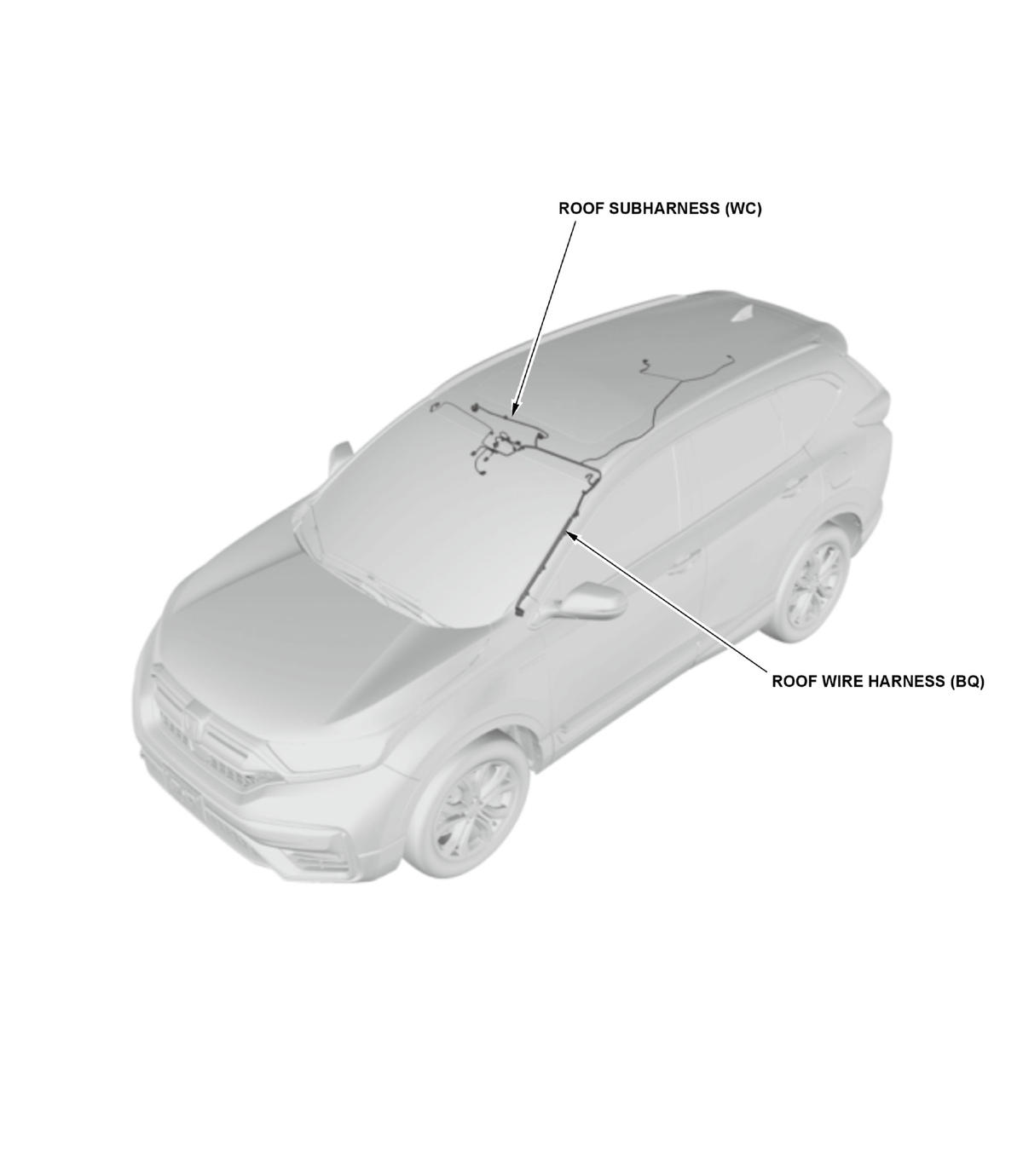

Roof
 Courtesy of HONDA, U.S.A., INC.
|

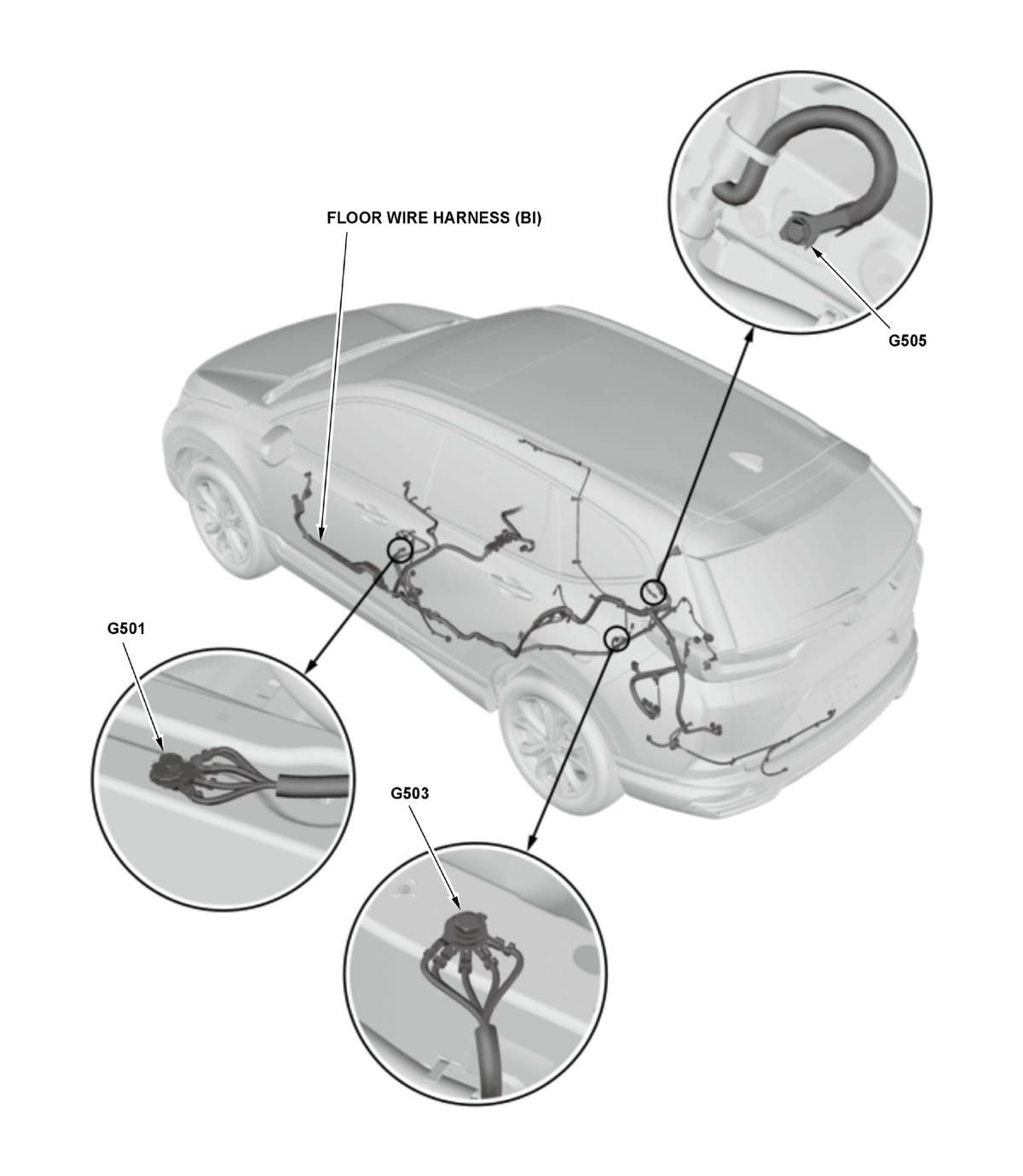

Floor - 1/2
 Courtesy of HONDA, U.S.A., INC.
|
Floor - 2/2
 Courtesy of HONDA, U.S.A., INC.
|

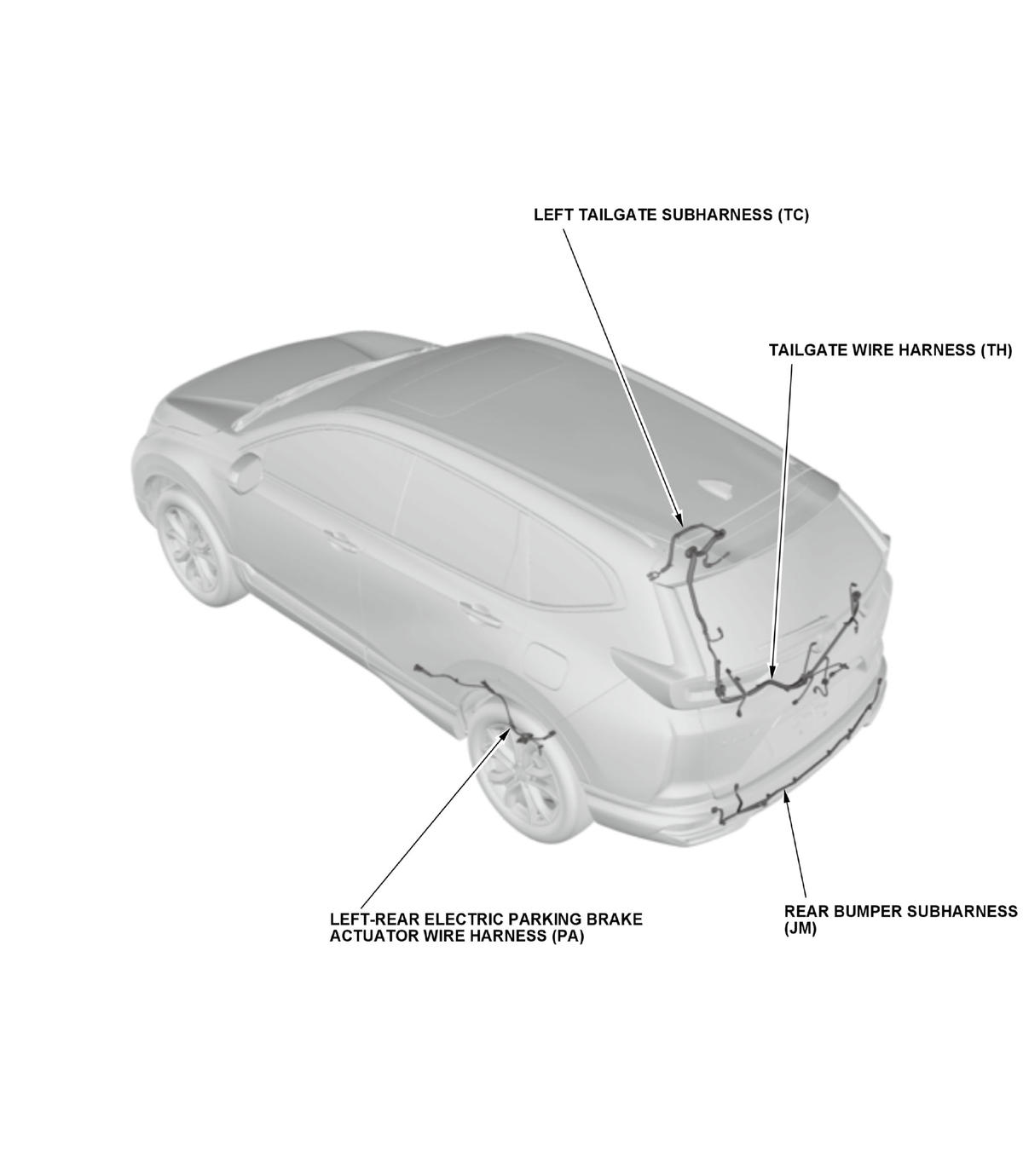

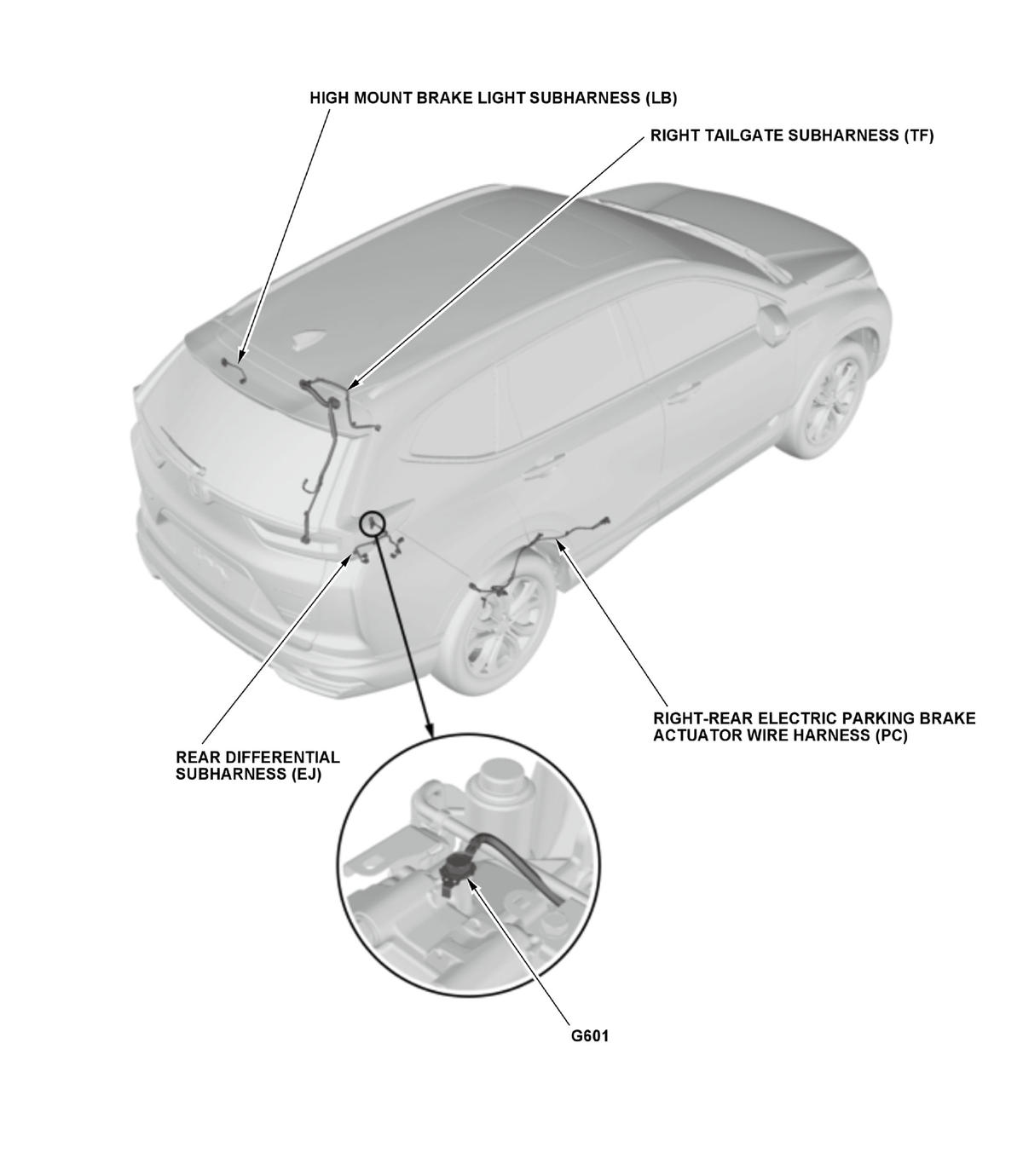

Rear - 1/2
 Courtesy of HONDA, U.S.A., INC.
|
Rear - 2/2
 Courtesy of HONDA, U.S.A., INC.
|

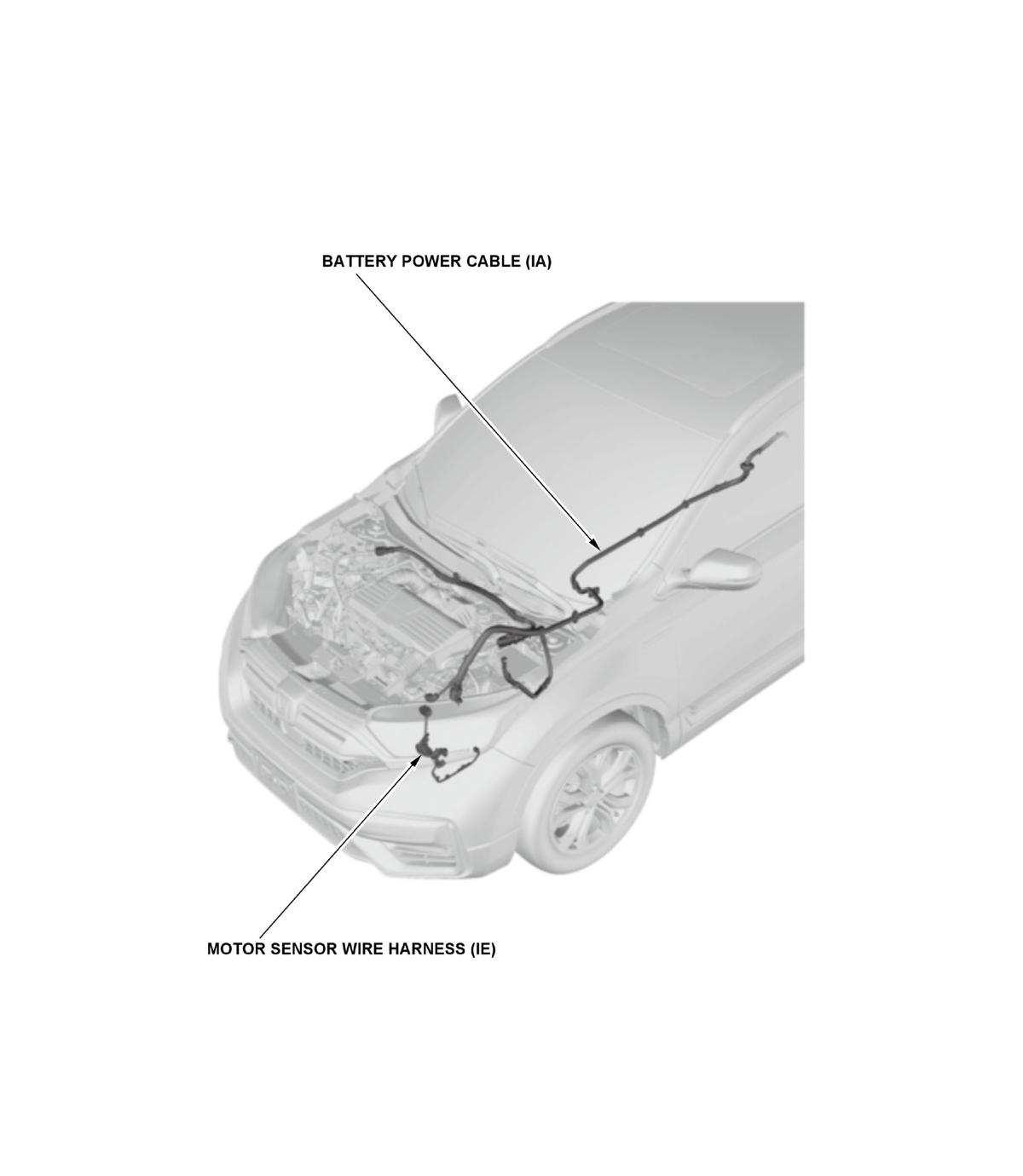

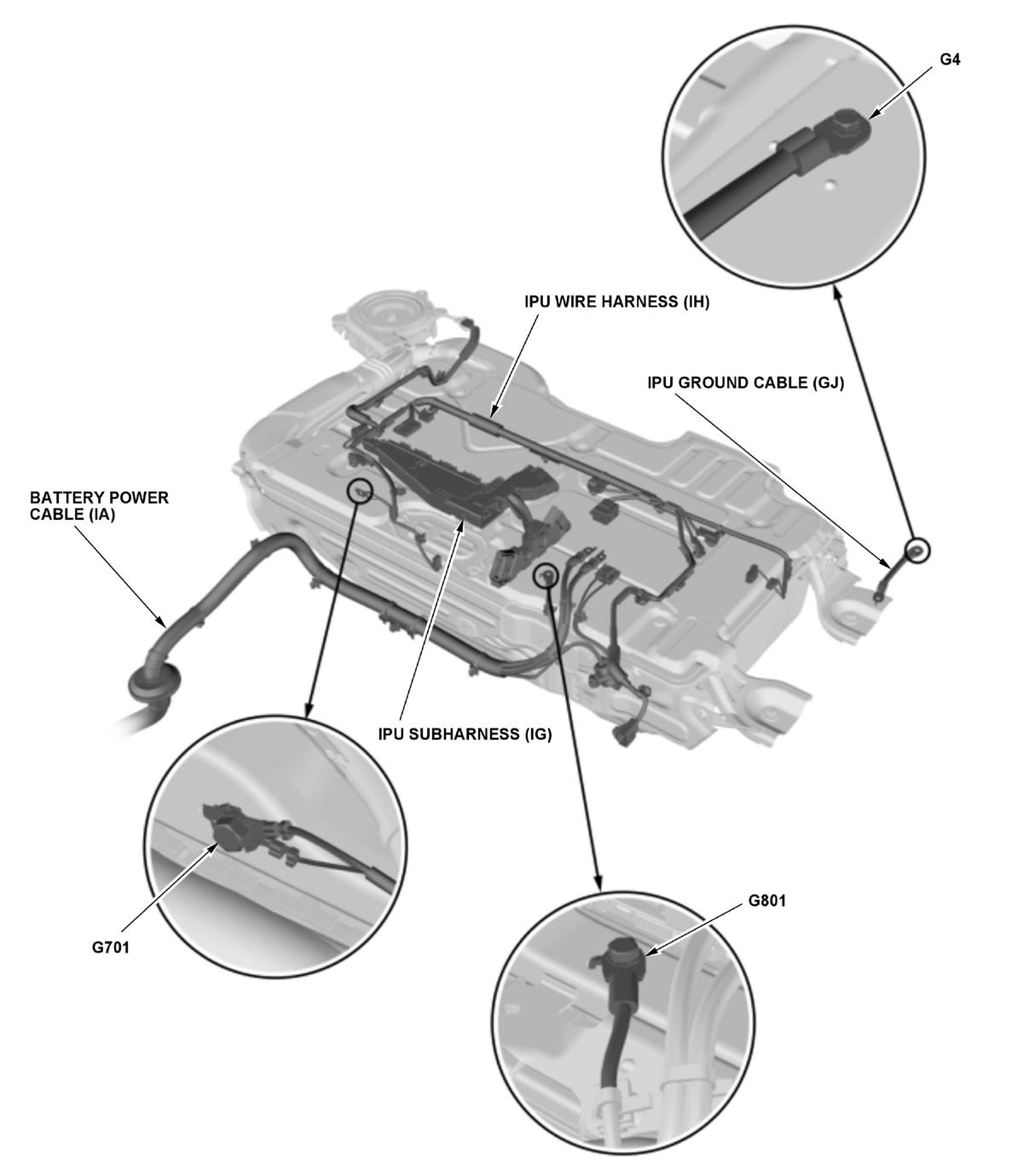

Electric Powertrain - 1/2
 Courtesy of HONDA, U.S.A., INC.
|
Electric Powertrain - 2/2
 Courtesy of HONDA, U.S.A., INC.
|
Driver's Door
 Courtesy of HONDA, U.S.A., INC.
|
Front Passenger's Door
 Courtesy of HONDA, U.S.A., INC.
|

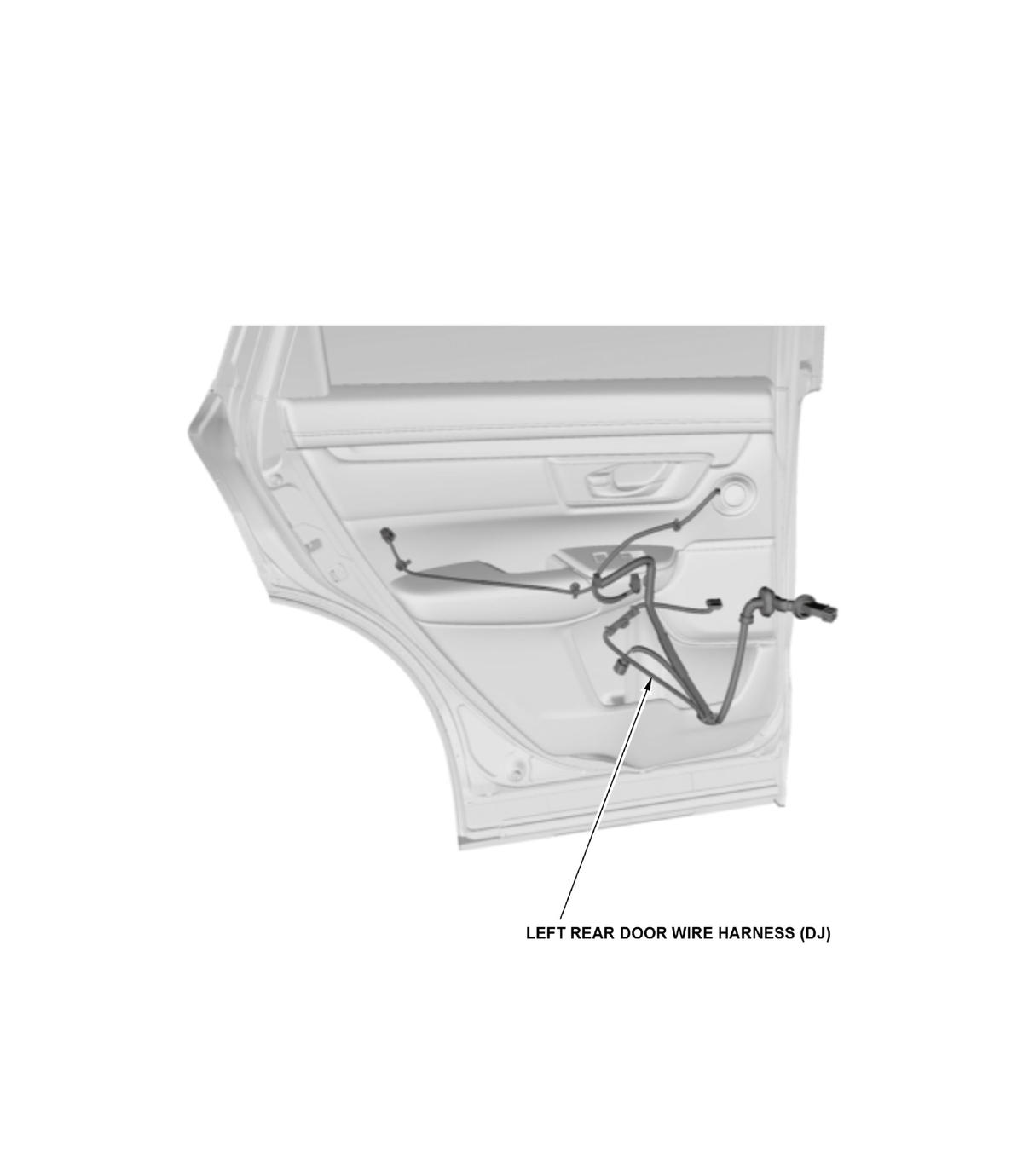

Left Rear Door
 Courtesy of HONDA, U.S.A., INC.
|

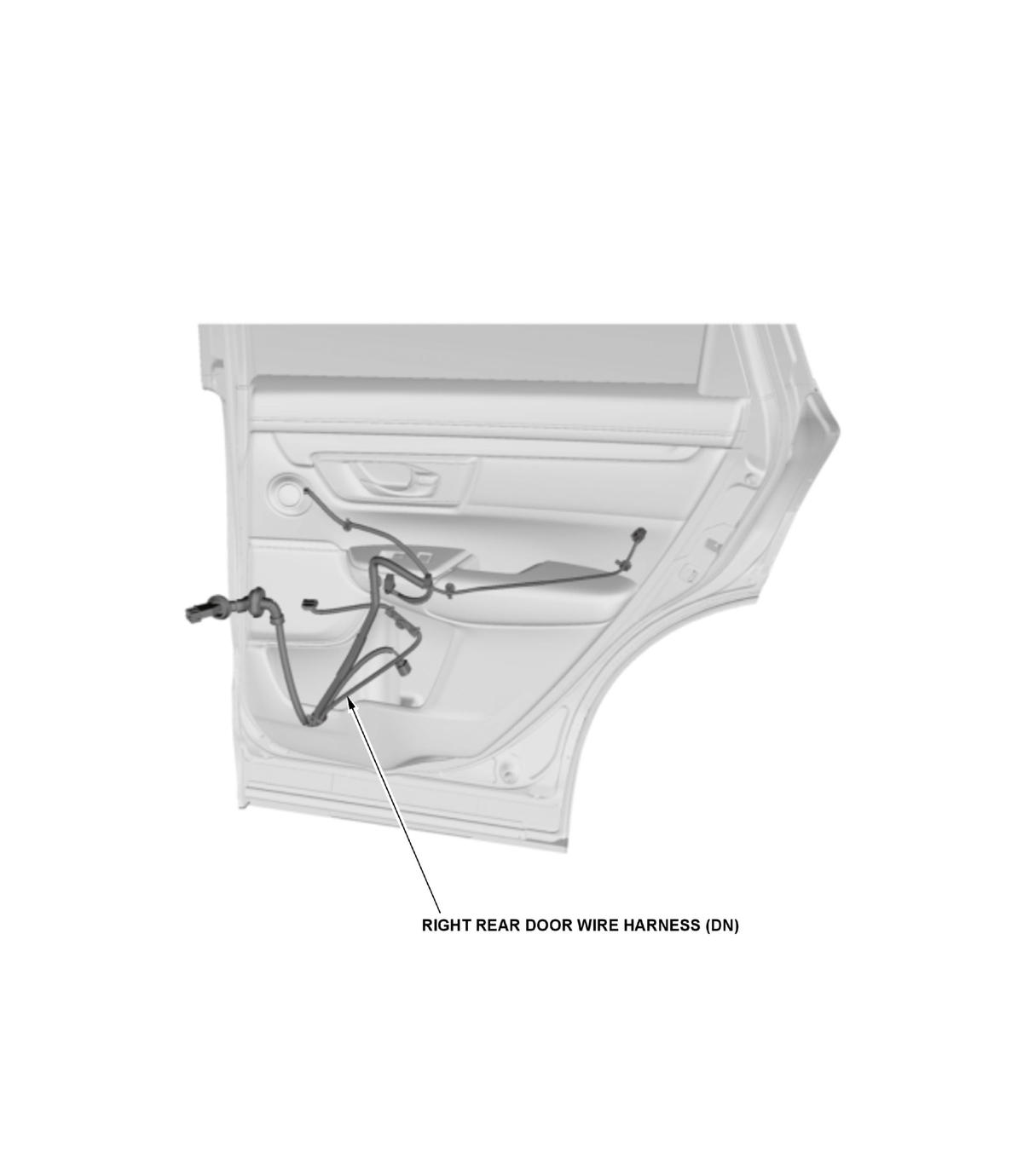

Right Rear Door
 Courtesy of HONDA, U.S.A., INC.
|

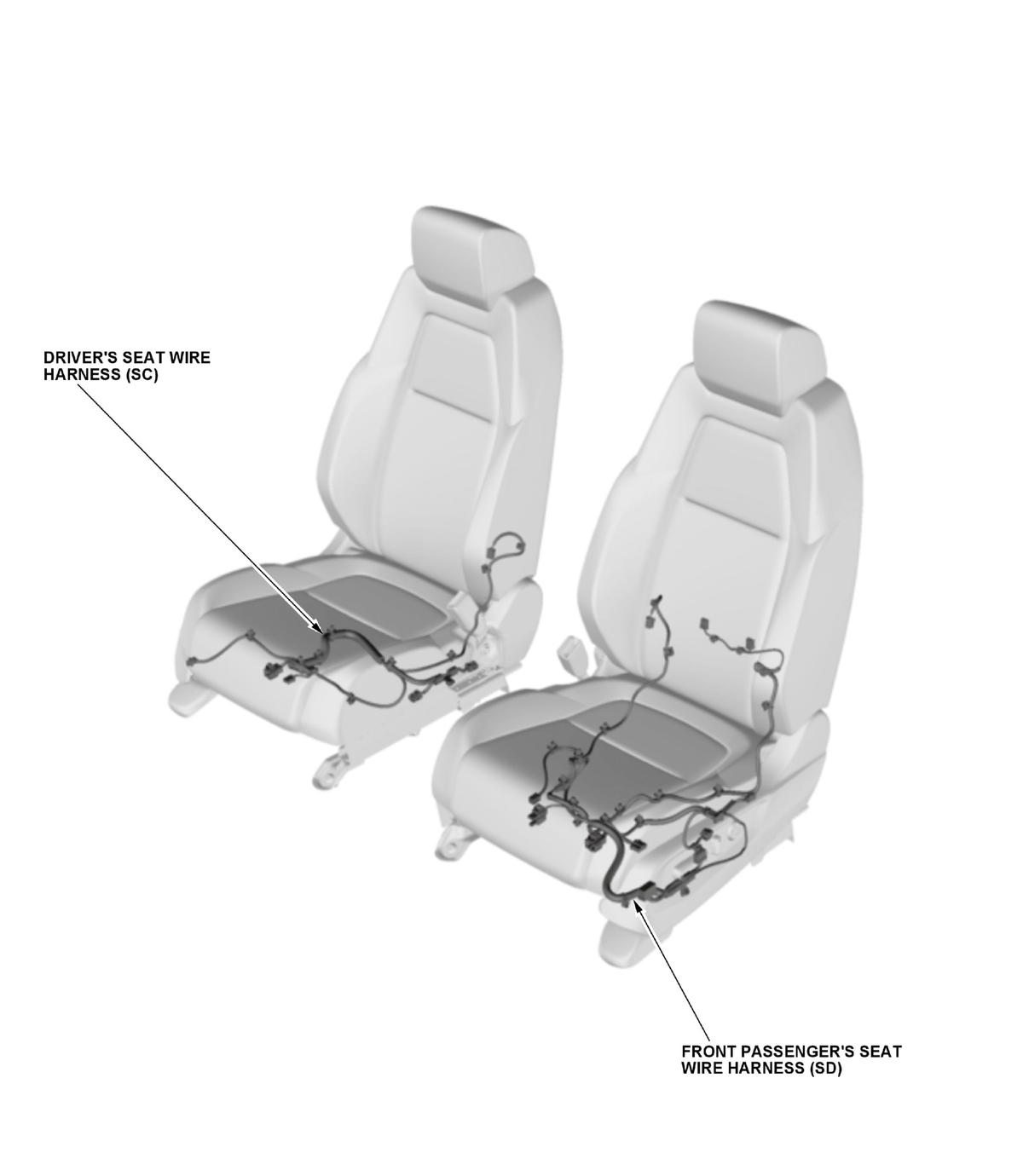

Seat
 Courtesy of HONDA, U.S.A., INC.
|
