Rear Spring Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Vehicle - Lift
Rear Wheel - Remove
Stabilizer Link - Disconnect

1. Disconnect both sides of the stabilizer link from lower arm B .

Rear Spring - Remove

Courtesy of HONDA, U.S.A., INC.

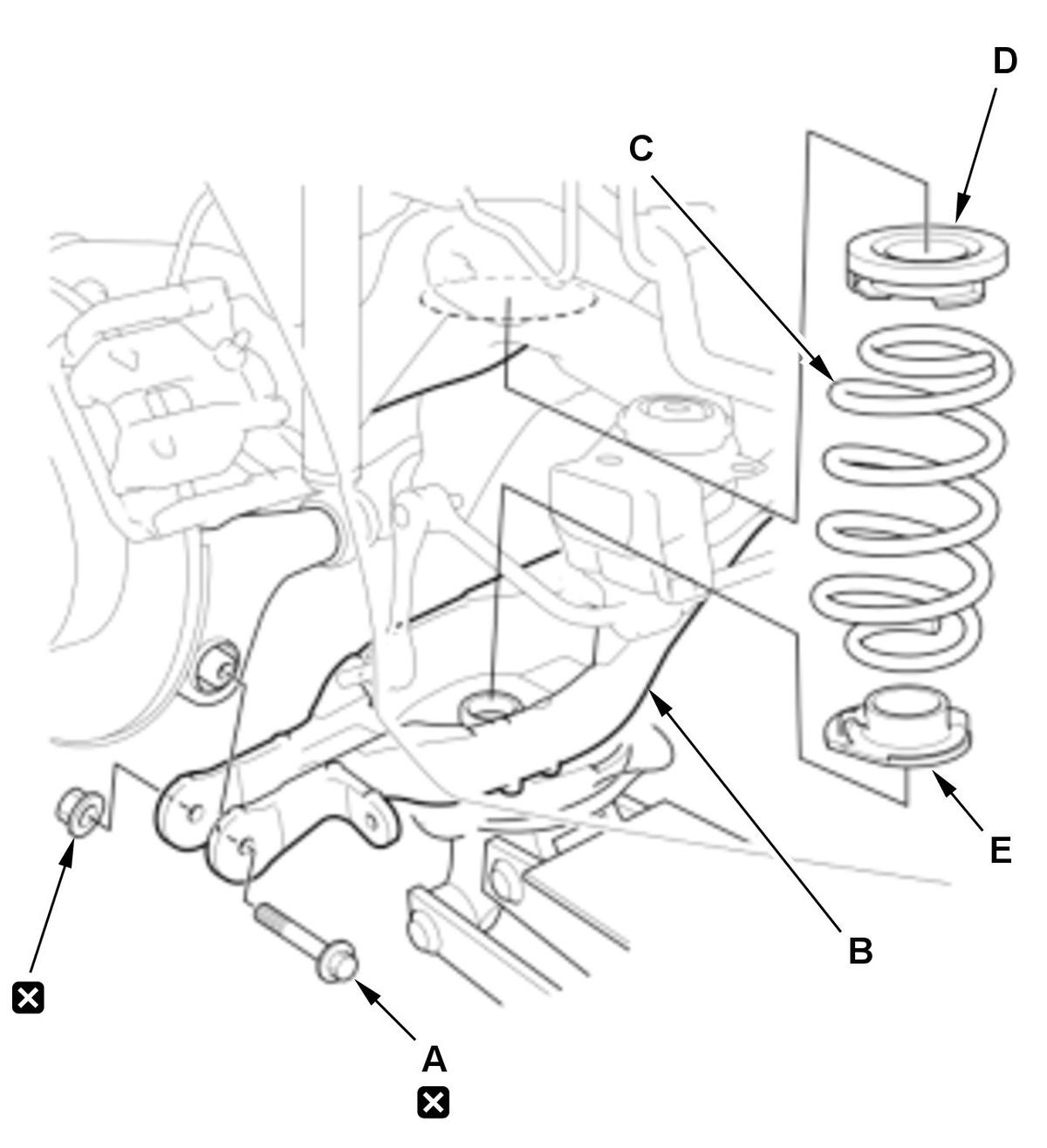

1. Position a floor jack under lower arm B.

2. Raise the floor jack until the suspension begins to compress.

3. Remove the lower arm B mounting bolt (A).

4. Lower the floor jack gradually.

5. Remove the spring (C), upper rubber mount (D), and lower rubber mount (E).
