Rear Lower Arm B Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

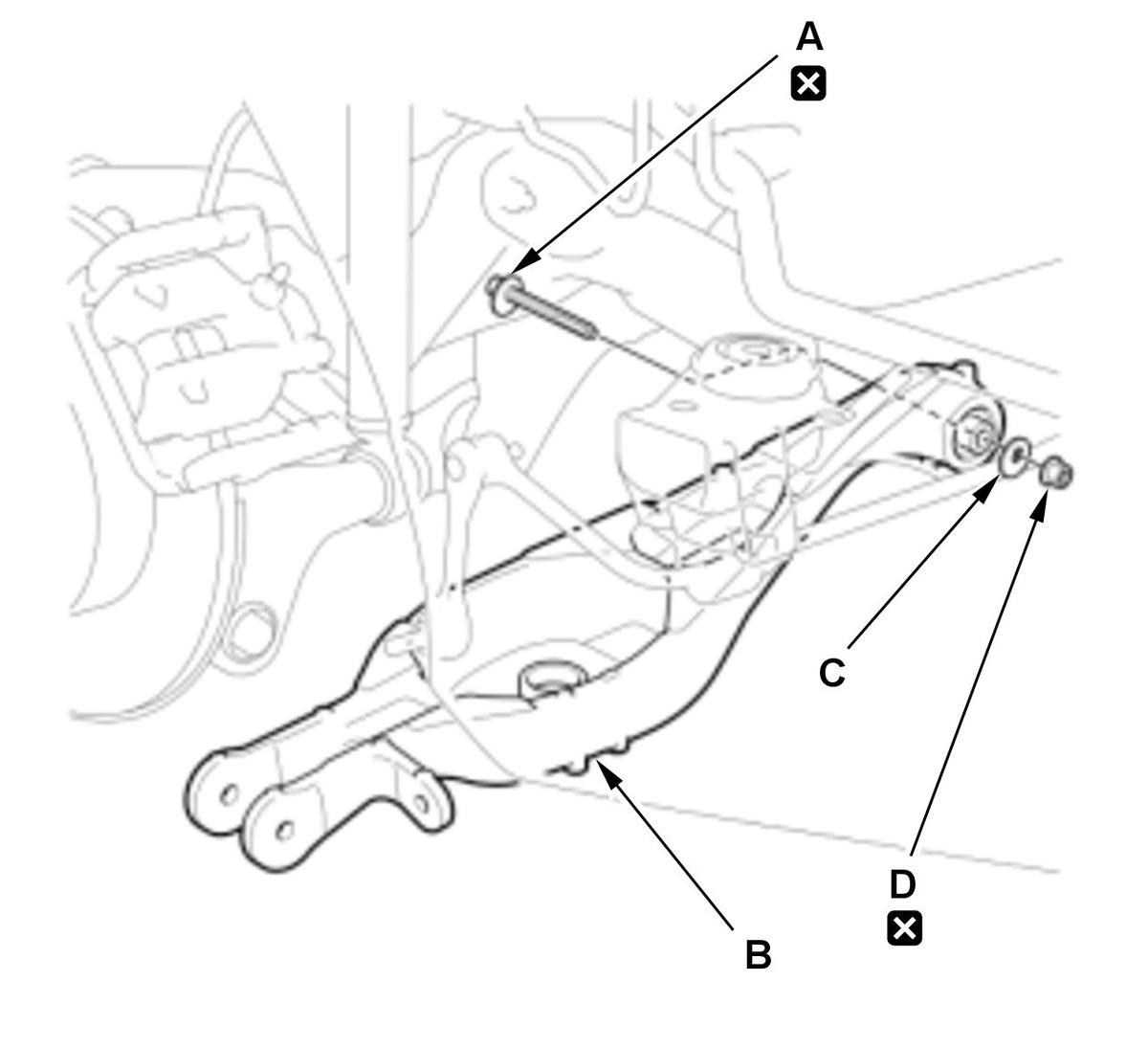

Lower Arm B - Remove

Courtesy of HONDA, U.S.A., INC.

1. Mark the cam positions of the adjusting bolt (A) and the adjusting cam plate (C).

2. Remove the self-locking nut (D), the adjusting cam plate, and the adjusting bolt.

3. Remove lower arm B.
