Rear Lower Arm B Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Lower Arm B - Install

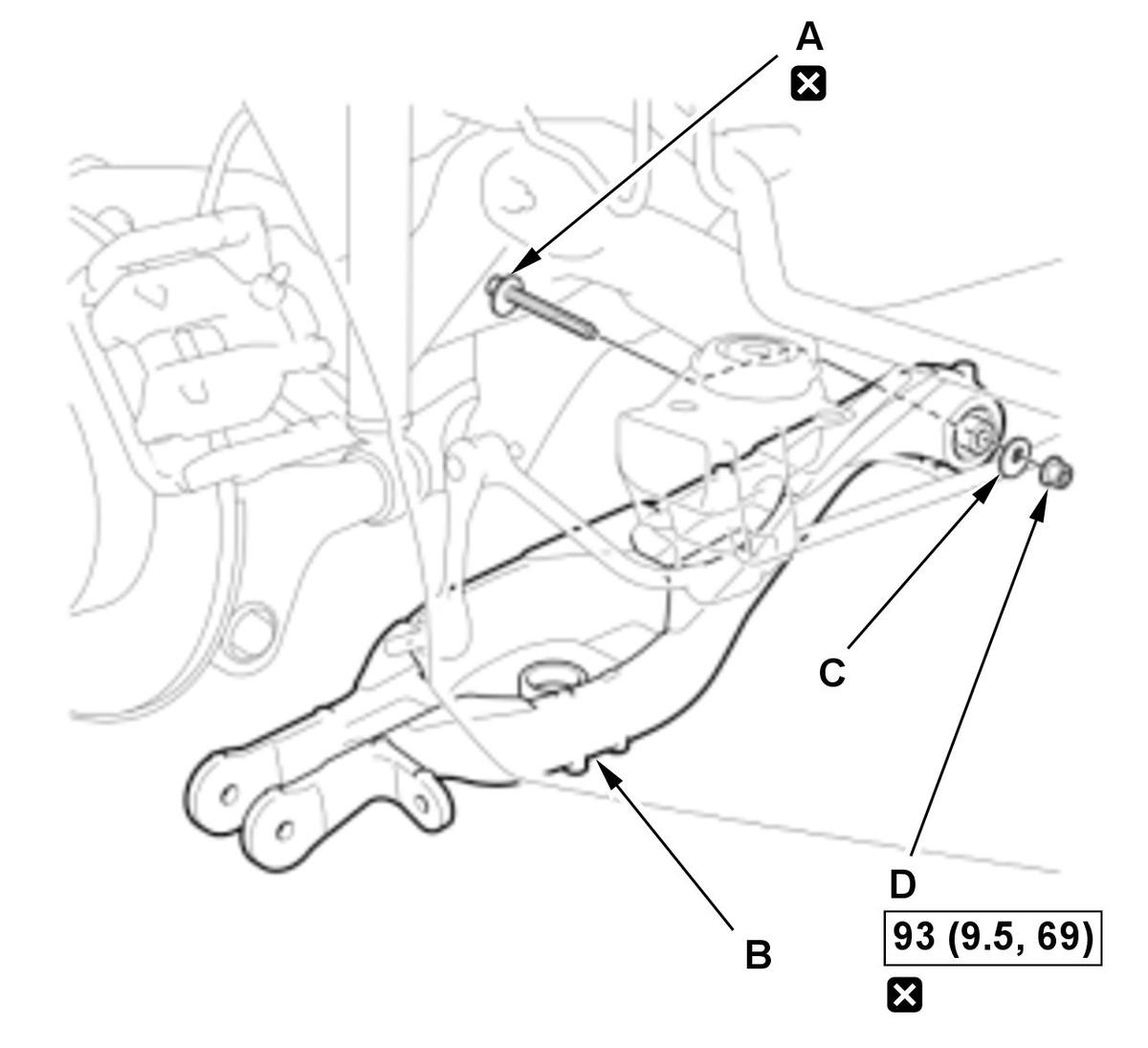

Fig 1: Rear Lower Arm B Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Position lower arm B.

2. Install a new adjusting bolt (A), the adjusting cam plate (C), and a new self-locking nut (D) but do not tighten it.

NOTE:

Align the cam positions of the adjusting bolt and the adjusting cam plate with the marked positions on the frame when tightening the self-locking nut.
Tighten the self-locking nut during the rear spring installation procedure.
