Section 49 (Suspension System - Service Information (Hybrid))
>>
Removal and Installation
>>
Rear Knuckle/Hub Bearing Unit Removal and Installation
>>

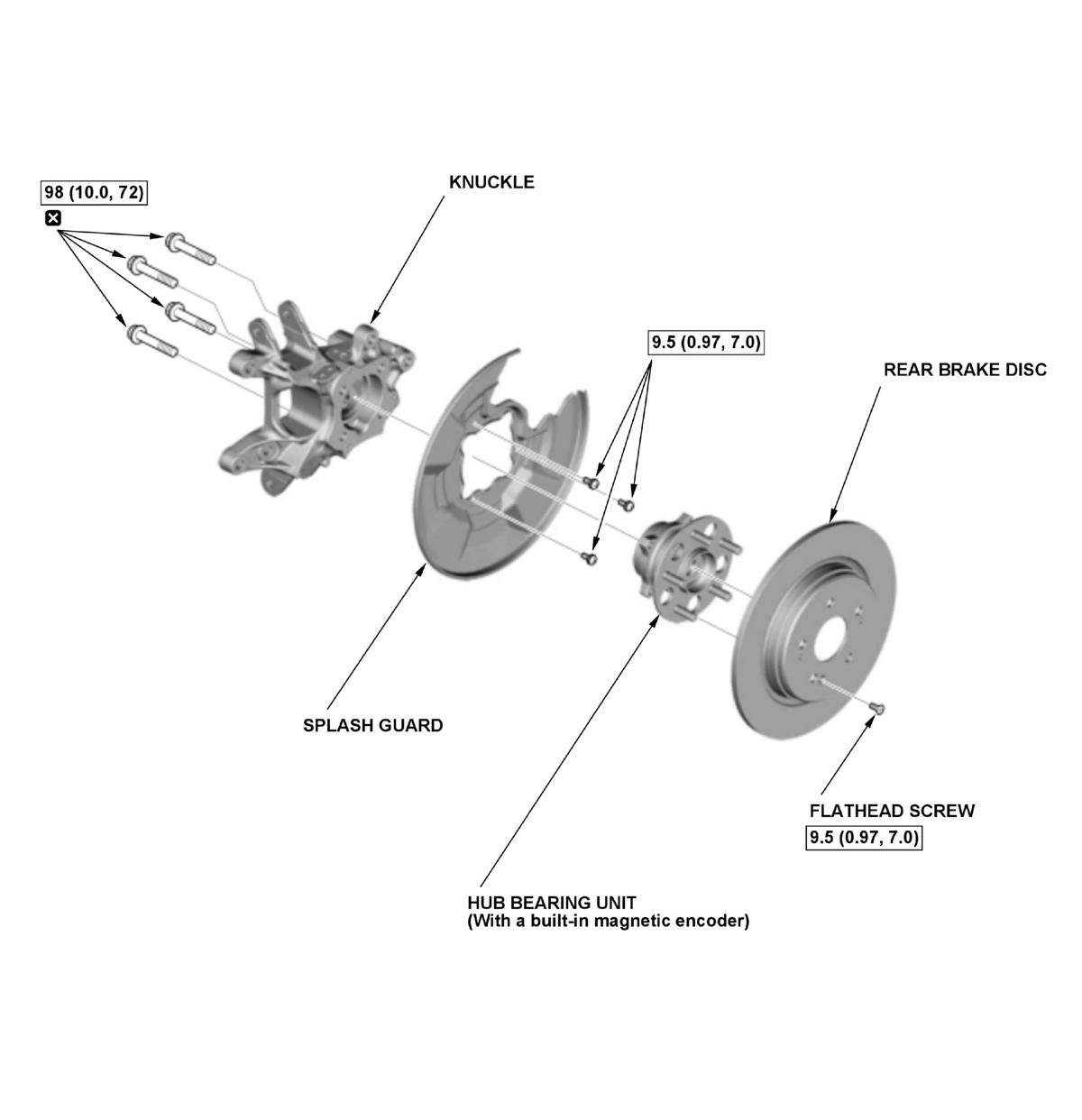

Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
NOTE:
How to read the torque specifications
.
Knuckle/Hub Bearing Unit
Courtesy of HONDA, U.S.A., INC.
