Removal and Installation

NOTE: How to read the torque specifications .

1. Vehicle - Lift
2. Front Wheel - Remove
3. Stabilizer Link - Remove

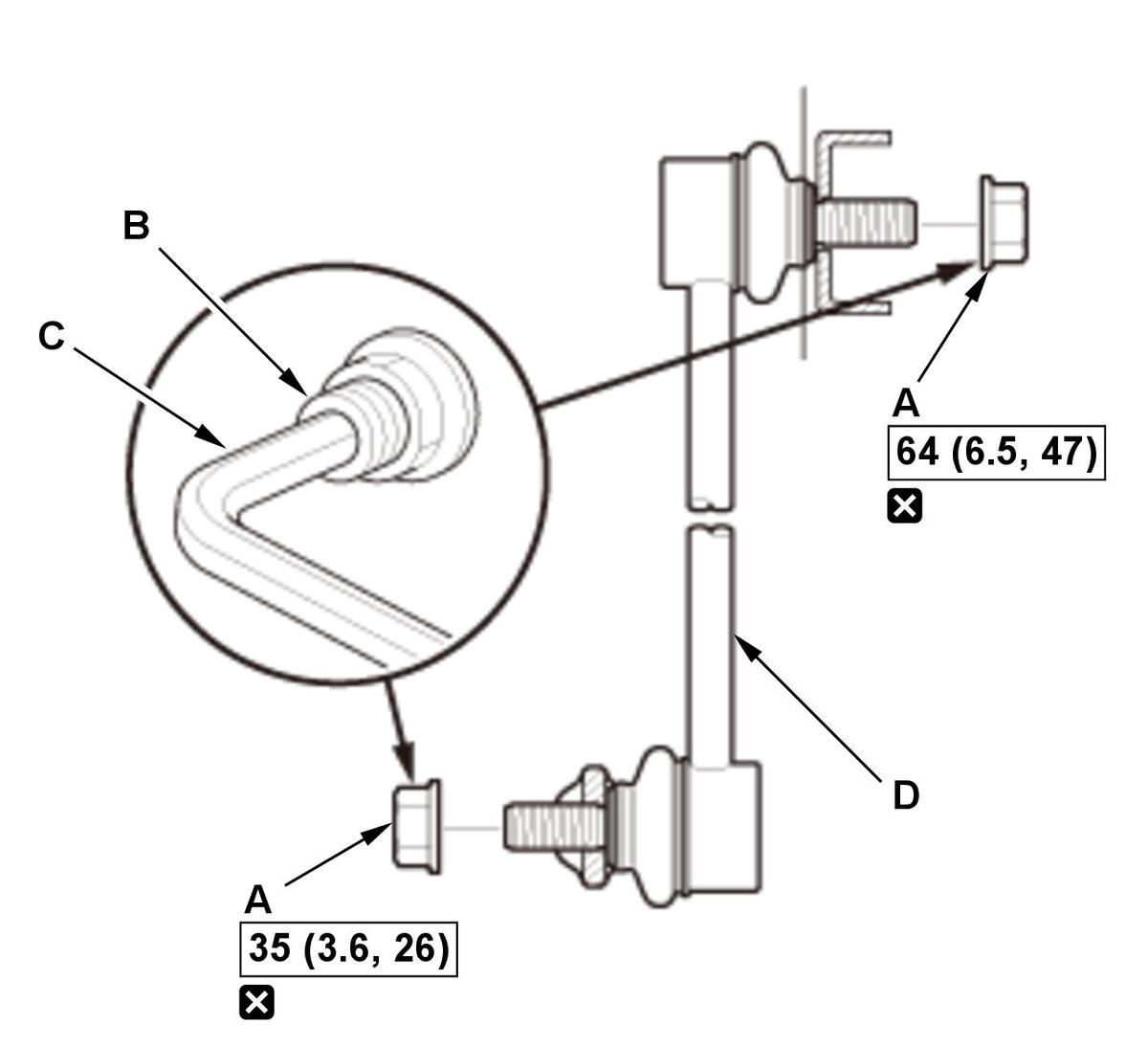

   Fig 1: Front Stabilizer Link Components With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C). NOTE:  Use new flange nuts during reassembly. 2. Remove the stabilizer link (D).

4. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal.
