Resetting the Maintenance Minder
NOTE:
- The vehicle must be stopped to reset the Maintenance Minder.
- If a required service is done and the Maintenance Minder is not reset, or if the Maintenance Minder is reset without doing the service, the system will not show the proper maintenance timing. This can lead to serious mechanical problems because there will be no accurate record of when the required maintenance is needed.
- You can reset all maintenance items together, or you can select and reset each maintenance item individually on the display.
- The engine oil life and maintenance item(s) can also be independently reset with the HDS.
1. Turn the vehicle to the ON mode.
2. If system message(s) are displayed, press the information switch or audio remote/multi-information display switch to cancel the display until the "Maintenance Minder" icon is displayed, then press the ENTER button.
3. When the display shows the remaining engine oil life, press and hold the ENTER button for 10 seconds or more. The "Maintenance Reset" mode appears on the multi-information display.
NOTE:
- If you are resetting the Maintenance Minder when the engine oil life is more than 15 %, make sure any maintenance item(s) requiring service are done before resetting the display.
- To cancel the "Maintenance Reset" mode, press the audio remote/multi-information display switch to select the "Cancel," then press the ENTER button.

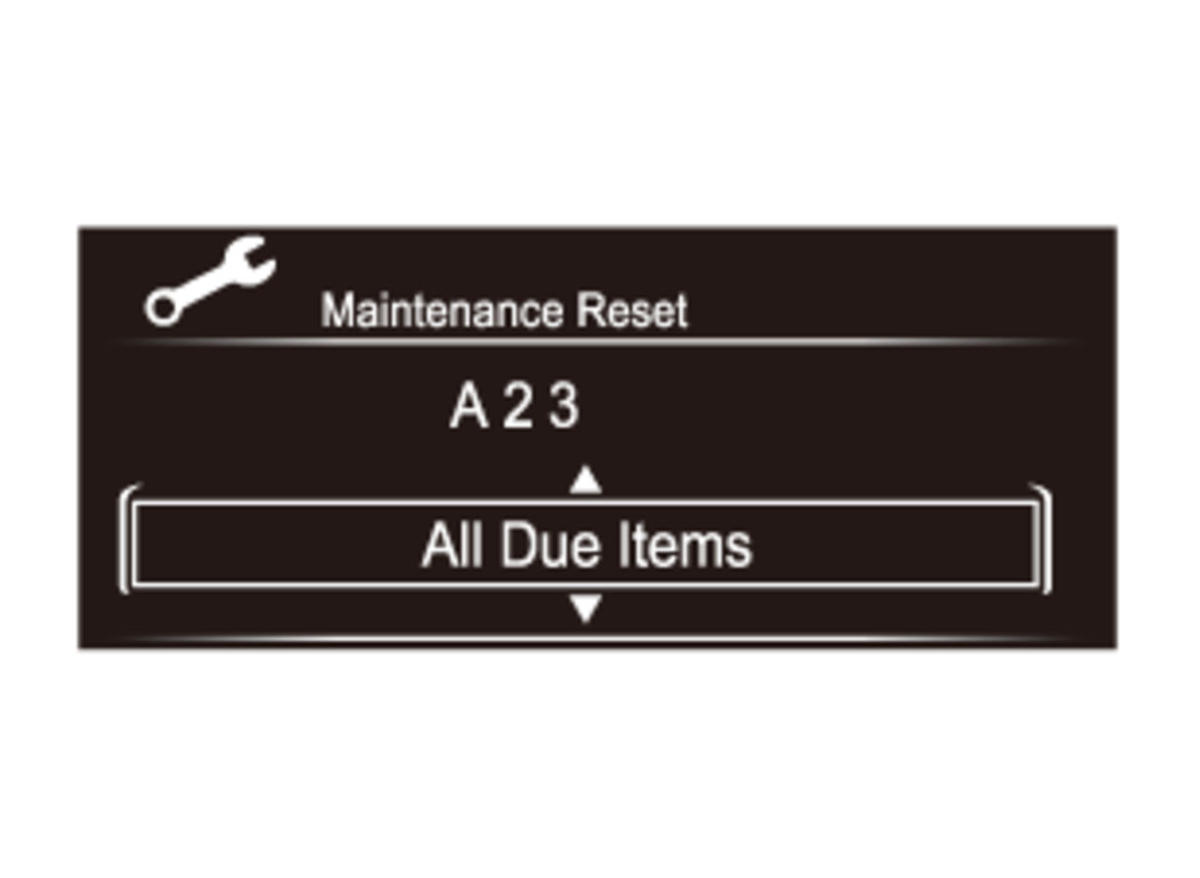

4. If you reset all the maintenance items shown on the display "A23 (for example)", select "All Due Items" by pressing the audio remote/multi-information display switch and press the ENTER button. If you want to reset each maintenance item individually, select an item (complete list of maintenance main item(s) and sub item(s) ) you wish to reset by pressing the audio remote/multi-information display switch and press the ENTER button.

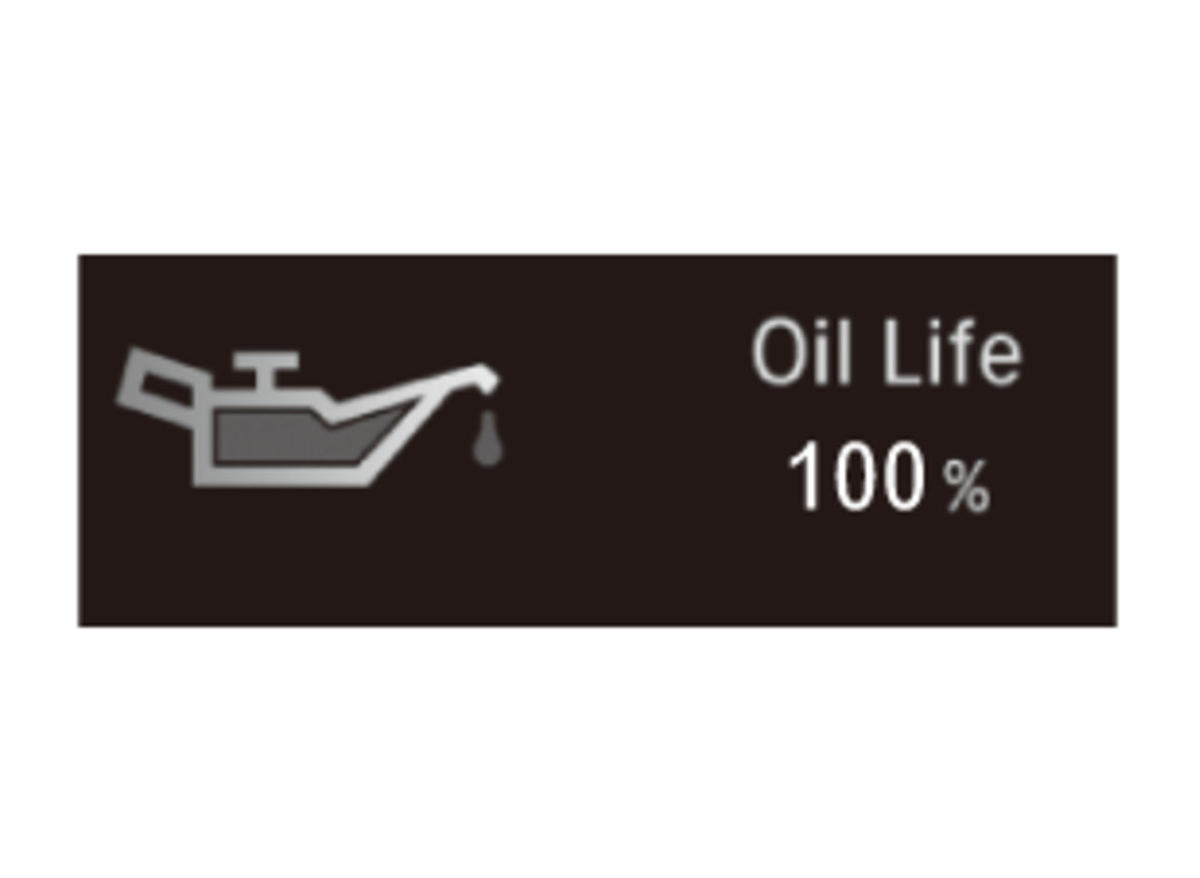

5. The maintenance item code(s) will disappear, and the engine oil life will reset to "100%."
