Lubricants and Fluids

WARNING: This page is about a different variant/trim than selected.

Application		Lubricant or Fluid

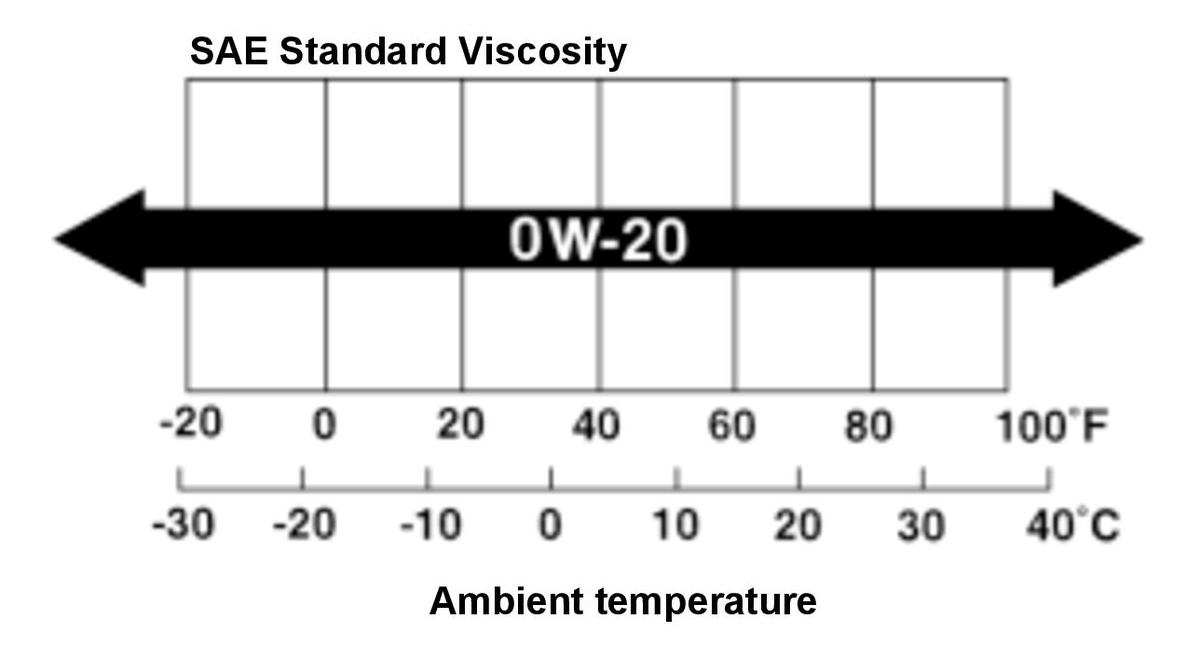

Engine		Honda Motor Oil: 0W-20 Look for the API certification seal on the oil container. Make sure it says "For Gasoline Engines." SAE Viscosity: See chart.
Transmission (e-CVT)		Honda Automatic Transmission Fluid (ATF DW-1): Always use Honda ATF DW-1. NOTE: Using the wrong type of fluid will damage the transmission.
Rear differential (with AWD)		Honda DPSF-II
Brake system (including VSA lines)		Honda DOT 3 Brake Fluid: Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system.
Cooling system		Always use Honda Long Life Antifreeze/Coolant Type 2. NOTE: For prolonged cold temperatures below -22°F (-30°C), add Honda Extreme Cold Weather Antifreeze/Coolant Type 2 (concentrate) .

Recommended Engine Oil

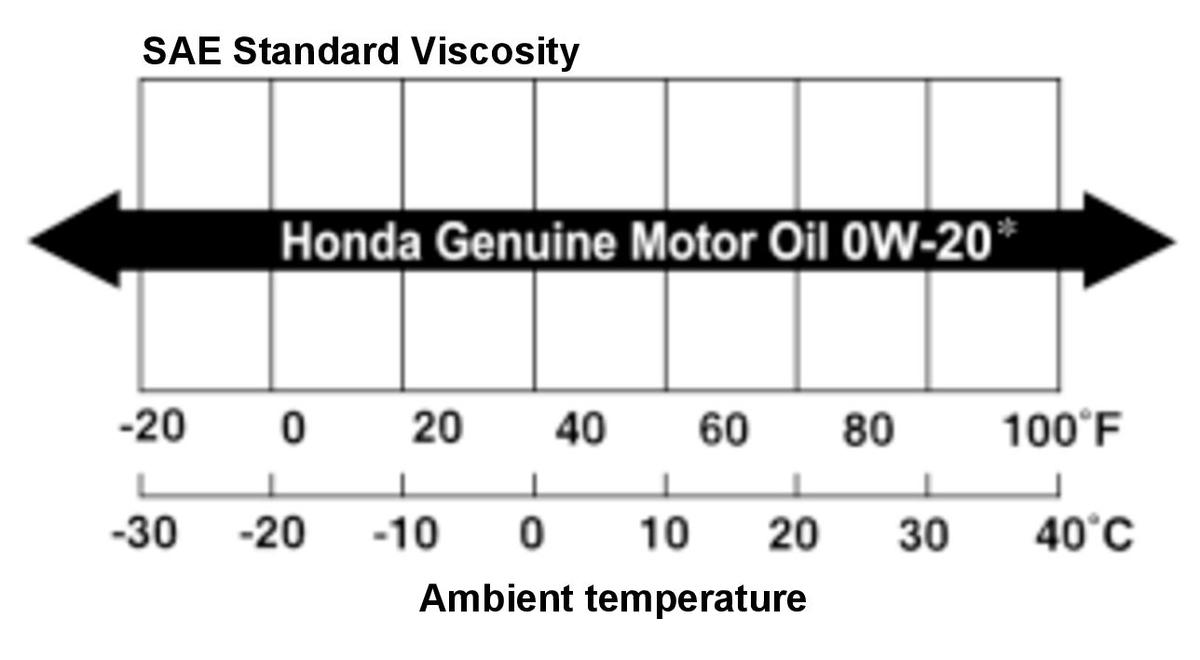

Recommended Engine Oil	Engine Oil Standard
Honda Genuine Motor Oil (0W-20)	If "Honda Genuine Motor Oil" is not available, use 0W-20.
		Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.

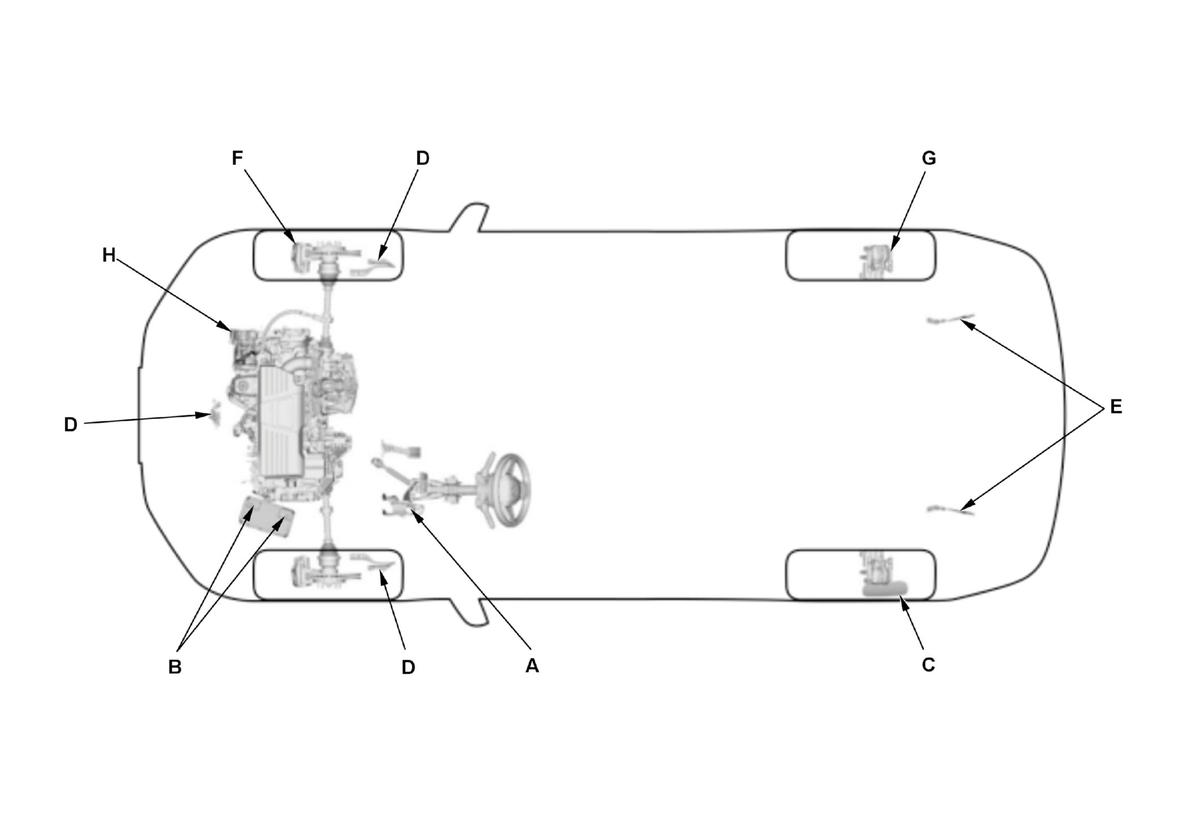

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in the service information.

Application		Lubricant or Fluid
A	Brake pedal yoke pin	Multipurpose grease
B	12 volt battery terminals
C	Fuel fill door
D	Hood hinges and hood latch
E	Tailgate hinges
F	Front brake caliper pins and pin boots	Honda silicone grease (P/N 08C30-B0234M) or Caliper set grease (NIGLUBE RM)
	Front brake caliper piston seals	Honda silicone grease (P/N 08C30-B0234M) or Caliper set grease (Shin-Etsu Chemical KS62M)
	Front brake caliper piston boots	Honda silicone grease (P/N 08C30-B0234M) or Caliper set grease (Cosmo Rubber Grease)
	Front brake caliper piston	Brake Fluid DOT 3
G	Rear brake caliper pins and pin boots	Honda silicone grease (P/N 08C30-B0234M) or Caliper set grease (NIGLUBE RM)
	Rear brake caliper piston seals	Brake Fluid DOT 3
	Rear brake caliper piston boots	Caliper set grease (GB3G)
H	Air conditioning compressor	Compressor Oil: DENSO ND-OIL 11 (POE oil: P/N 38899-TX9-023) for refrigerant HFO-1234yf (R-1234yf)

NOTE:

Lubricate the following areas using the recommended lubricants and fluids.
In corrosive areas, more frequent lubrication is necessary.

Courtesy of HONDA, U.S.A., INC.
