Rear Driveshaft Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

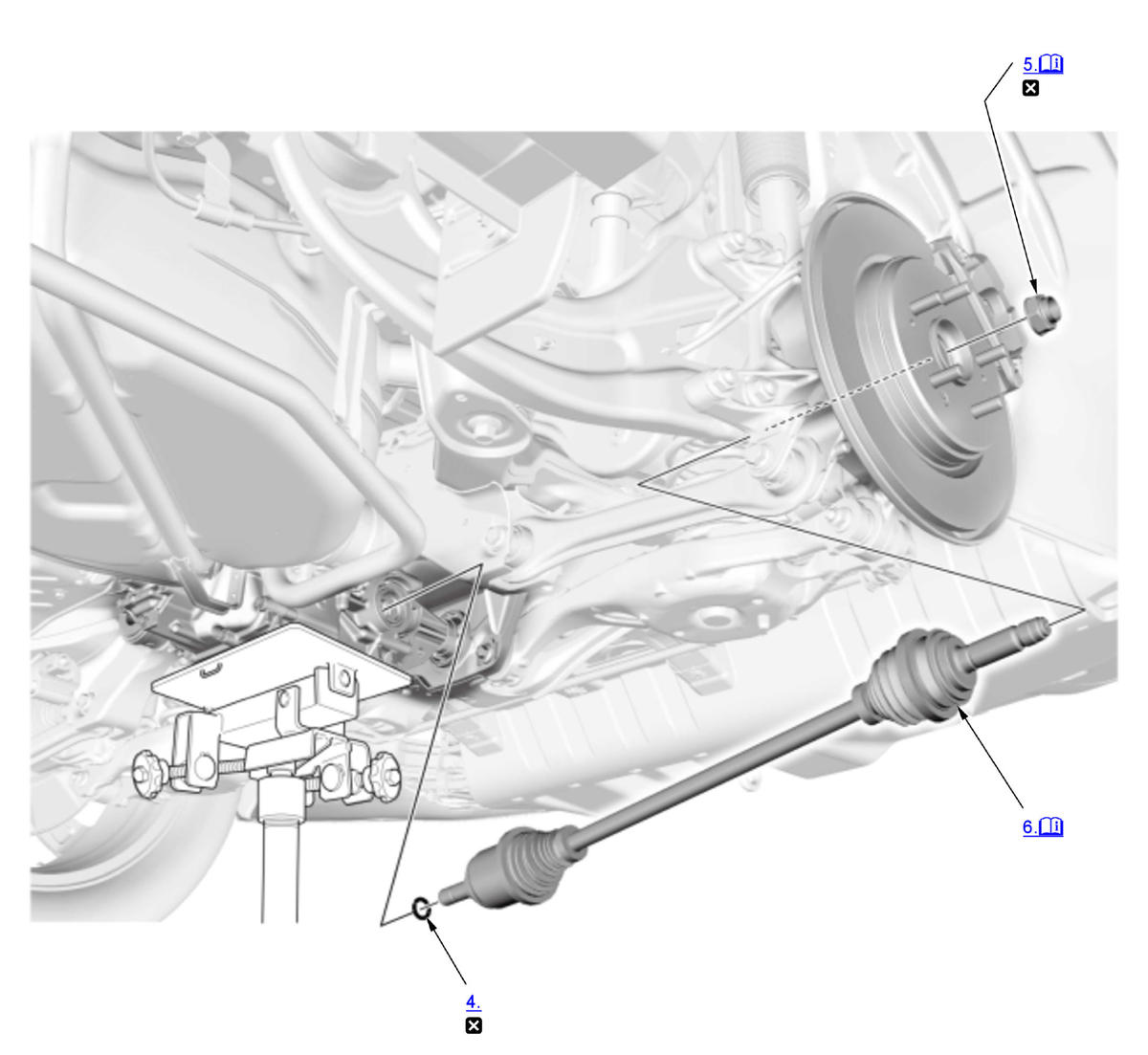

Fig 1: Exploded View Of Rear Driveshaft Components For Removal

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

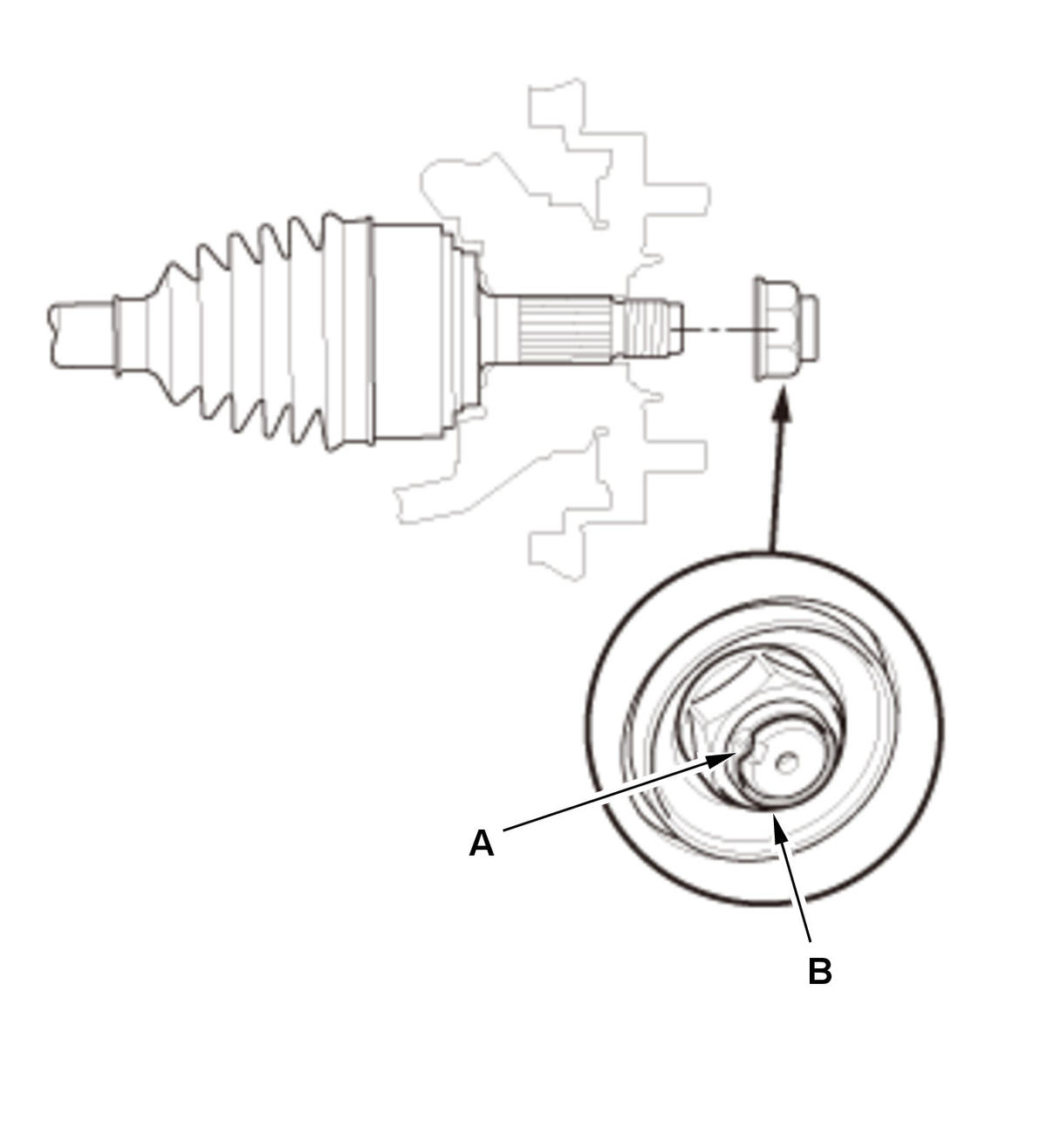

Spindle Nut - Remove

Courtesy of HONDA, U.S.A., INC.

1. Pry up the stake (A) on the spindle nut (B).

2. Remove the spindle nut.

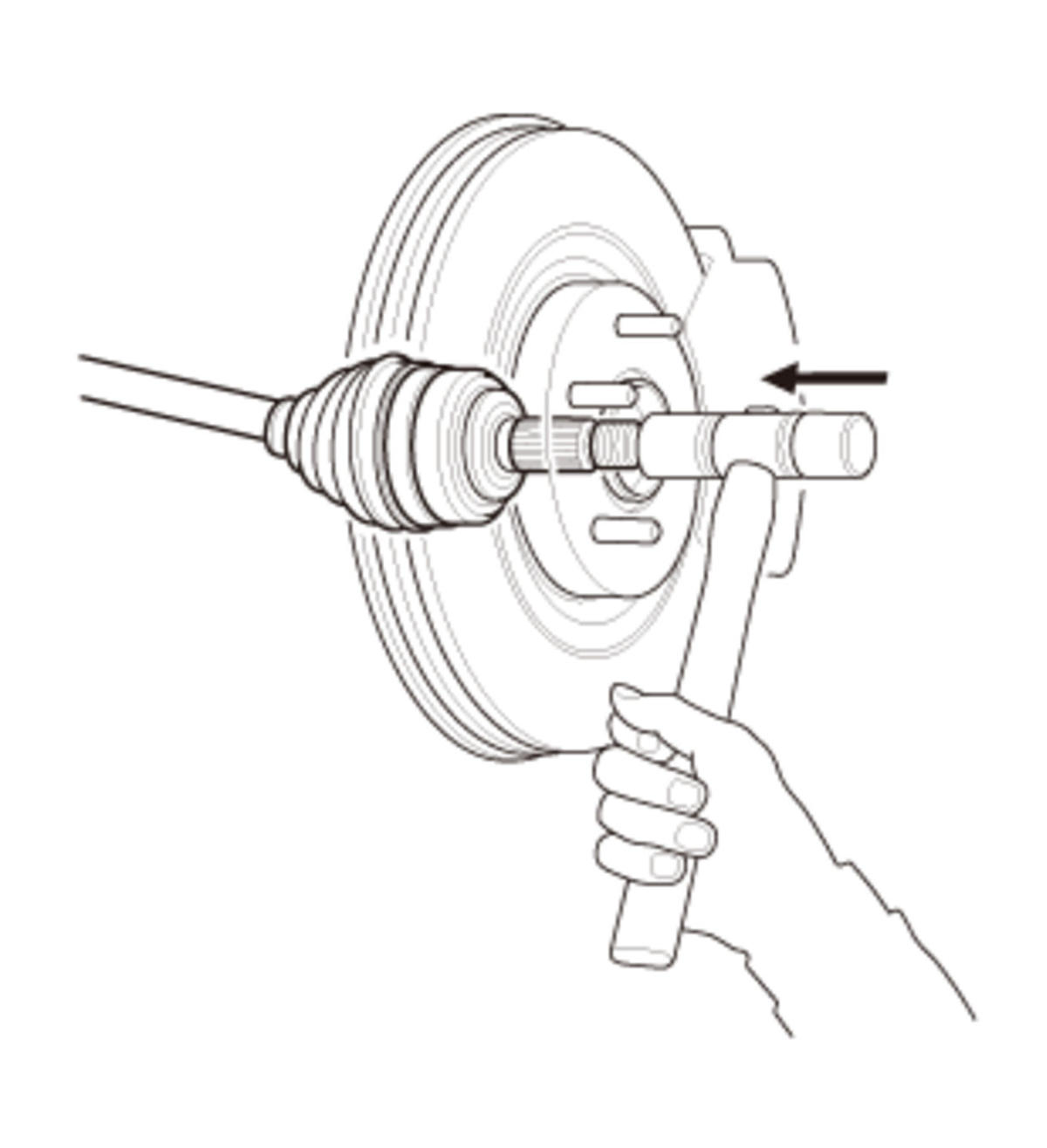

Outboard Joint - Disconnect

Courtesy of HONDA, U.S.A., INC.

NOTE: Be careful not to damage the outboard joint threads and the wheel speed sensor.
