Front Driveshaft Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

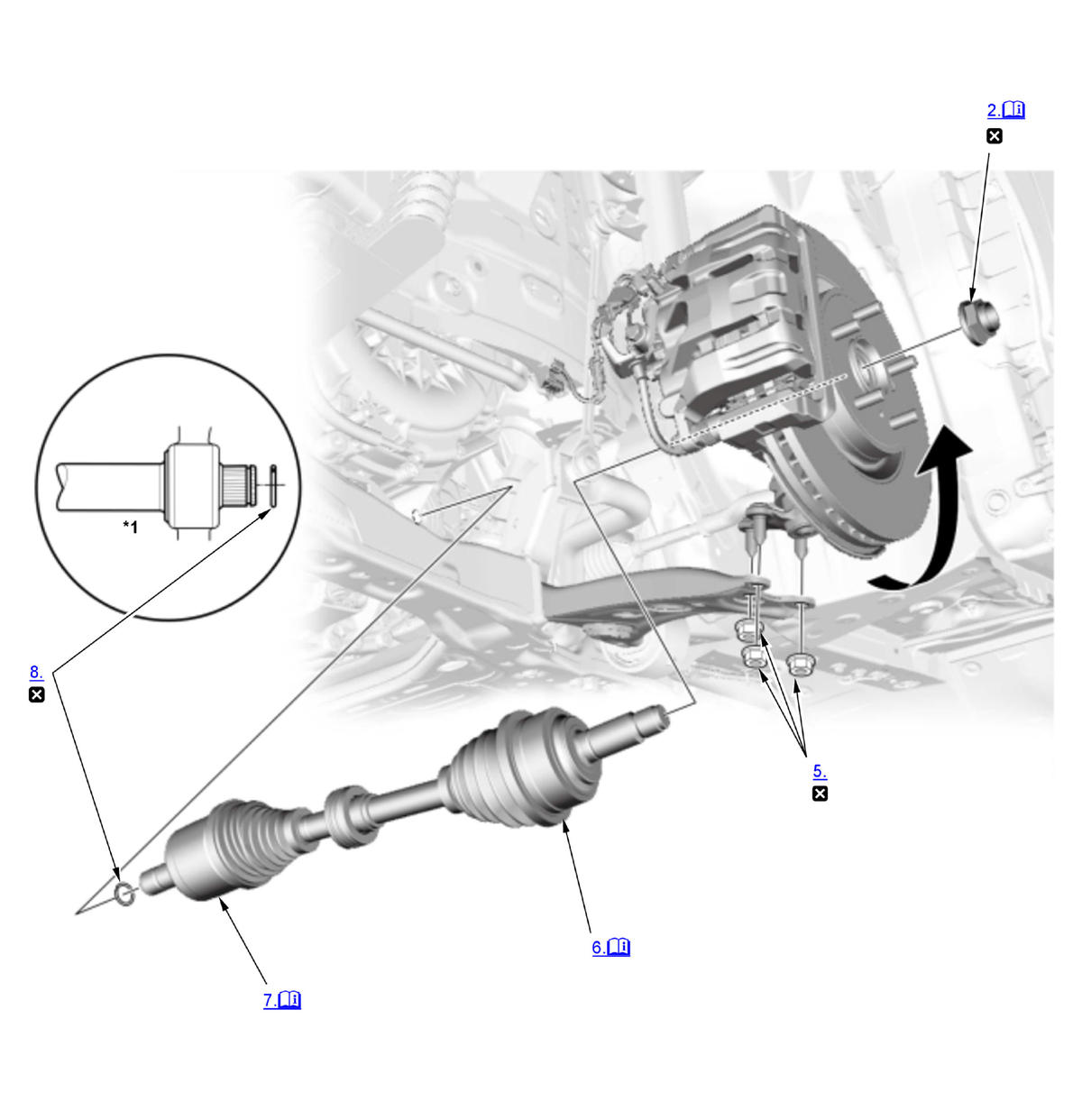

Fig 1: Exploded View Of Front Driveshaft Components For Removal

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	Intermediate shaft

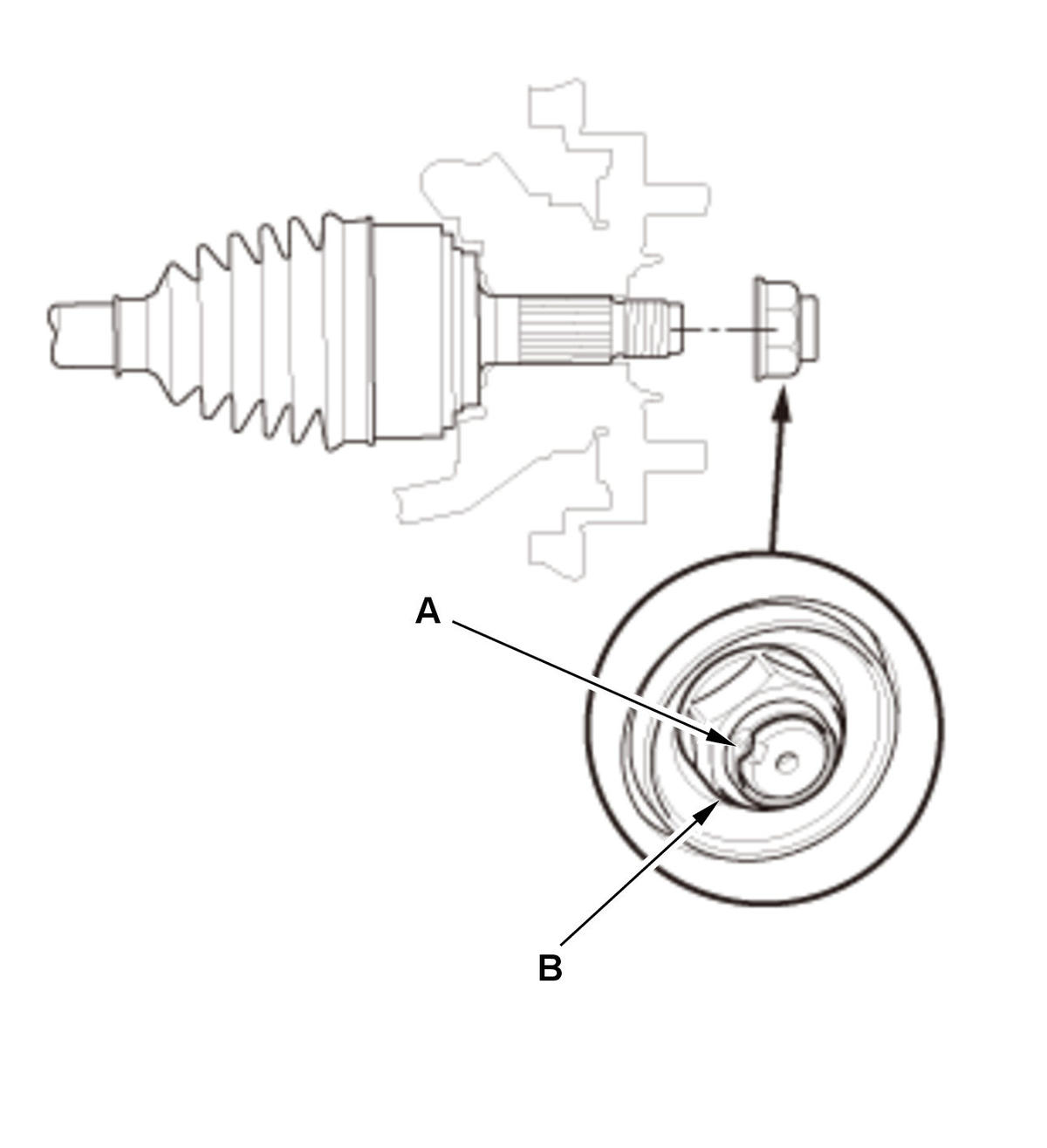

Spindle Nut - Remove

Courtesy of HONDA, U.S.A., INC.

1. Pry up the stake (A) on the spindle nut (B).

2. Remove the spindle nut.

Engine Undercover - Remove
Transmission Fluid - Drain
Lower Arm Ball Joint - Disconnect

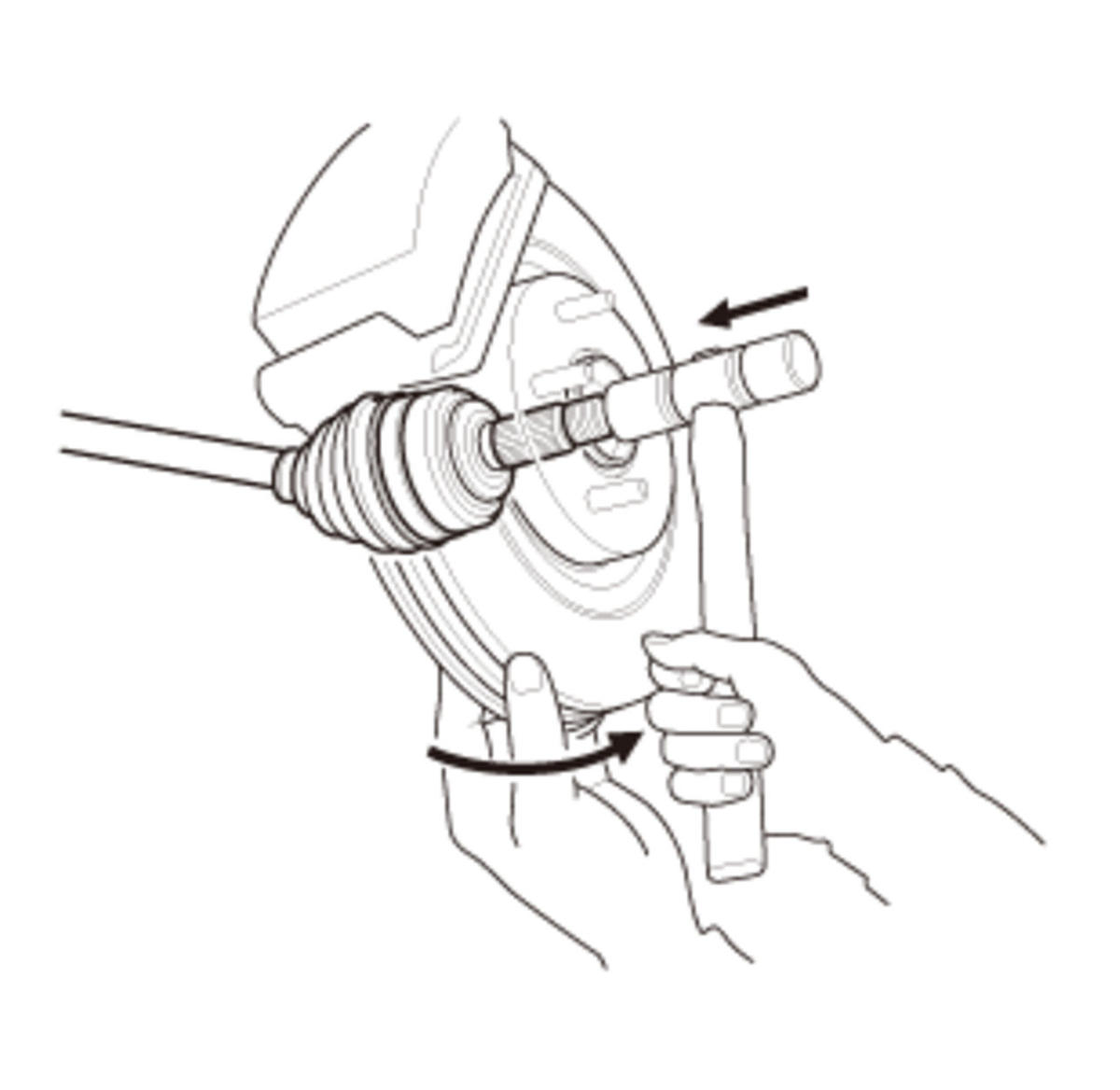

Outboard Joint - Disconnect

Courtesy of HONDA, U.S.A., INC.

NOTE: Be careful not to damage the outboard joint threads and the wheel speed sensor.
Inboard Joint - Disconnect (Both Sides)

Courtesy of HONDA, U.S.A., INC.

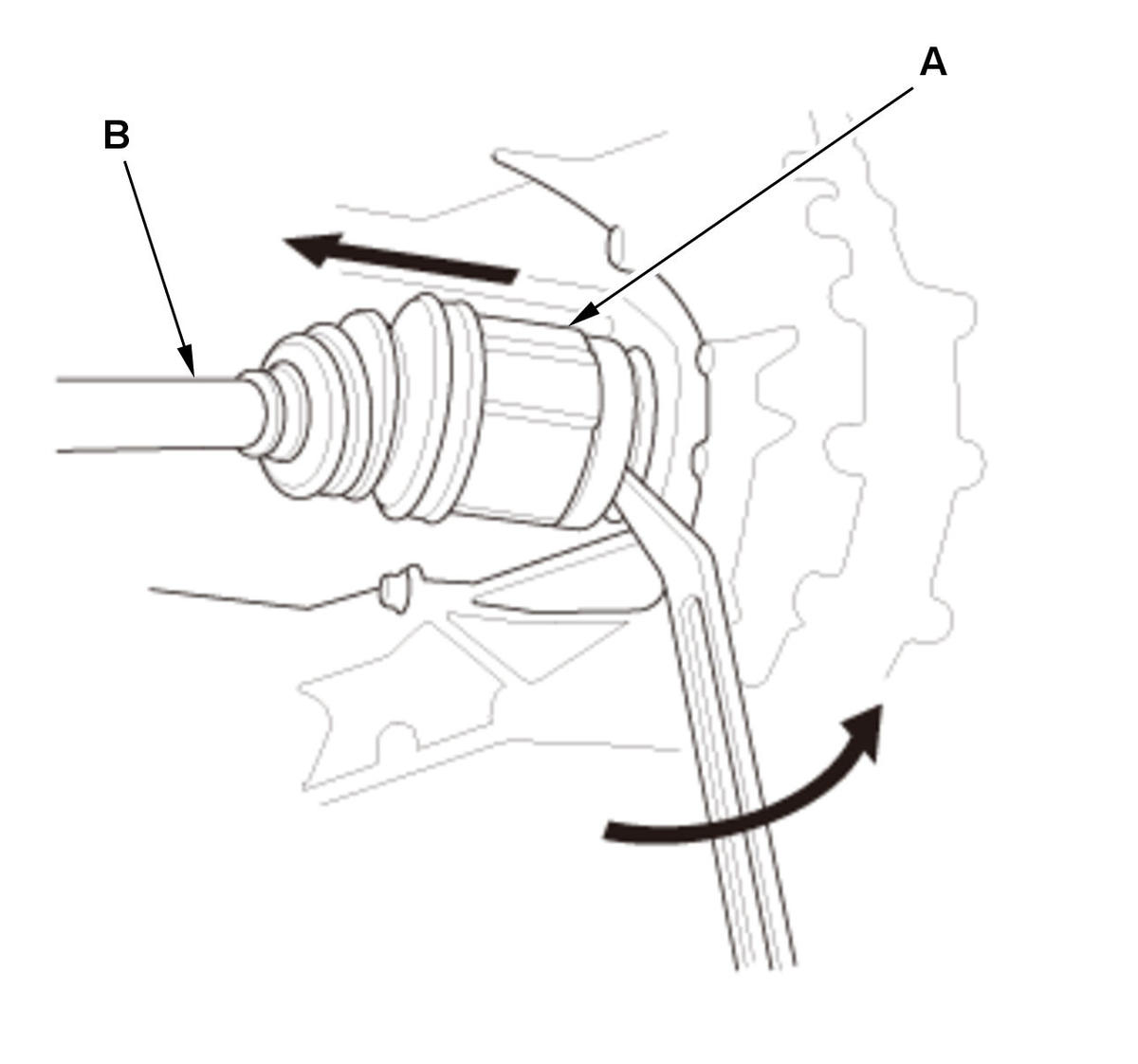

Left driveshaft

1. Pry the inboard joint (A) using a pry bar.

NOTE: Be careful not to damage the oil seal or the end of the inboard joint with the pry bar.

2. Remove the driveshaft as an assembly.

NOTE: Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the inboard joint straight out to avoid damaging the oil seal.

Courtesy of HONDA, U.S.A., INC.

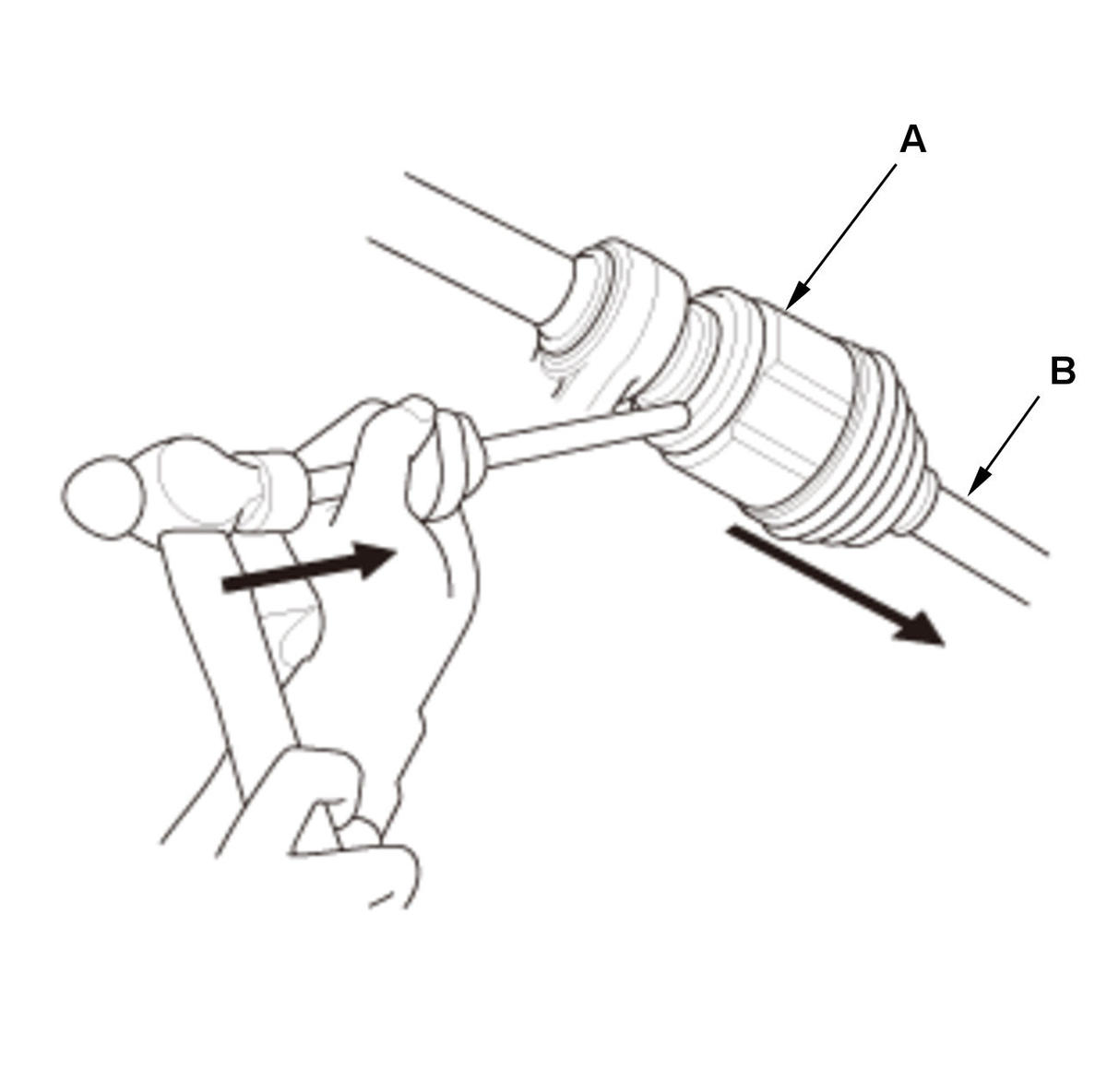

Right driveshaft

1. Drive the inboard joint (A) off of the intermediate shaft using a drift punch and a hammer.

2. Remove the driveshaft as an assembly.

NOTE: Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the inboard joint straight out.
Set Ring - Remove
