Rear Driveshaft Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

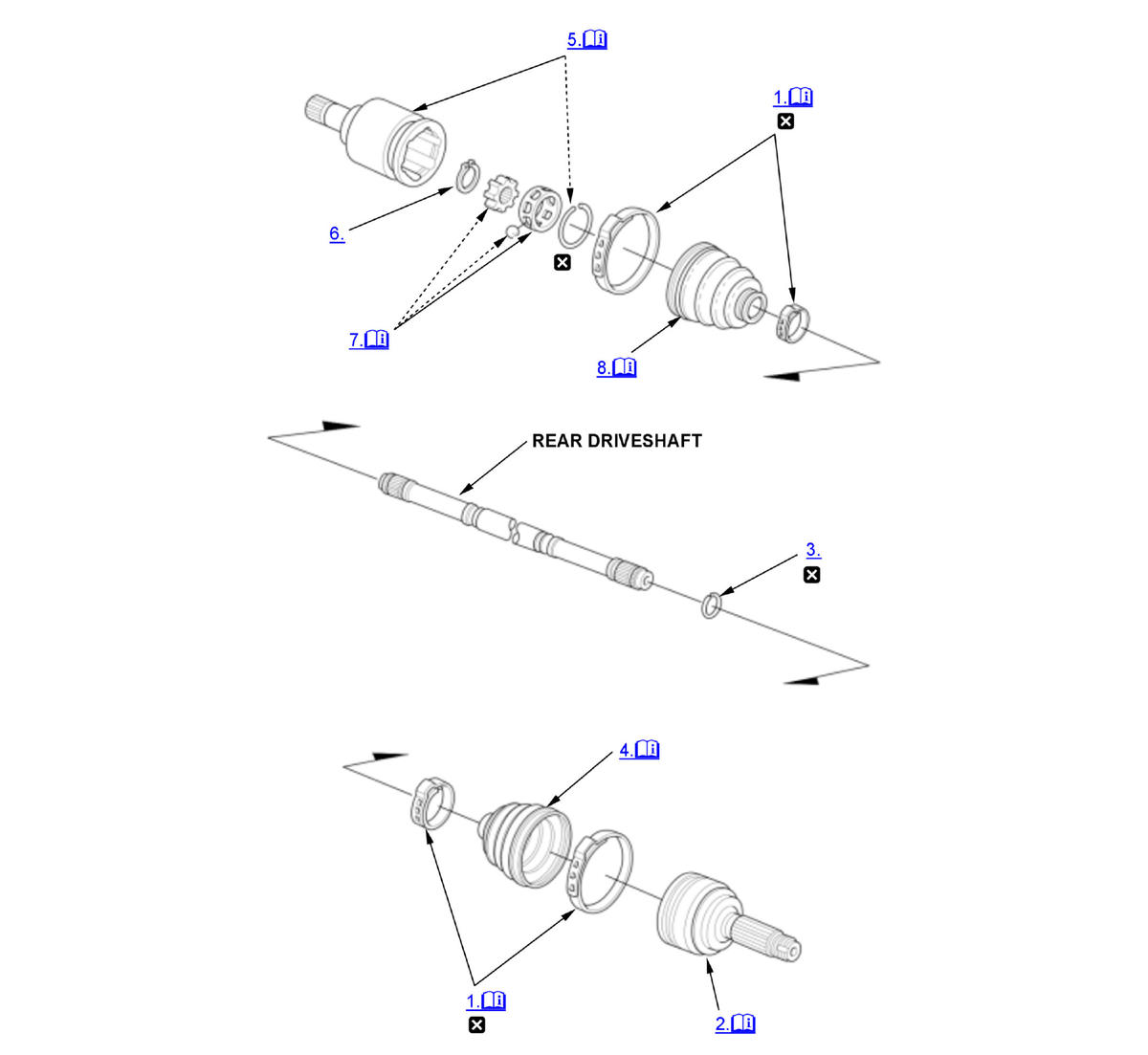

Numbered call-outs in figure pertain to list numbers in following procedure.

Fig 1: Exploded View Of Rear Driveshaft Components For Disassembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

Boot Bands - Remove

Courtesy of HONDA, U.S.A., INC.

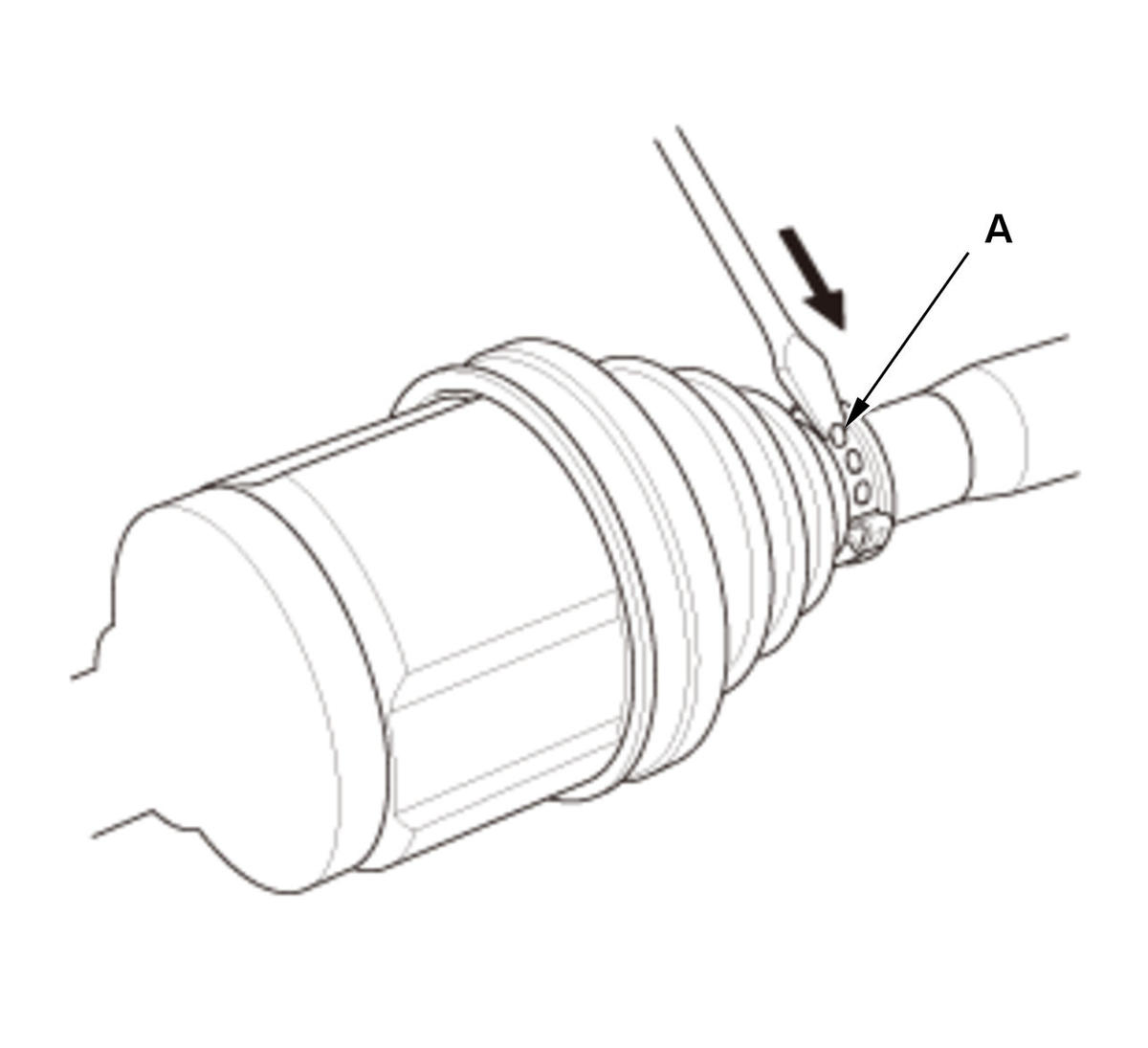

1. Lift up the tabs (A) using a flat-tipped screwdriver.

Outboard Joint - Remove

Courtesy of HONDA, U.S.A., INC.

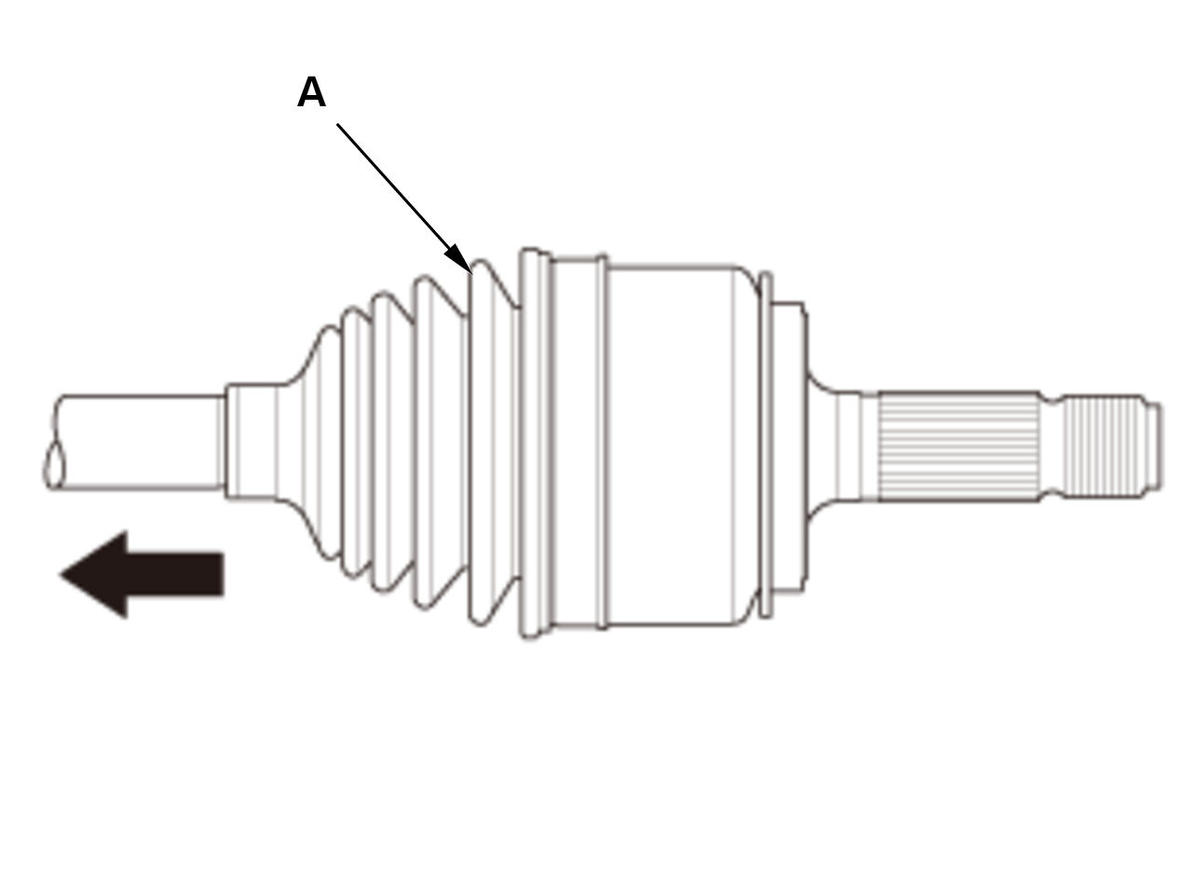

1. Slide the outboard boot (A) partially toward the inboard joint side.

2. Wipe off the grease to expose the driveshaft and the outboard joint inner race.

Courtesy of HONDA, U.S.A., INC.

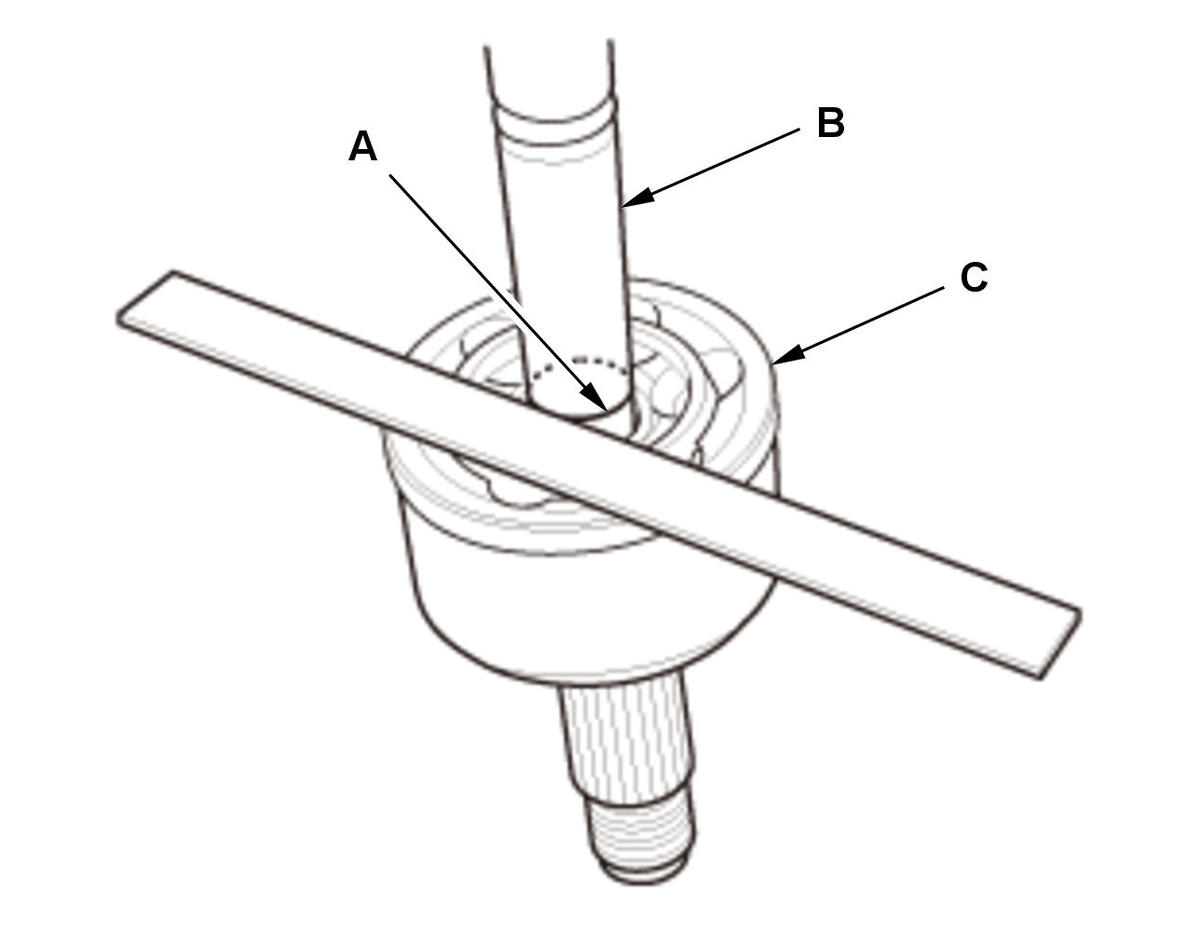

3. Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

Courtesy of HONDA, U.S.A., INC.

4. Securely clamp the driveshaft in a bench vise with the wood blocks.

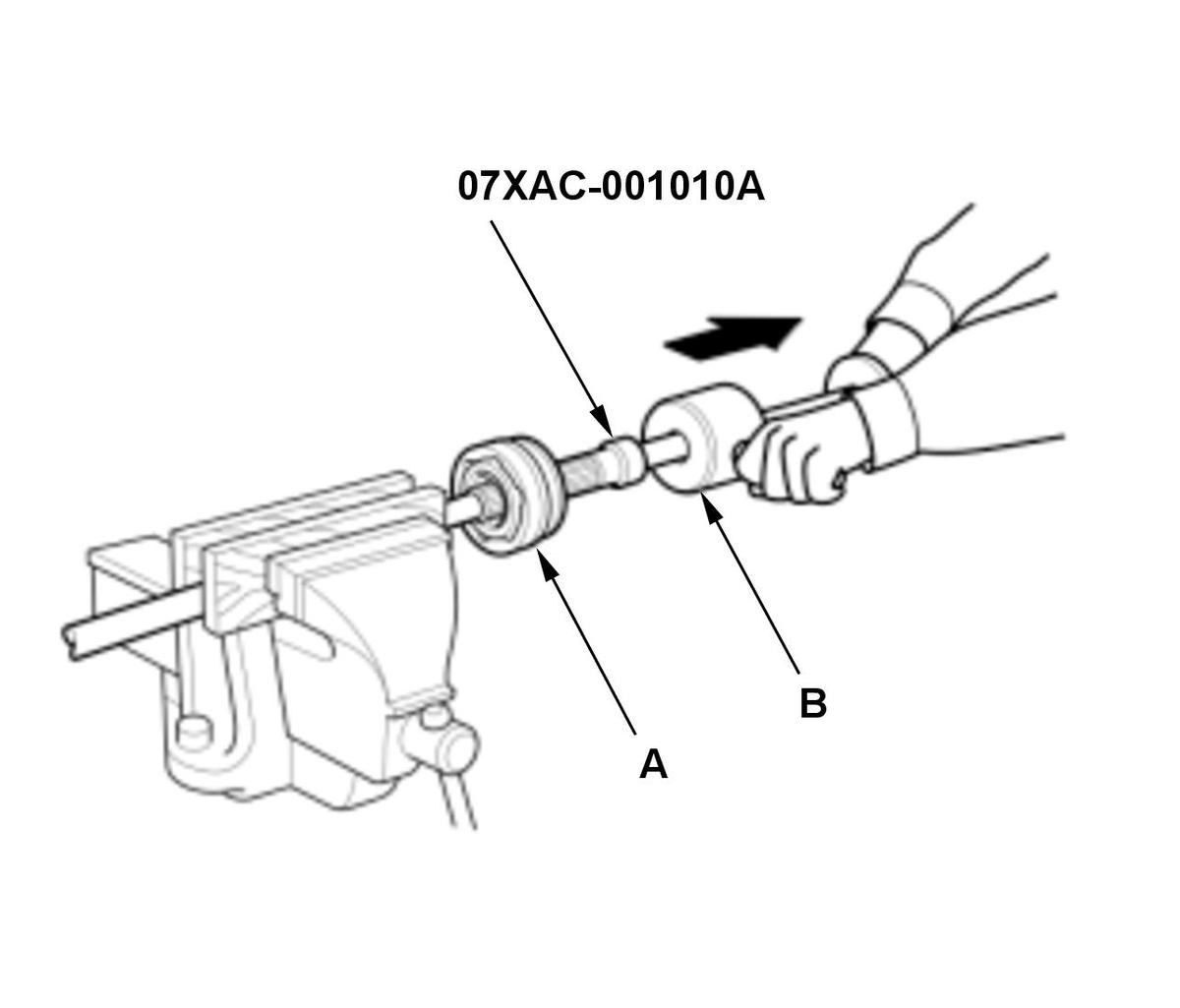

5. Remove the outboard joint (A) using the 22 x 1.5 mm threaded adapter and a commercially available 5/8"-18 UNF slide hammer (B).

NOTE: Check inside of the outboard joint and on the serrations for wear and tear.

6. Remove the driveshaft from the bench vise.

Stop Ring - Remove
Outboard Boot - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE:

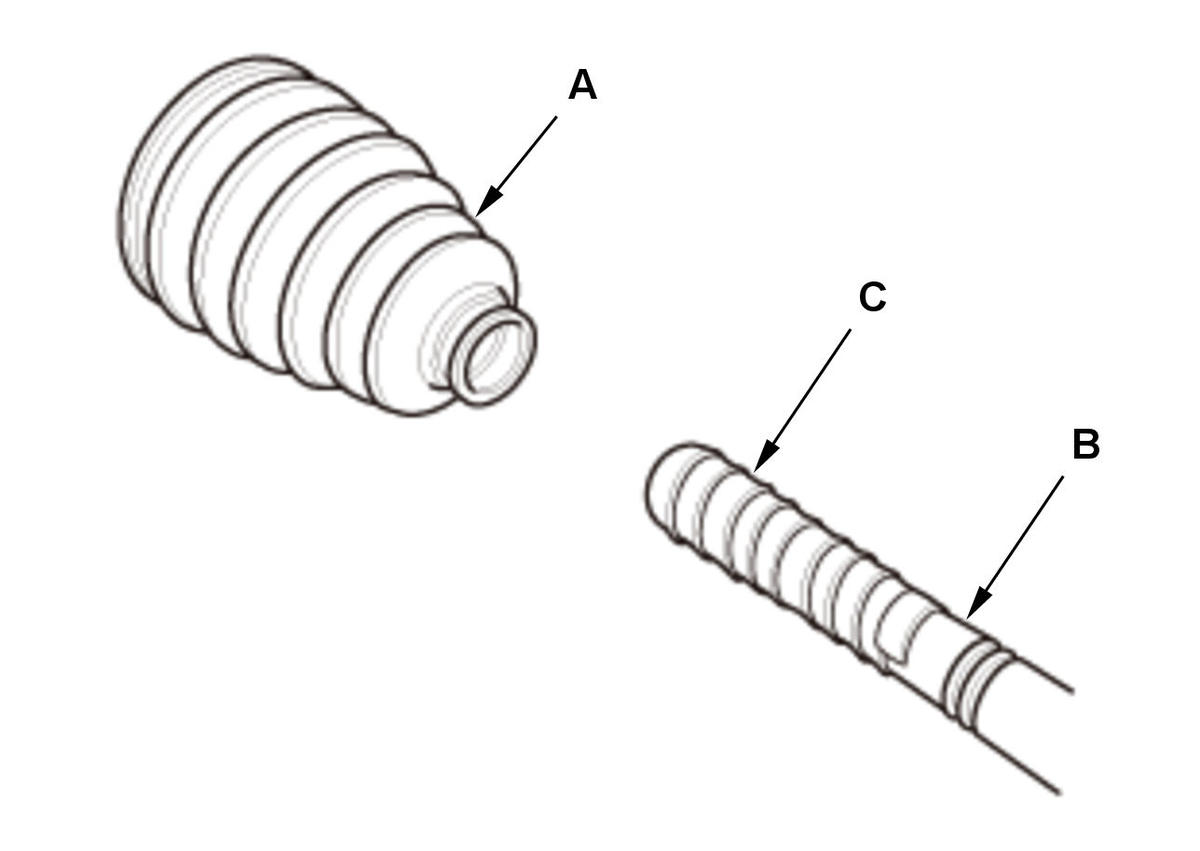

- Check the outboard boot (A) for cracks and damage. If any damage is found, replace the outboard boot.
- Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the outboard boot.

Inboard Joint - Remove

Courtesy of HONDA, U.S.A., INC.

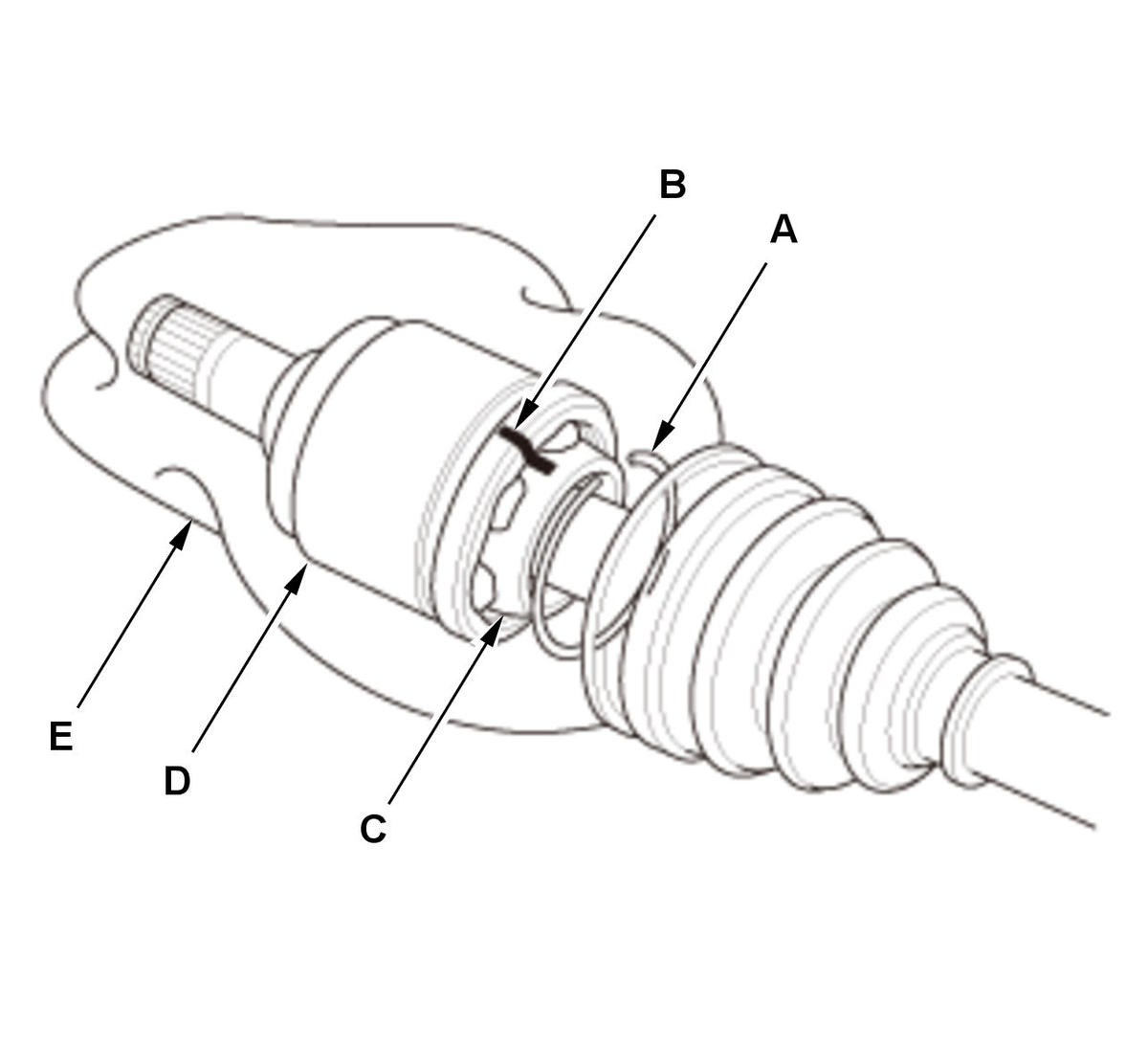

1. Remove the snap ring (A).

2. Make marks (B) on the bearing retainer (C) and the inboard joint (D) to identify the locations of the bearing retainer to the grooves in the inboard joint.

3. Remove the inboard joint and place it on a clean shop towel (E). Be careful not to drop the steel balls when separating them from the inboard joint.

Circlip - Remove

Bearing Retainer and Bearing Race - Remove

Courtesy of HONDA, U.S.A., INC.

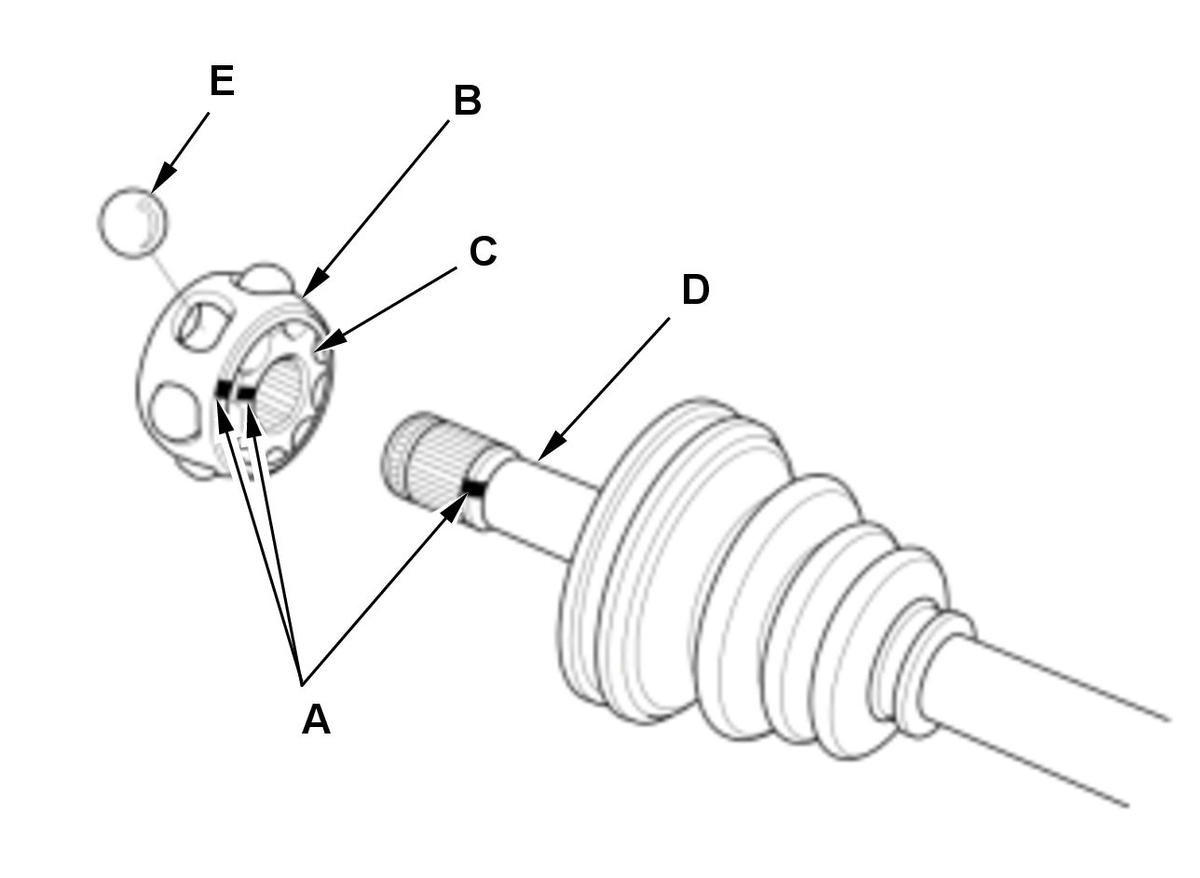

1. Make marks (A) on the bearing retainer (B), the bearing race (C) and the driveshaft (D) to identify the position of the bearing retainer and the bearing race on the shaft.

2. Remove the bearing race and the steel balls (E).

NOTE: If necessary, use a commercially available bearing puller.

Inboard Boot - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE:

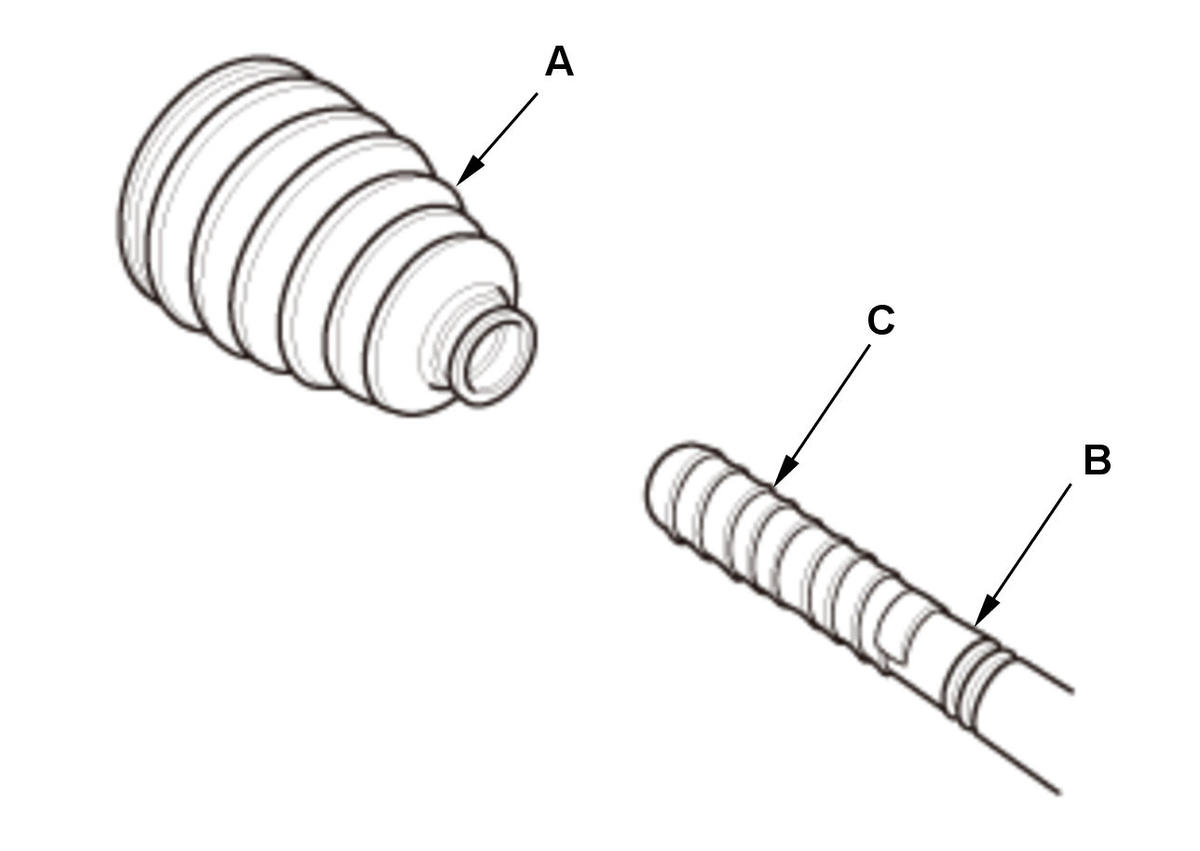

- Check the inboard boot (A) for cracks and damage. If any damage is found, replace the inboard boot.
- Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the inboard boot.
