Intermediate Shaft Disassembly and Reassembly: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

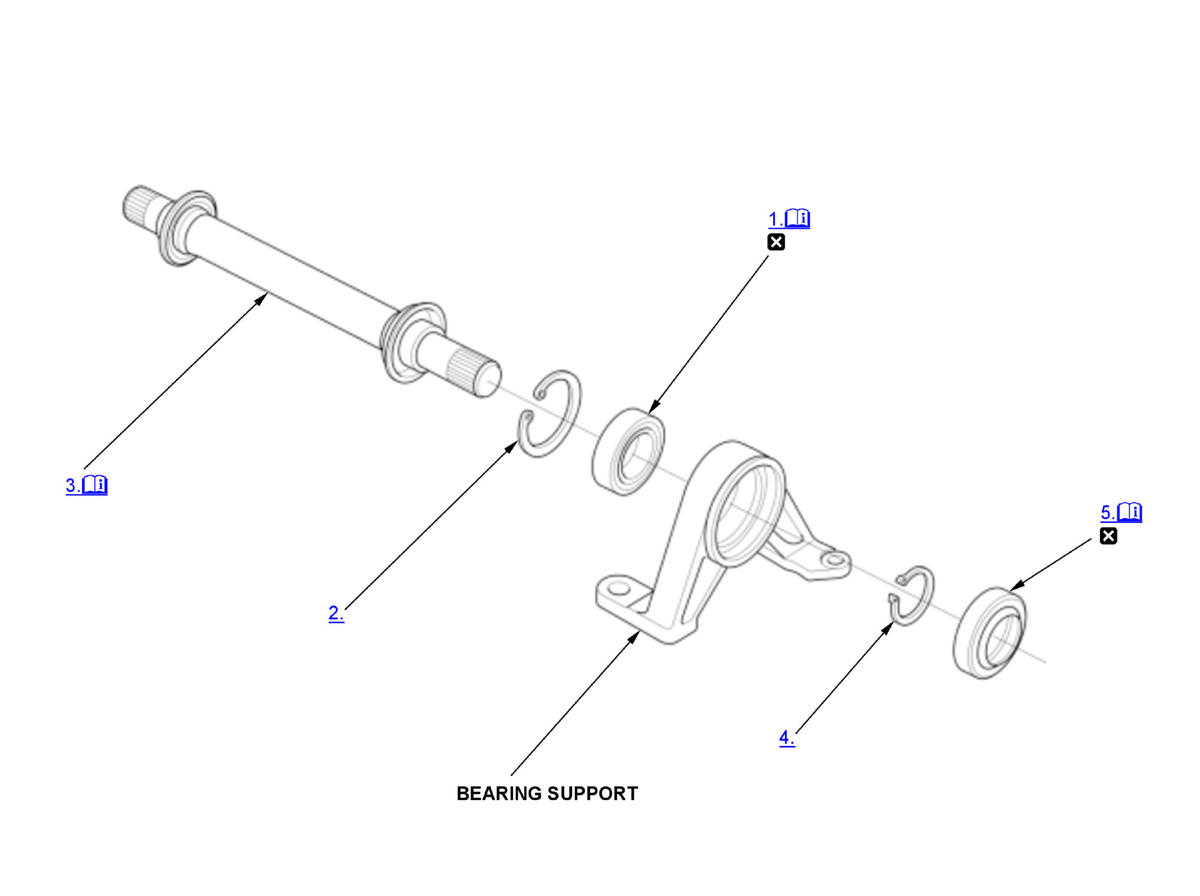

Fig 1: Exploded View Of Intermediate Shaft Components For Reassembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

Intermediate Shaft Bearing - Install

Courtesy of HONDA, U.S.A., INC.

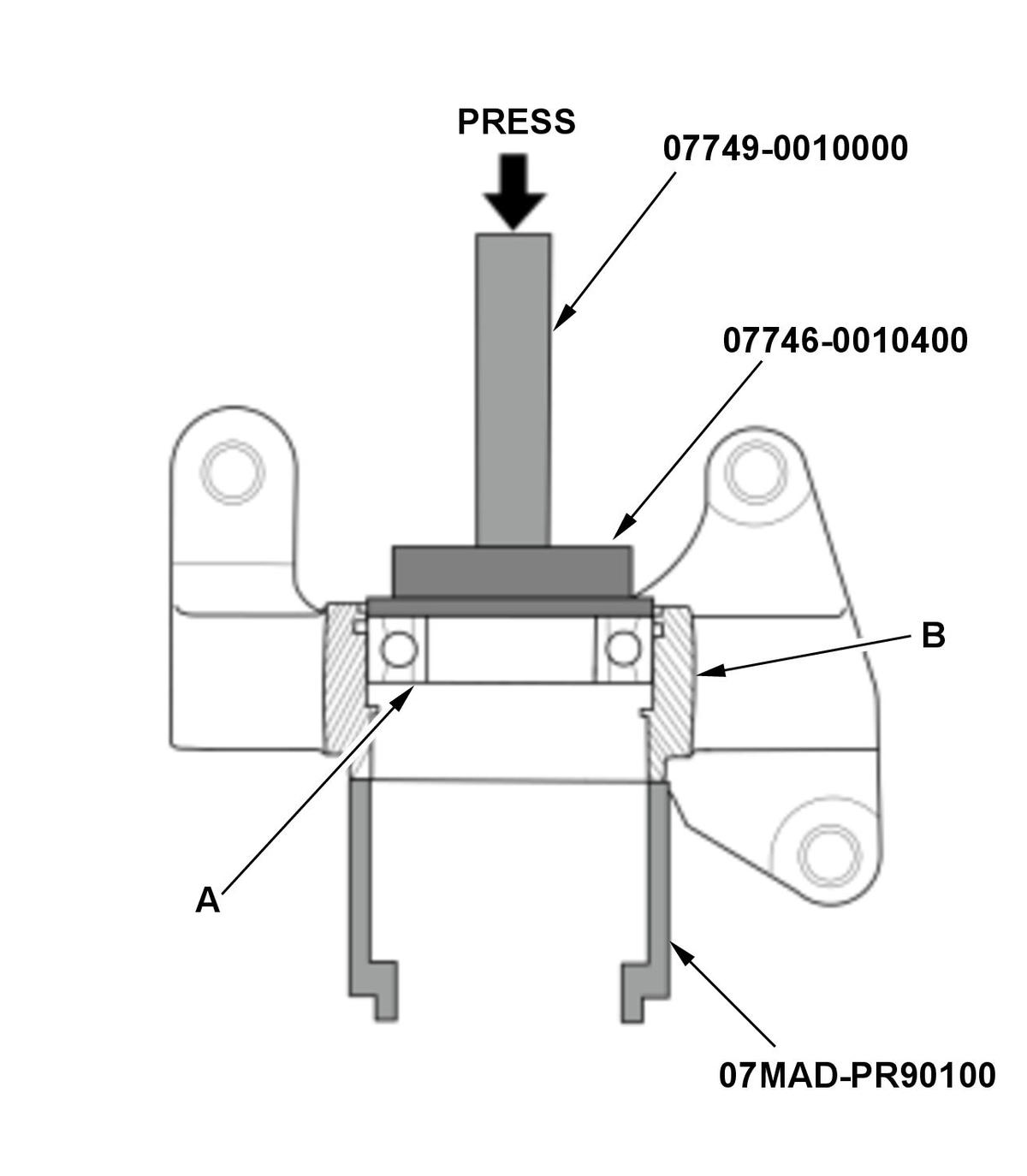

1. Press the intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment, the 15 x 135L driver handle, the 45 x 55 mm installer attachment, and a press.

Internal Snap Ring - Install

Intermediate Shaft - Install

Courtesy of HONDA, U.S.A., INC.

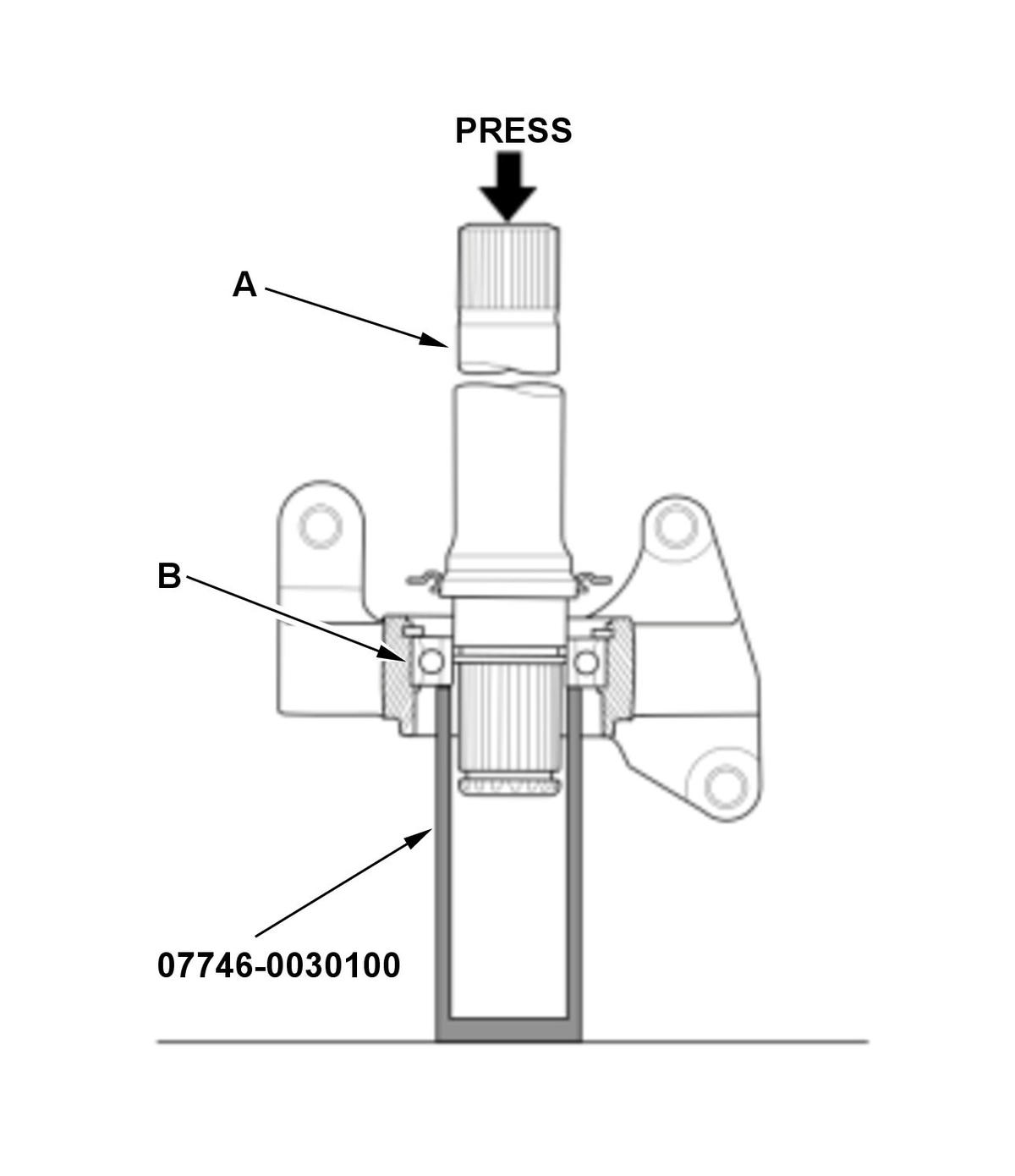

1. Press the intermediate shaft (A) into the shaft bearing (B) using the 40 mm I.D. driver handle and a press.

External Snap Ring - Install

Outer Seal - Install

Courtesy of HONDA, U.S.A., INC.

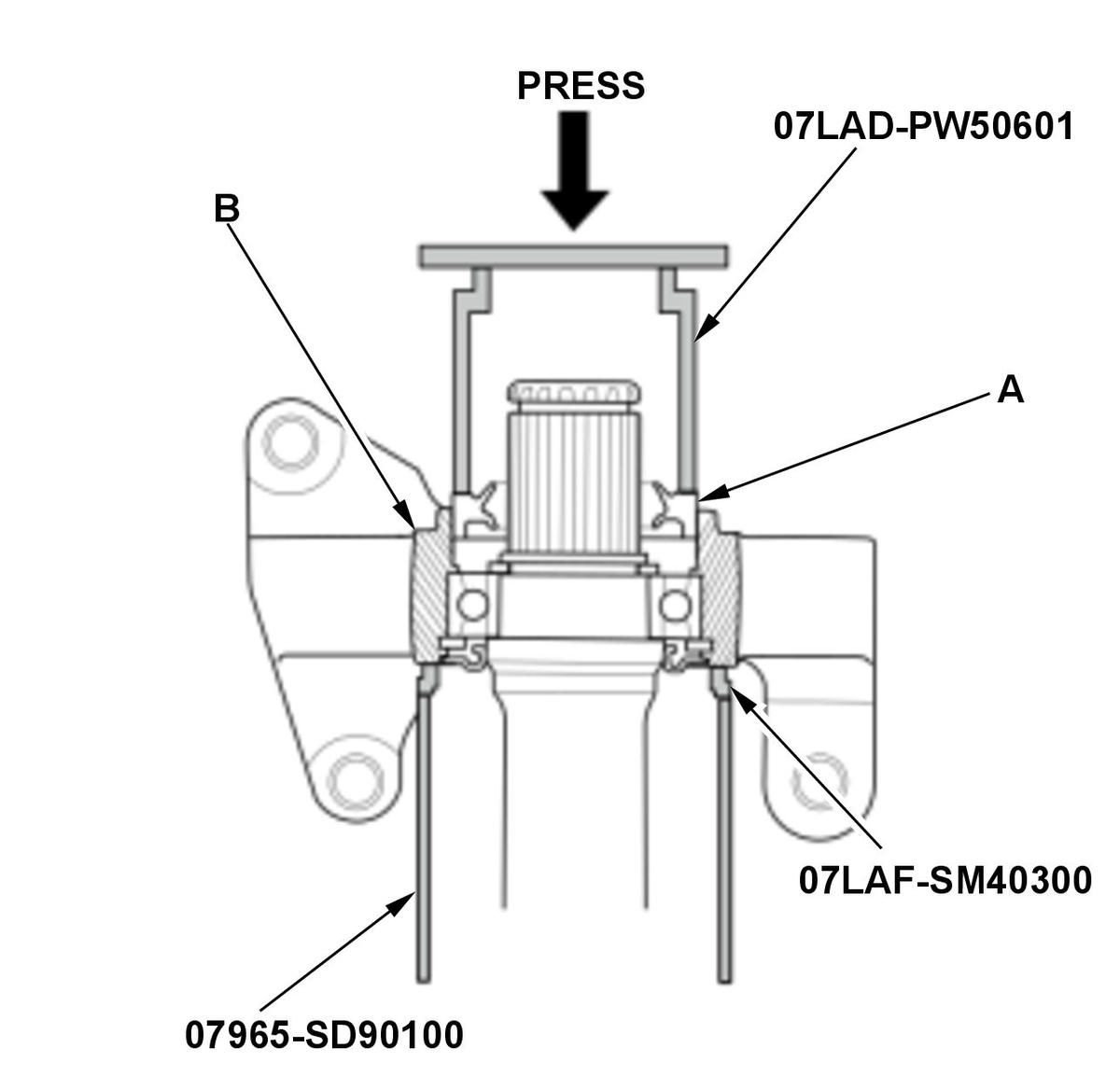

1. Install the outer seal (A) into the bearing support (B) using the 40 mm installer attachment, the support base attachment, the support base, and a press. Press in the seal until it is even with the surface of the bearing support.
