Intermediate Shaft Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

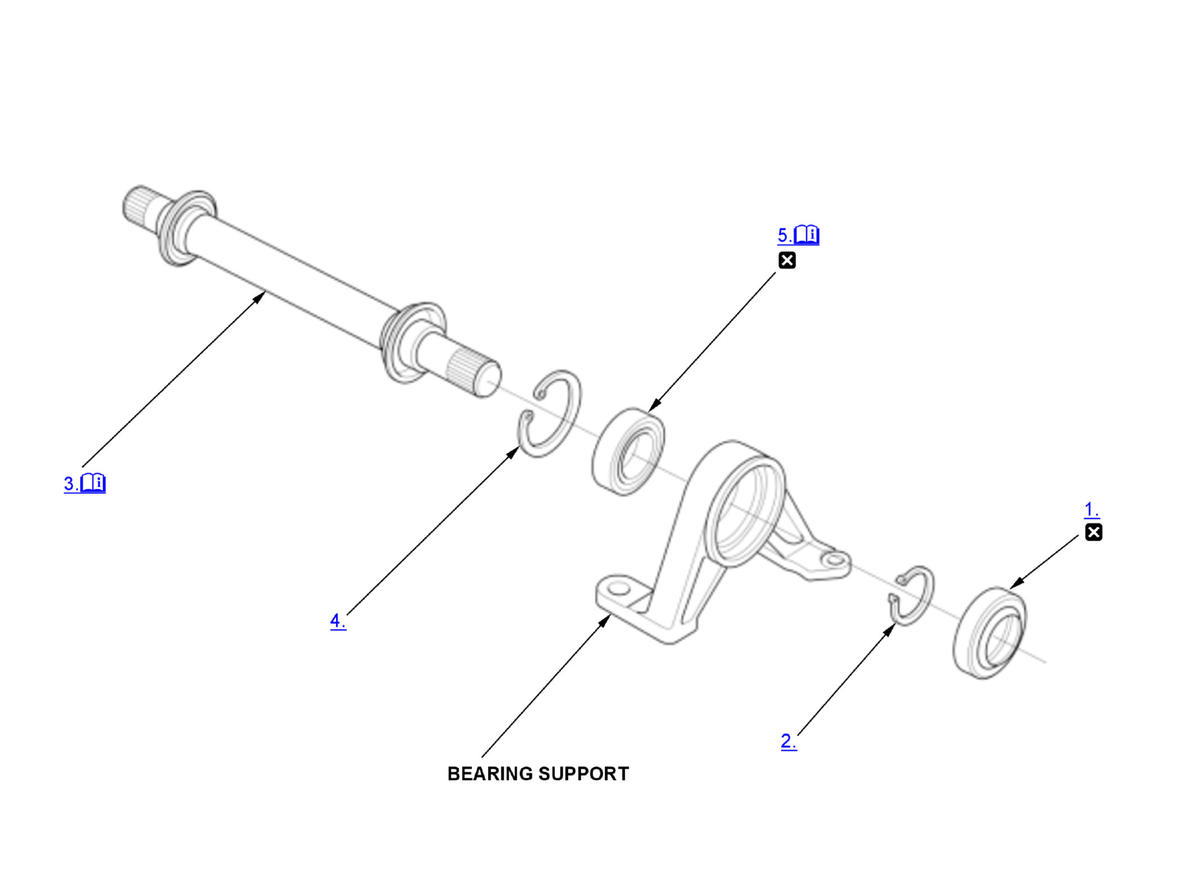

Fig 1: Exploded View Of Intermediate Shaft Components For Disassembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

Outer Seal - Remove
External Snap Ring - Remove

Intermediate Shaft - Remove

Courtesy of HONDA, U.S.A., INC.

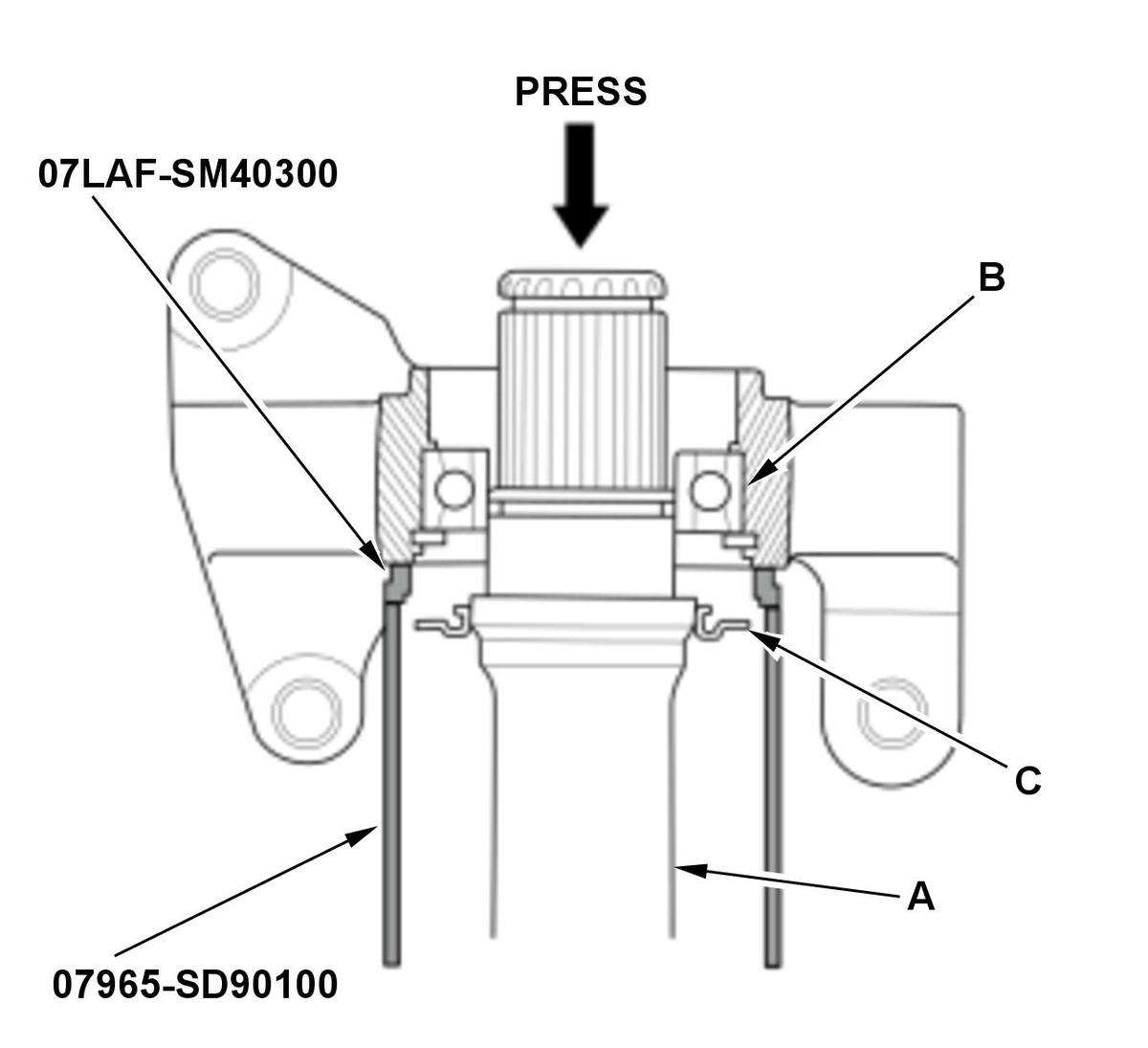

1. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the support base attachment, the support base, and a press.
NOTE: Be careful not to damage the bearing support ring (C) on the intermediate shaft during disassembly.

Internal Snap Ring - Remove

Intermediate Shaft Bearing - Remove

Courtesy of HONDA, U.S.A., INC.

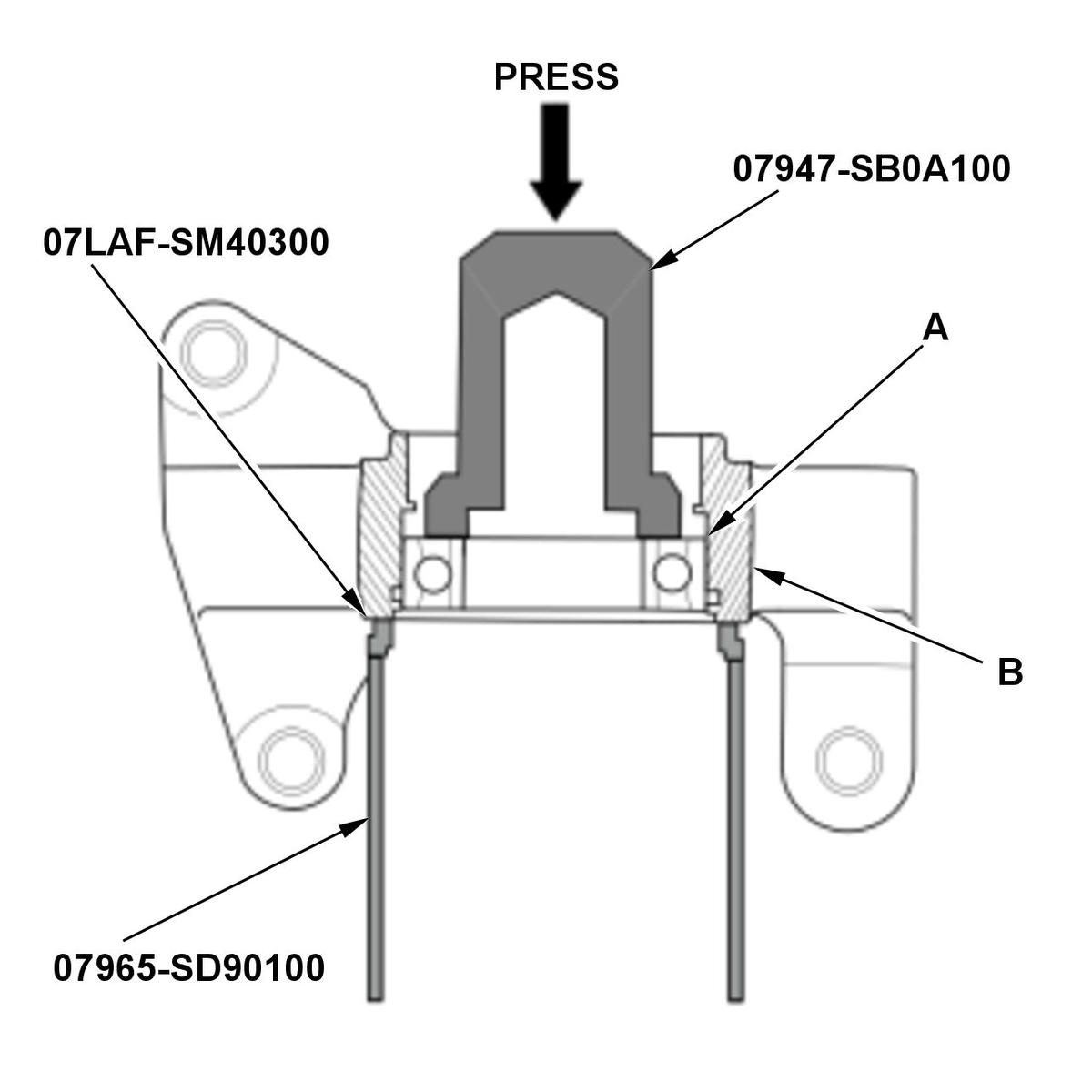

1. Press the intermediate shaft bearing (A) out of the bearing support (B) using the 44.5 mm oil seal driver, the support base attachment, the support base, and a press.
