Front Driveshaft Disassembly and Reassembly: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

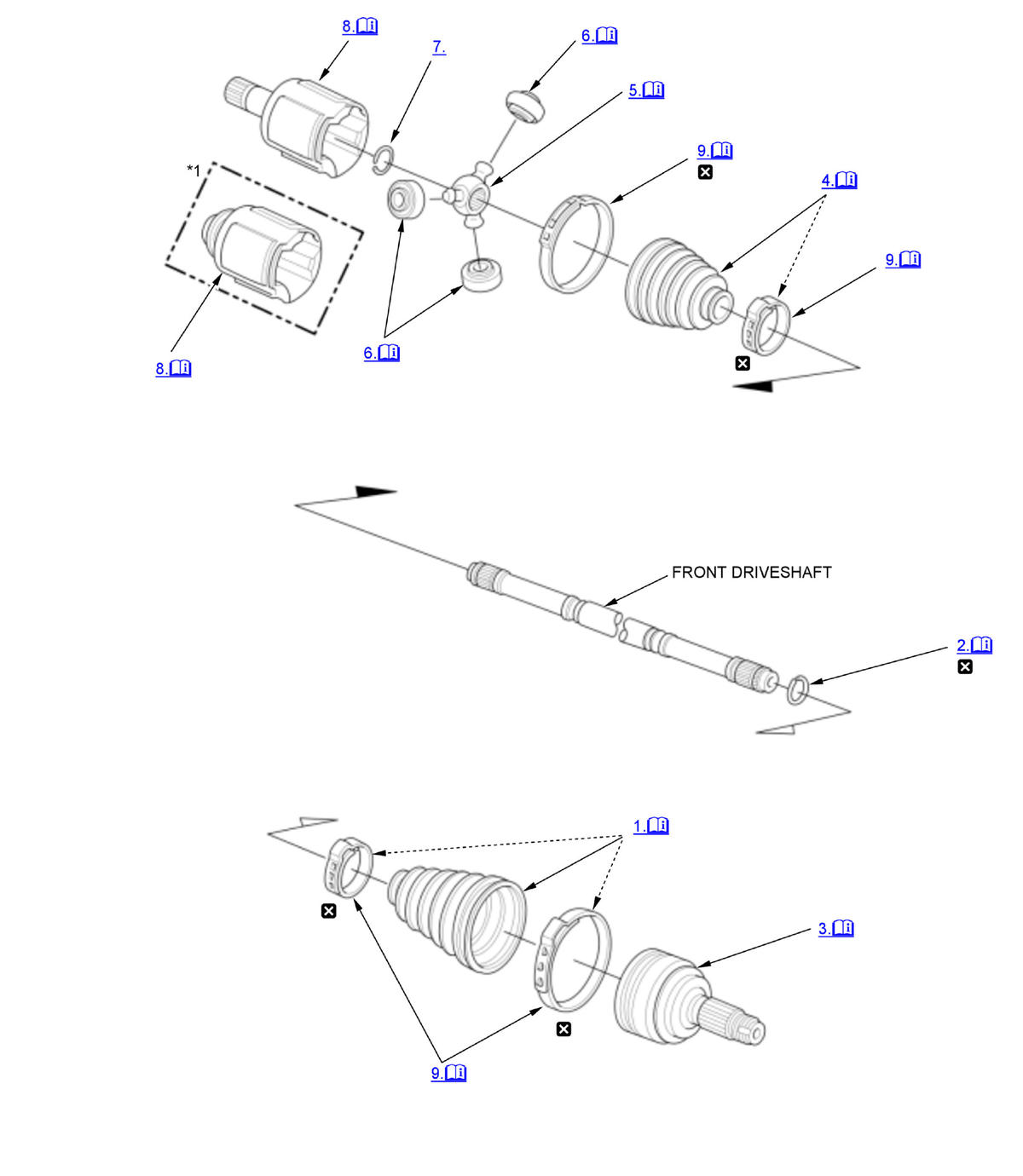

Fig 1: Exploded View Of Front Driveshaft Components For Reassembly
GHH376286Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Replace
*1 Right driveshaft
  1. Outboard Boot - Install
    GHH376287Courtesy of HONDA, U.S.A., INC.

    NOTE:

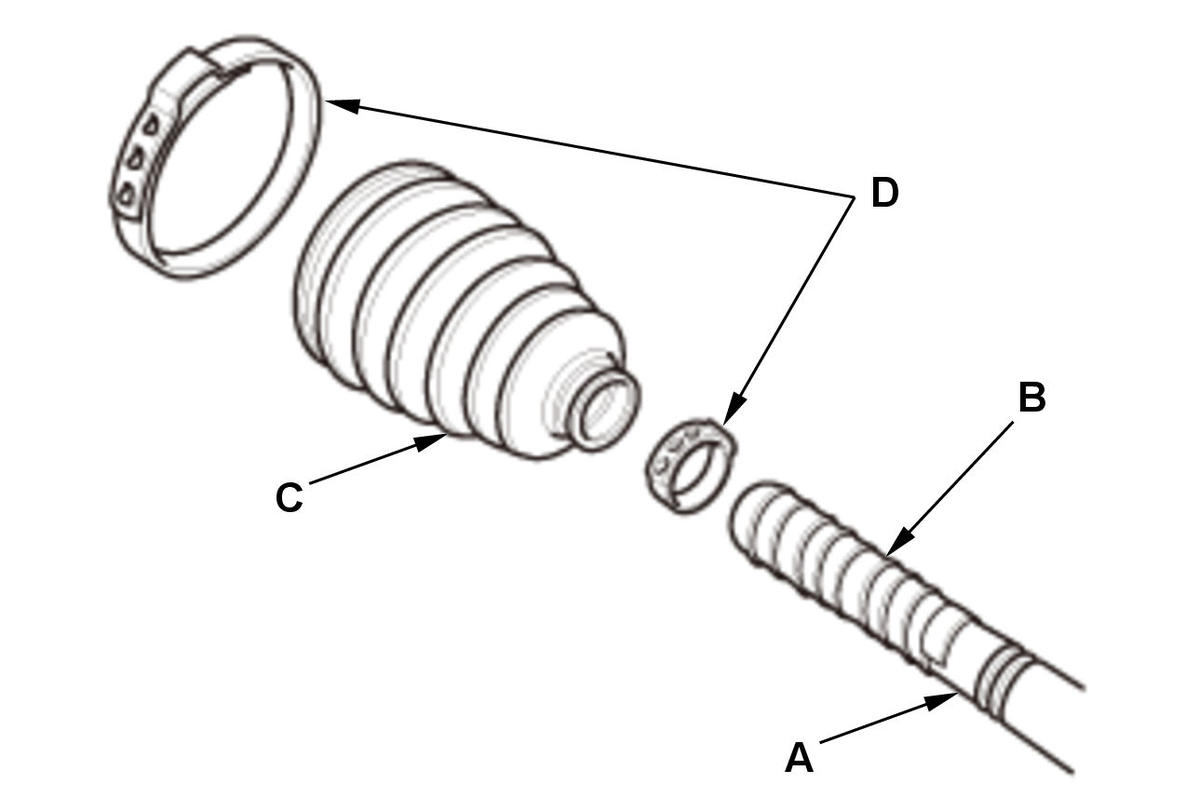

    • Wrap the splines on the driveshaft (A) with vinyl tape (B) to prevent damaging the outboard boot (C).
    • Install new ear clamp bands (D) with the boot to prevent damaging the bands.
  2. Stop Ring - Install
    GHH376288Courtesy of HONDA, U.S.A., INC.

    NOTICE:

    To avoid driveshaft and vehicle damage, make sure you install the stop ring.

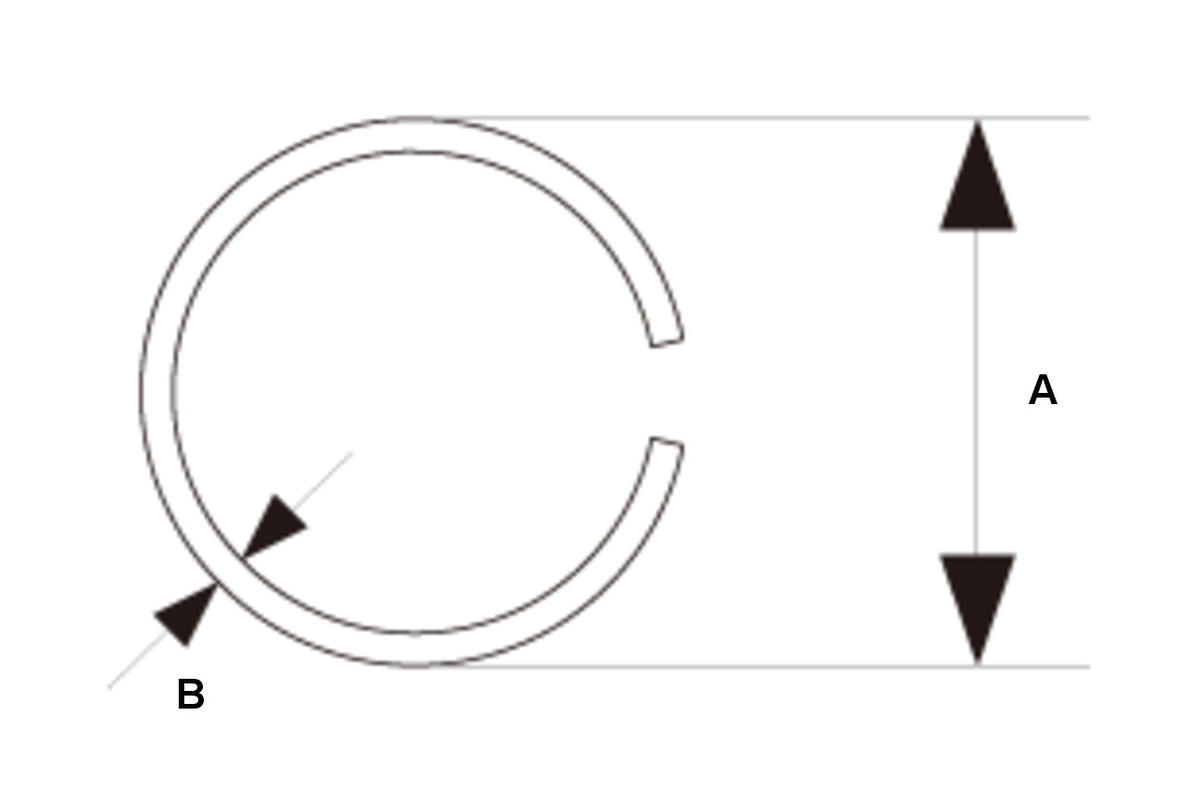

    Stop ring specifications
      Overall diameter (A):  31.2 mm (1.228 in)
      Wire diameter (B):  2.0 mm (0.079 in)
  3. Outboard Joint - Install

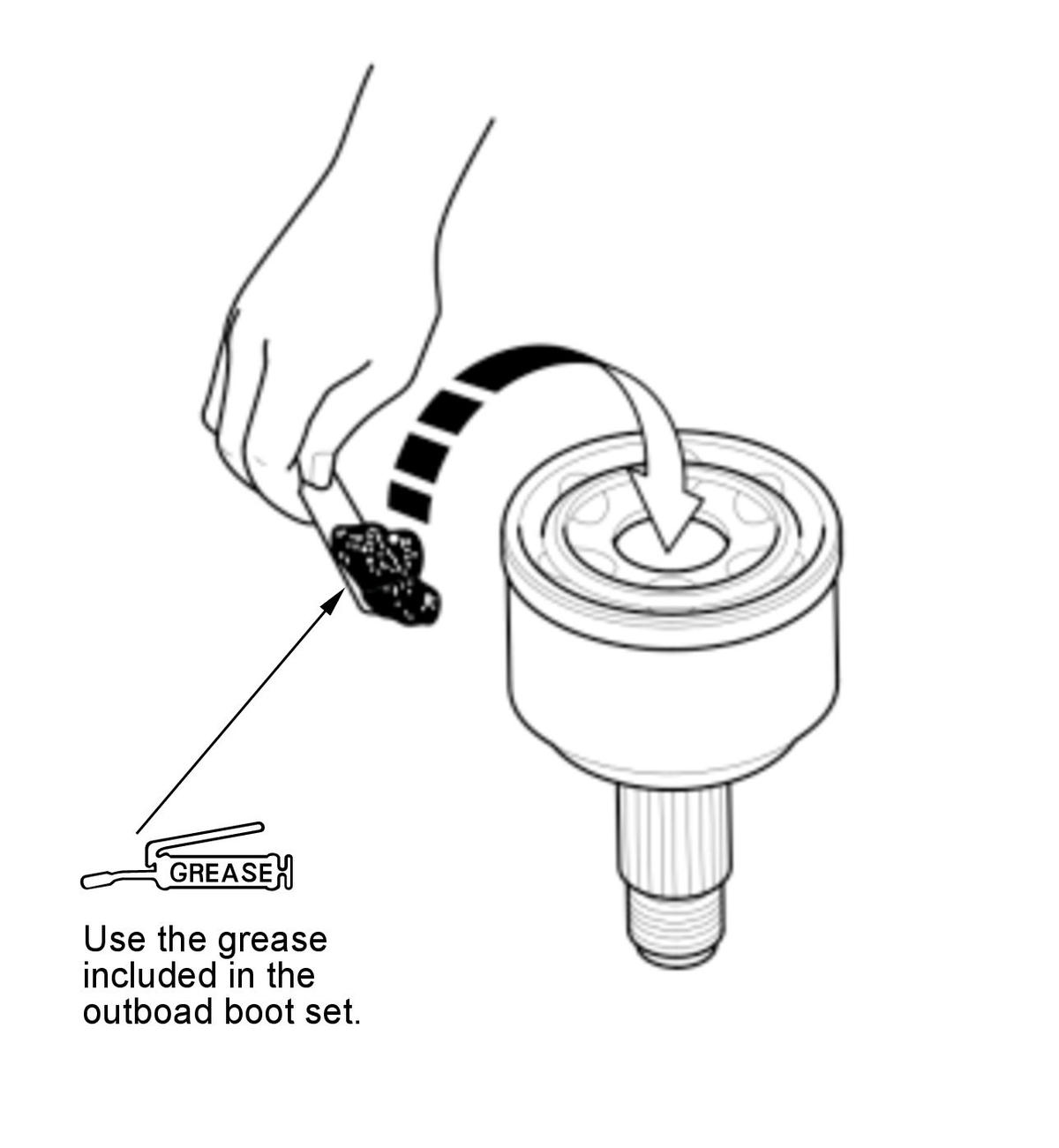

    GHH376289Courtesy of HONDA, U.S.A., INC.
    		 NOTE:  Be careful not to damage the outboard boot.

    1. Fill grease through the driveshaft hole in the outboard joint before installing the driveshaft. Inject enough grease so that it seeps out from the gap around the bearing when the driveshaft is inserted.

    NOTE:  If you are installing a new outboard joint, the grease is already installed.
    GHH376290Courtesy of HONDA, U.S.A., INC.

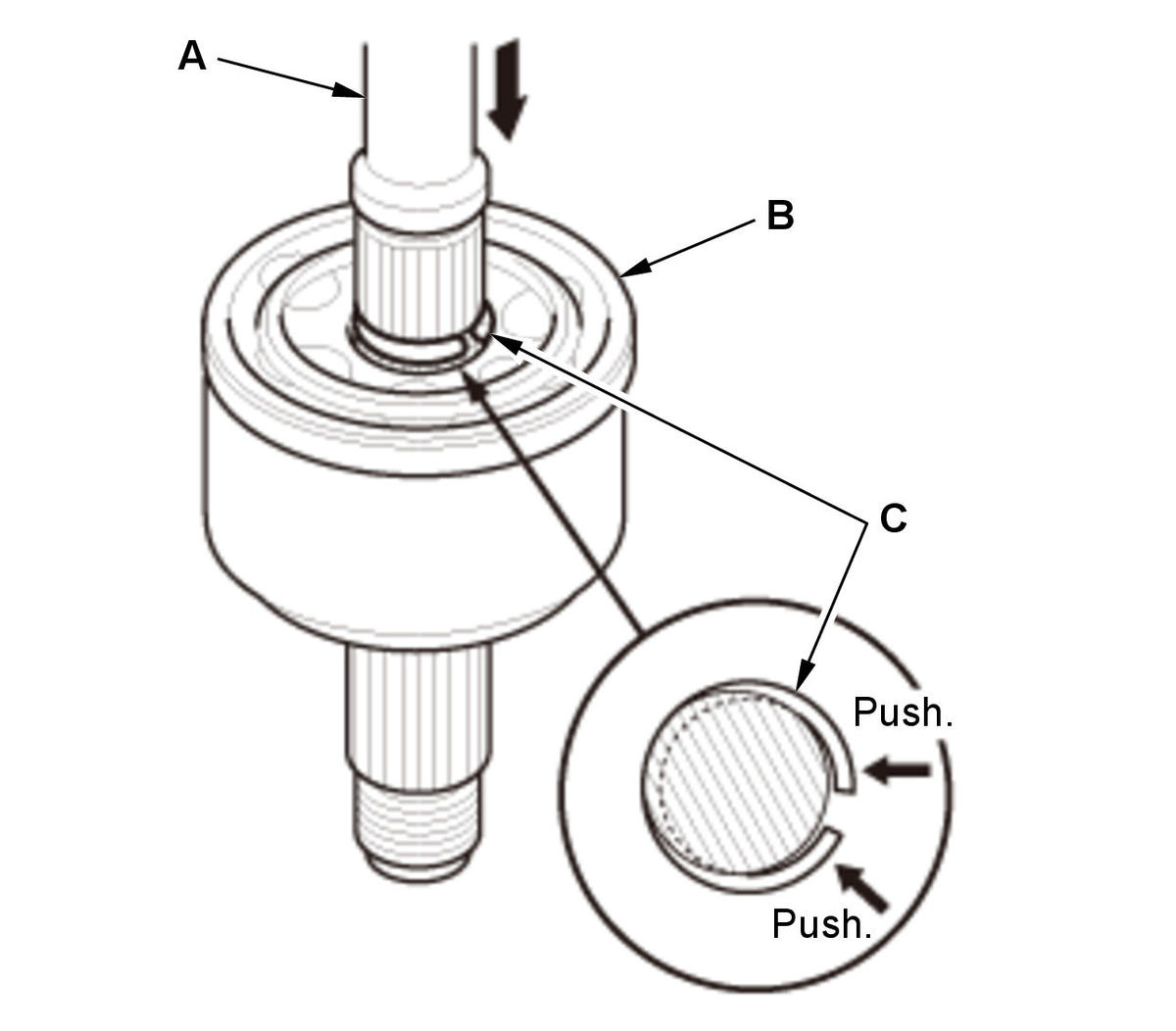

    		 2. Insert the driveshaft (A) into the outboard joint (B) until the stop ring (C) is close to the joint.
    GHH376291Courtesy of HONDA, U.S.A., INC.

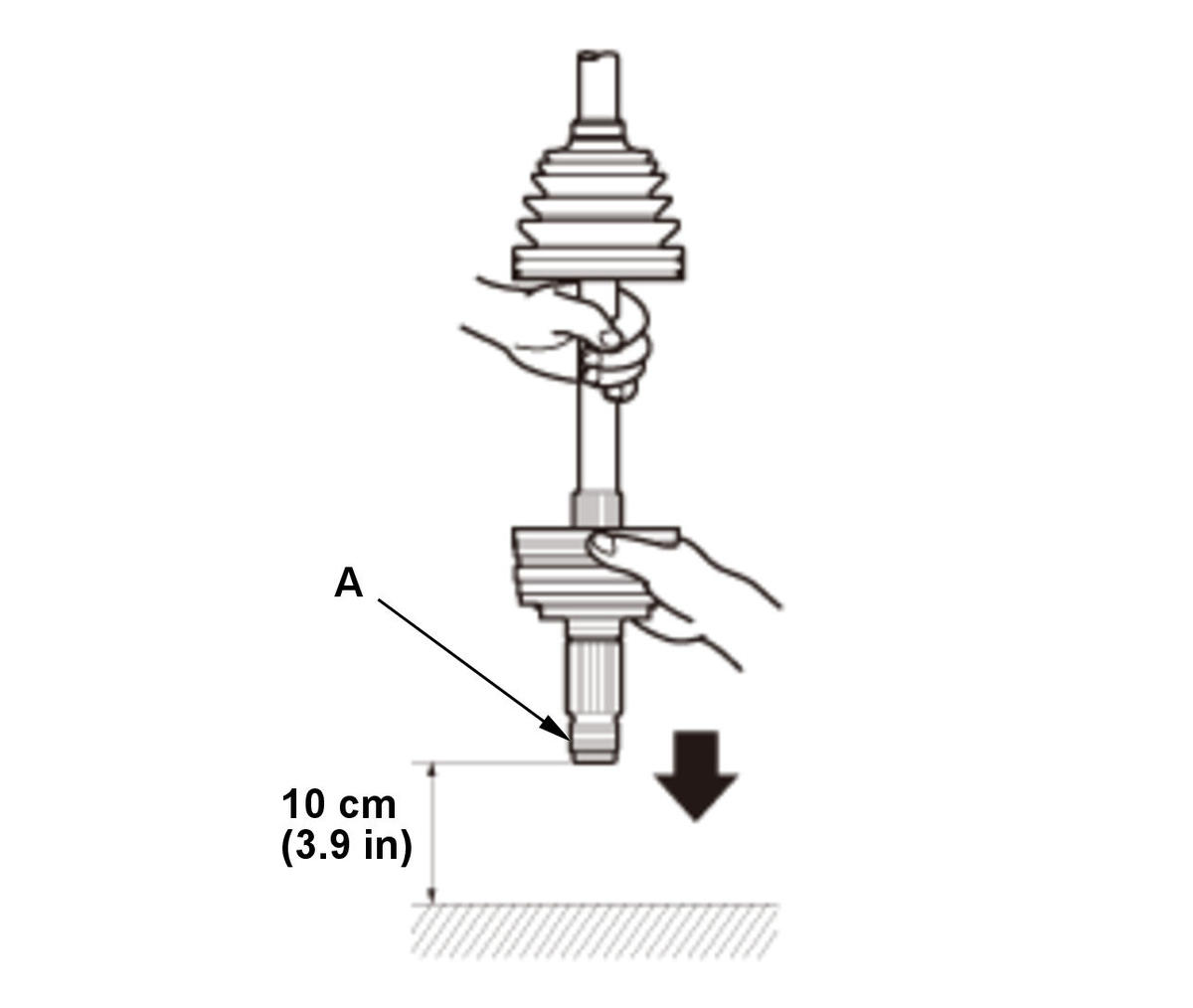

    		 3. To completely seat the outboard joint, pick up the driveshaft and the joint and tap or hit the assembly onto a hard surface from a height of about 10 cm (3.9 in).
    NOTE:  Do not use a hammer, as excessive force may damage the driveshaft. Be careful not to damage the threaded section (A) of the outboard joint.

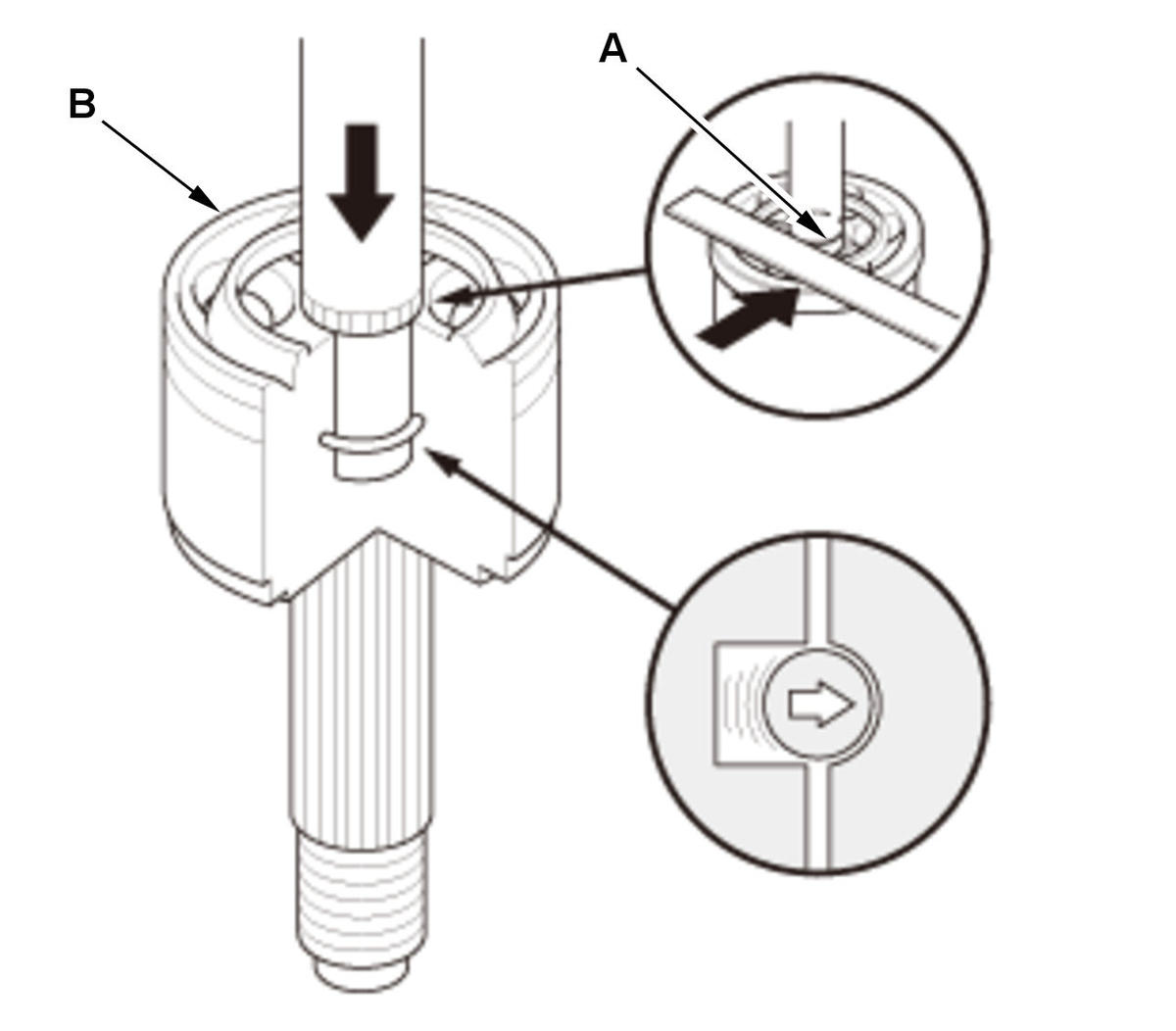

    GHH376292Courtesy of HONDA, U.S.A., INC.
    		 4. Check the alignment of the paint mark (A) you made with the outboard joint end (B).

    NOTICE:  To avoid driveshaft and vehicle damage, the shaft must be all the way into the outboard joint to ensure the stop ring is properly seated.

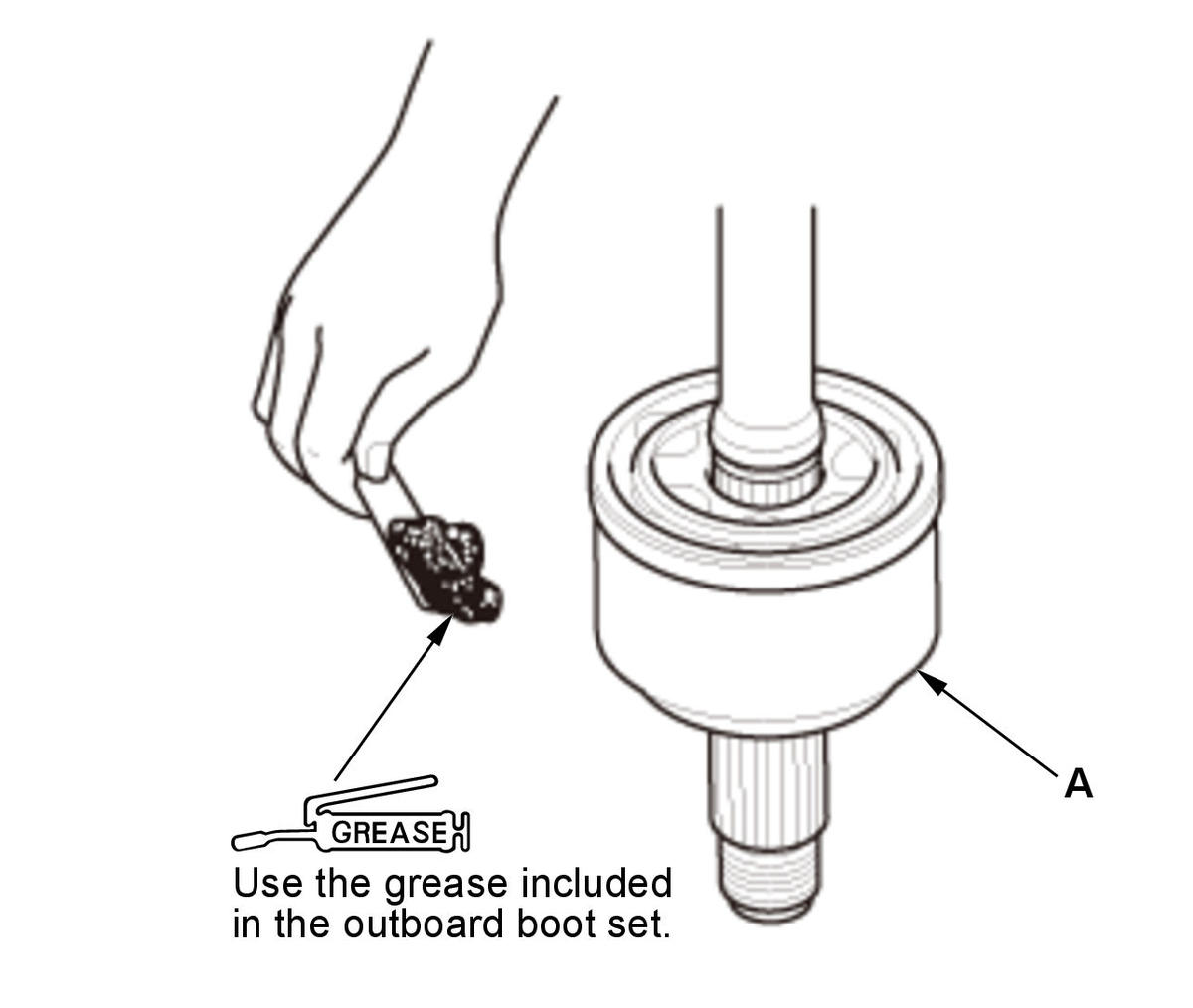

    GHH376293Courtesy of HONDA, U.S.A., INC.
    		 5. Pack the outboard joint (A) with the remaining joint grease included in the outboard boot set.
    Total grease quantity
      Outboard joint:
      150-170 g (5.29-6.00 oz)

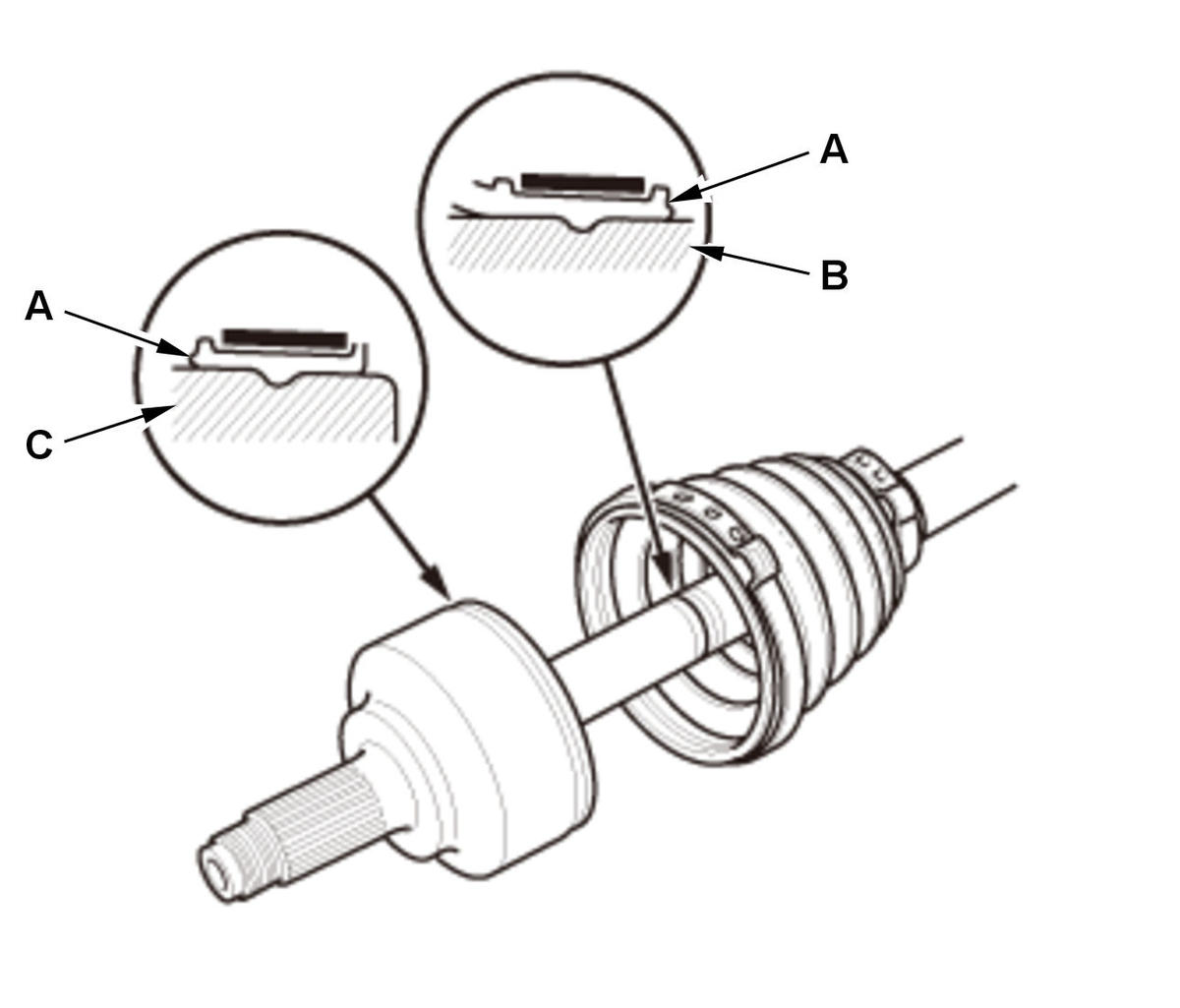

    GHH376294Courtesy of HONDA, U.S.A., INC.
    		 6. Fit the boot ends (A) onto the driveshaft (B) and the outboard joint (C).

    7. Bleed any excess air from the boot by inserting a flat-tipped screwdriver between the boot and the joint.
  4. Inboard Boot - Install

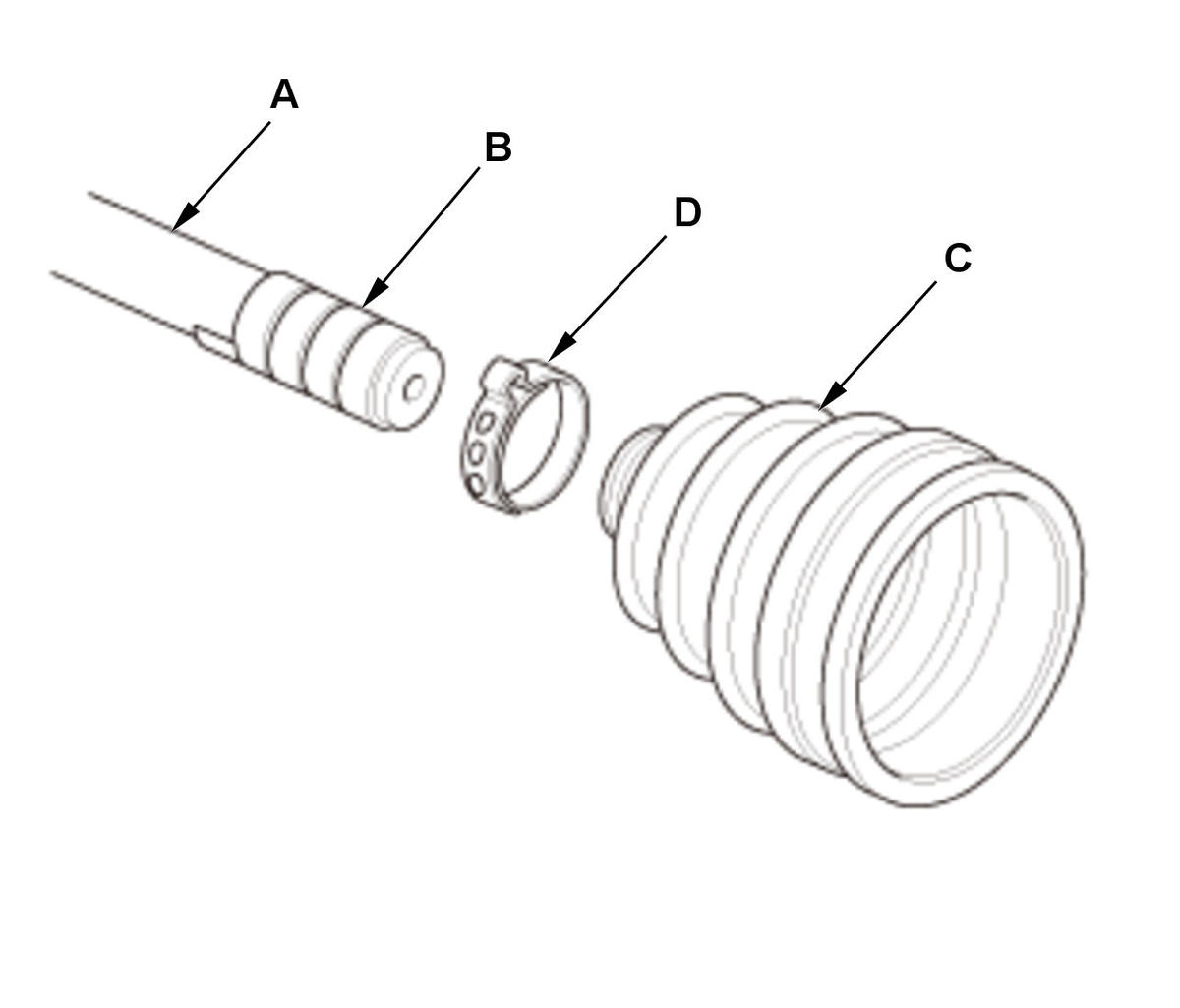

    GHH376295Courtesy of HONDA, U.S.A., INC.

    NOTE:

    • Wrap the splines on the driveshaft (A) with vinyl tape (B) to prevent damaging the inboard boot (C).
    • Install a new ear clamp band (D) with the boot to prevent damaging the band.
  5. Spider - Install

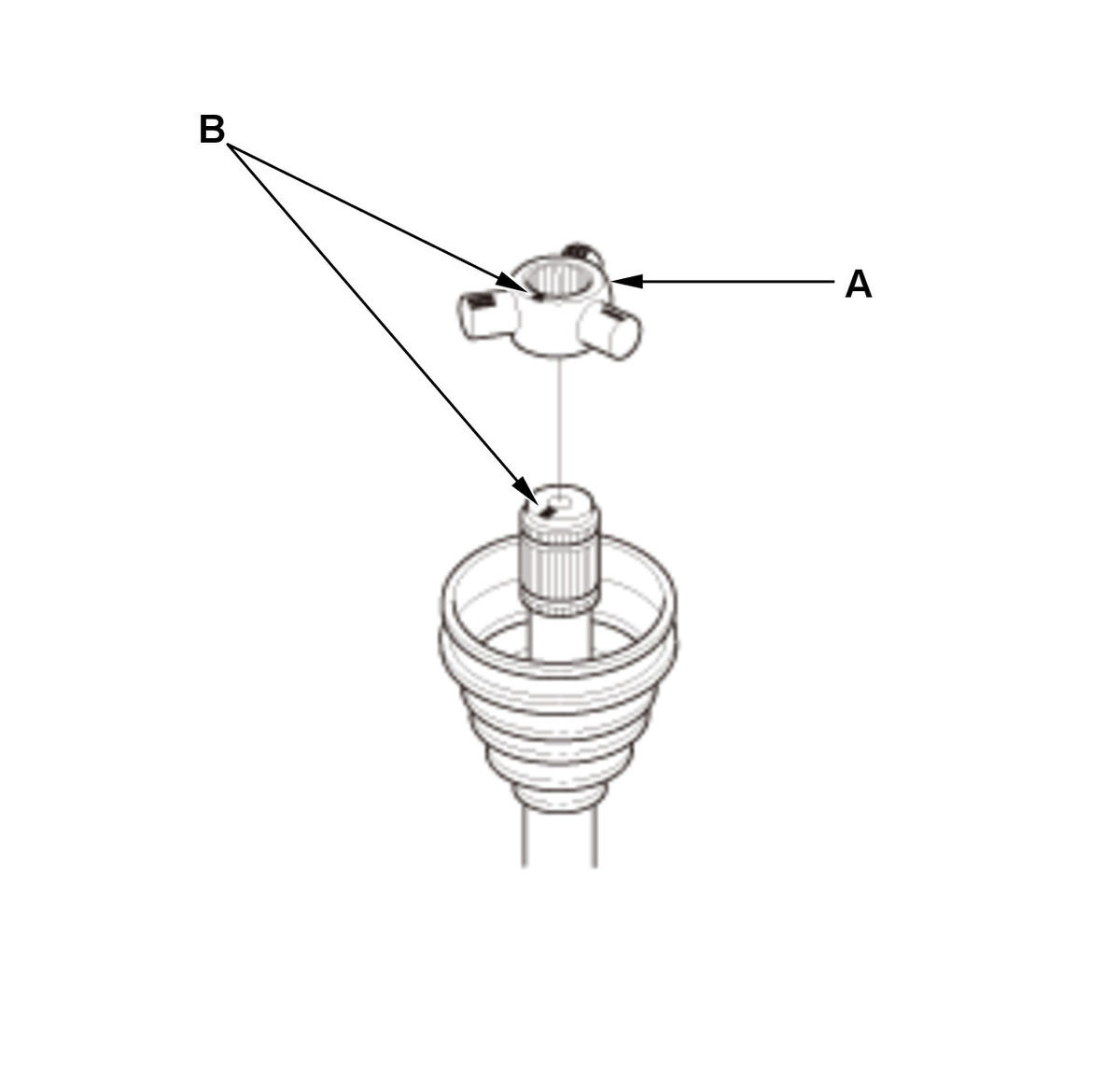

    GHH376296Courtesy of HONDA, U.S.A., INC.
    		 1. Install the spider (A) onto the driveshaft by aligning the marks (B) you made on the spider and the end of the driveshaft.
  6. Roller - Install

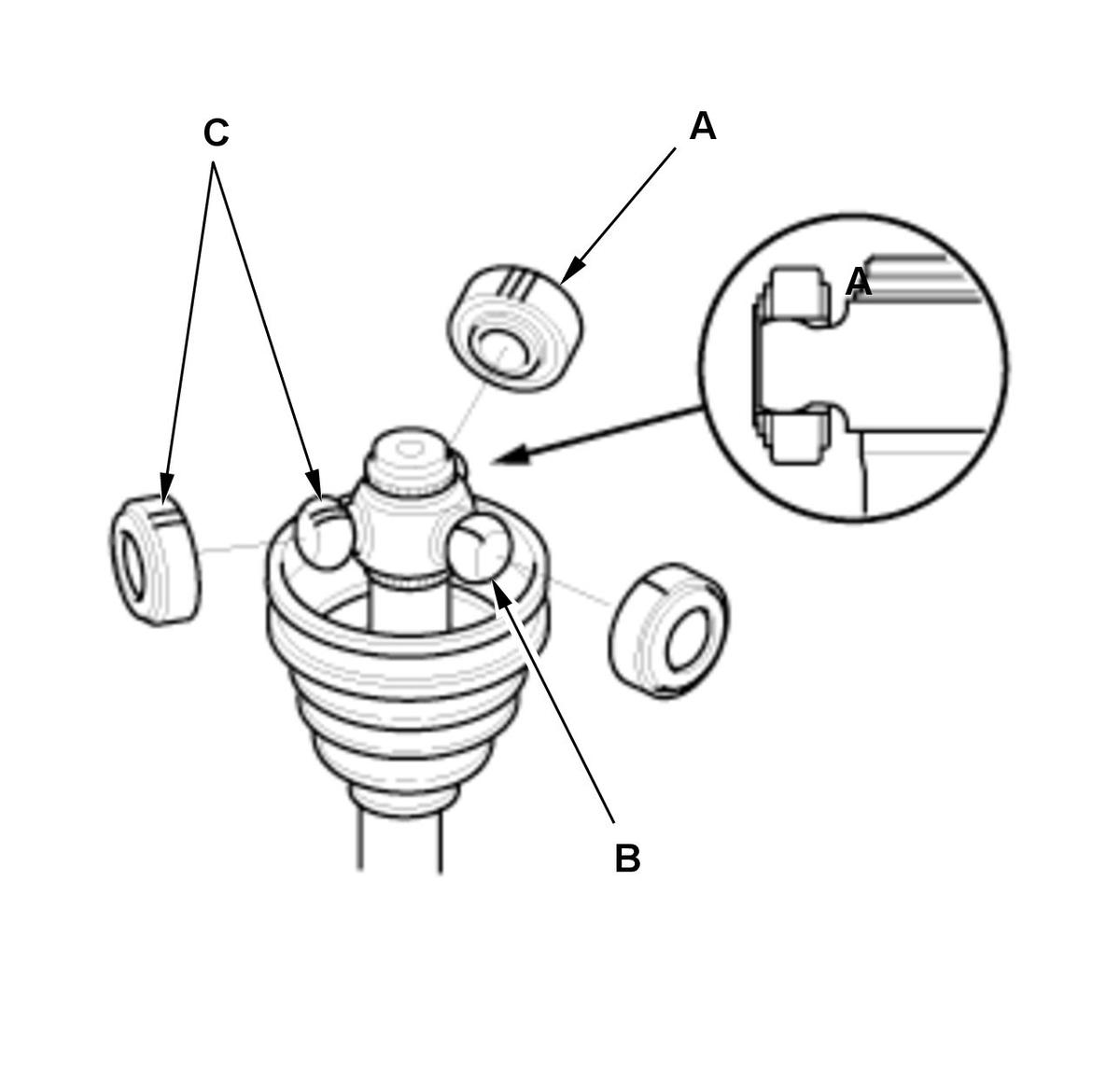

    GHH376297Courtesy of HONDA, U.S.A., INC.
    		 1. Fit the rollers (A) onto the spider (B) as shown and note these items:
    • Reinstall the rollers in their original positions on the spider by aligning the marks (C) you made.
    • Hold the driveshaft pointed up to prevent the rollers from falling off.
  7. Circlip - Install
  8. Inboard Joint - Install
    GHH376298Courtesy of HONDA, U.S.A., INC.

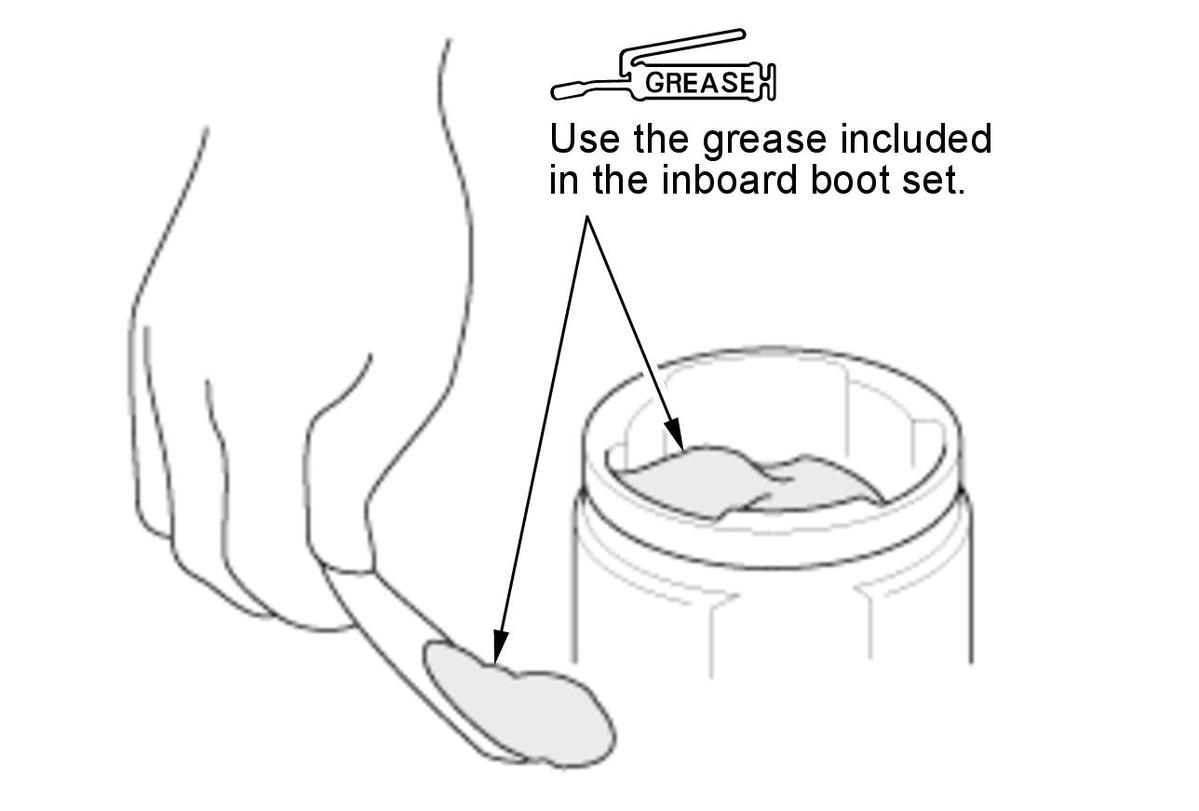

    		 1. Pack the inboard joint with the joint grease included in the new inboard boot set.
    Grease quantity
      Inboard joint:
      195-215 g (6.88-7.58 oz)
    GHH376299Courtesy of HONDA, U.S.A., INC.
    		 2. Fit the inboard joint onto the driveshaft and note these items:

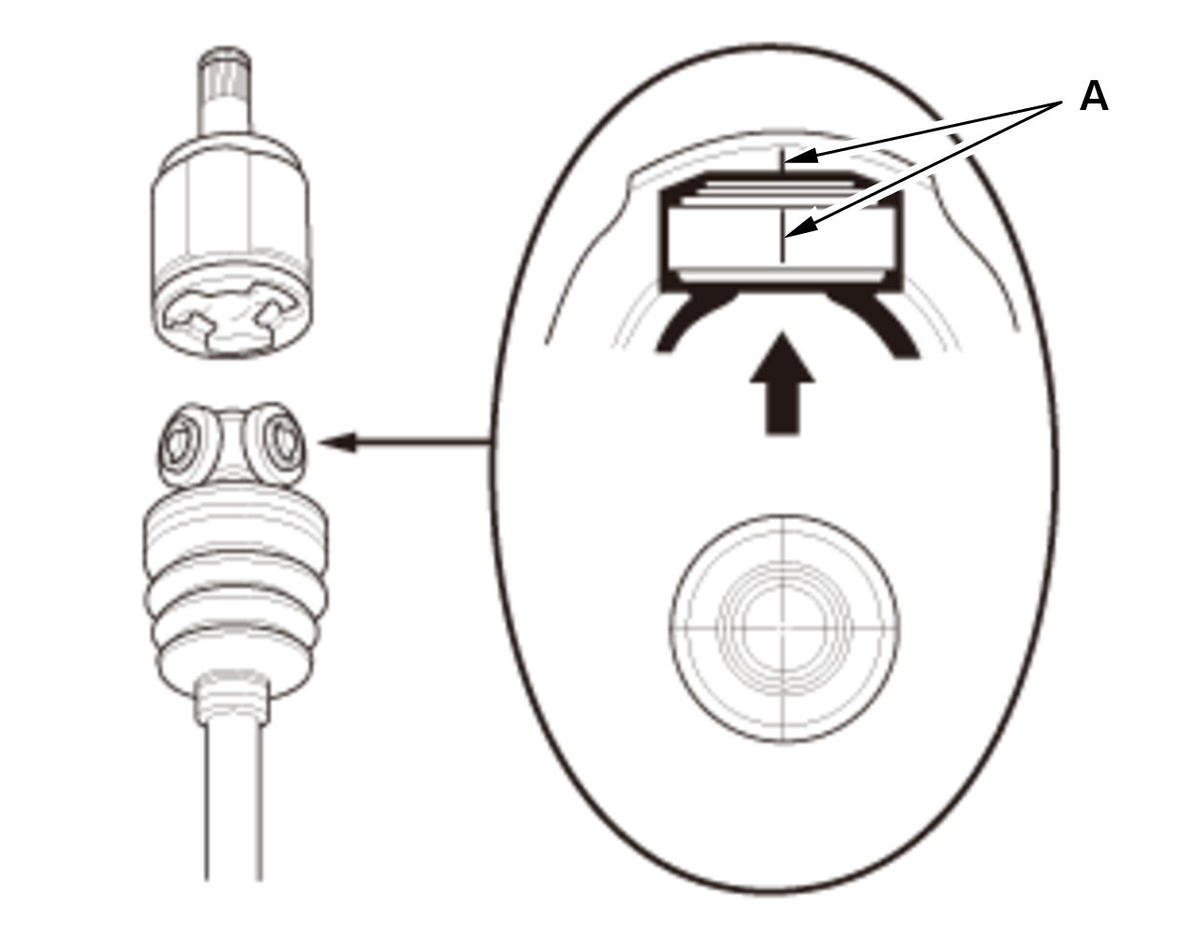

    • Reinstall the inboard joint onto the driveshaft by aligning the marks (A) you made on the inboard joint and the rollers.
    • Hold the driveshaft so the inboard joint is pointing up to prevent it from falling off.

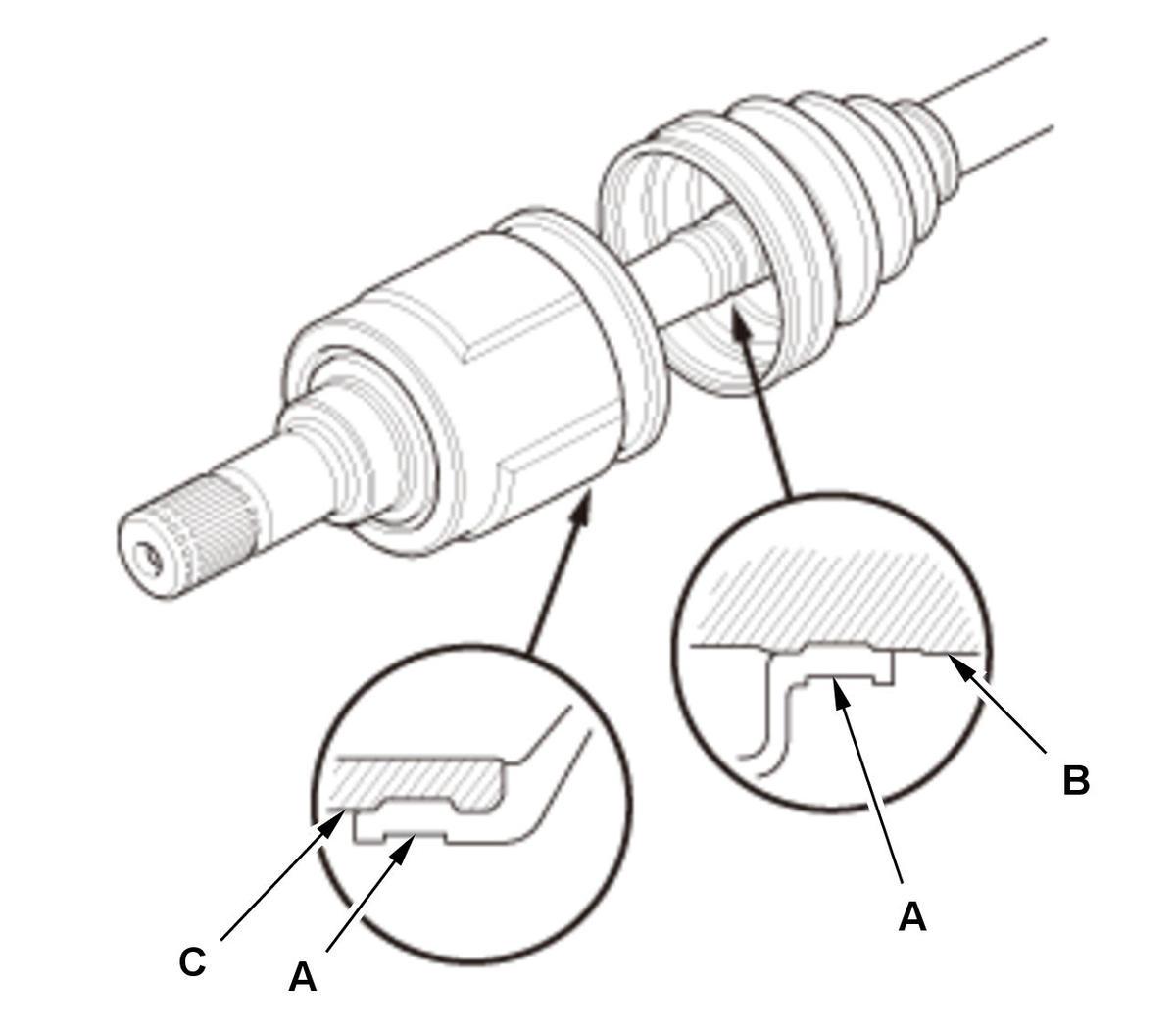

    GHH376300Courtesy of HONDA, U.S.A., INC.
    		 3. Fit the boot ends (A) onto the driveshaft (B) and the inboard joint (C).

    4. Bleed any excess air from the boot by inserting a flat-tipped screwdriver between the boot and the joint.

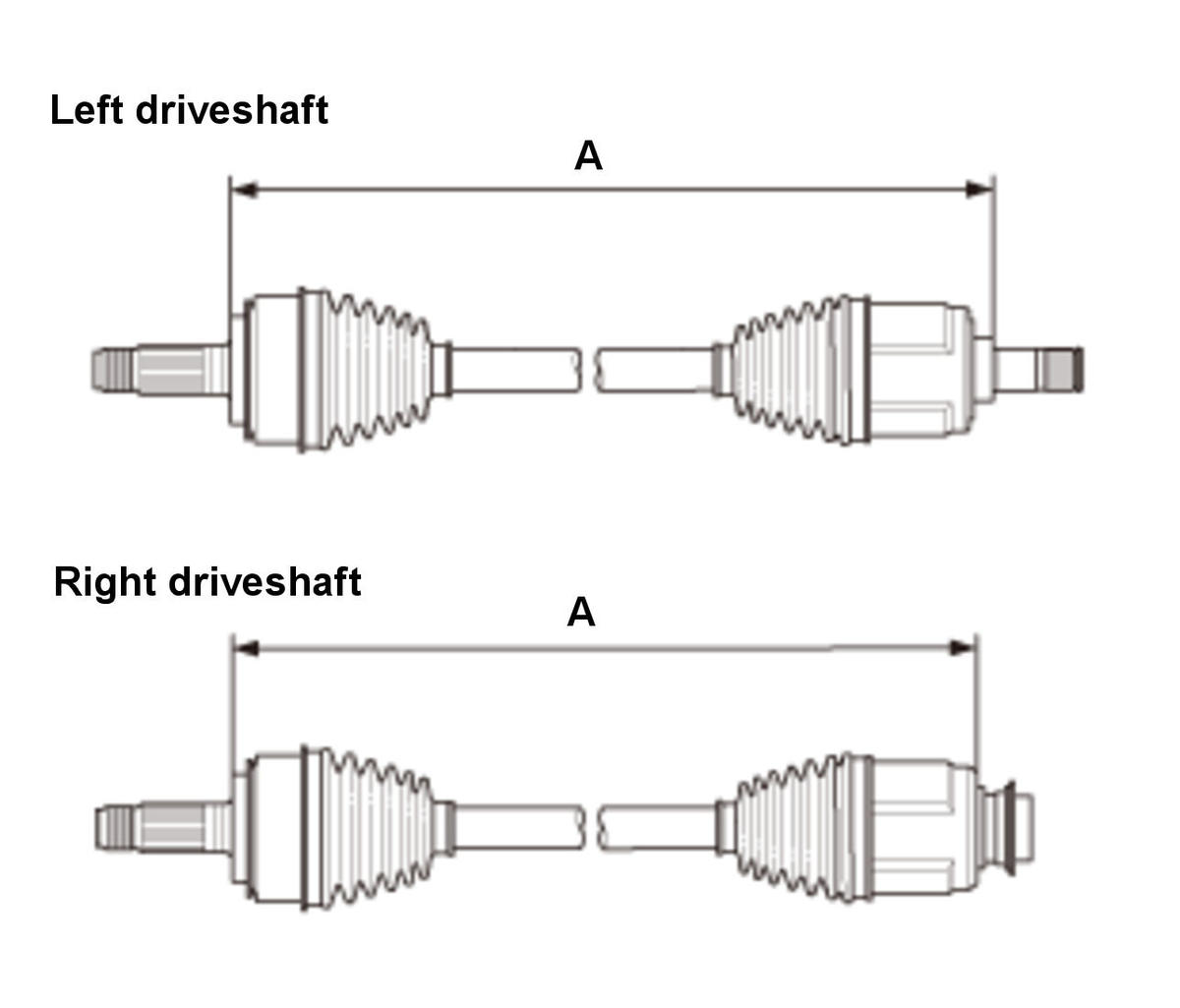

    GHH376301Courtesy of HONDA, U.S.A., INC.
    		 5. Adjust the length (A) of the driveshafts in the figure as shown.

    6. Adjust the boots to halfway between full compression and full extension.

    7. Bleed excess air from the boots by inserting a flat-tipped screwdriver between the boot and the joint.

    NOTE:  Install the joints at exactly the same length.
    Left/Right driveshaft Specified length (A)
    Left  528-533 mm (20.787-20.984 in)
    Right  526-531 mm (20.709-20.905 in)
  9. Boot Bands - Install
    GHH376302Courtesy of HONDA, U.S.A., INC.

    Ear clamp type

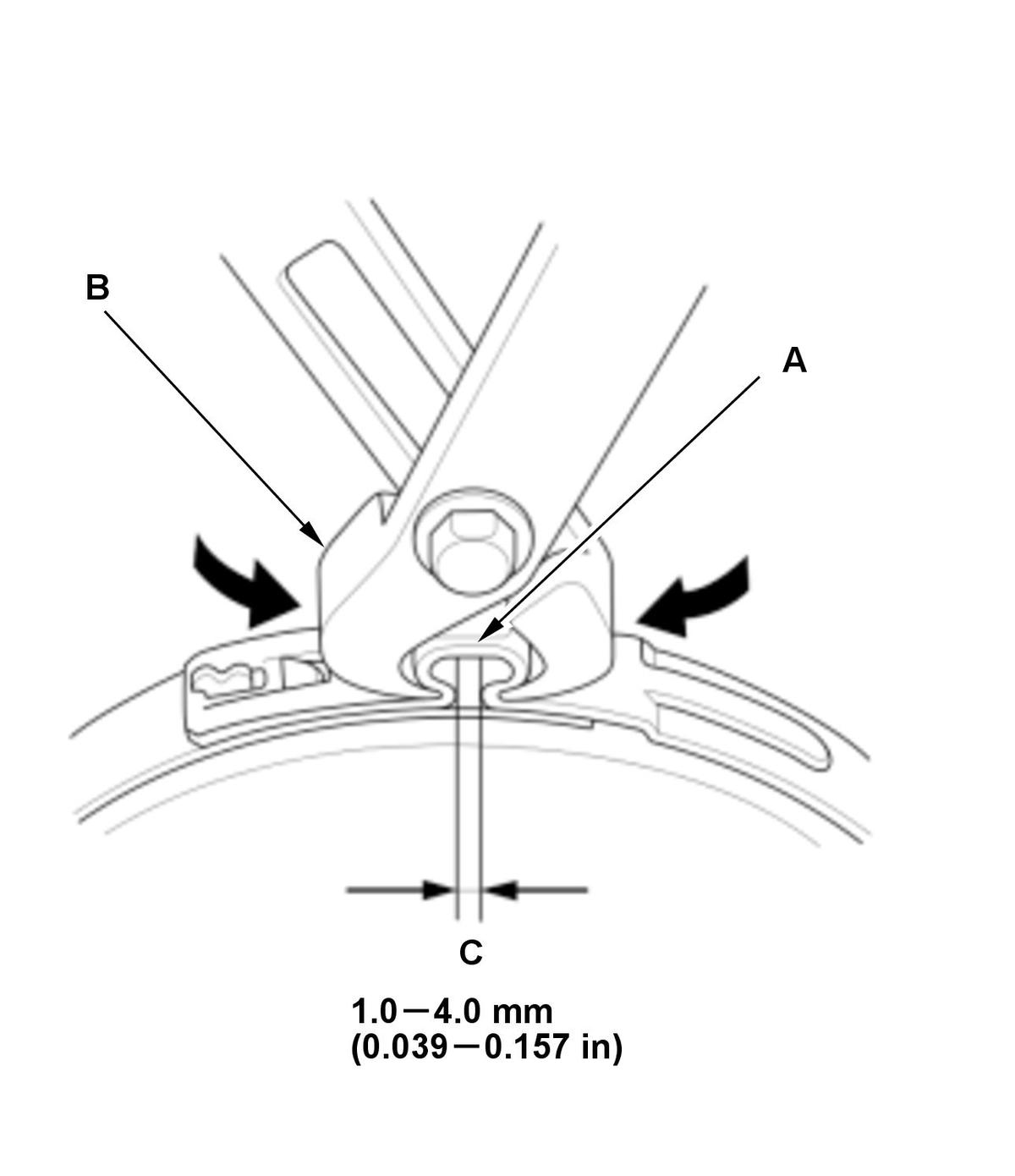

    1. Close the ear portion (A) of the band using a commercially available boot band clamp tool (B).

    2. Check the clearance of the closed ear portion of the band. If the clearance is not within specification, close the ear portion of the band tighter.

    NOTE:  Replace the ear clamp band with the one when the ear portion exceeds the specifications.

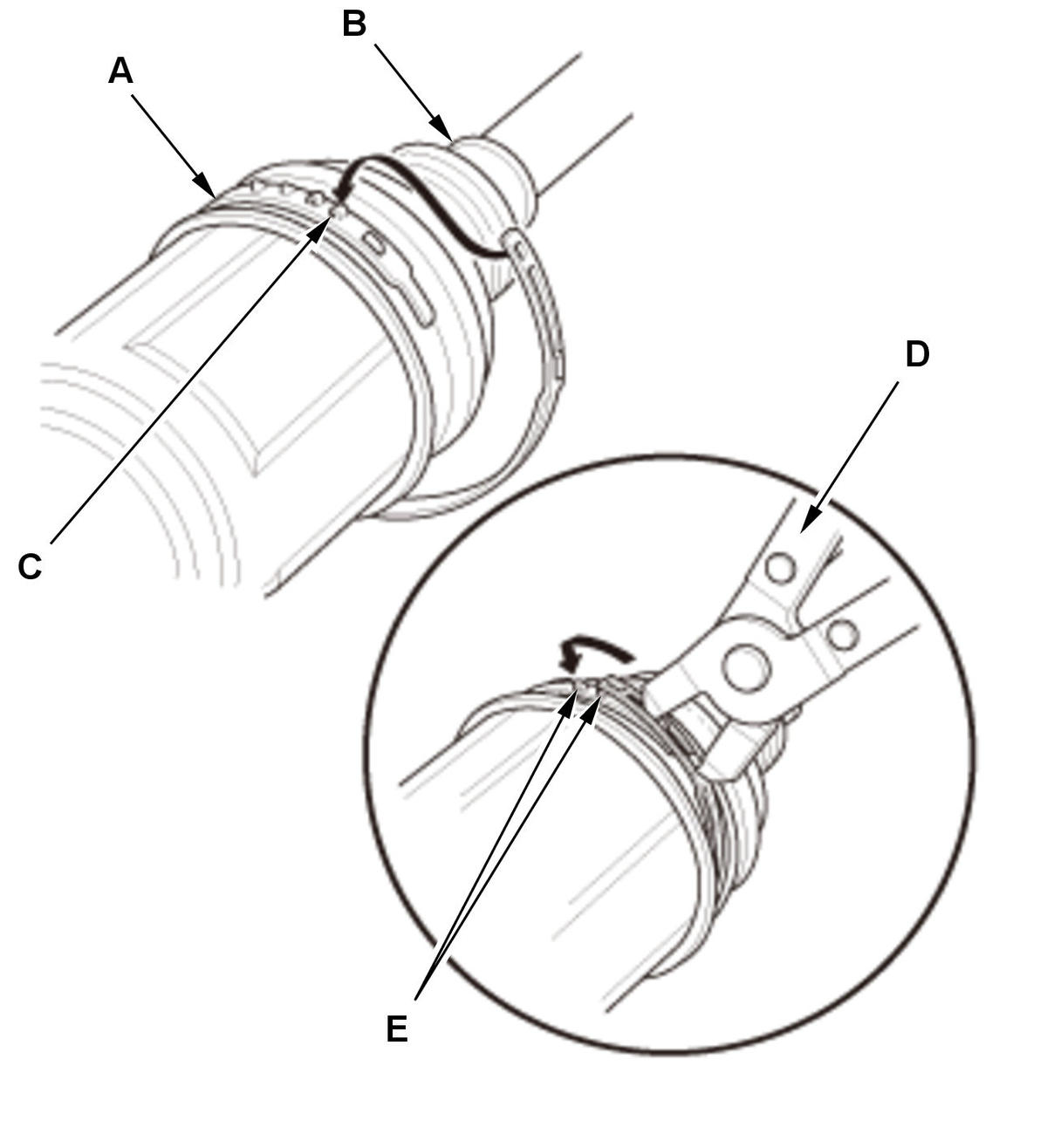

    GHH376303Courtesy of HONDA, U.S.A., INC.

    Low profile type

    1. Fit the boot ends onto the driveshaft and the inboard joint, then install a new low profile band (A) onto the boot (B).

    2. Hook the tab (C) of the band.

    3. Close the hook portion of the band using a commercially available CV boot clamp pincer pliers (D), then hook the tabs (E) of the band.
