Front Driveshaft Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

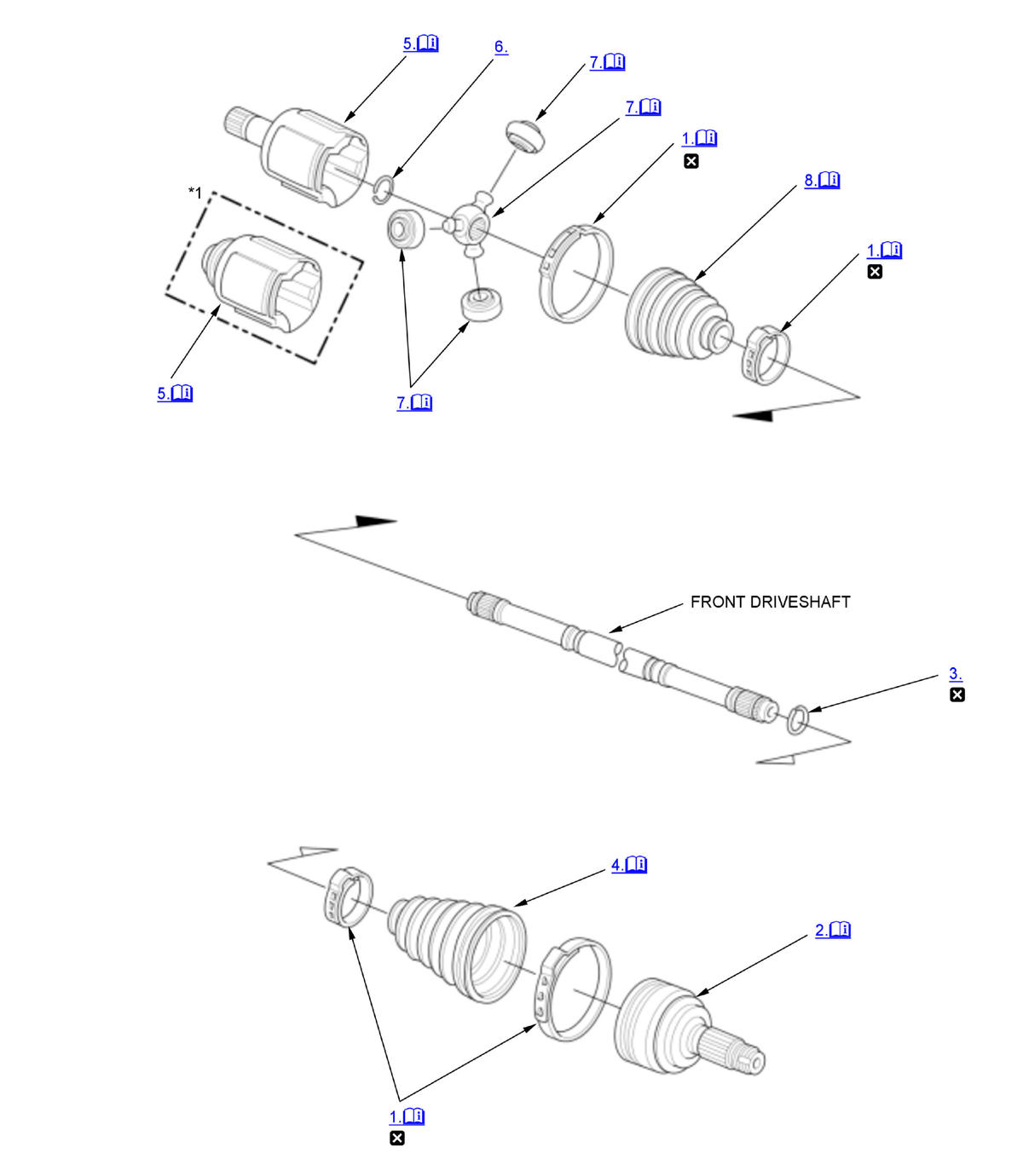

Fig 1: Exploded View Of Front Driveshaft Components For Disassembly
GHH376276Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Replace
*1 Right driveshaft
  1. Boot Bands - Remove

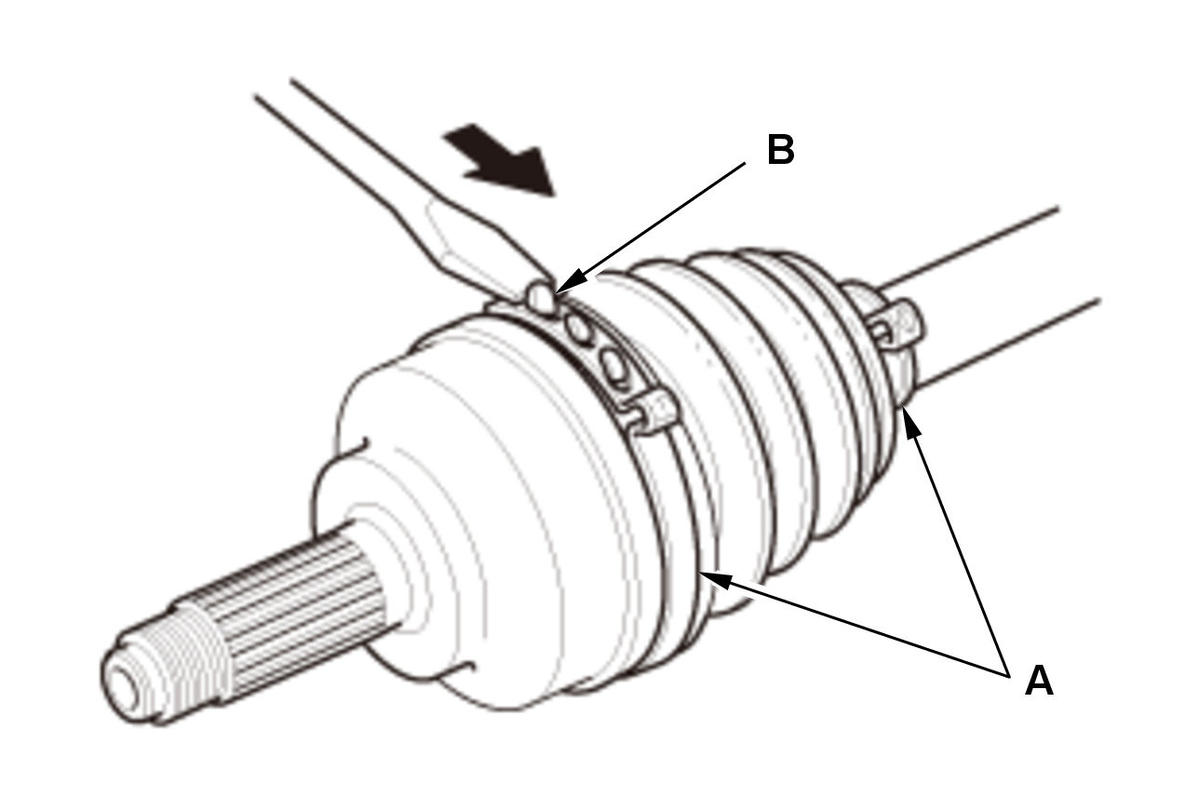

    GHH376277Courtesy of HONDA, U.S.A., INC.

    Ear clamp type

    1. If the boot band is an ear clamp type (A), lift up the tabs (B) using a flat-tipped screwdriver.

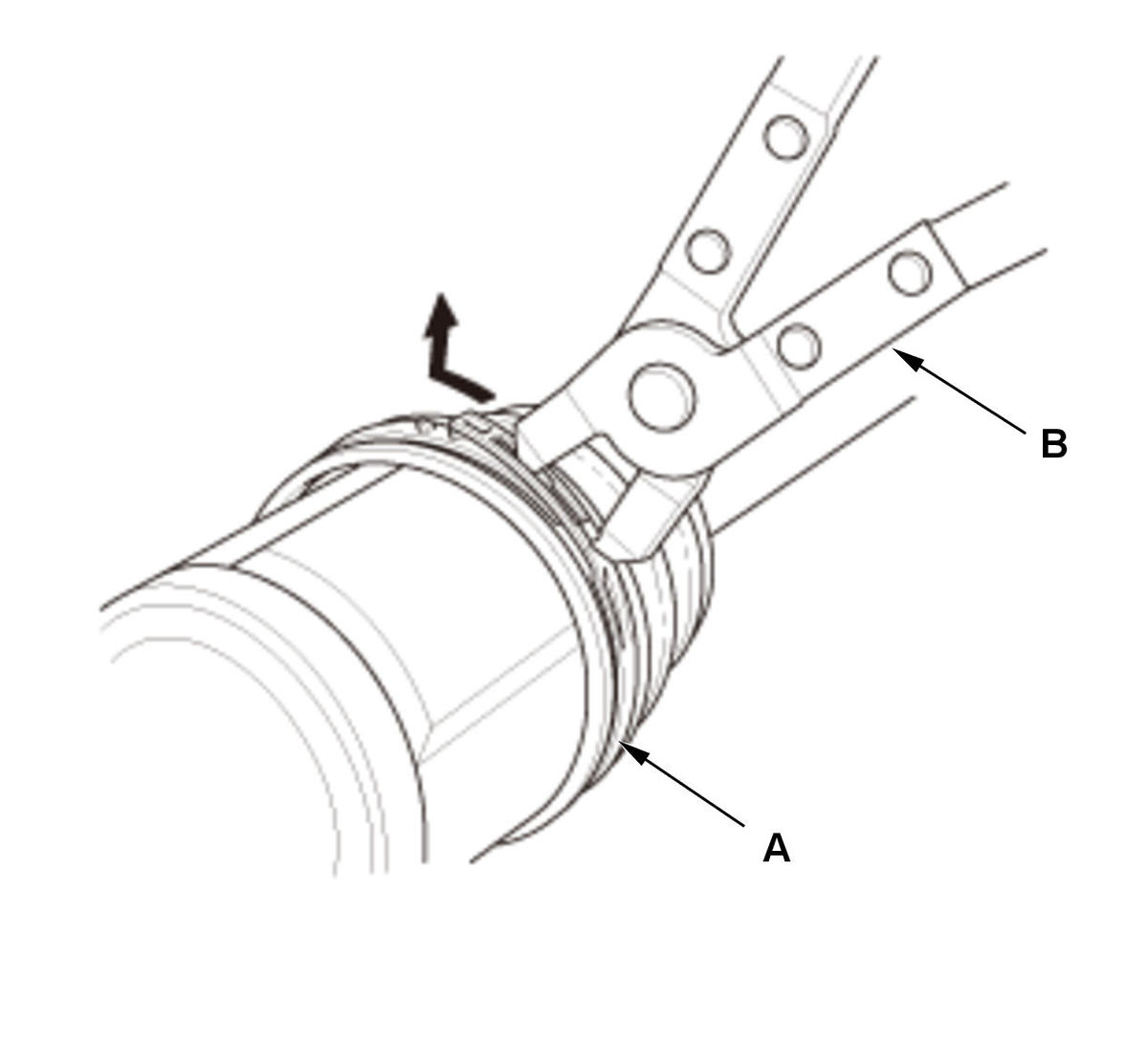

    GHH376278Courtesy of HONDA, U.S.A., INC.

    Low profile type

    1. If the boot band is a low profile type (A), pinch the boot band using a commercially available CV boot clamp pincer pliers (B).

  2. Outboard Joint - Remove

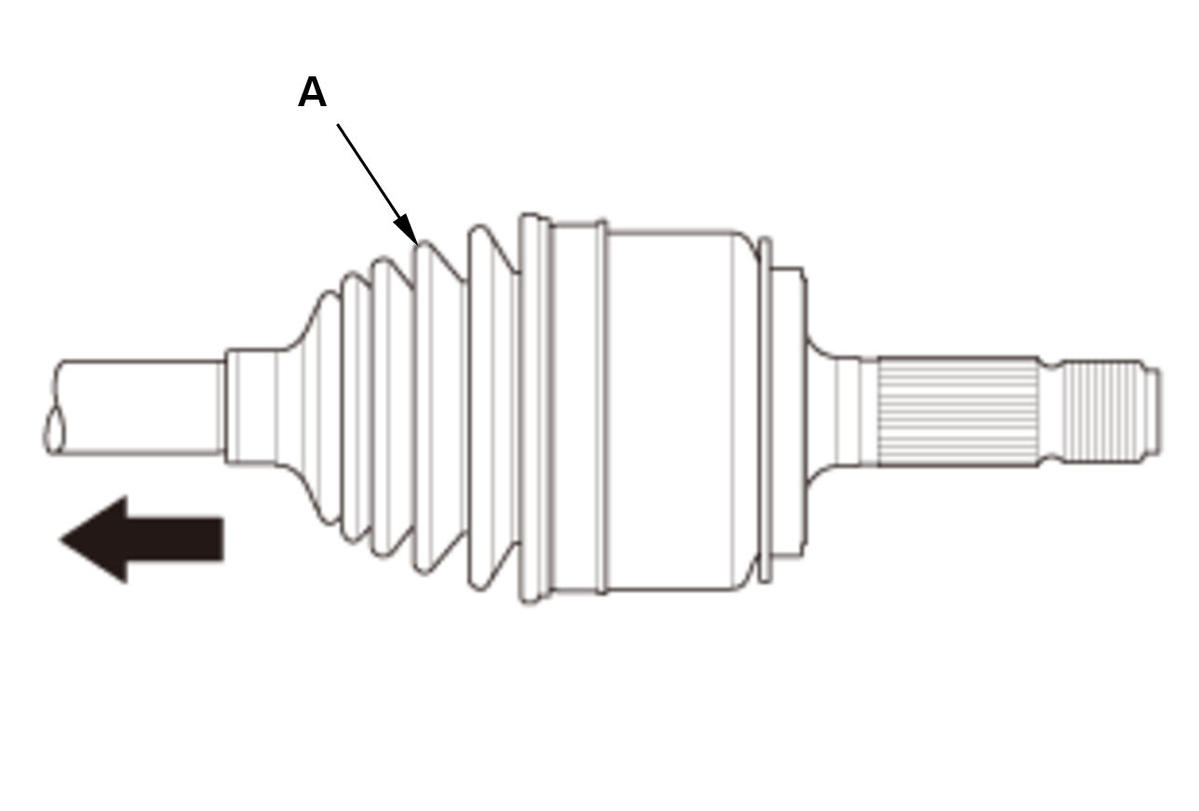

    GHH376279Courtesy of HONDA, U.S.A., INC.
    		 1. Slide the outboard boot (A) partially toward the inboard joint side.

    2. Wipe off the grease to expose the driveshaft and the outboard joint inner race.

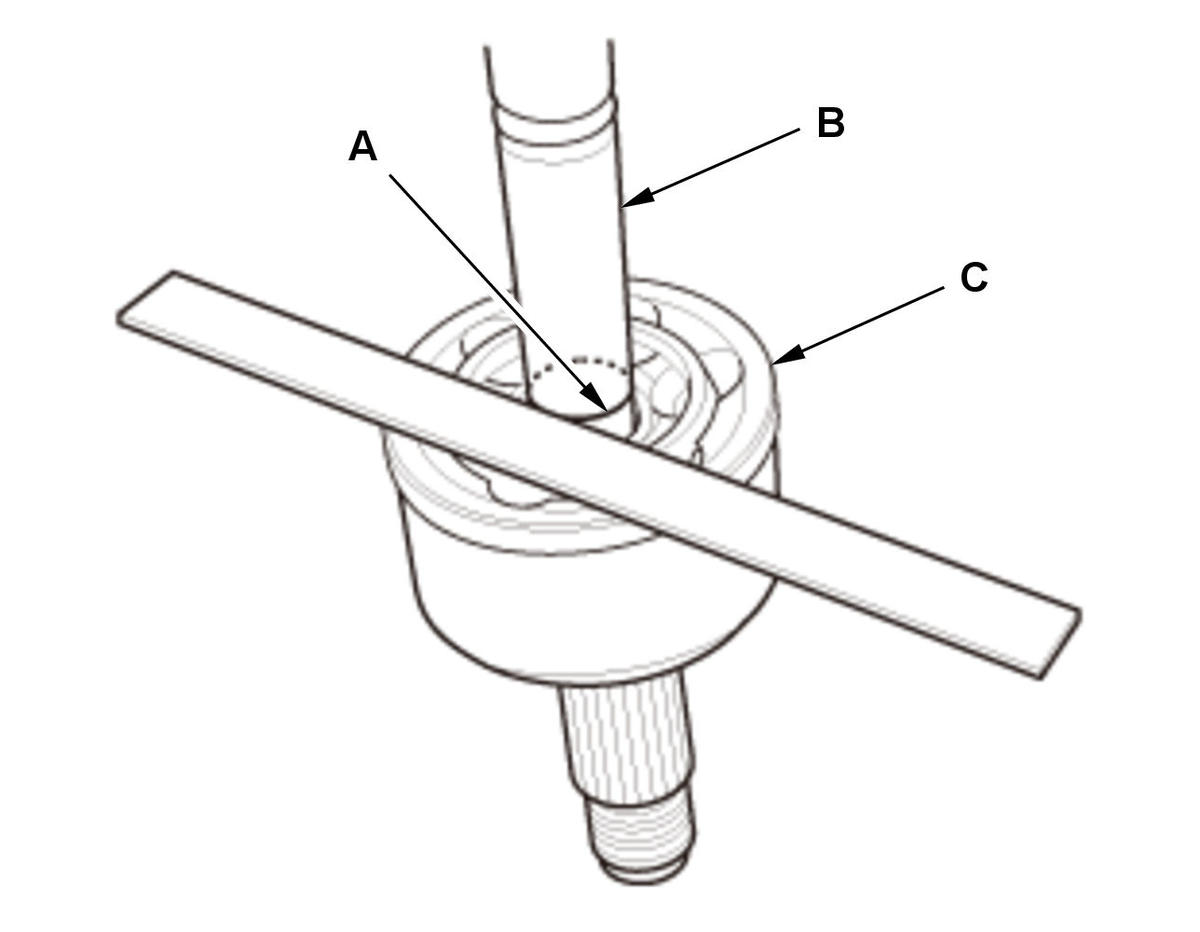

    GHH376280Courtesy of HONDA, U.S.A., INC.
    		 3. Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

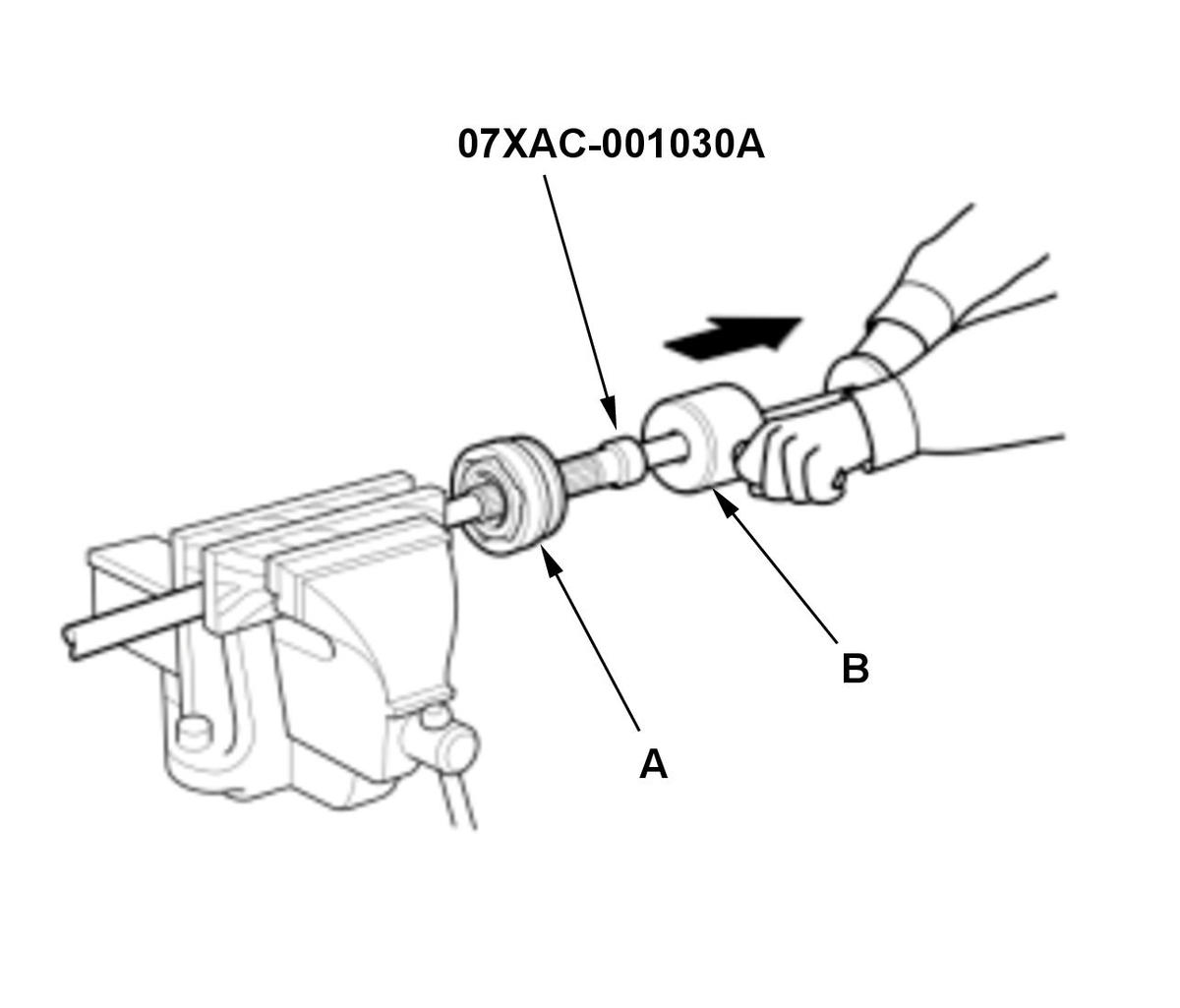

    GHH376281Courtesy of HONDA, U.S.A., INC.
    		 4. Securely clamp the driveshaft in a bench vise with the wood blocks.

    5. Remove the outboard joint (A) using the 26 x 1.5 mm threaded adapter and a commercially available 5/8"-18 UNF slide hammer (B).

    NOTE:  Check inside of the outboard joint and on the serrations for wear and tear.

    6. Remove the driveshaft from the bench vise.
  3. Stop Ring - Remove
  4. Outboard Boot - Remove

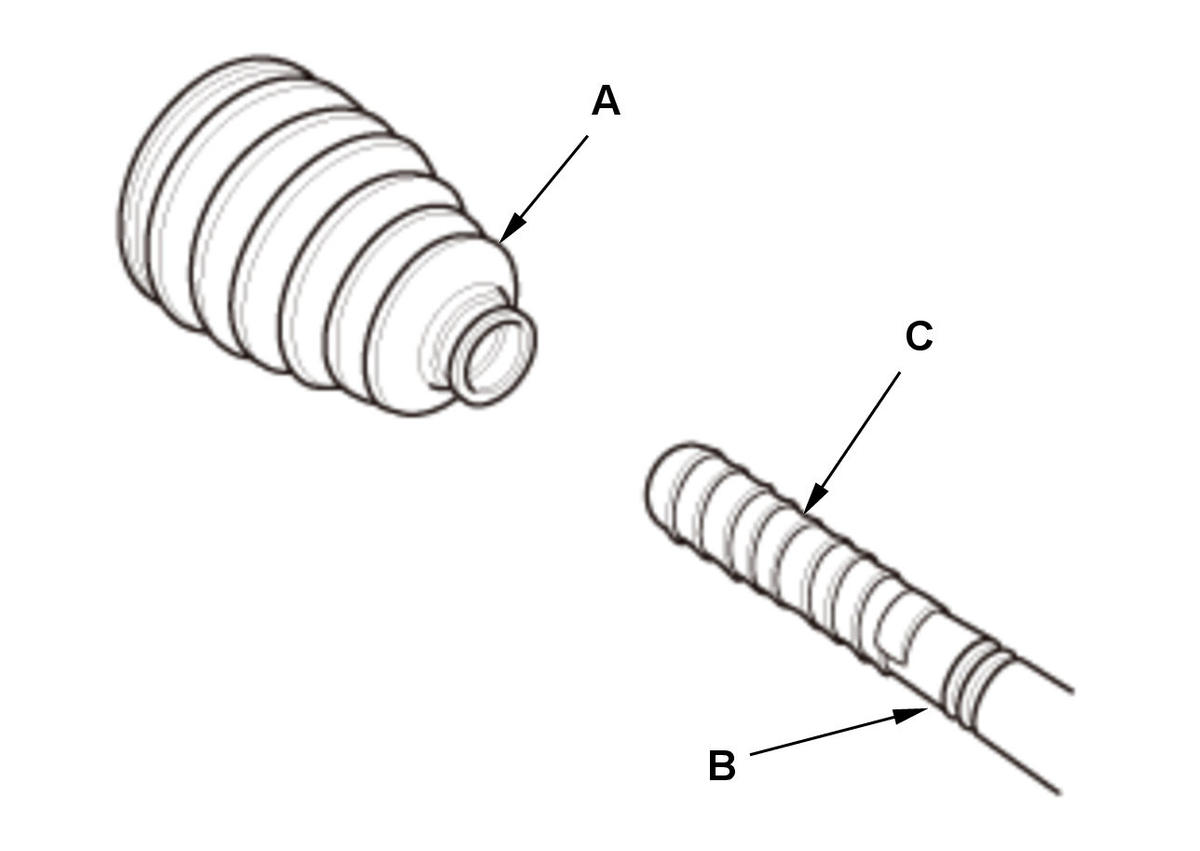

    GHH376282Courtesy of HONDA, U.S.A., INC.

    NOTE:

    • Check the outboard boot (A) for cracks and damage. If any damage is found, replace the outboard boot.
    • Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the outboard boot.
  5. Inboard Joint - Remove

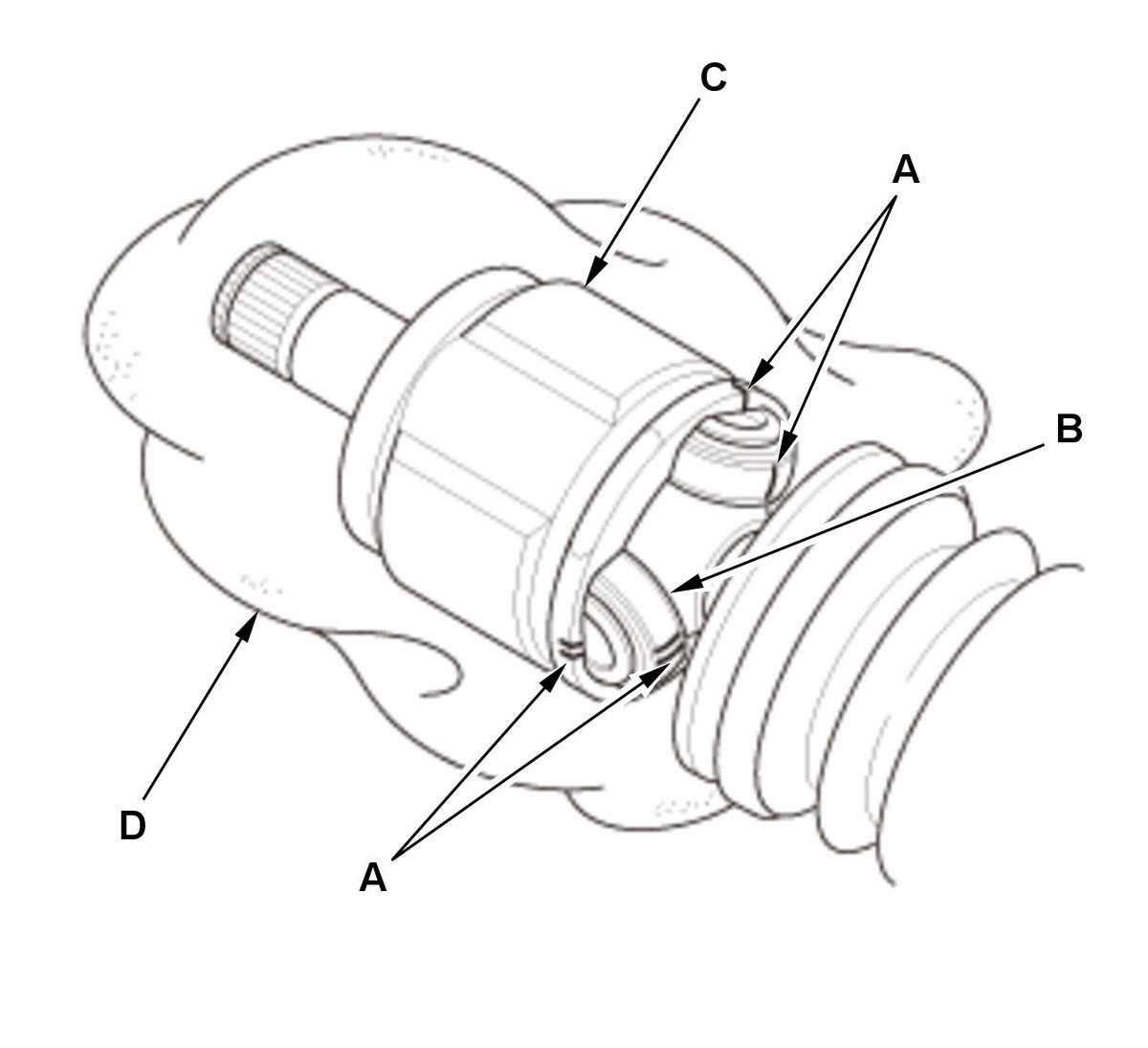

    GHH376283Courtesy of HONDA, U.S.A., INC.
    		 1. Make marks (A) on each roller (B) and the inboard joint (C) to identify the locations of the rollers to the grooves in the inboard joint.

    NOTE:  Do not engrave or scribe any marks on the rolling surface.

    2. Remove the inboard joint and place it on a clean shop towel (D). Be careful not to drop the rollers when separating them from the inboard joint.

    NOTE:  Check inside of the inboard joint and on the serrations for wear and tear.
  6. Circlip - Remove
  7. Roller and Spider - Remove

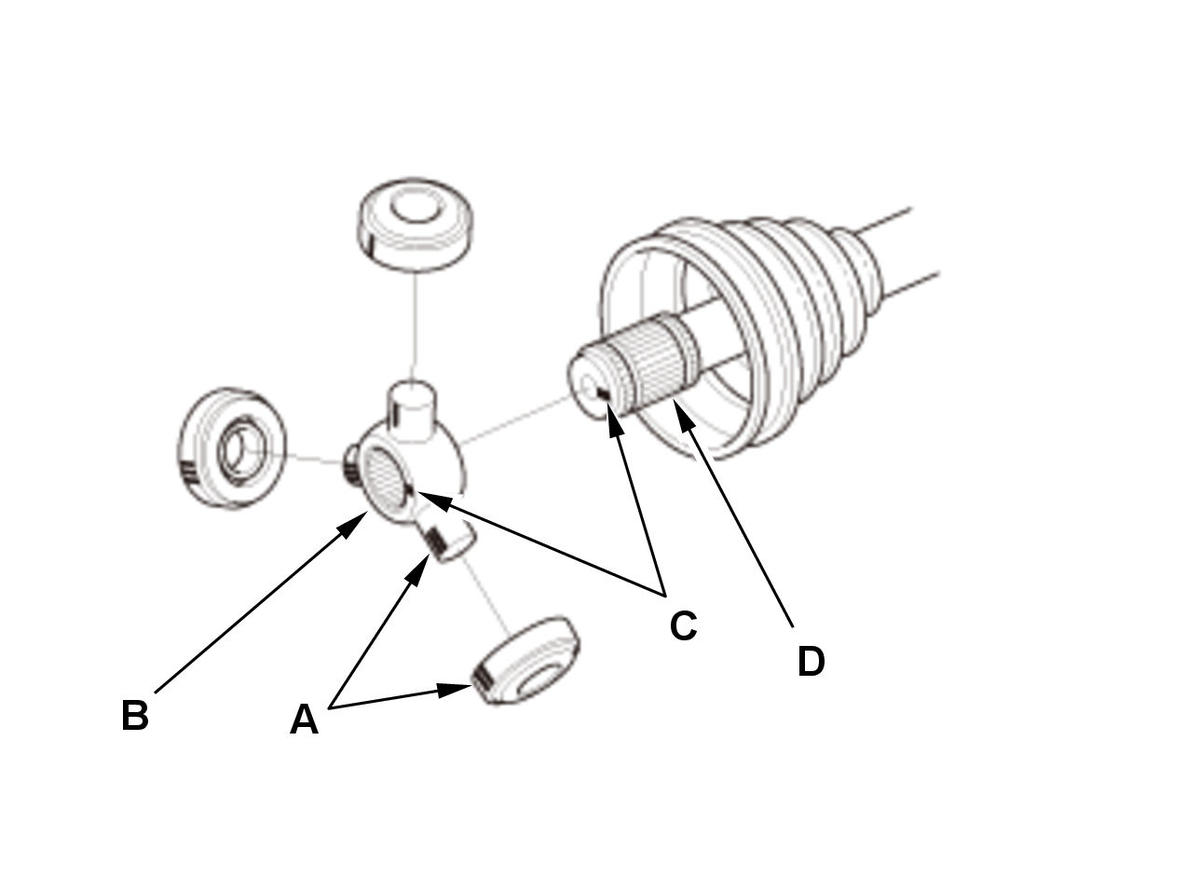

    GHH376284Courtesy of HONDA, U.S.A., INC.
    		 1. Make marks (A) on the spider (B) that match the marks on the rollers.

    NOTE:  Do not engrave or scribe any marks on the rolling surfaces.

    2. Remove the rollers.

    3. Make marks (C) on the spider and the driveshaft (D) to identify the position of the spider on the shaft.

    4. Remove the spider.

    NOTE:  If necessary, use a commercially available bearing puller while being careful not to damage the spider.
  8. Inboard Boot - Remove

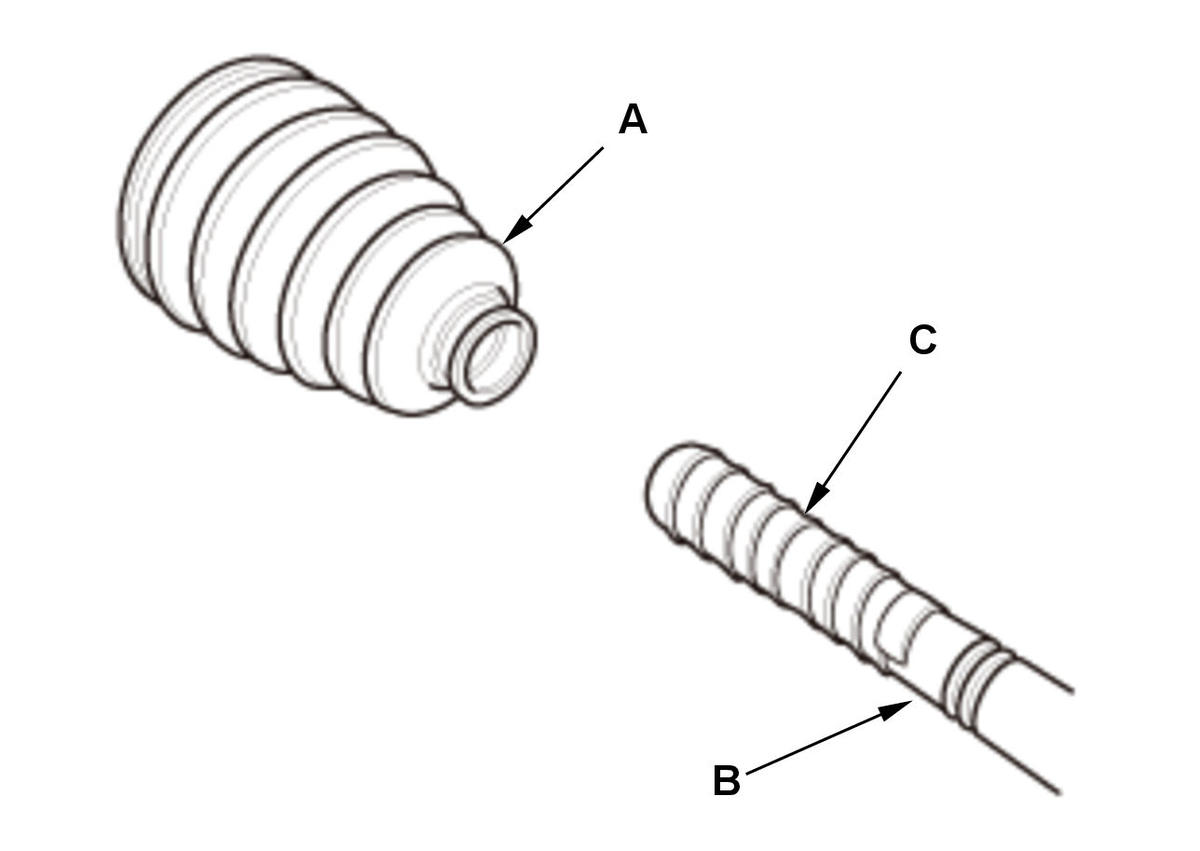

    GHH376285Courtesy of HONDA, U.S.A., INC.

    NOTE:

    • Check the inboard boot (A) for cracks and damage. If any damage is found, replace the boot.
    • Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the inboard boot.
