DTC P2EC7 (2021)

DTC P2EC7  : Cold Start Rocker Arm Oil Control System Problem

Special Tools Required

Pressure Gauge Adapter 07NAJ-P07010A

A/T Low Pressure Gauge w/Panel 07406-0070301

A/T Pressure Test Hose 07AAJ-PY4A100

A/T Pressure Adapter 07MAJ-PY40120

Oil Pressure Hose 07ZAJ-S5AA200

NOTE:

• How to read the torque specifications .
• Before you troubleshoot, review the general troubleshooting information .
• If DTC P055D, P2648, and/or P2649 are stored at the same time as DTC P2EC7, troubleshoot those DTCs first, then recheck for DTC P2EC7.

DTC (PGM-FI)

1. Oil level check

   -1. Check the engine oil level .

   Is the level OK?

   YES

   Go to step 2.

   NO

   Adjust the engine oil to the proper level .

2. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Let the engine cool until the value of ECT Sensor 1 is 77 deg.F (25 deg.C) or less.

   Signal	Current conditions
   	Values	Unit
   ECT Sensor 1

   -3. Clear the DTC with the HDS.

   -4. Turn the vehicle to the OFF (LOCK) mode.

   -5. Enter the maintenance mode, then start the engine , and let it idle for 10 seconds or more.

   -6. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P2EC7 Cold Start Rocker Arm Oil Control System Problem

   Is DTC P2EC7 indicated?

   YES

   The failure is duplicated. Go to step 3.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil pressure sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

3. DTC check

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P055D Rocker Arm Oil Pressure Sensor High Voltage
   P2649 Rocker Arm Oil Control Solenoid Circuit High Voltage

   Is DTC P055D and/or P2649 indicated?

   YES

   Go to the indicated DTC's troubleshooting .

   NO

   Go to step 4.

4. VTEC system oil pressure check

   -1. Turn the vehicle to the OFF (LOCK) mode.

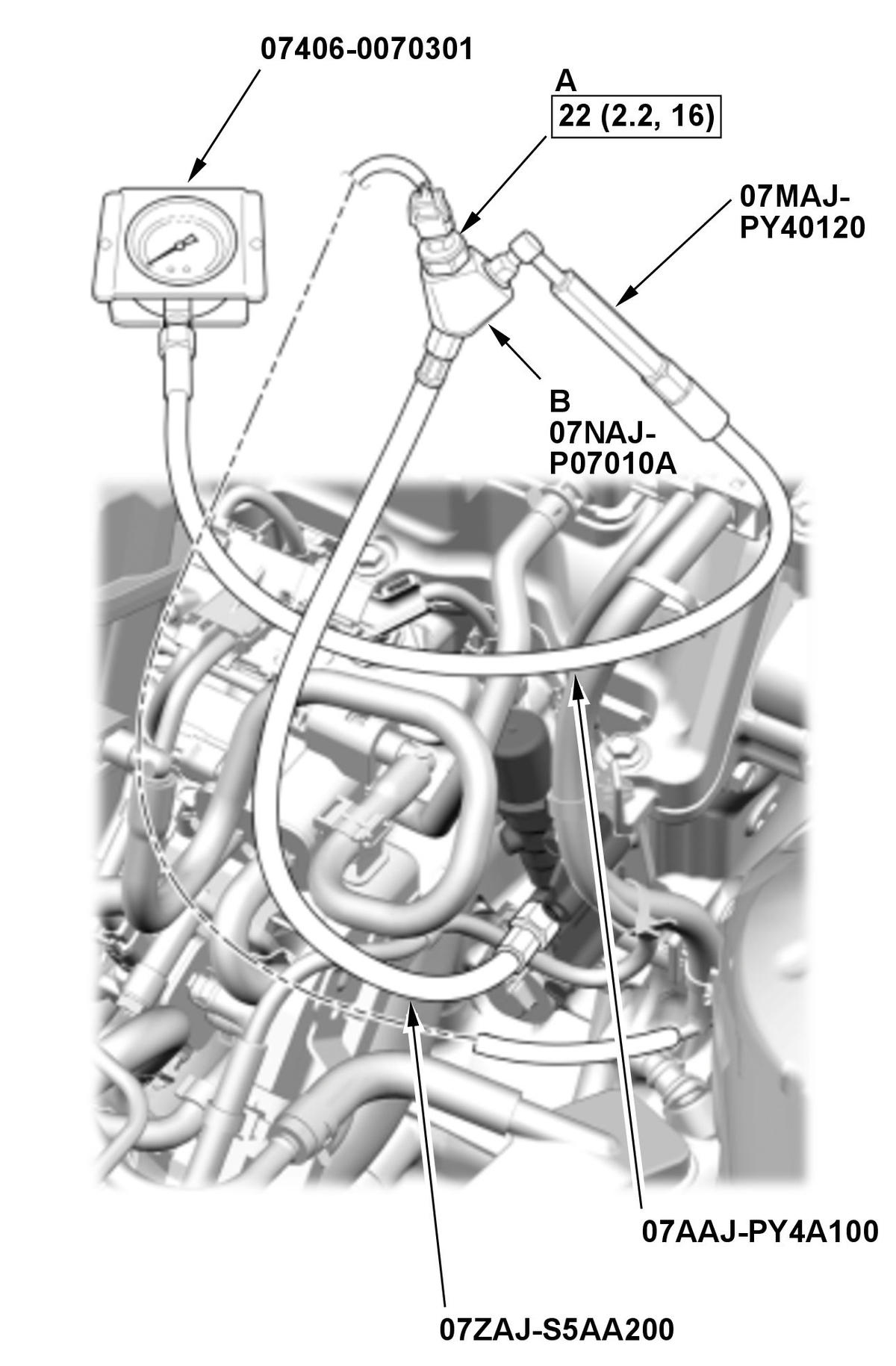

   -2. Remove the rocker arm oil pressure sensor (A), and attach the special tools as shown, then attach the rocker arm oil pressure sensor to the oil pressure gauge adapter (B).

   Courtesy of HONDA, U.S.A., INC.

   -3. Reconnect the following connector.

   Rocker arm oil pressure sensor 3P connector

   -4. Enter the maintenance mode, then start the engine .

   -5. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   -6. Select the VTEC TEST in the Function Test Menu with the HDS.

   VTEC TEST

   Check the oil pressure while the status of VTEC solenoid valve on the HDS display is OFF.

   Is the oil pressure 49 kPa (0.50 kgf/cm 2, 7.1 psi) or more?

   YES

   Inspect the VTEC system oil passage. If it is OK, replace the rocker arm oil control valve .

   NO

   Replace the rocker arm oil pressure sensor .
