DTC P272D

WARNING: This page is about a different variant/trim than selected.

DTC P272D  : Park Pawl Motor Control Circuit Current Too High

NOTE:  Before you troubleshoot, review the General Troubleshooting Information .

DTC Description Confirmed DTC Pending DTC Freeze Frame
P272D Park Pawl Motor Control Circuit Current Too High

DTC (Gear)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Turn the vehicle to the OFF (LOCK) mode.

    -4. Turn the vehicle to the ON mode, and wait for at least 10 seconds.

    -5. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC Freeze Frame
    P272D Park Pawl Motor Control Circuit Current Too High

    Is DTC P272D indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the park pawl actuator and the park pawl actuator driver unit. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  2. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuse.

    Fuse No. A2-6

    Is the fuse OK?

    YES

    The fuse is OK. Reinstall the fuse, then go to step 3.

    NO

    Replace the fuse, and recheck. If the fuse blows again, repair a short to ground in the fuse circuit.

  3. Determine possible failure area (park pawl actuator relay circuit, others)

    -1. Disconnect the following connector.

    Park pawl actuator 10P connector

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Park pawl actuator 10P connector: disconnected
    Test point 1 Park pawl actuator 10P connector (female terminals) No. 2:
    Test point 2 Body ground
    GHH378068Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 4.

    NO

    Go to step 7.

  4. Shorted wire check (MAU/P-ACT MTR U line, MAV/P-ACT MTR V line, MAW/P-ACT MTR W line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Park pawl actuator driver unit 26P connector

    -3. Measure the resistance between the following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator 10P connector: disconnected
      Park pawl actuator driver unit 26P connector: disconnected
    Connector Terminal
    Park pawl actuator 10P connector (female terminals): No. 1
    No. 6
    No. 7

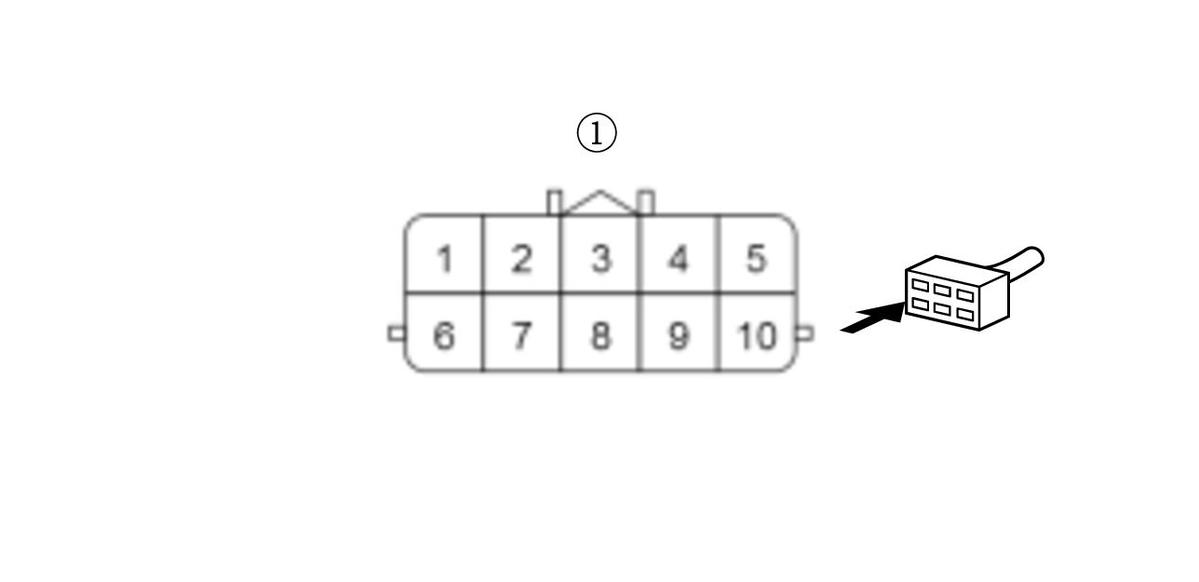

    GHH378070Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    The MAU/P-ACT MTR U wire, MAV/P-ACT MTR V wire, and/or MAW/P-ACT MTR W wire are not shorted to ground. Go to step 5.

    NO

    Repair a short to ground in the MAU wire, the MAV wire, and/or the MAW wire between the park pawl actuator and the park pawl actuator driver unit.

  5. Open wire check (MAU/P-ACT_MTR_U line, MAV/P-ACT_MTR_V line, MAW/P-ACT_MTR_W line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator 10P connector: disconnected
      Park pawl actuator driver unit 26P connector: disconnected
    Test point 1 Park pawl actuator 10P connector (female terminals) No. 1:
    Test point 2 Park pawl actuator driver unit 26P connector No. 6
    Test point 1 Park pawl actuator 10P connector (female terminals) No. 6:
    Test point 2 Park pawl actuator driver unit 26P connector No. 5
    Test point 1 Park pawl actuator 10P connector (female terminals) No. 7:
    Test point 2 Park pawl actuator driver unit 26P connector No. 4
    GHH378074Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The MAU/P-ACT_MTR_U wire, the MAV/P-ACT_MTR_V wire, and the MAW/P-ACT_MTR_W wire are OK. Go to step 6.

    NO

    Repair an open in the MAU/P-ACT_MTR_U wire, the MAV/P-ACT_MTR_V wire, and/or the MAW/P-ACT_MTR_W wire between the park pawl actuator and the park pawl actuator driver unit.

  6. Park pawl actuator check

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator 10P connector: disconnected
      Park pawl actuator driver unit 26P connector: disconnected
    Test point 1 Park pawl actuator 10P connector (male terminals) No. 2:
    Test point 2 Park pawl actuator 10P connector (male terminals) No. 1:
    Test point 1 Park pawl actuator 10P connector (male terminals) No. 2:
    Test point 2 Park pawl actuator 10P connector (male terminals) No. 6:
    Test point 1 Park pawl actuator 10P connector (male terminals) No. 2:
    Test point 2 Park pawl actuator 10P connector (male terminals) No. 7:

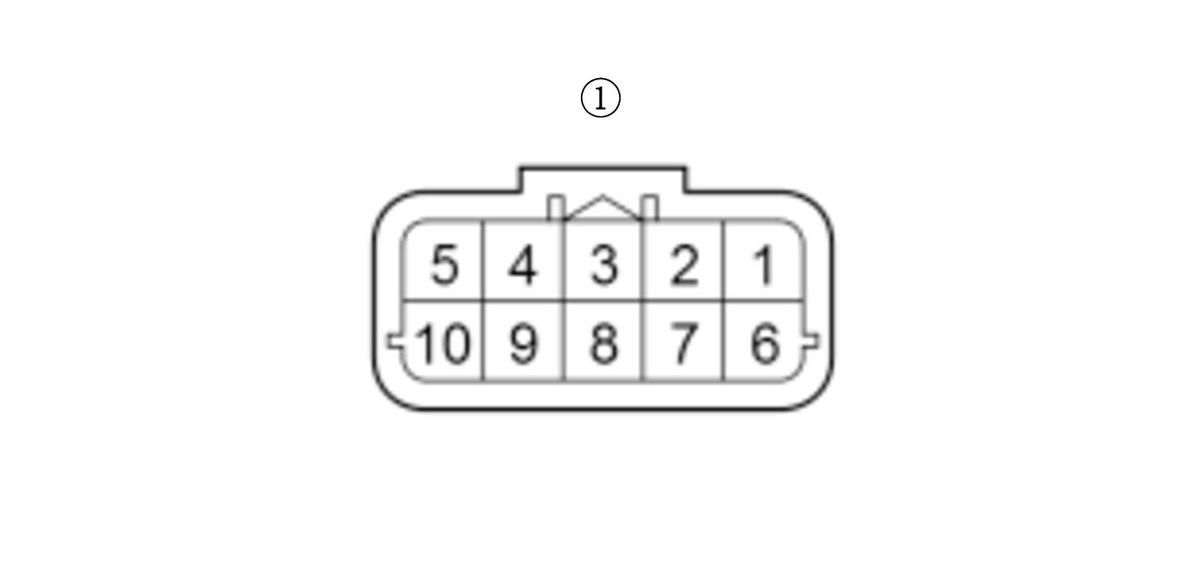

    GHH378081Courtesy of HONDA, U.S.A., INC.

    Is there 10 kΩ or more?

    YES

    Replace the park pawl actuator .

    NO

    The park pawl actuator is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the park pawl actuator driver unit .

  7. Park pawl actuator relay check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the park pawl actuator relay .

    -3. Test the park pawl actuator relay .

    Is the relay OK?

    YES

    The park pawl actuator relay is OK. Keep the relay removed, and go to step 8.

    NO

    Replace the park pawl actuator relay.

  8. Open wire check (+B_P-ACT line)

    -1. Measure the voltage between the following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator relay: disconnected
      Park pawl actuator 10P connector: disconnected
    Connector Terminal
    Park pawl actuator relay 4P socket (female terminals): No. 3
    No. 7
    GHH378083Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B_P-ACT wire is OK. Go to step 9.

    NO

    Repair an open in the +B_P-ACT wire between the park pawl actuator relay and the under-hood fuse/relay box.

  9. Open wire check (P-ACT_RLY_OUT/BMA line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator relay: disconnected
      Park pawl actuator 10P connector: disconnected
    Test point 1 Park pawl actuator relay 4P socket (female terminals) No. 4:
    Test point 2 Park pawl actuator 10P connector (female terminals) No. 2:
    GHH378086Courtesy of HONDA, U.S.A., INC.
    GHH378087Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The P-ACT_RLY_OUT/BMA wire is OK. Go to step 10.

    NO

    Repair an open in the P-ACT_RLY OUT/BMA wire between the park pawl actuator relay and the park pawl actuator.

  10. Open wire check (P-ACT_RLY_CL- line)

    -1. Disconnect the following connector.

    Park pawl actuator driver unit 26P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator relay: disconnected
      Park pawl actuator 10P connector: disconnected
      Park pawl actuator driver unit 26P connector: disconnected
    Test point 1 Park pawl actuator relay 4P socket (female terminals) No. 8:
    Test point 2 Park pawl actuator driver unit 26P connector No. 23

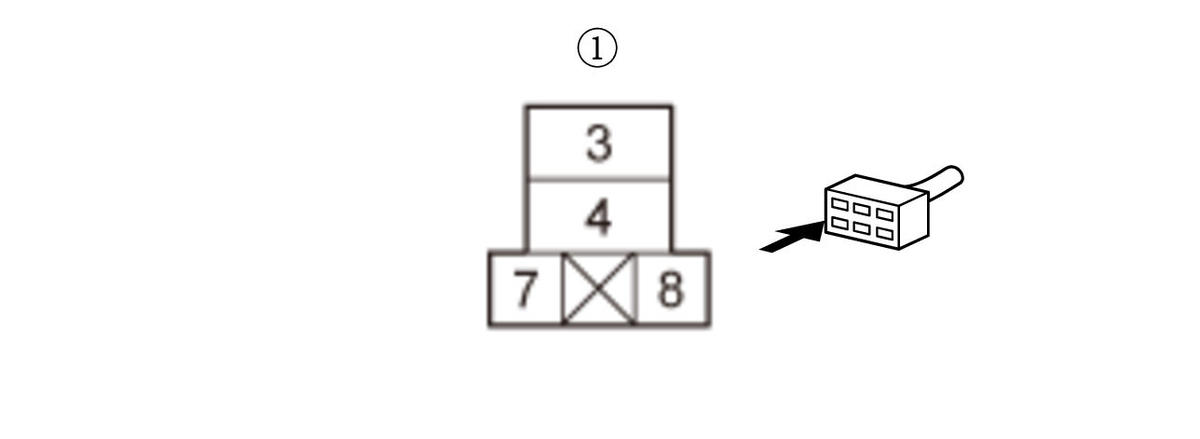

    GHH378089Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The P-ACT_RLY_CL- wire is not open. Go to step 11.

    NO

    Repair an open in the P-ACT_RLY_CL- wire between the park pawl actuator relay and the park pawl actuator driver unit.

  11. Shorted wire check (P-ACT_RLY_CL- line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Park pawl actuator relay: disconnected
      Park pawl actuator 10P connector: disconnected
      Park pawl actuator driver unit 26P connector: disconnected
    Test point 1 Park pawl actuator driver unit 26P connector No. 23
    Test point 2 Body ground

    Is there battery voltage?

    YES

    Repair a short to power in the P-ACT_RLY_CL- wire between the park pawl actuator relay and the park pawl actuator driver unit.

    NO

    The P-ACT_RLY_CL- wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the park pawl actuator driver unit .
