DTC P0657

WARNING: This page is about a different variant/trim than selected.

DTC P0657  : PCM Power Supply Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P0657 PCM Power Supply Circuit Malfunction

DTC (PGM-FI)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Enter the maintenance mode, then start the engine .

    -4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC
    P0657 PCM Power Supply Circuit Malfunction

    Is DTC P0657 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the relay circuit board and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  2. Relay circuit board check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove and test the relay circuit board .

    Is the relay circuit board OK?

    YES

    Go to step 3.

    NO

    Replace the relay circuit board .

  3. Fuse check

    -1. Check the following fuse.

    Fuse No. A7

    Is the fuse OK?

    YES

    Go to step 7.

    NO

    Go to step 4.

  4. Determine possible failure area (+B_IGP line, others)

    -1. Remove the blown No. A7 fuse .

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 18:
    Test point 2 Body ground
    GHH377682Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 5.

    NO

    Repair a short in the +B_IGP wire between the No. A7 fuse and the relay circuit board. Also replace the No. A7 fuse.

  5. Parts internal circuit check

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Check for continuity between test points 1 and 2 while disconnecting these parts or connectors, one at a time:

    • PGM-FI main relay 2
    • PCM connector A (50P)
    • Each injector 2P connector
    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 17:
    Test point 2 Body ground
    GHH377684Courtesy of HONDA, U.S.A., INC.

    Does continuity go away with the part(s) removed?

    YES

    Replace the part that continuity goes away when it was disconnected. If the part is PCM, Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM . Also replace the No. A7 fuse .

    NO

    Go to step 6.

  6. Shorted wire check (FI_MAIN_RLY_OUT line)

    -1. Disconnect the following parts and connectors.

    PGM-FI main relay 2
    PCM connector A (50P)
    Each injector 2P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Relay circuit board: removed
    PGM-FI main relay 2: disconnected
    PCM connector A (50P): disconnected
    Each injector 2P connector: disconnected
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 17:
    Test point 2 Body ground
    GHH377686Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Replace the relay circuit board . Also replace the No. A7 fuse .

    NO

    Repair a short in the FI_MAIN_RLY_OUT wire between the PCM (A8), PGM-FI main relay 2, the injectors, and the relay circuit board. Also replace the No. A7 fuse.

  7. Open wire check (+B_IGP line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 18:
    Test point 2 Body ground
    GHH377688Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B_IGP wire is OK. Go to step 8.

    NO

    Repair an open in the +B_IGP wire between the No. A7 fuse and the relay circuit board.

  8. Open wire check (FI_MAIN_RLY_CL- line)

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connector.

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
      PCM connector A (50P): disconnected
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 5:
    Test point 2 PCM connector A (50P) No. 5
    GHH377690Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The FI_MAIN_RLY_CL- wire is OK. Go to step 9.

    NO

    Repair an open in the FI_MAIN_RLY_CL- wire between the PCM (A5) and the relay circuit board.

  9. Open wire check (FI_MAIN_RLY_OUT line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
      PCM connector A (50P): disconnected
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 17:
    Test point 2 PCM connector A (50P) No. 8

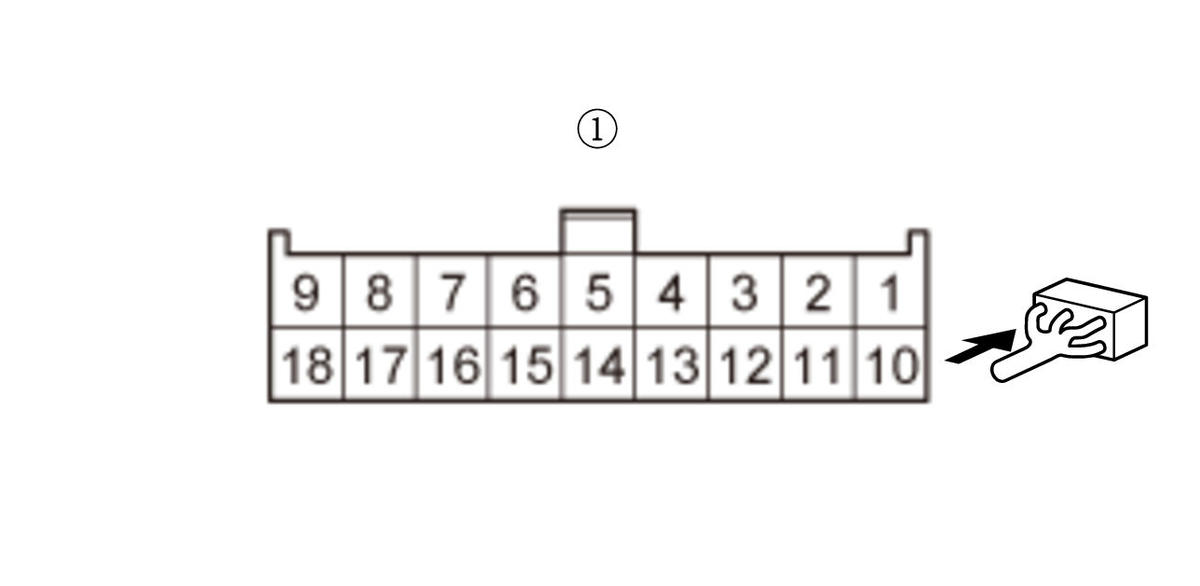

    GHH377692Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The FI_MAIN_RLY_OUT wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the FI_MAIN_RLY_OUT wire between the PCM (A8) and the relay circuit board.
