DTC P0340

WARNING: This page is about a different variant/trim than selected.

DTC P0340  : CMP Sensor A No Signal

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P0340 CMP Sensor A No Signal

DTC (PGM-FI)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Enter the maintenance mode, then start the engine , and let it idle.

    -4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC
    P0340 CMP Sensor A No Signal

    Is DTC P0340 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at CMP sensor A and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  2. Determine possible failure area (VCC2 line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    CMP sensor A 3P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      CMP sensor A 3P connector: disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 1:
    Test point 2 Body ground
    GHH377473Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    Go to step 4.

    NO

    Go to step 3.

  3. Open wire check (VCC2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    CMP sensor A 3P connector: disconnected
    PCM connector E (80P): disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 1:
    Test point 2 PCM connector E (80P) No. 77
    GHH377475Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The VCC2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the VCC2 wire between the PCM (E77) and CMP sensor A.

  4. Determine possible failure area (CAM line, others)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      CMP sensor A 3P connector: disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 3:
    Test point 2 Body ground
    GHH377477Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    Go to step 5.

    NO

    Go to step 7.

  5. Determine possible failure area (CMP sensor A, others)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      CMP sensor A 3P connector: disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 1:
    Test point 2 CMP sensor A 3P connector (female terminals) No. 2:
    GHH377480Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    The SG2 wire is OK. Replace CMP sensor A .

    NO

    Go to step 6.

  6. Open wire check (SG2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CMP sensor A 3P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 2:
    Test point 2 PCM connector E (80P) No. 78

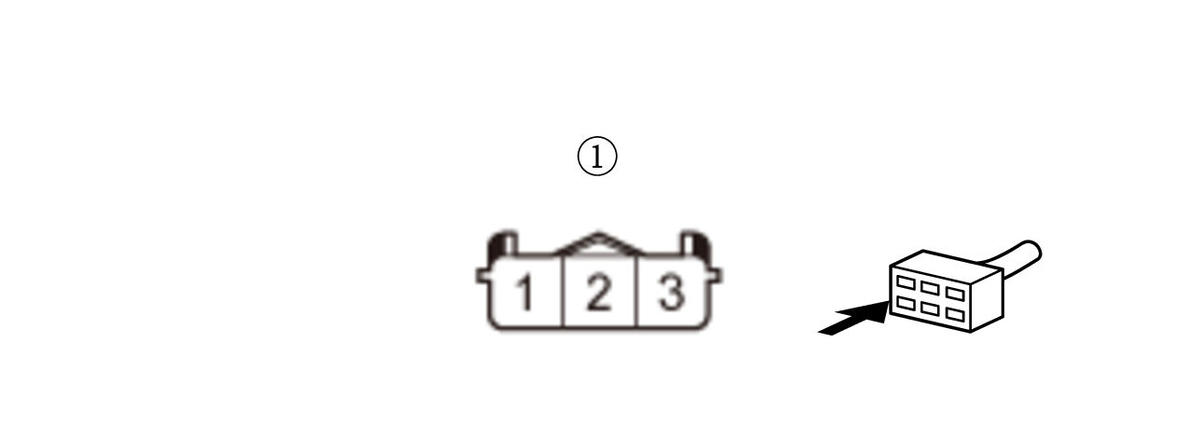

    GHH377482Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The SG2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the SG2 wire between the PCM (E78) and CMP sensor A.

  7. Shorted wire check (CAM line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CMP sensor A 3P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 PCM connector E (80P) No. 41
    Test point 2 Body ground

    Is there 1 MΩ or more?

    YES

    The CAM wire is not shorted. Go to step 8.

    NO

    Repair a short in the CAM wire between the PCM (E41) and CMP sensor A.

  8. Open wire check (CAM line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CMP sensor A 3P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 CMP sensor A 3P connector (female terminals) No. 3:
    Test point 2 PCM connector E (80P) No. 41
    GHH377484Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The CAM wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the CAM wire between the PCM (E41) and CMP sensor A.
