Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

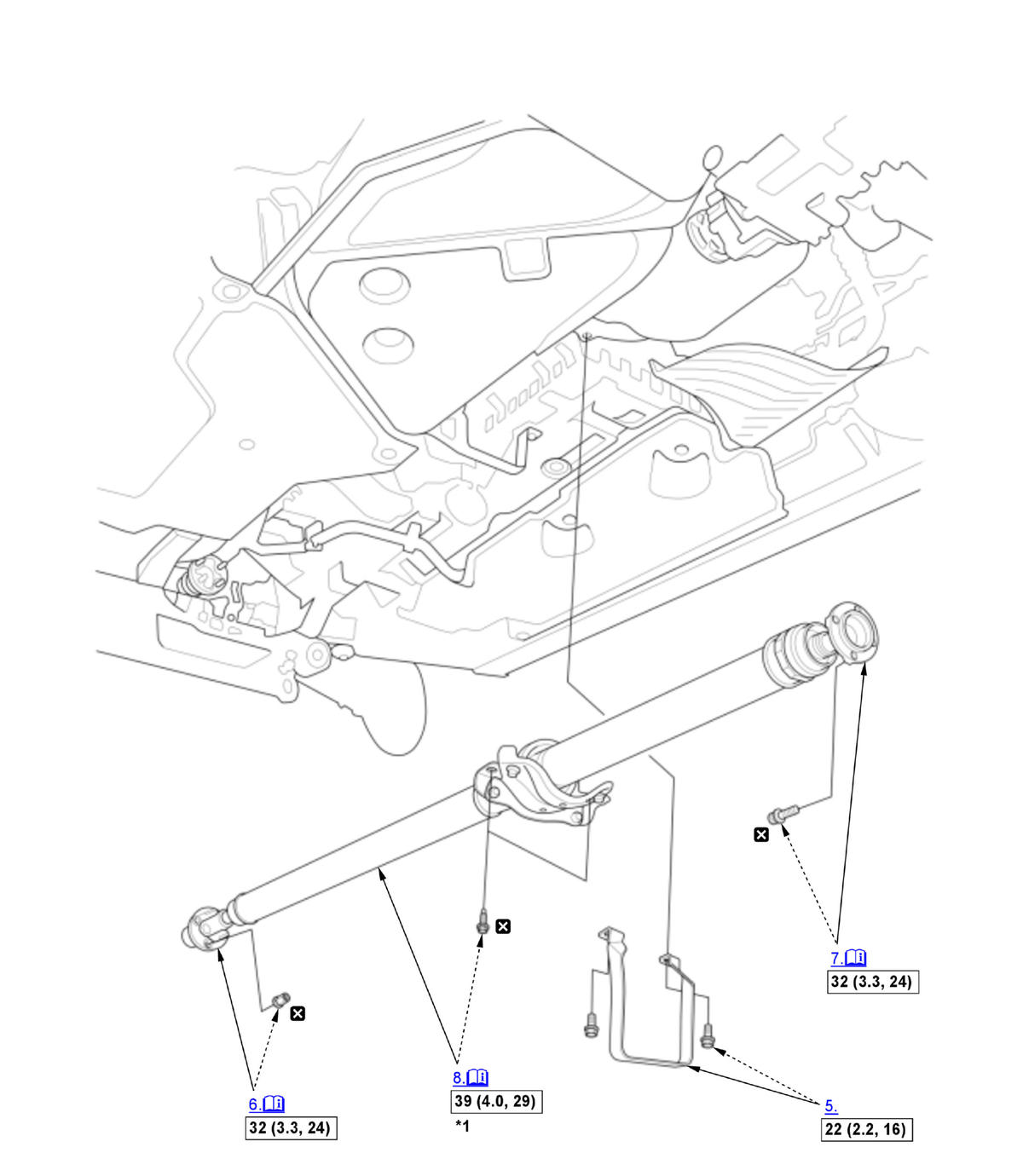

Fig 1: Exploded View Of Propeller Shaft Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	These parts have inspection items.

No. 1 Propeller Shaft - Disconnect

Courtesy of HONDA, U.S.A., INC.

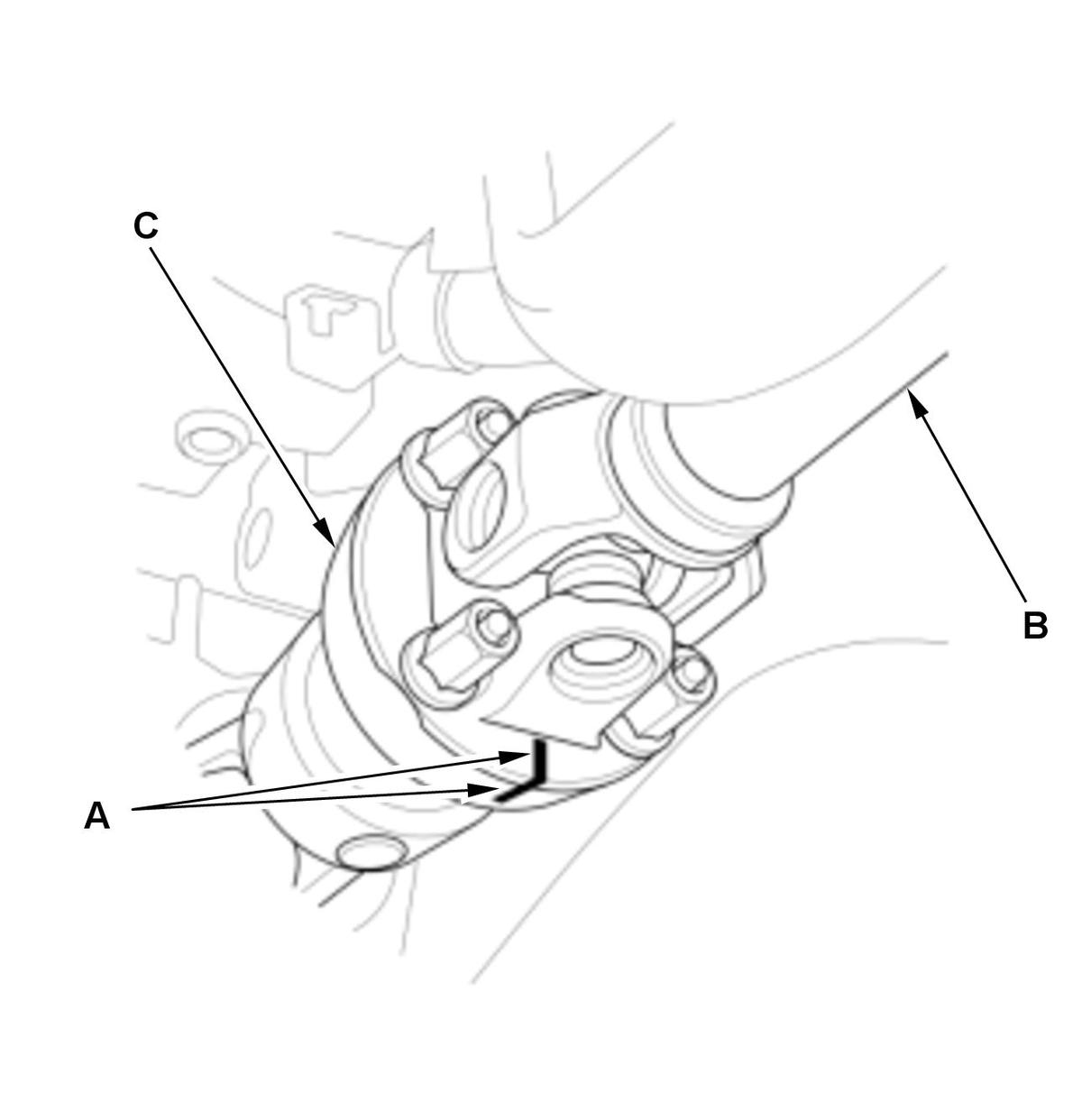

1. Make a reference marks (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C).

No. 2 Propeller Shaft - Disconnect

Courtesy of HONDA, U.S.A., INC.

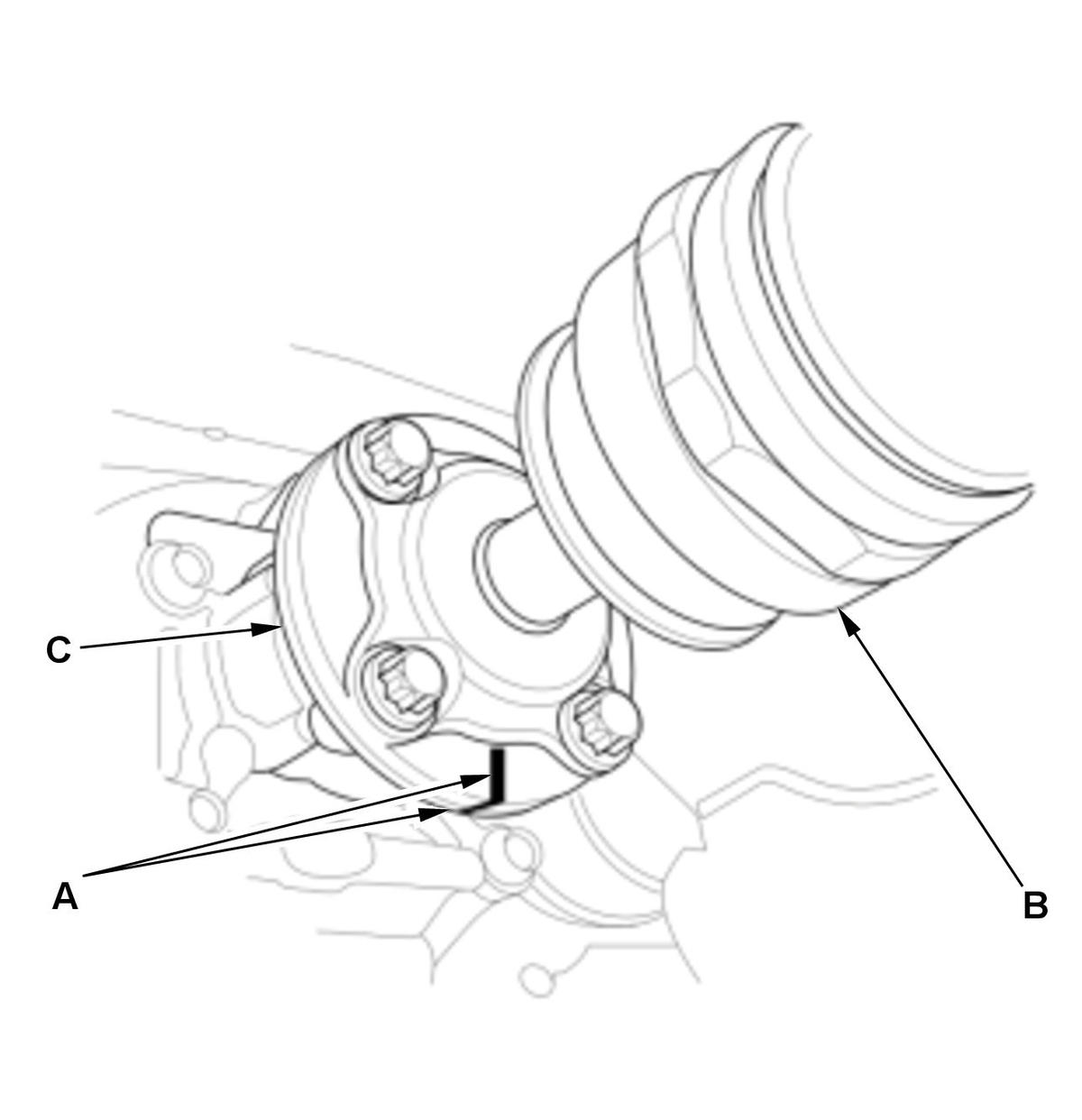

1. Make a reference marks (A) across the No. 2 propeller shaft (B) and the rear differential companion flange (C).

Propeller Shaft Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: Support the propeller shaft assembly with a transmission jack.

1. Remove the propeller shaft assembly to rear side of the vehicle while lowering the No. 2 propeller shaft.

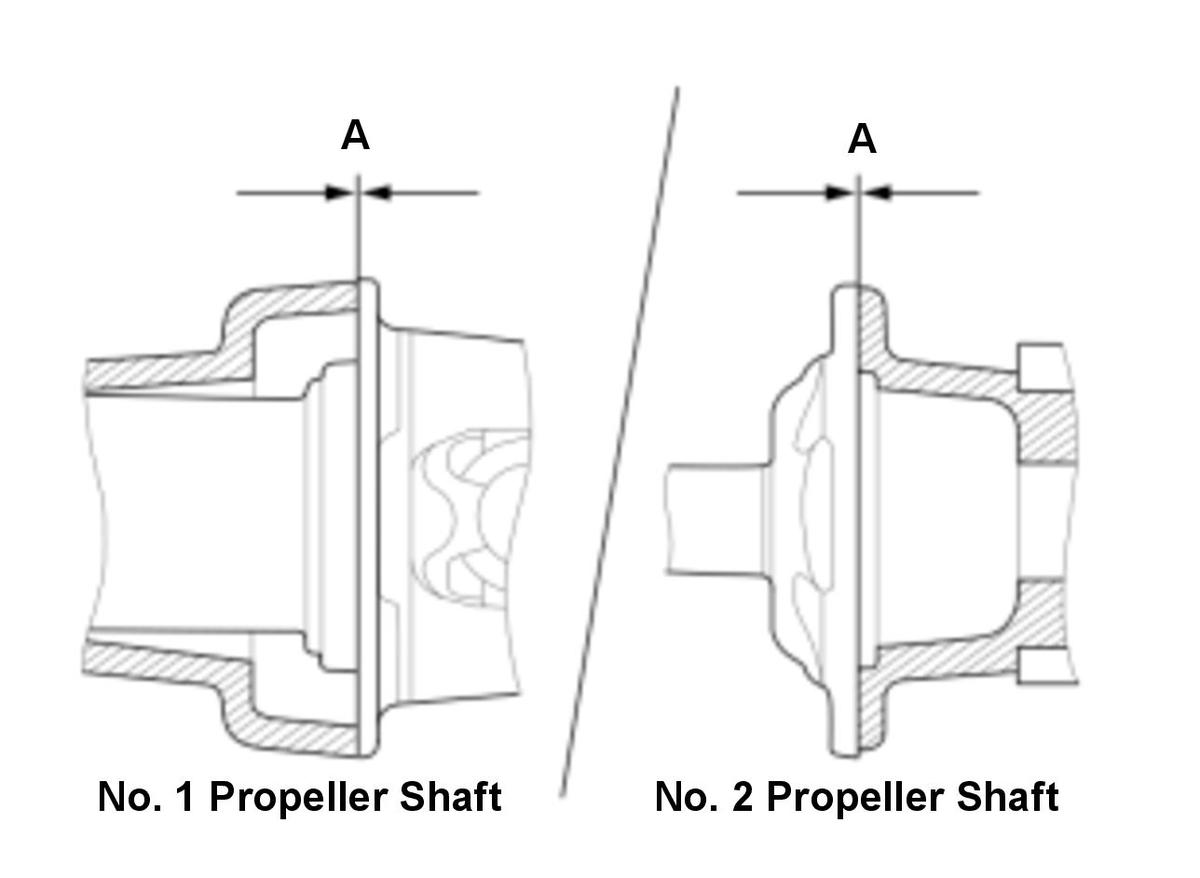

Note for installation Make sure that there are no clearance (A) between the propeller shaft assembly and the companion flanges as shown.

Front Floor Rear Brace - Remove (If Necessary)
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
Test Drive - Check

1. Test drive and check that there are no abnormal noise and vibration.
