Fuel Pump Circuit Troubleshooting
If you suspect a problem with the fuel pump, check that the fuel pump actually runs; when it is on, you will hear some noise if you listen to the fuel fill port. The fuel pump should run for 2 seconds when the vehicle is turned to ON mode. If the fuel pump does not make noise, check as follows:
- Determine possible failure area (FI_MAIN_RLY_OUT line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove PGM-FI main relay 2 .
-3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.

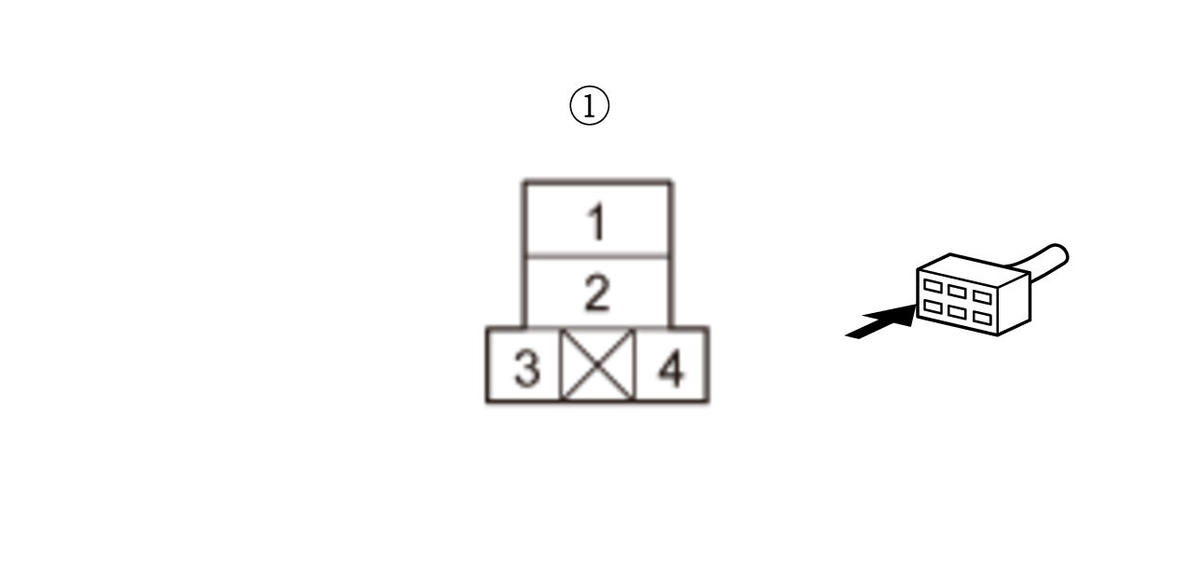

Test condition Vehicle ON mode PGM-FI main relay 2: disconnected Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 3: Test point 2 Body ground Is there battery voltage?
YES
Go to step 3.
NO
Go to step 2.
- Open wire check (FI_MAIN_RLY_OUT line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

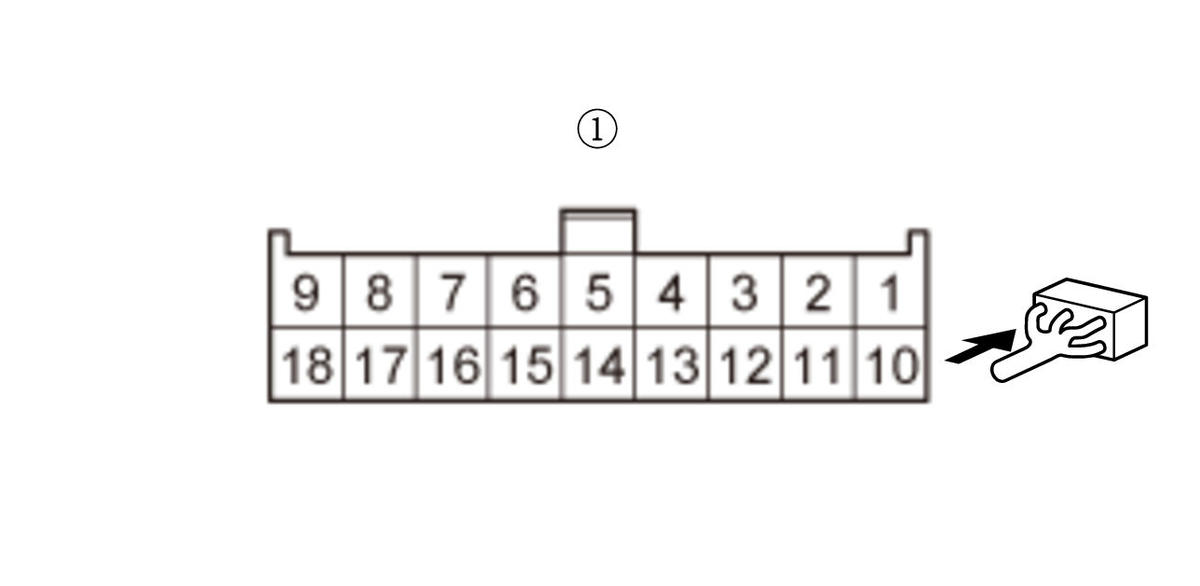

Relay circuit board connector C (18P) -3. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode PGM-FI main relay 2: disconnected Relay circuit board connector C (18P): disconnected Test point 1 Relay circuit board connector C (18P) (female terminals) No. 17: Test point 2 PGM-FI main relay 2 4P socket (female terminals) No. 3: Is there 1.0 Ω or less?
YES
Remove and test the relay circuit board , and replace it if needed.
NO
Repair an open in the FI_MAIN_RLY_OUT wire between the relay circuit board and PGM-FI main relay 2.
- Open wire check (IG1_FUEL_PUMP line)
-1. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode PGM-FI main relay 2: disconnected Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 1: Test point 2 Body ground Is there battery voltage?
YES
Go to step 4.
NO
Check the No. D8 fuse . If the fuse is OK, repair an open in the IG1_FUEL_PUMP wire between the No. D8 fuse and PGM-FI main relay 2. If needed, replace the under-dash fuse/relay box .
- Open wire check (FUEL_PUMP_RLY_CL- line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector A (50P) -4. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode PGM-FI main relay 2: disconnected PCM connector A (50P): disconnected Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 4: Test point 2 PCM connector A (50P) No. 11 Is there 1.0 Ω or less?
YES
The FUEL_PUMP_RLY_CL- wire is OK. Go to step 5.
NO
Repair an open in the FUEL_PUMP_RLY_CL- wire between the PCM (A11) and PGM-FI main relay 2.
- Determine possible failure area (PGM-FI main relay 2, others)
-1. Reinstall PGM-FI main relay 2 .
-2. Connect terminals A and B with a jumper wire.
Terminal A PCM connector A (50P) No. 5 Terminal B Body ground -3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode PCM connector A (50P): disconnected PCM connector A (50P) No. 5: jumped to body ground Test point 1 PCM connector A (50P) No. 11 Test point 2 Body ground Is there battery voltage?
YES
Go to step 6.
NO
Replace PGM-FI main relay 2.
- PCM operation check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove PGM-FI main relay 2 .
-3. Remove the jumper wire from PCM connector A (50P).
-4. Reconnect PCM connector A (50P).
-5. Exit the SCS mode with the HDS.
-6. Turn the vehicle to the ON mode, and measure the voltage between test points 1 and 2.
Test condition Within 2 seconds after turning vehicle to ON mode PGM-FI main relay 2: disconnected Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 3: Test point 2 PGM-FI main relay 2 4P socket (female terminals) No. 4: Is there battery voltage?
YES
Go to step 7.
NO
Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .
- Determine possible failure area (FUEL_PUMP_RLY_OUT line, GND line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

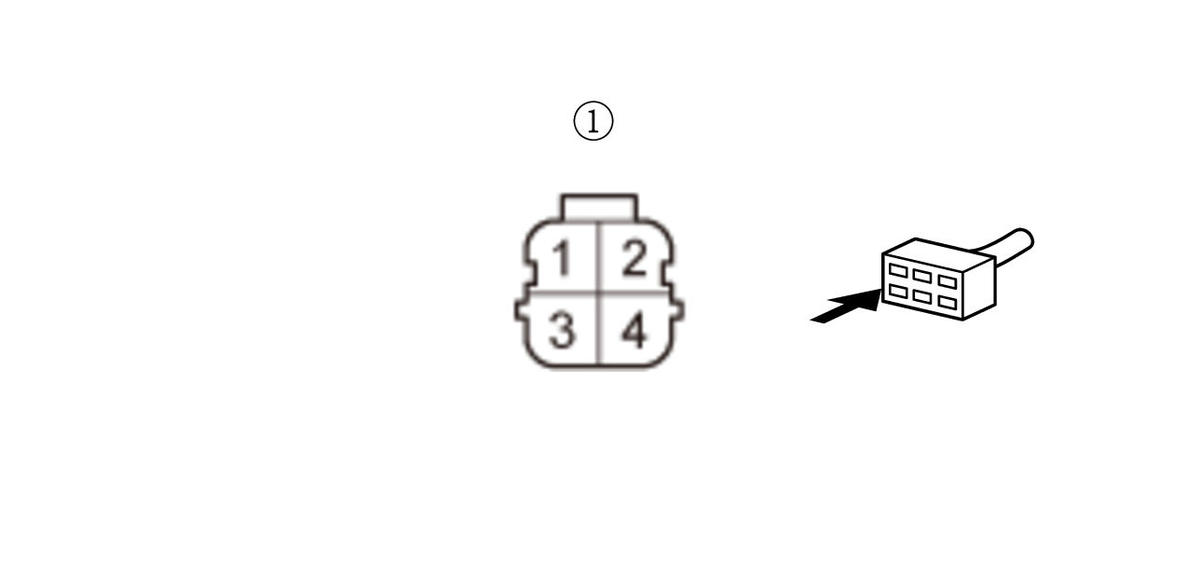

Fuel tank unit 4P connector -3. Reinstall PGM-FI main relay 2 .
-4. Turn the vehicle to the ON mode, and measure the voltage between test points 1 and 2.
Test condition Within 2 seconds after turning vehicle to ON mode Fuel tank unit 4P connector: disconnected Test point 1 Fuel tank unit 4P connector (female terminals) No. 1: Test point 2 Body ground Is there battery voltage?
YES
Go to step 9.
NO
Go to step 8.
- Open wire check (FUEL_PUMP_RLY_OUT line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove PGM-FI main relay 2 .
-3. Connect terminals A and B with a jumper wire.
Terminal A PGM-FI main relay 2 4P socket (female terminals) No. 1: Terminal B PGM-FI main relay 2 4P socket (female terminals) No. 2: -4. Turn the vehicle to the ON mode.
-5. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Fuel tank unit 4P connector: disconnected PGM-FI main relay 2: disconnected PGM-FI main relay 2 4P socket No. 1 and No. 2: jumped Test point 1 Fuel tank unit 4P connector (female terminals) No. 1: Test point 2 Body ground Is there battery voltage?
YES
The FUEL_PUMP_RLY_OUT wire is OK. Replace PGM-FI main relay 2.
NO
Repair an open in the FUEL_PUMP_RLY_OUT wire between PGM-FI main relay 2 and the fuel tank unit.
- Open wire check (GND line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Fuel tank unit 4P connector: disconnected Test point 1 Fuel tank unit 4P connector (female terminals) No. 3: Test point 2 Body ground Is there 1.0 Ω or less?
YES
The GND wire is OK. Replace the fuel pump .
NO
Repair an open in the GND wire between the fuel tank unit and G503.
