Sport Mode Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

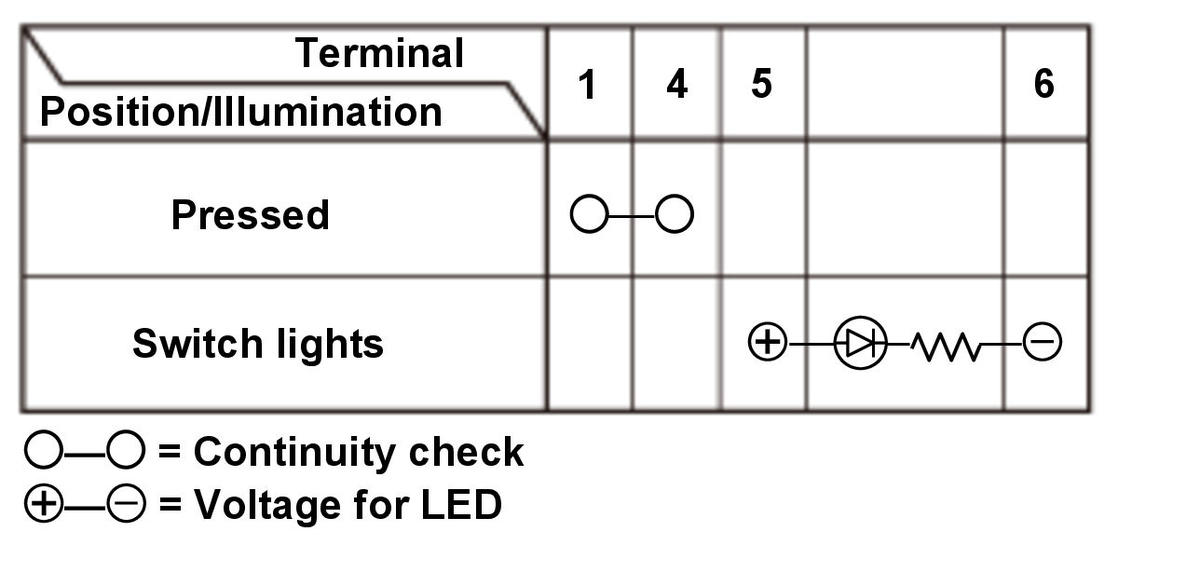

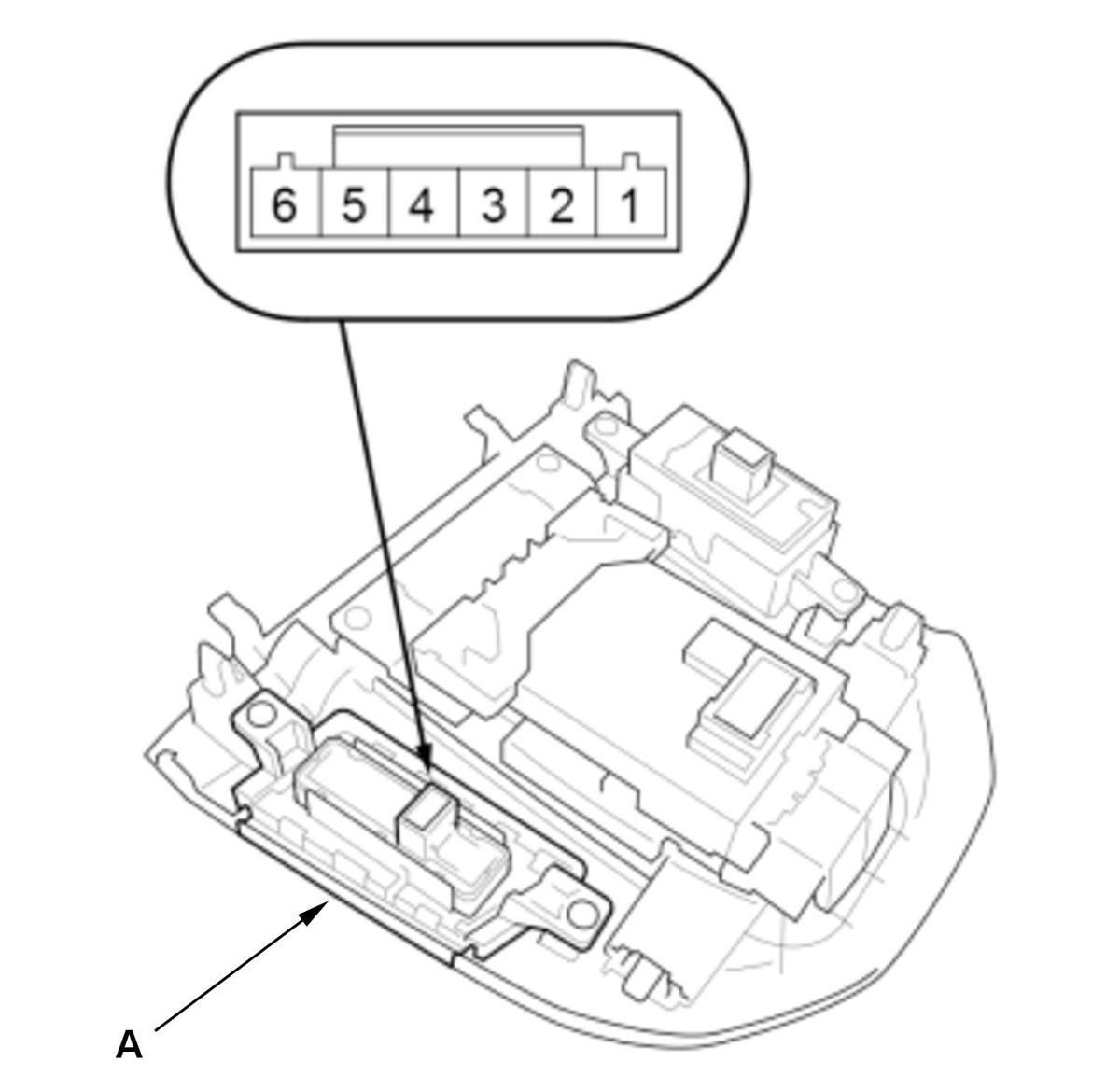

1. Test the sport mode switch (A) according to the table.
NOTE:

When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the sport mode switch.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
