Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

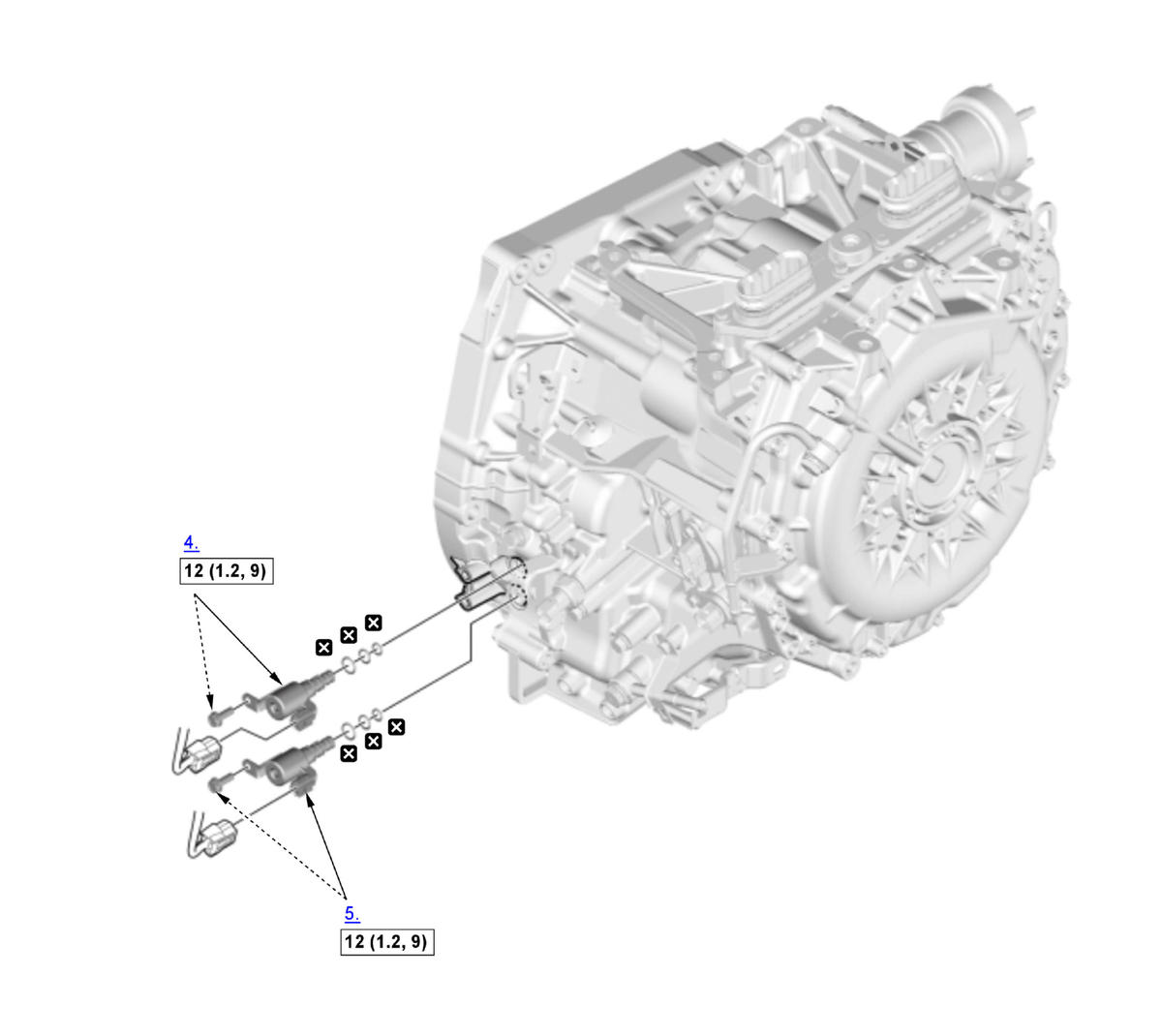

Fig 1: Exploded View Of Shift Solenoid Valve Components With Torque Specifications
GHH374944Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Vehicle - Lift
  2. Engine Undercover - Remove
  3. ATF - Drain
  4. Shift Solenoid Valve A - Remove
  5. Shift Solenoid Valve B - Remove
  6. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  7. ATF - Refill
