Section 40 (Continuously Variable Transmission (CVT) - Service Information (Hybrid))
>>
Removal and Installation
>>
Transmission (e-CVT) Removal and Installation
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
NOTE:
How to read the torque specifications
.
Transmission (e-CVT) Mounting Bolt

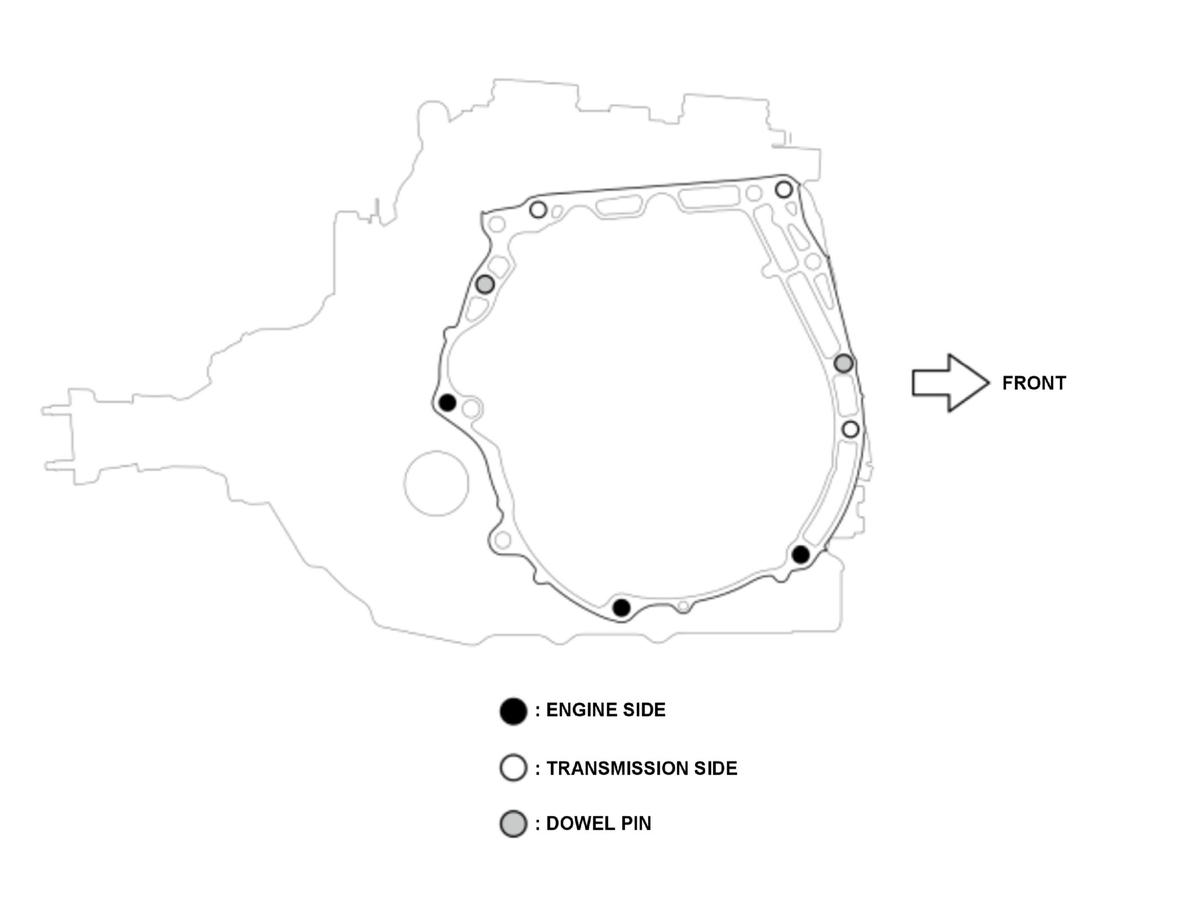

Transmission (e-CVT) Mounting Bolt - Exploded View

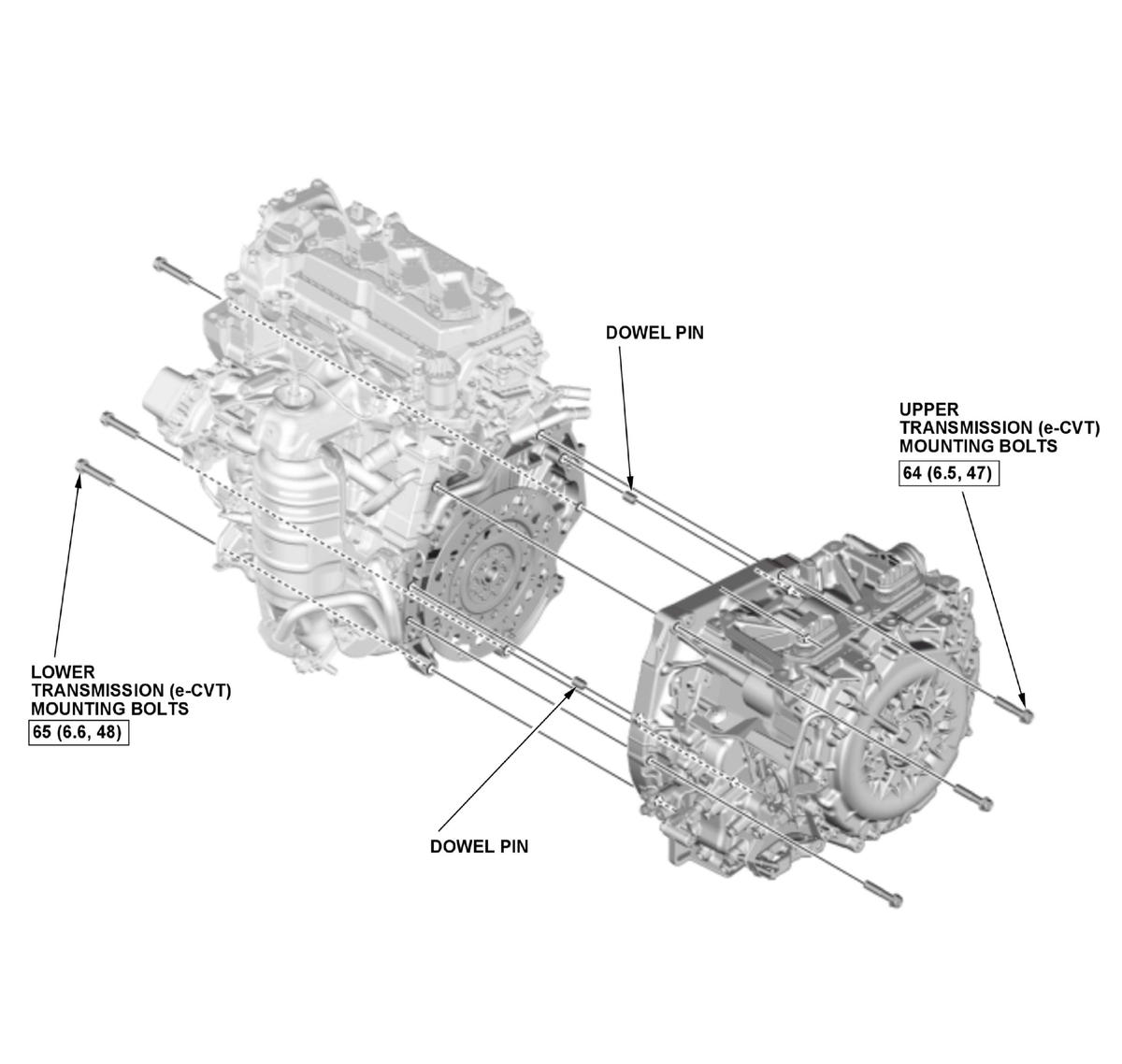

Fig 1: Transmission (e-CVT) Mounting Bolts And Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
