Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

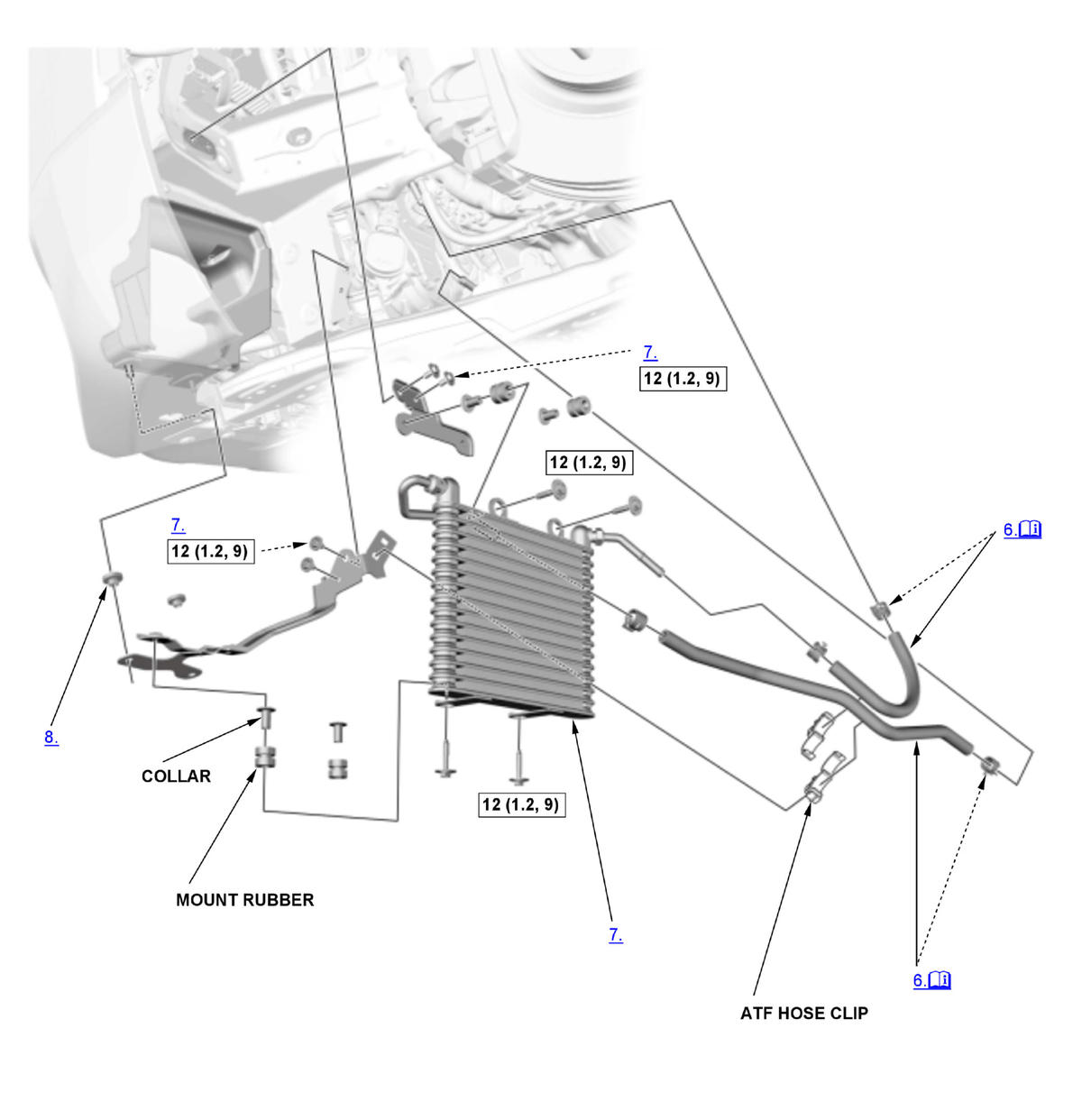

Fig 1: Exploded View Of ATF Cooler Components With Torque Specifications (1 Of 2)
GHH374909Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

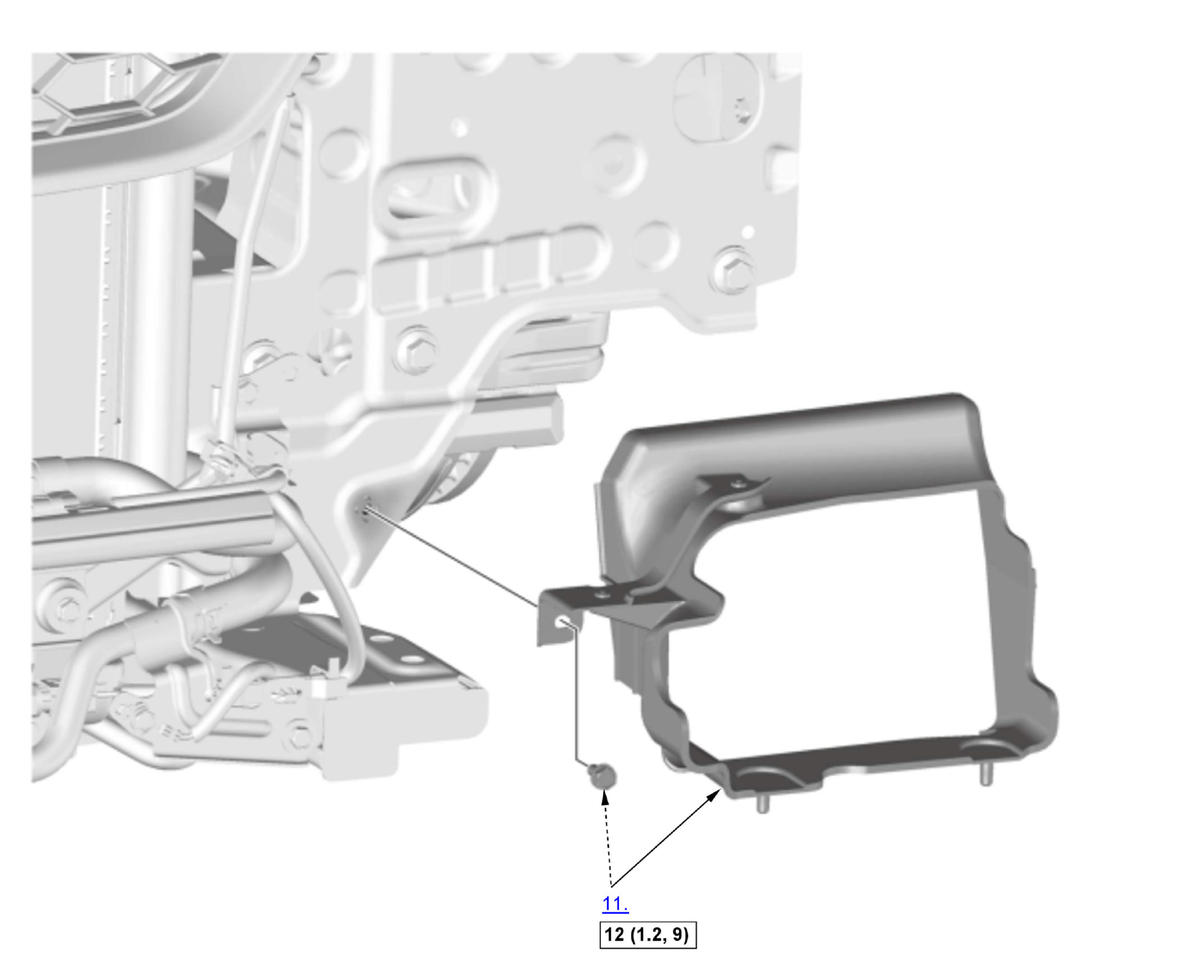

Fig 2: Exploded View Of ATF Cooler Components With Torque Specifications (2 Of 2)
GHH374910Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Vehicle - Lift
  2. Engine Undercover - Remove
  3. ATF - Drain
  4. Left Front Wheel - Remove
  5. Left Front Inner Fender - Remove
  6. ATF Hose - Disconnect (Transmission Side)
    GHH374911Courtesy of HONDA, U.S.A., INC.

    Note for installation

    • Connect the hoses until the hose end contacts the bulge (A).
    • Secure the hoses with the clamps at 6.0-8.0 mm (0.236-0.315 in) (B) from the hose ends, and make sure they do not interfere with the surrounding parts.
  7. ATF Cooler Assembly - Remove
  8. Intake Cover Mount Rubber - Remove
  9. ATF Cooler Assembly - Disassembly (If Necessary)
  10. Front Bumper - Remove
  11. ATF Cooler Guide - Remove
  12. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  13. ATF - Refill
