Transfer Assembly Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

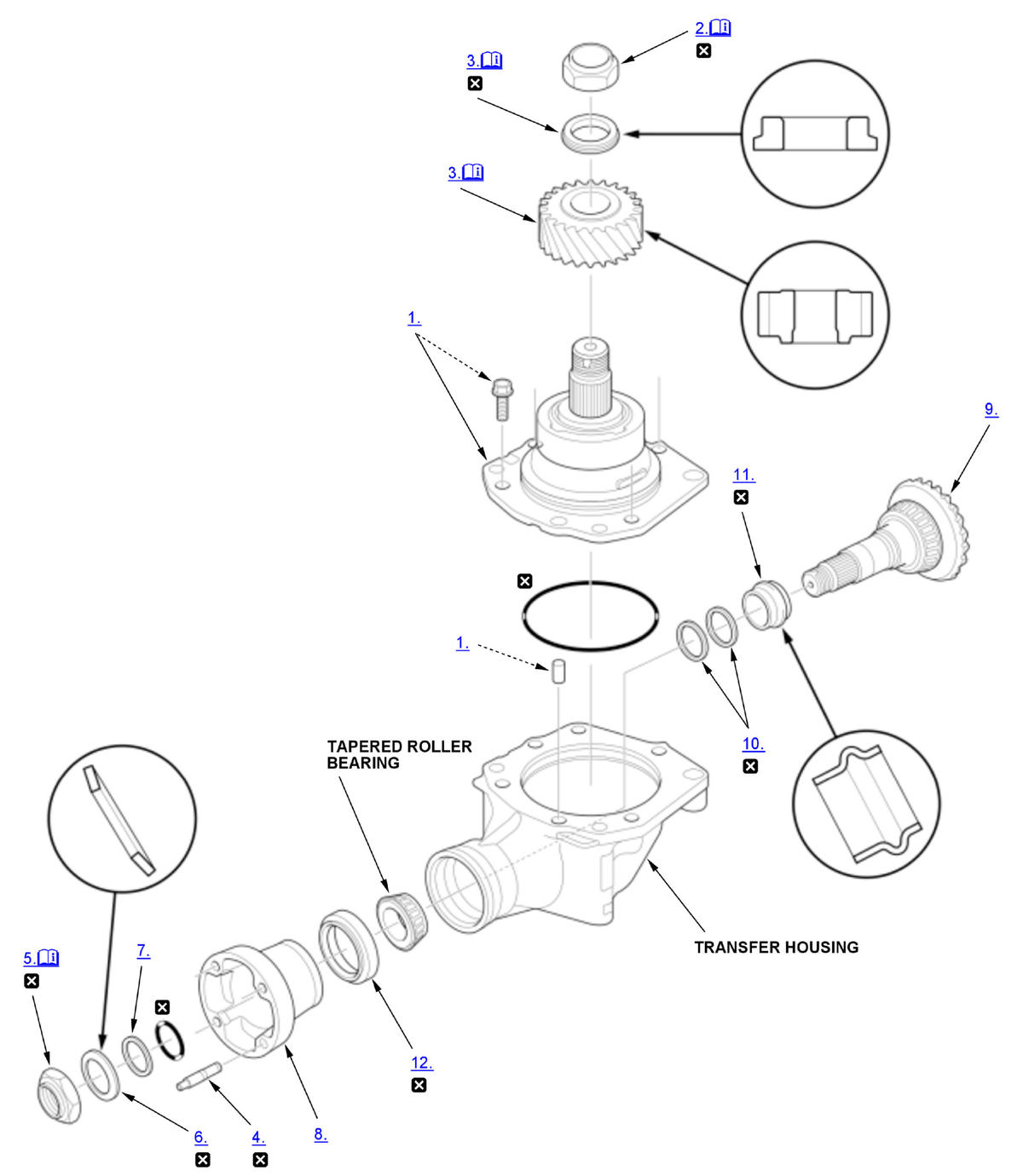

Fig 1: Exploded View Of Transfer Assembly Disassembly Components
GHH374835Courtesy of HONDA, U.S.A., INC.
Replace
  1. Transfer Hypoid Drive Gear/Shaft Assembly - Remove
  2. Locknut - Remove
    GHH374836Courtesy of HONDA, U.S.A., INC.
    		 1. Using a chisel, cut the lock tab (A) of the locknut (B).
    NOTE:  Be careful not to damage the shaft.

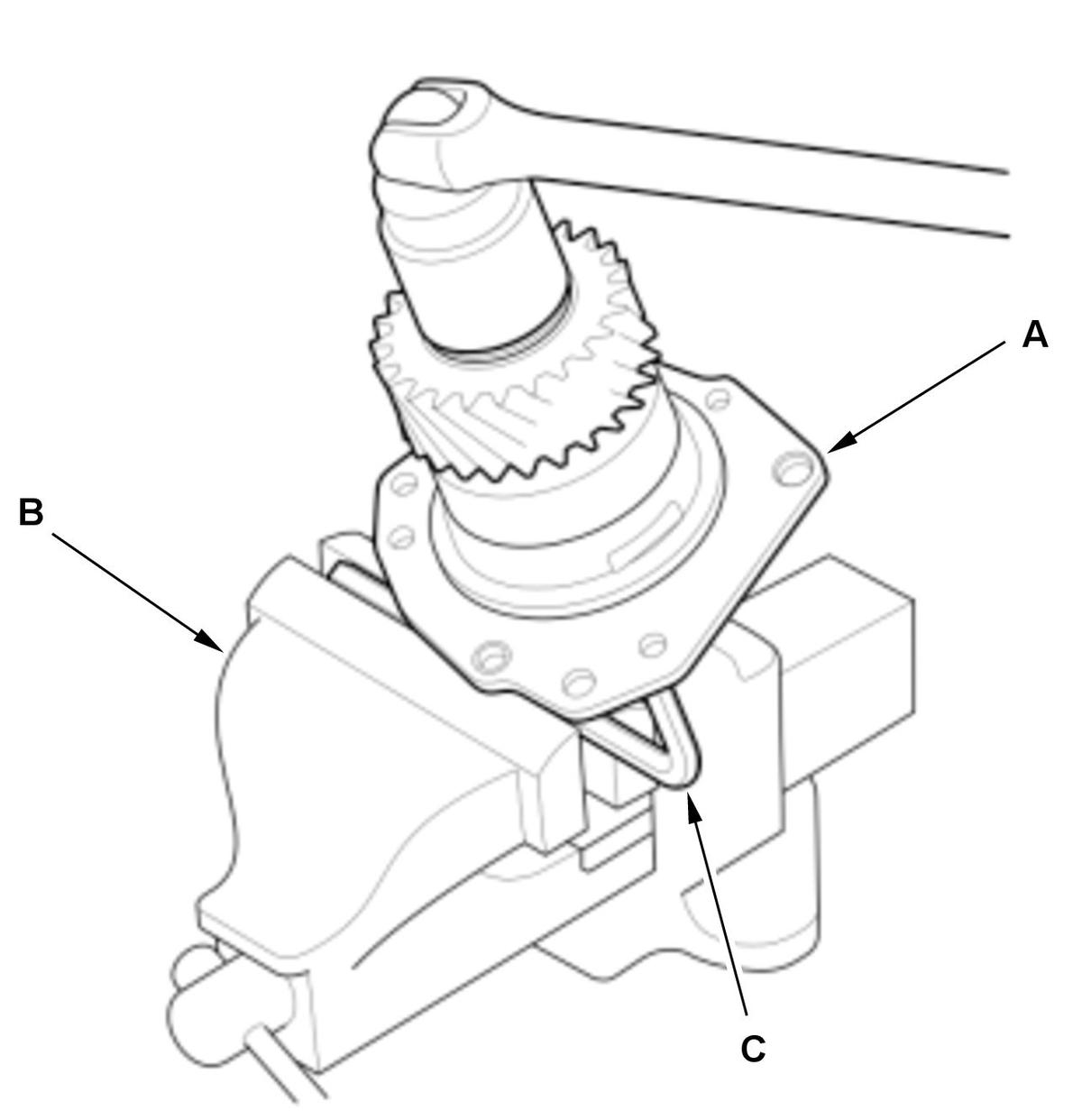

    GHH374837Courtesy of HONDA, U.S.A., INC.
    		 2. Secure the transfer hypoid drive gear/shaft assembly (A) in a bench vise (B) with hex wrench (C).

    3. Remove the locknut.
  3. Transfer Driven Gear and Washer - Remove

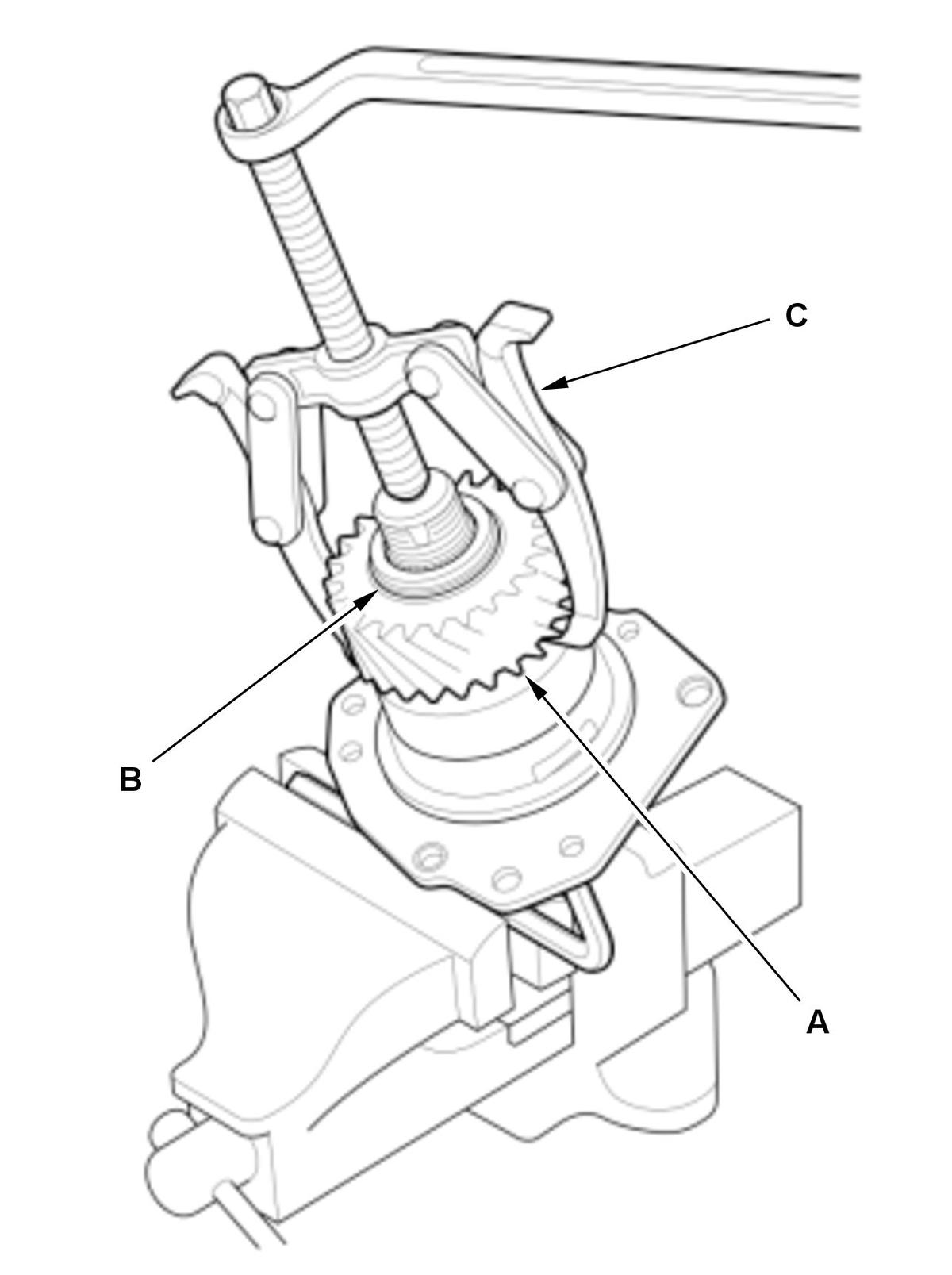

    GHH374838Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the transfer driven gear (A) and the washer (B) using a puller (C).
  4. Stud Bolt - Remove
  5. Locknut - Remove

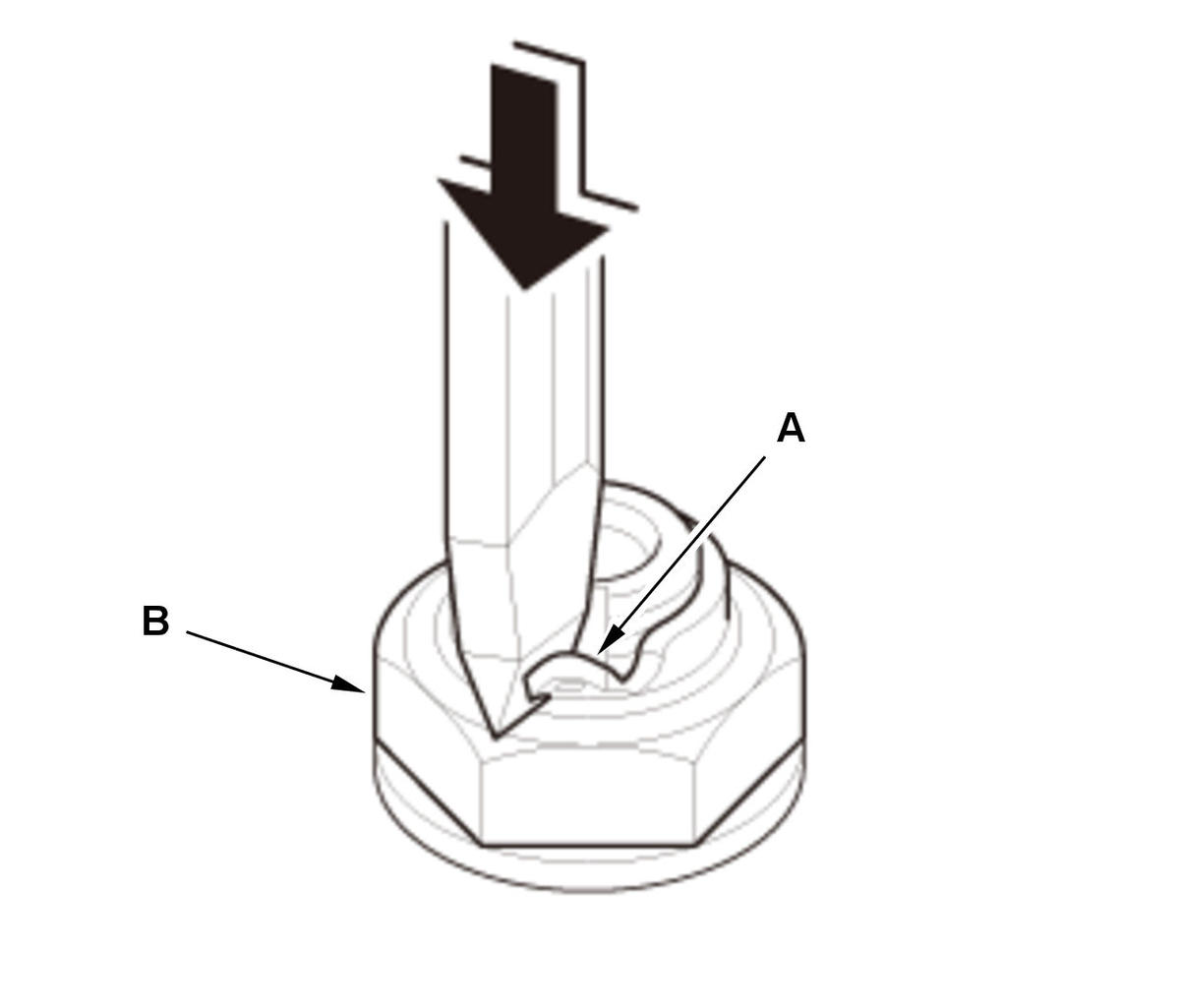

    GHH374839Courtesy of HONDA, U.S.A., INC.
    		 1. Using a chisel, cut the lock tab (A) of the locknut (B).
    NOTE:  Be careful not to damage the shaft.

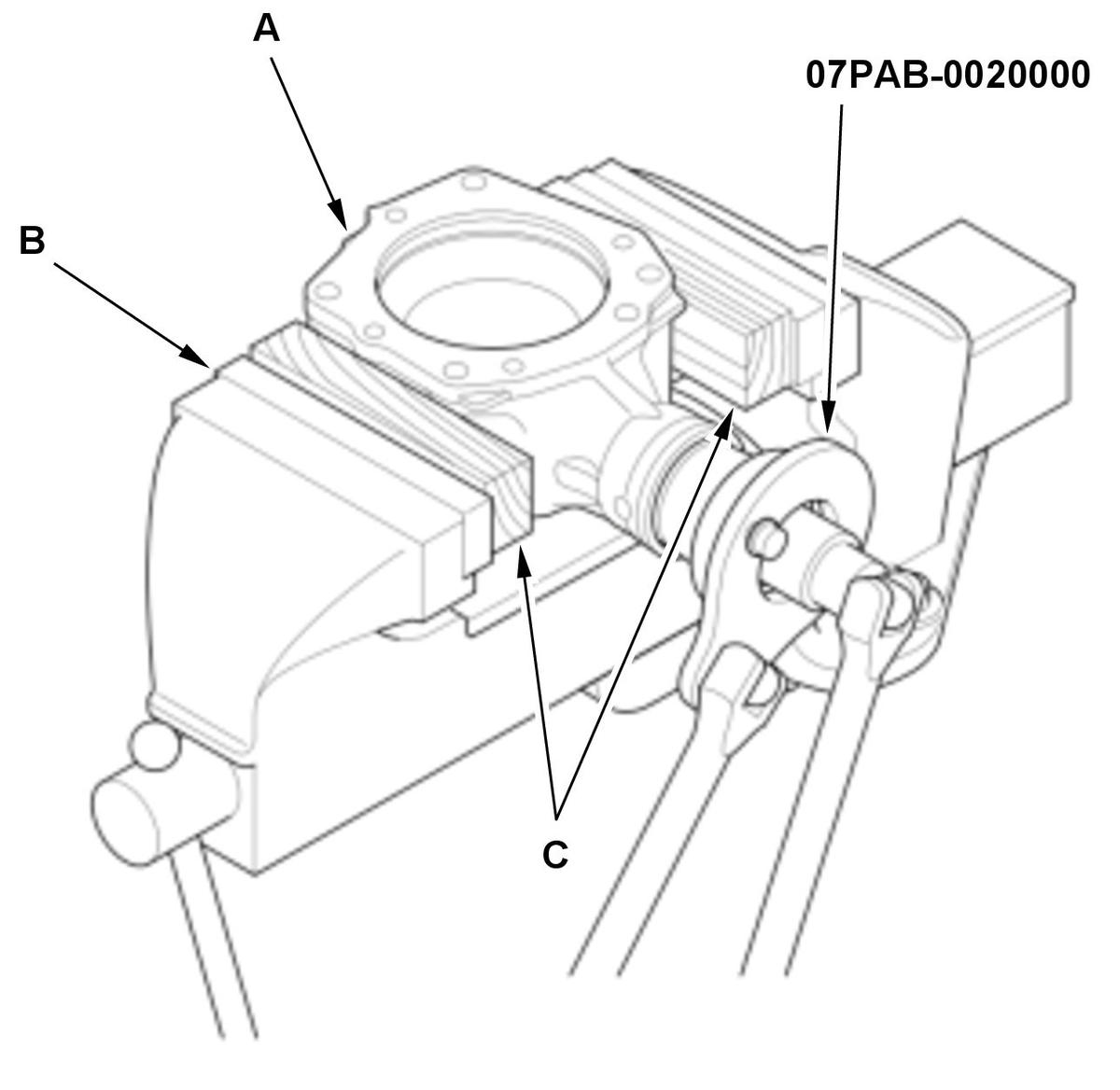

    GHH374840Courtesy of HONDA, U.S.A., INC.
    		 2. Secure the transfer housing (A) in a bench vise (B).

    NOTE:  To prevent damaging, always use wood blocks (C) or equivalent materials between the transfer housing and the bench vise.

    3. Set the companion holder on the companion flange, then loosen the locknut.

    4. Remove the companion holder.

    5. Remove the locknut.
  6. Conical Spring Washer - Remove
  7. Back-Up Ring - Remove
  8. Companion Flange - Remove
  9. Transfer Hypoid Driven Gear - Remove
  10. Thrust Washer - Remove
  11. Transfer Spacer - Remove
  12. Transfer Oil Seal - Remove
