Differential Disassembly and Reassembly: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

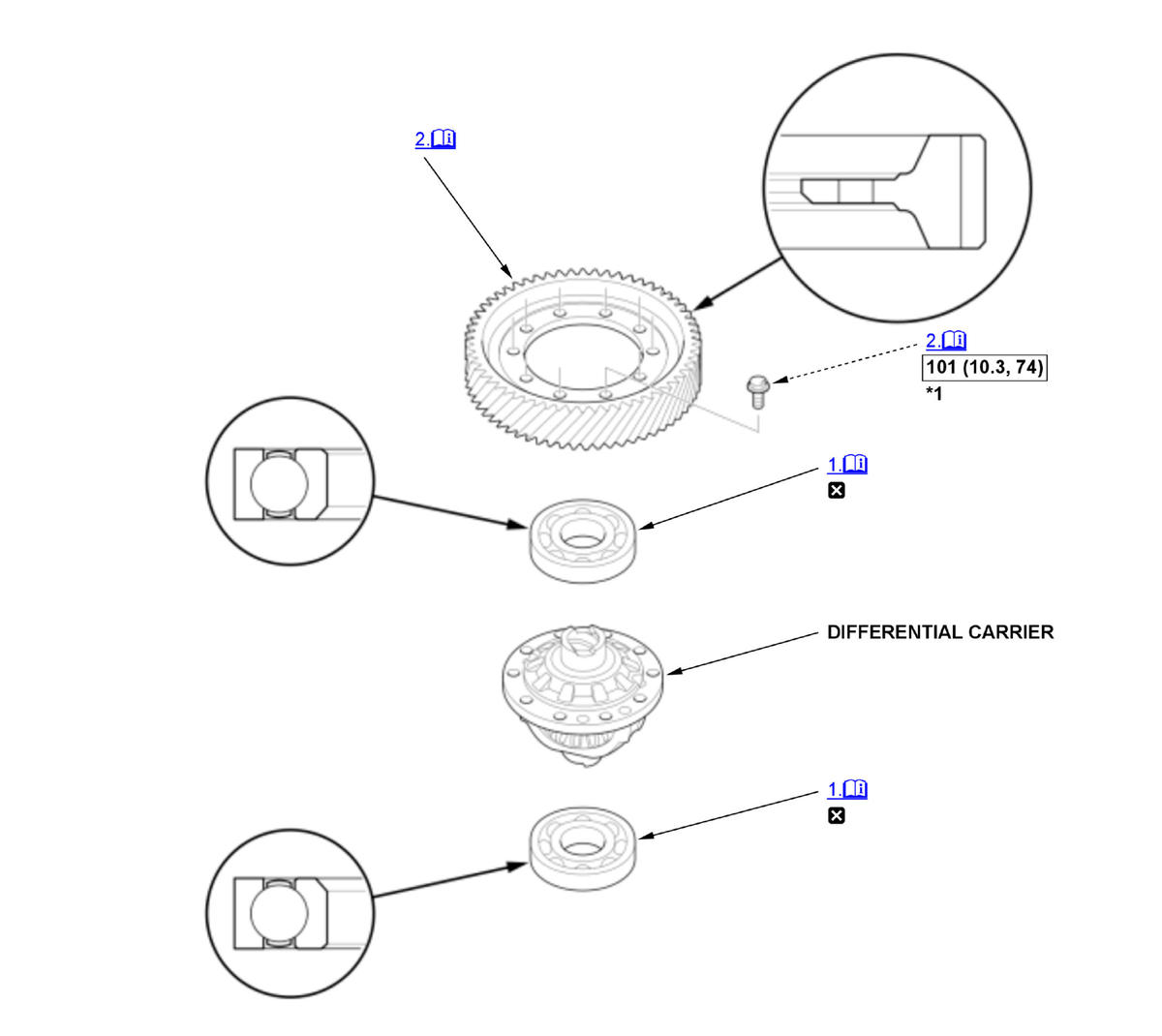

Fig 1: Exploded View Of Differential Reassembly Components With Torque Specifications
GHH374829Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
*1 Left-hand threads
  1. Differential Carrier Bearing - Install

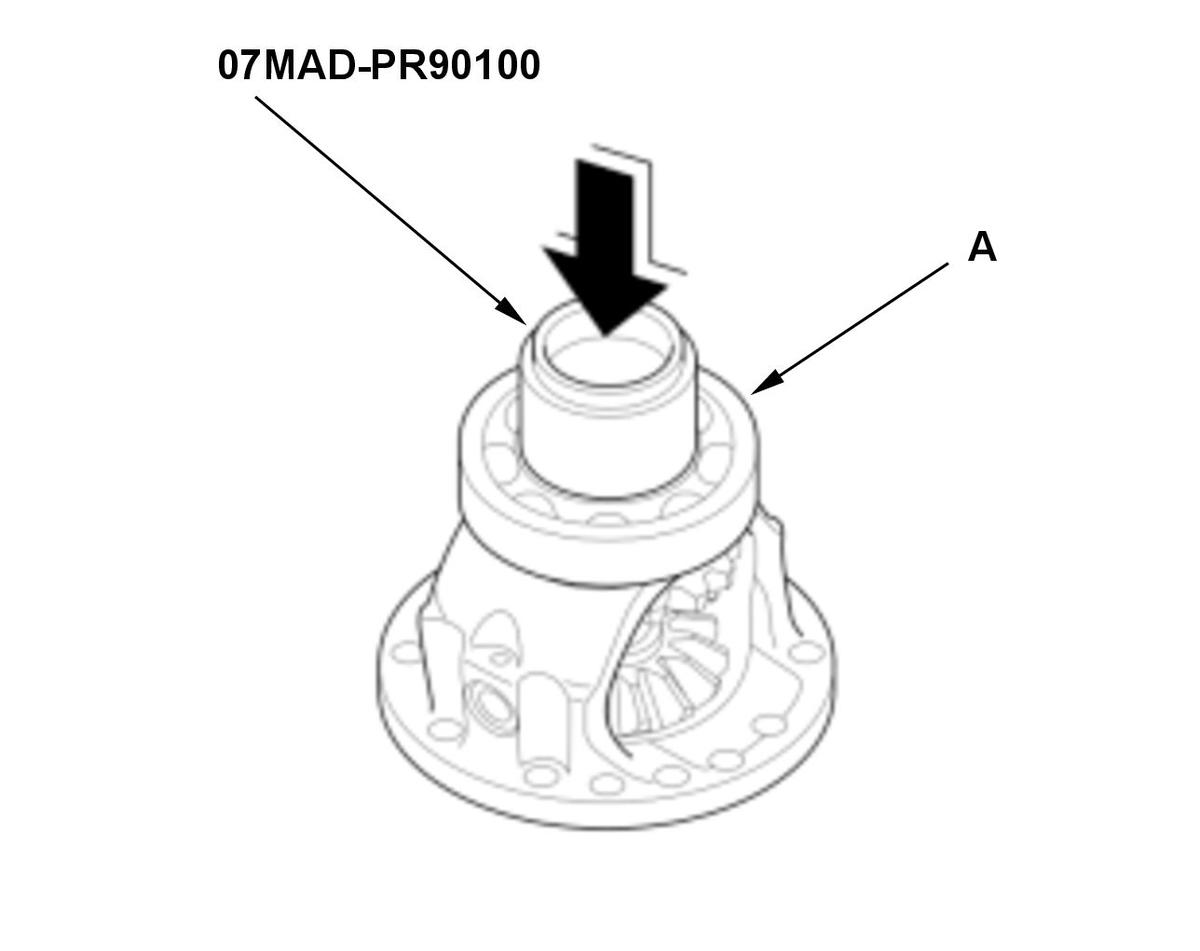

    Flywheel Housing Side

    GHH374830GHH374831Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

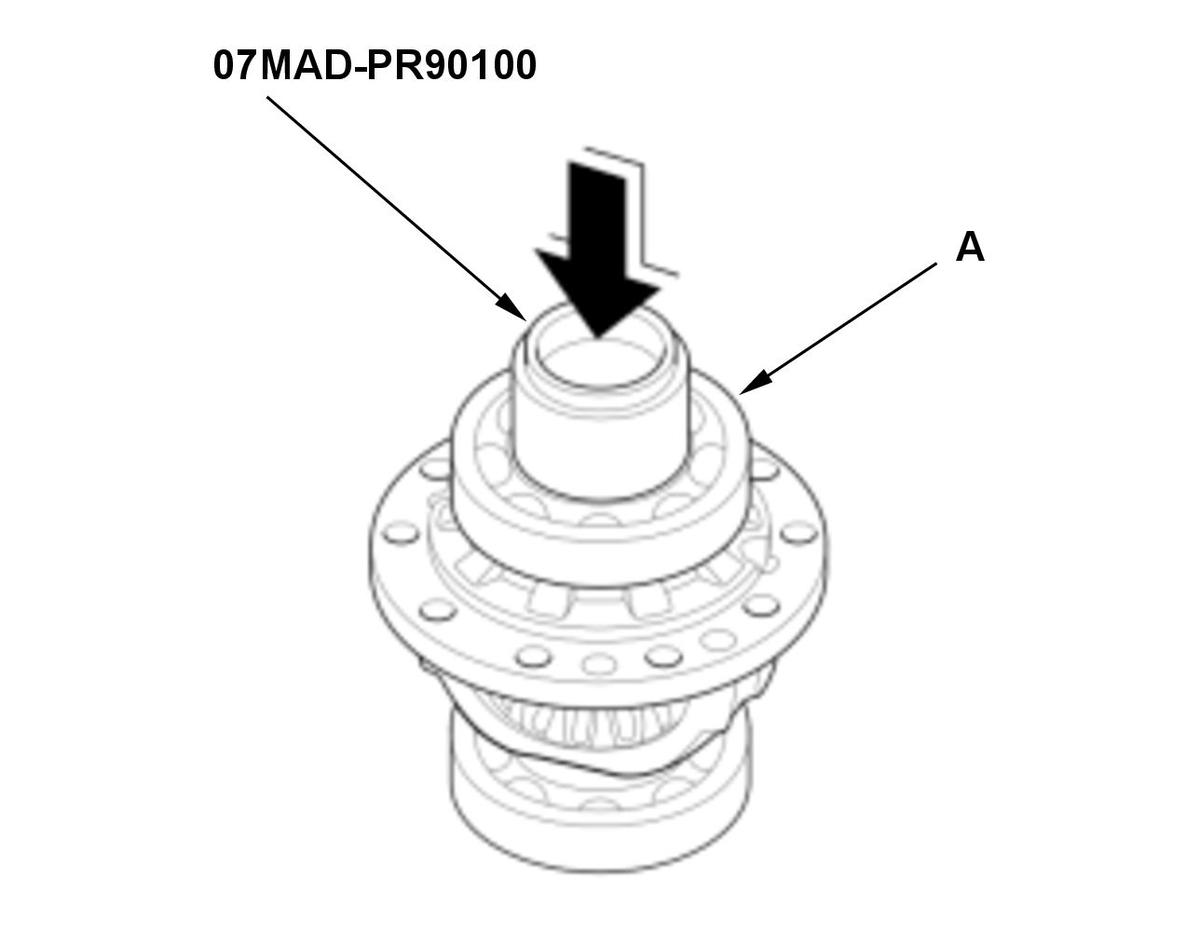

    Transmission Housing Side

    GHH374830GHH374831Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Install the differential carrier bearings (A) until it bottoms using the 45 x 55 mm installer attachment and a press.
    NOTE:  Make sure the differential carrier bearing is installed in the correct direction.
  2. Final Driven Gear - Install

    NOTE:

    • Make sure the final driven gear is installed in the correct direction.
    • Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.
