Differential Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

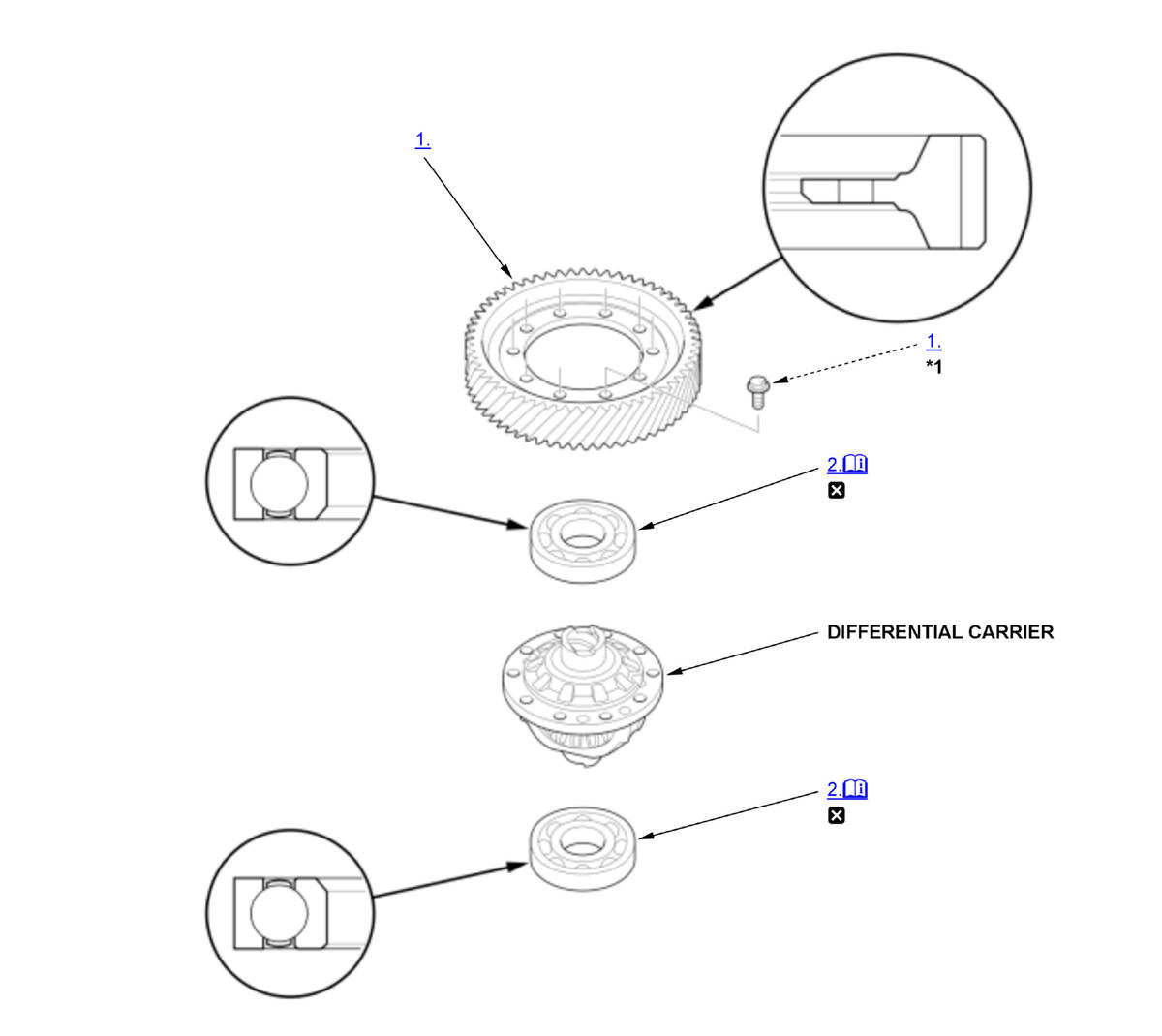

Fig 1: Exploded View Of Differential Disassembly Components

Courtesy of HONDA, U.S.A., INC.

	Replace
*1	Left-hand threads

Differential Carrier Bearing - Remove

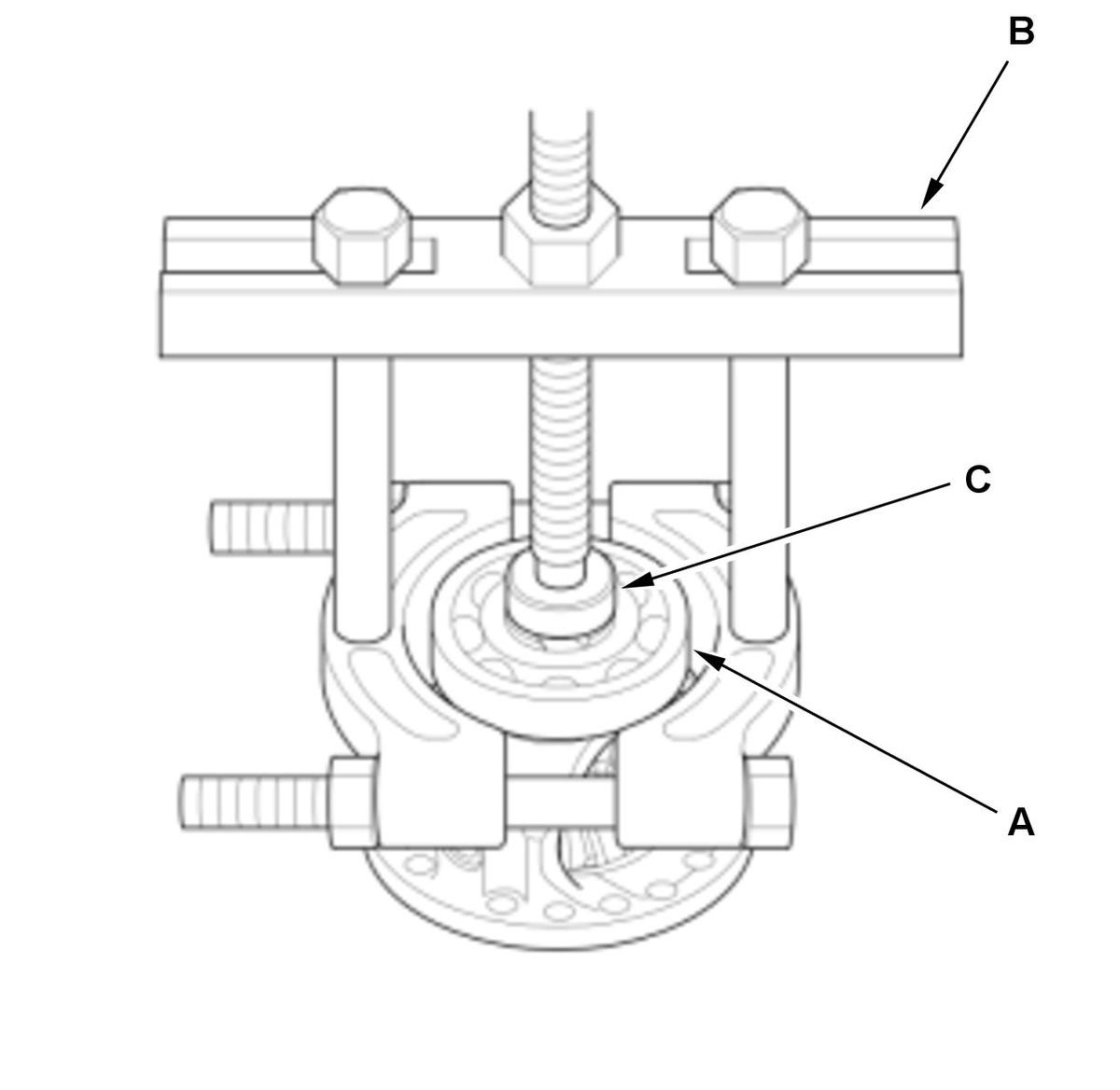

Flywheel Housing Side

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

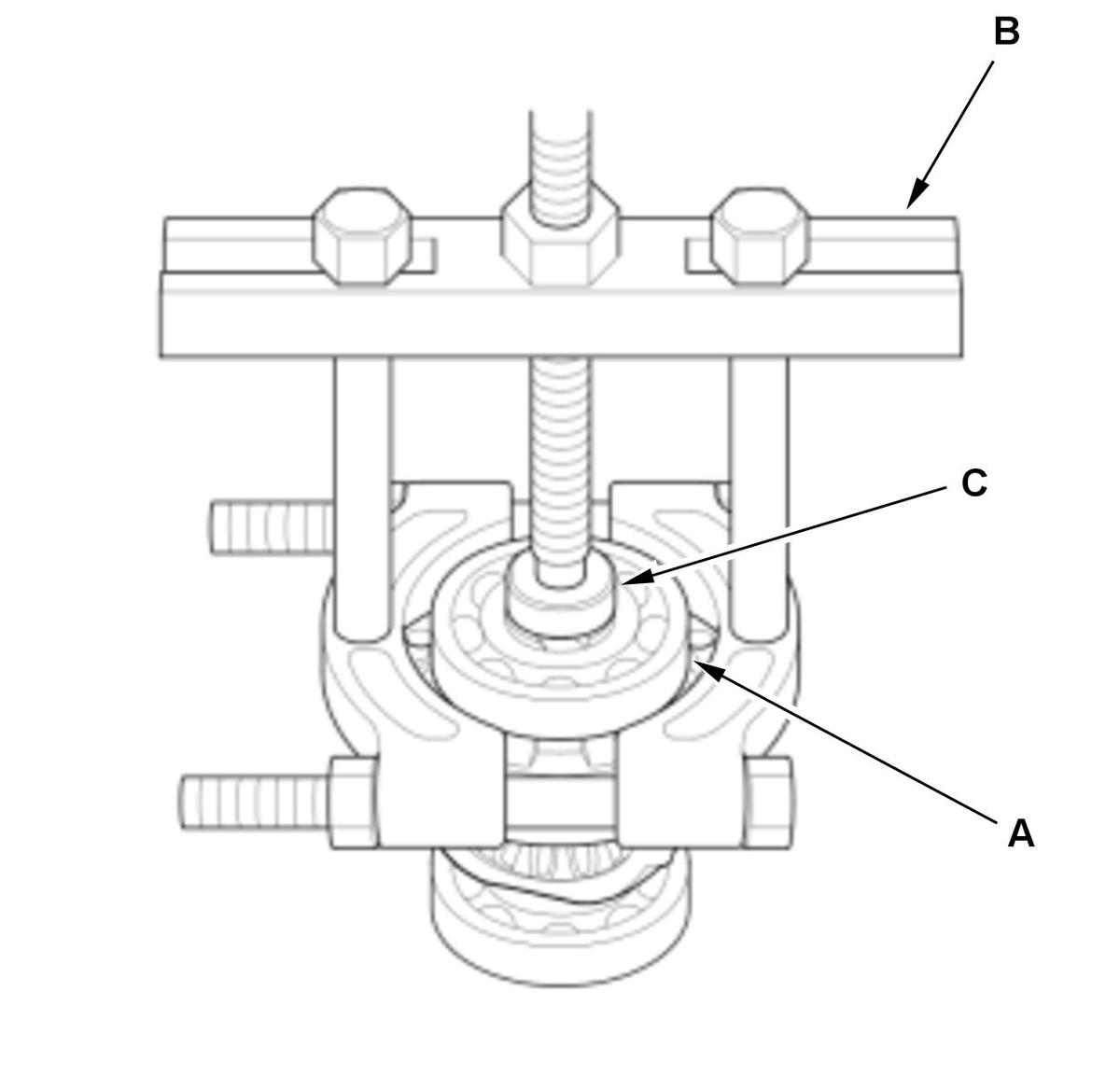

Transmission Housing Side

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Remove the differential carrier bearings (A) using a commercially available bearing puller (B) and a commercially available spacer (C).
