Countershaft Disassembly and Reassembly: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

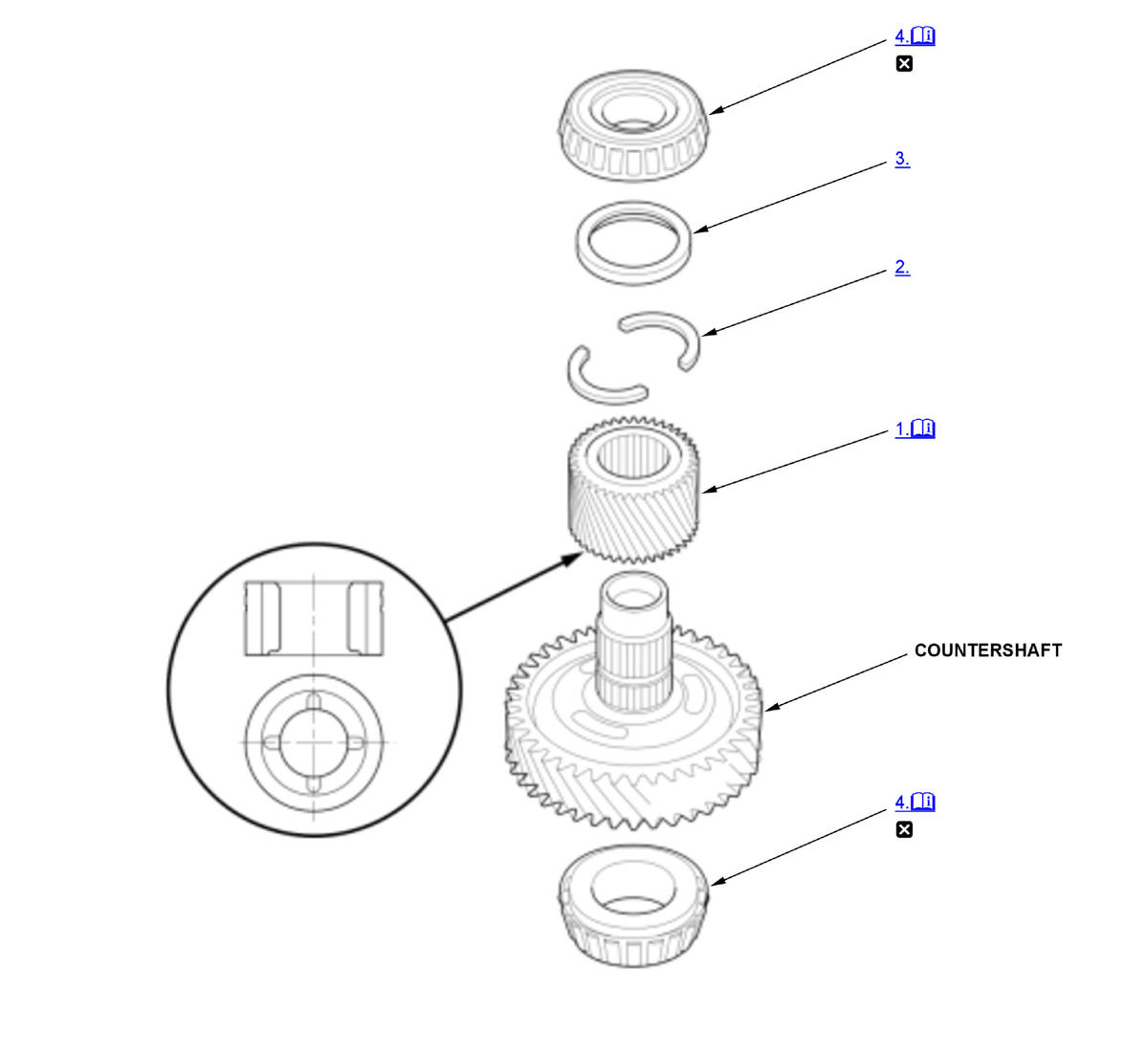

Fig 1: Exploded View Of Countershaft Reassembly Components
GHH374822Courtesy of HONDA, U.S.A., INC.
Replace
  1. Final Drive Gear - Install

    NOTE:  Make sure the final drive gear is installed in the correct direction.

  2. Cotter - Install
  3. Cotter Retainer - Install
  4. Countershaft Bearing - Install

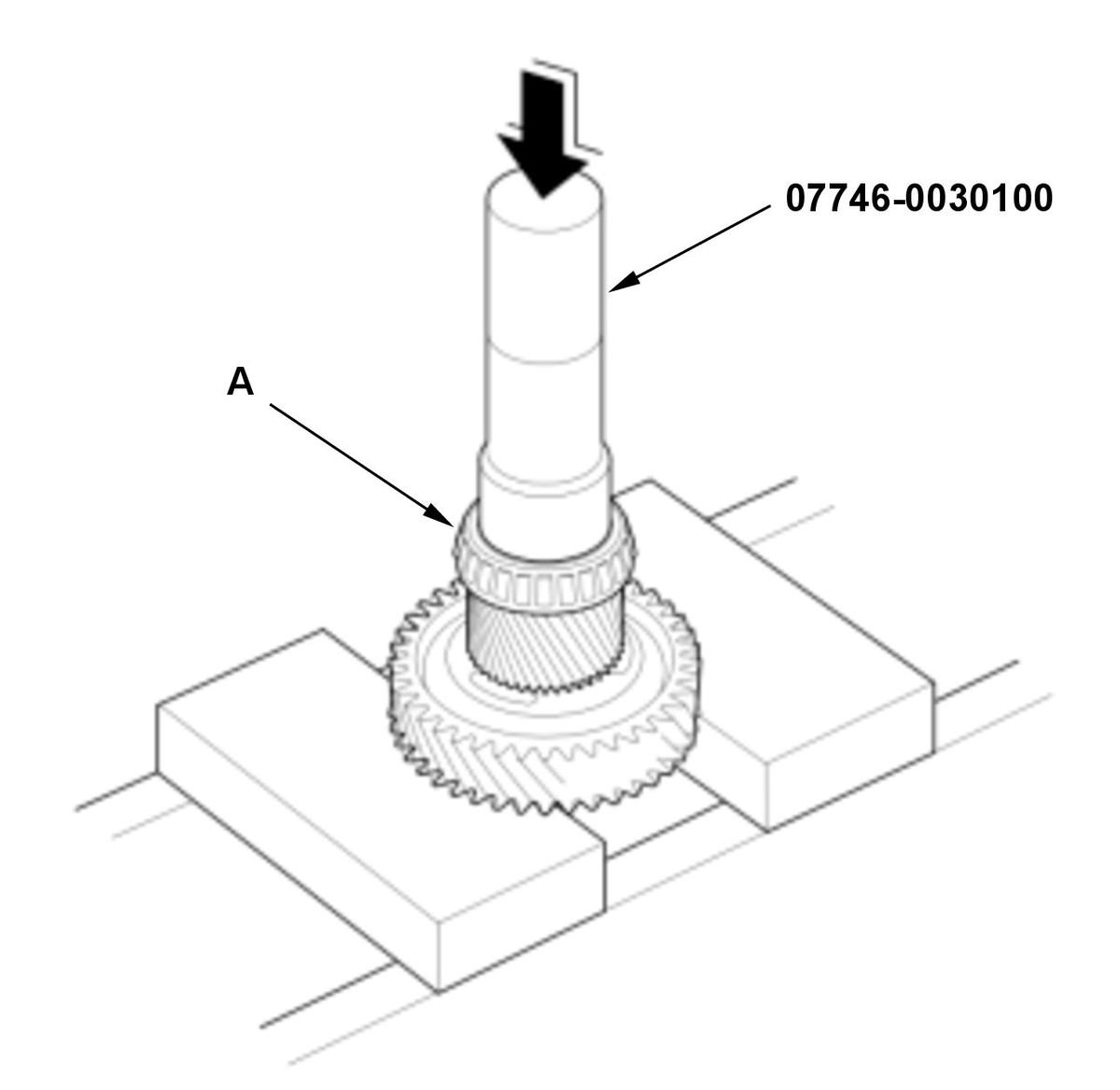

    GHH374823Courtesy of HONDA, U.S.A., INC.
    		 Flywheel Housing Side

    1. Install the countershaft bearing (A) until it bottoms using the 40 mm I.D. driver handle and a press.

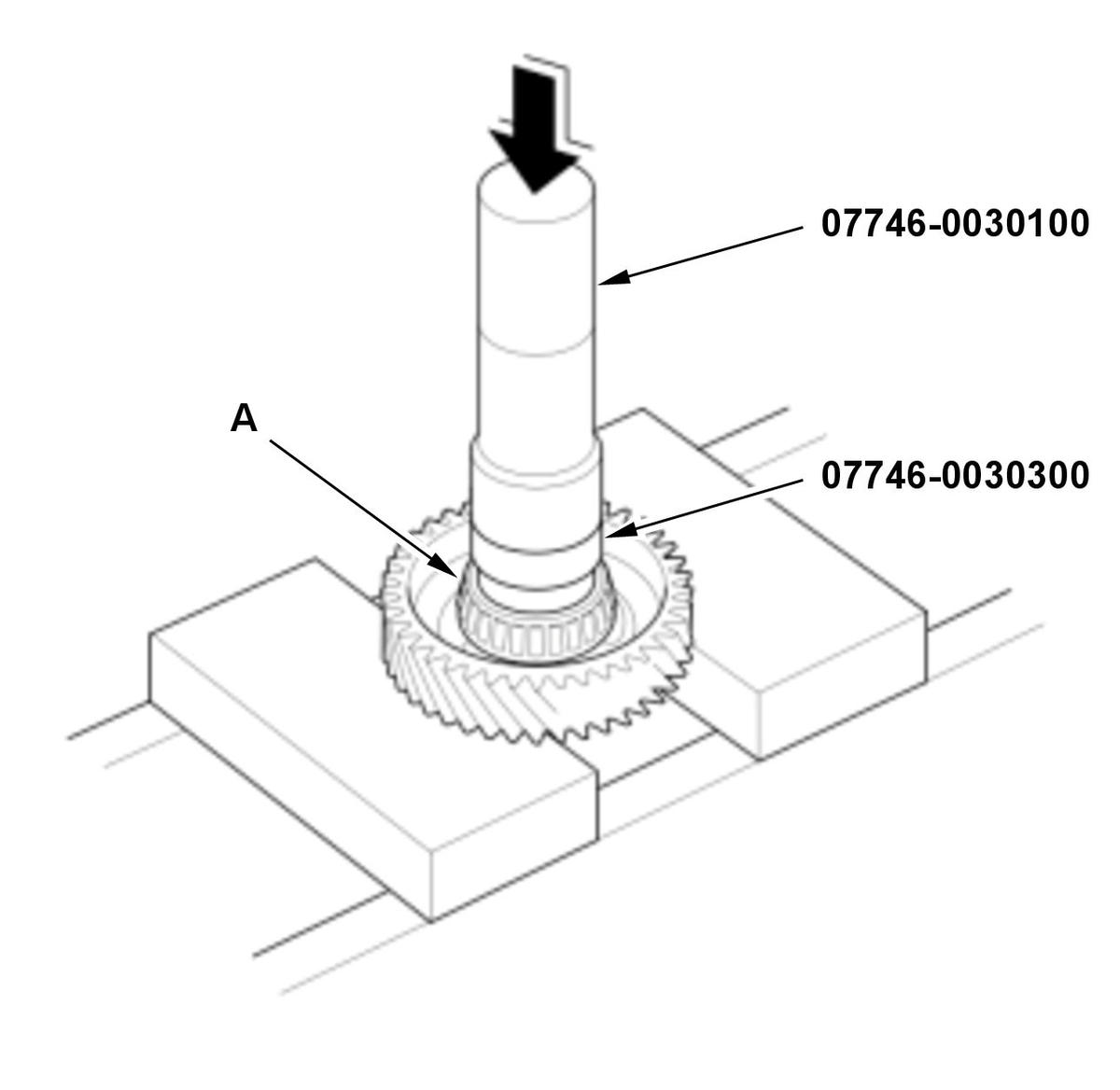

    GHH374824Courtesy of HONDA, U.S.A., INC.
    		 Transmission Housing Side

    2. Install the countershaft bearing (A) until it bottoms using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press.
